Canon 1200D vs XTi

The Canon EOS 1200D (called Canon T5 in some regions) and the Canon EOS Rebel XTi (labelled Canon 400D in some countries) are two digital cameras that were announced, respectively, in February 2014 and August 2006. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The 1200D has a resolution of 17.9 megapixels, whereas the XTi provides 10.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 1200D		Canon XTi
Digital single lens reflex		Digital single lens reflex
Canon EF mount lenses		Canon EF mount lenses
17.9 MP – APS-C sensor		10.1 MP – APS-C sensor
1080/30p Video		no Video
ISO 100-6,400 (100 - 12,800)		ISO 100-1,600
Optical viewfinder		Optical viewfinder
3.0" LCD – 460k dots		2.5" LCD – 230k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3 shutter flaps per second		3 shutter flaps per second
500 shots per battery charge		370 shots per battery charge
130 x 100 x 78 mm, 480 g		127 x 84 x 65 mm, 556 g

Check 1200D offers at
ebay.com
Check XTi offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 1200D and the Canon EOS Rebel XTi? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

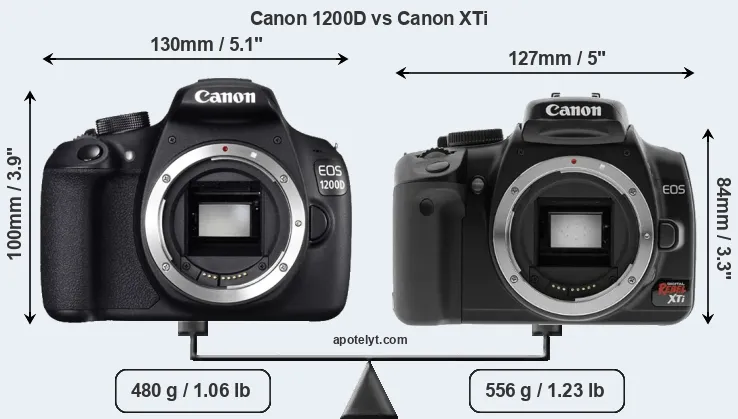

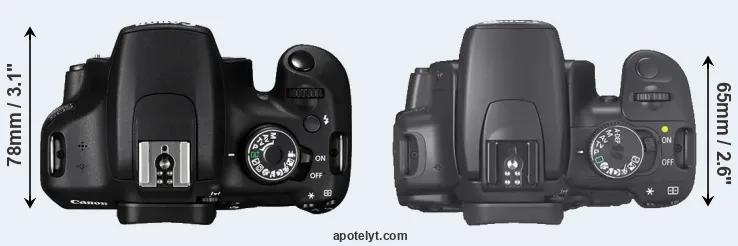

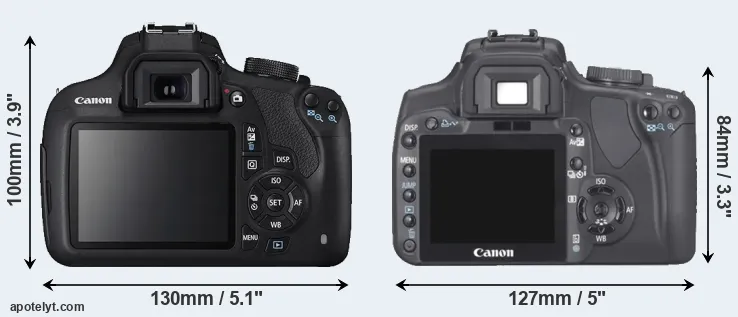

The physical size and weight of the Canon 1200D and the Canon XTi are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon XTi is notably smaller (18 percent) than the Canon 1200D. However, the XTi is markedly heavier (16 percent) than the 1200D. In this context, it is worth noting that neither the 1200D nor the XTi are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Canon EF Lens Catalog.

Concerning battery life, the 1200D gets 500 shots out of its Canon LP-E10 battery, while the XTi can take 370 images on a single charge of its Canon NB-2LH power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 1200D	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	EUR 399	ebay.com
2.		Canon XTi	127 mm	84 mm	65 mm	556 g	370	n	Aug 2006	EUR 799	ebay.com
3.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	EUR 1 299	ebay.com
4.		Canon 100D	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	EUR 499	ebay.com
5.		Canon 650D	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	EUR 799	ebay.com
6.		Canon 700D	133 mm	100 mm	79 mm	580 g	440	n	Mar 2013	EUR 599	ebay.com
7.		Canon 750D	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	EUR 699	ebay.com
8.		Canon 760D	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	EUR 749	ebay.com
9.		Canon 1100D	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	EUR 399	ebay.com
10.		Canon 1300D	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	EUR 449	ebay.com
11.		Canon 4000D	129 mm	102 mm	77 mm	436 g	500	n	Feb 2018	EUR 399	amazon.com
12.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	EUR 499	ebay.com
13.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	EUR 499	ebay.com
14.		Canon T3	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	EUR 399	ebay.com
15.		Canon T4i	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	EUR 799	ebay.com
16.		Canon XS	126 mm	98 mm	65 mm	502 g	500	n	Jun 2008	EUR 399	ebay.com
17.		Canon XT	127 mm	94 mm	64 mm	540 g	400	n	Feb 2005	EUR 899	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 1200D was launched at a markedly lower price (by 44 percent) than the XTi, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

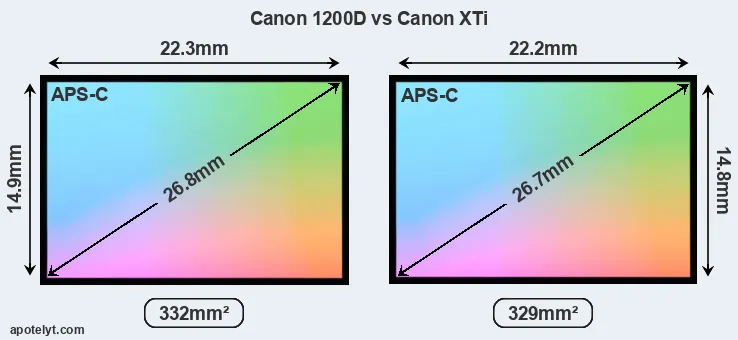

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the XTi is 1 percent smaller. They nevertheless have the same format factor of 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

In terms of chip-set technology, the 1200D uses a more advanced image processing engine (DIGIC 4) than the XTi (DIGIC II), with benefits for noise reduction, color accuracy, and processing speed.

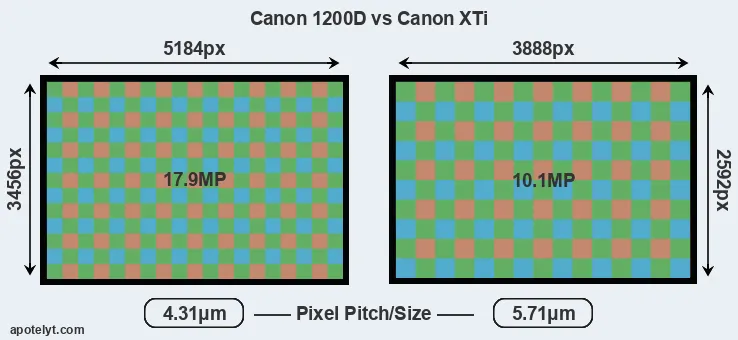

With 17.9MP, the 1200D offers a higher resolution than the XTi (10.1MP), but the 1200D has smaller individual pixels (pixel pitch of 4.31μm versus 5.71μm for the XTi). However, the 1200D is a much more recent model (by 7 years and 5 months) than the XTi, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon 1200D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 1200D for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Canon XTi are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.

The Canon EOS 1200D has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Canon EOS Rebel XTi are ISO 100 to ISO 1600 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 1200D	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
2.		Canon XTi	APS-C	10.1	3888	2592	none	22.1	11.0	664	62
3.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
4.		Canon 100D	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
5.		Canon 650D	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
6.		Canon 700D	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	681	61
7.		Canon 750D	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
8.		Canon 760D	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
9.		Canon 1100D	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
10.		Canon 1300D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
11.		Canon 4000D	APS-C	17.9	5184	3456	1080/30p	21.9	11.4	695	63
12.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
13.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
14.		Canon T3	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
15.		Canon T4i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
16.		Canon XS	APS-C	10.1	3888	2592	none	22.0	10.9	719	62
17.		Canon XT	APS-C	8.0	3456	2304	none	21.8	10.8	637	60

Many modern cameras are not only capable of taking still images, but can also record movies. The 1200D indeed provides movie recording capabilities, while the XTi does not. The highest resolution format that the 1200D can use is 1080/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The 1200D and the XTi are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (95%), but the viewfinder of the 1200D has a higher magnification than the one of the XTi (0.50x vs 0.49x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 1200D and Canon XTi in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 1200D	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
2.		Canon XTi	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
3.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
4.		Canon 100D	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
5.		Canon 650D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
6.		Canon 700D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
7.		Canon 750D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
8.		Canon 760D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
9.		Canon 1100D	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
10.		Canon 1300D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
11.		Canon 4000D	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
12.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
13.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
14.		Canon T3	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
15.		Canon T4i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
16.		Canon XS	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
17.		Canon XT	optical	n	1.8 / 115	fixed	n	1/4000s	3.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The 1200D writes its imaging data to SDXC cards, while the XTi uses Compact Flash cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 1200D and Canon EOS Rebel XTi and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 1200D	Y	mono / mono	-	-	mini	2.0	-	-	-
2.		Canon XTi	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
4.		Canon 100D	Y	mono / mono	Y	-	mini	2.0	-	-	-
5.		Canon 650D	Y	stereo / mono	Y	-	mini	2.0	-	-	-
6.		Canon 700D	Y	stereo / mono	Y	-	mini	2.0	-	-	-
7.		Canon 750D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
8.		Canon 760D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
9.		Canon 1100D	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Canon 1300D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
11.		Canon 4000D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
12.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
13.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
14.		Canon T3	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Canon T4i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Canon XS	Y	- / -	-	-	-	2.0	-	-	-
17.		Canon XT	Y	- / -	-	-	-	2.0	-	-	-

Both the 1200D and the XTi have been discontinued, but can regularly be found used on ebay. The XTi was replaced by the Canon Xsi, while the 1200D was followed by the Canon 1300D. Further information on the features and operation of the 1200D and XTi can be found, respectively, in the Canon 1200D Manual (free pdf) or the online Canon XTi Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon 1200D or the Canon XTi – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Canon EOS 1200D:

• More detail: Offers more megapixels (17.9 vs 10.1MP) with a 33% higher linear resolution.
• Better jpgs: Has a more modern image processing engine (DIGIC 4 vs DIGIC II).
• Broader imaging potential: Can record not only still images but also 1080/30p movies.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.50x vs 0.49x).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (460k vs 230k dots).
• Less heavy: Is lighter (by 76g or 14 percent) and hence easier to carry around.
• Longer lasting: Can take more shots (500 versus 370) on a single battery charge.
• More affordable: Was introduced into a lower priced category (44 percent cheaper at launch).
• More modern: Reflects 7 years and 5 months of technical progress since the XTi launch.

Reasons to prefer the Canon EOS Rebel XTi:

• More compact: Is smaller (127x84mm vs 130x100mm) and will fit more readily into a bag.
• More heavily discounted: Has been around for much longer (launched in August 2006).

If the number of relative strengths (bullet points above) is taken as a guide, the 1200D is the clear winner of the match-up (10 : 2 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 1200D and the Canon XTi place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 1200D and the XTi in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 1200D	3/5	+	..	..	4/5	4.5/5	Feb 2014	EUR 399	ebay.com
2.		Canon XTi	..	+ +	..	+ +	o	4/5	Aug 2006	EUR 799	ebay.com
3.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	EUR 1 299	ebay.com
4.		Canon 100D	4/5	+	..	78/100	4/5	4/5	Mar 2013	EUR 499	ebay.com
5.		Canon 650D	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	EUR 799	ebay.com
6.		Canon 700D	..	..	..	76/100	4.5/5	4.5/5	Mar 2013	EUR 599	ebay.com
7.		Canon 750D	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	EUR 699	ebay.com
8.		Canon 760D	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	EUR 749	ebay.com
9.		Canon 1100D	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	EUR 399	ebay.com
10.		Canon 1300D	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	EUR 449	ebay.com
11.		Canon 4000D	2.5/5	o	3/5	..	3.5/5	3.5/5	Feb 2018	EUR 399	amazon.com
12.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	EUR 499	ebay.com
13.		Canon M10	..	..	..	..	..	4/5	Oct 2015	EUR 499	ebay.com
14.		Canon T3	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	EUR 399	ebay.com
15.		Canon T4i	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	EUR 799	ebay.com
16.		Canon XS	..	82/100	..	+ +	3.5/5	4.5/5	Jun 2008	EUR 399	ebay.com
17.		Canon XT	..	80/100	..	+ +	o	..	Feb 2005	EUR 899	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
