Canon 400D vs Olympus Stylus 1

The Canon EOS 400D (called Canon XTi in some regions) and the Olympus Stylus 1 are two digital cameras that were announced, respectively, in August 2006 and October 2013. The 400D is a DSLR, while the Stylus 1 is a fixed lens compact. The cameras are based on an APS-C (400D) and a 1/1.7-inch (Stylus 1) sensor. The Canon has a resolution of 10.1 megapixels, whereas the Olympus provides 11.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 400D		Olympus Stylus 1
Digital single lens reflex		Fixed lens compact camera
Canon EF mount lenses		28-300mm f/2.8
10.1 MP – APS-C sensor		11.8 MP – 1/1.7" sensor
no Video		1080/30p Video
ISO 100-1,600		ISO 100-12,800
Optical viewfinder		Electronic viewfinder (1440k dots)
2.5" LCD – 230k dots		3.0" LCD – 1040k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
3 shutter flaps per second		7 shutter flaps per second
370 shots per battery charge		410 shots per battery charge
127 x 84 x 65 mm, 556 g		116 x 87 x 57 mm, 402 g

Check 400D offers at
ebay.com
Check Stylus 1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 400D and the Olympus Stylus 1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

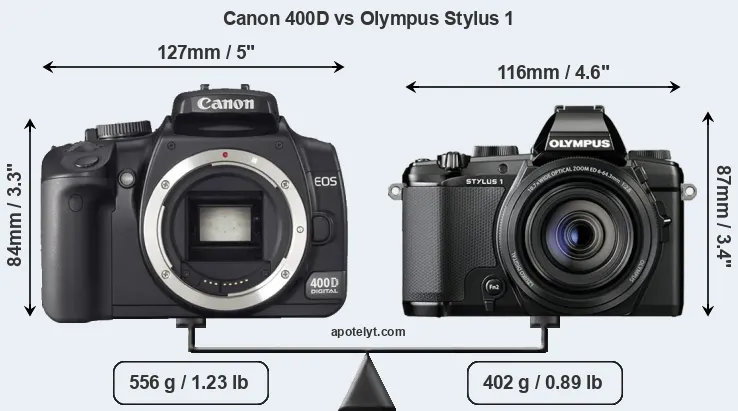

An illustration of the physical size and weight of the Canon 400D and the Olympus Stylus 1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus Stylus 1 is notably smaller (5 percent) than the Canon 400D. In this context, it is worth noting that neither the 400D nor the Stylus 1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the Stylus 1 has a lens built in, whereas the 400D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 400D and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the 400D gets 370 shots out of its Canon NB-2LH battery, while the Stylus 1 can take 410 images on a single charge of its Olympus BLS-5 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 400D	127 mm	84 mm	65 mm	556 g	370	n	Aug 2006	US$ 799	ebay.com
2.		Olympus Stylus 1	116 mm	87 mm	57 mm	402 g	410	n	Oct 2013	US$ 699	ebay.com
3.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	US$ 1 299	ebay.com
4.		Canon 350D	127 mm	94 mm	64 mm	540 g	400	n	Feb 2005	US$ 899	ebay.com
5.		Canon 450D	129 mm	98 mm	62 mm	524 g	500	n	Jan 2008	US$ 799	ebay.com
6.		Canon 500D	129 mm	98 mm	62 mm	520 g	400	n	Mar 2009	US$ 799	ebay.com
7.		Canon 550D	129 mm	98 mm	62 mm	530 g	440	n	Feb 2010	US$ 699	ebay.com
8.		Canon 650D	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	US$ 849	ebay.com
9.		Canon 750D	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	US$ 749	ebay.com
10.		Canon 760D	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	US$ 649	ebay.com
11.		Canon 1100D	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	US$ 449	ebay.com
12.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	US$ 799	ebay.com
13.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
14.		Nikon D40X	124 mm	94 mm	64 mm	522 g	520	n	Mar 2007	US$ 729	ebay.com
15.		Nikon P7800	119 mm	78 mm	50 mm	399 g	350	n	Sep 2013	US$ 549	ebay.com
16.		Olympus Stylus 1s	116 mm	87 mm	57 mm	402 g	450	n	Apr 2015	US$ 699	ebay.com
17.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	US$ 599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The Stylus 1 was launched at a lower price than the 400D, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 400D features an APS-C sensor and the Olympus Stylus 1 a 1/1.7-inch sensor. The sensor area in the Stylus 1 is 87 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 4.5. The sensor in the 400D has a native 3:2 aspect ratio, while the one in the Stylus 1 offers a 4:3 aspect.

Despite having a smaller sensor, the Stylus 1 offers a higher resolution of 11.8 megapixels, compared with 10.1 MP of the 400D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.91μm versus 5.71μm for the 400D). However, it should be noted that the Stylus 1 is much more recent (by 7 years and 2 months) than the 400D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the Stylus 1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Olympus Stylus 1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the Stylus 1 for good quality output (200 dots per inch) amounts to 19.8 x 14.9 inches or 50.4 x 37.8 cm, for very good quality (250 dpi) 15.9 x 11.9 inches or 40.3 x 30.2 cm, and for excellent quality (300 dpi) 13.2 x 9.9 inches or 33.6 x 25.2 cm. The corresponding values for the Canon 400D are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.

The Canon EOS 400D has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Olympus Stylus 1 are ISO 100 to ISO 12800 (no boost).

In terms of underlying technology, the 400D is build around a CMOS sensor, while the Stylus 1 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the 400D provides substantially higher image quality than the Stylus 1, with an overall score that is 11 points higher. This advantage is based on 1.4 bits higher color depth, 0.6 EV of lower dynamic range, and 1.9 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 400D	APS-C	10.1	3888	2592	none	22.1	11.0	664	62
2.		Olympus Stylus 1	1/1.7	11.8	3968	2976	1080/30p	20.7	11.6	179	51
3.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
4.		Canon 350D	APS-C	8.0	3456	2304	none	21.8	10.8	637	60
5.		Canon 450D	APS-C	12.2	4272	2848	none	21.9	10.8	692	61
6.		Canon 500D	APS-C	15.1	4752	3168	1080/20p	21.7	11.5	663	63
7.		Canon 550D	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	784	66
8.		Canon 650D	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
9.		Canon 750D	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
10.		Canon 760D	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
11.		Canon 1100D	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
12.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
13.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
14.		Nikon D40X	APS-C	10.0	3872	2592	none	22.4	11.4	516	63
15.		Nikon P7800	1/1.7	12.0	4000	3000	1080/30p	21.2	11.7	200	54
16.		Olympus Stylus 1s	1/1.7	11.8	3968	2976	1080/30p	20.2	11.3	-111	47
17.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The Stylus 1 indeed provides for movie recording, while the 400D does not. The highest resolution format that the Stylus 1 can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the Stylus 1 has an electronic viewfinder (1440k dots), while the 400D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the Stylus 1 offers a wider field of view (100%) than the one in the 400D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the Stylus 1 has a higher magnification (0.58x vs 0.49x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 400D, the Olympus Stylus 1, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 400D	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
2.		Olympus Stylus 1	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
3.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
4.		Canon 350D	optical	n	1.8 / 115	fixed	n	1/4000s	3.0/s	Y	n
5.		Canon 450D	optical	n	3.0 / 230	fixed	n	1/4000s	3.5/s	Y	n
6.		Canon 500D	optical	n	3.0 / 920	fixed	n	1/4000s	3.4/s	Y	n
7.		Canon 550D	optical	n	3.0 / 1040	fixed	n	1/4000s	3.7/s	Y	n
8.		Canon 650D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
9.		Canon 750D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
10.		Canon 760D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
11.		Canon 1100D	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
12.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
13.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
14.		Nikon D40X	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
15.		Nikon P7800	921	n	3.0 / 921	swivel	n	1/4000s	8.0/s	Y	Y
16.		Olympus Stylus 1s	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
17.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The Stylus 1 has a touchscreen, while the 400D has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Olympus Stylus 1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 400D writes its imaging data to Compact Flash cards, while the Stylus 1 uses SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 400D and Olympus Stylus 1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 400D	Y	- / -	-	-	-	2.0	-	-	-
2.		Olympus Stylus 1	Y	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
4.		Canon 350D	Y	- / -	-	-	-	2.0	-	-	-
5.		Canon 450D	Y	- / -	-	-	mini	2.0	-	-	-
6.		Canon 500D	Y	mono / mono	-	-	mini	2.0	-	-	-
7.		Canon 550D	Y	stereo / -	Y	-	mini	2.0	-	-	-
8.		Canon 650D	Y	stereo / mono	Y	-	mini	2.0	-	-	-
9.		Canon 750D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
10.		Canon 760D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
11.		Canon 1100D	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
13.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
14.		Nikon D40X	Y	- / -	-	-	-	2.0	-	-	-
15.		Nikon P7800	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Olympus Stylus 1s	Y	stereo / mono	-	-	micro	2.0	Y	-	-
17.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the Stylus 1 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 400D does not provide wifi capability.

Both the 400D and the Stylus 1 have been discontinued, but can regularly be found used on ebay. The 400D was replaced by the Canon 450D, while the Stylus 1 was followed by the Olympus Stylus 1s. Further information on the features and operation of the 400D and Stylus 1 can be found, respectively, in the Canon 400D Manual (free pdf) or the online Olympus Stylus 1 Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon 400D or the Olympus Stylus 1 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon EOS 400D:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Scores substantially higher (11 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (1.4 bits more color depth).
• Better low-light sensitivity: Requires less light for good images (1.9 stops ISO advantage).
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• More heavily discounted: Has been available for much longer (launched in August 2006).

Reasons to prefer the Olympus Stylus 1:

• More detail: Has more megapixels (11.8 vs 10.1MP), which boosts linear resolution by 6%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• More dynamic range: Captures a broader range of light and dark details (0.6 EV of extra DR).
• Broader imaging potential: Can capture not only stills but also 1080/30p video.
• More framing info: Has an electronic viewfinder that displays shooting data.
• More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.58x vs 0.49x).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster burst: Shoots at higher frequency (7 vs 3 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Comes with an integrated lens, while the 400D requires a separate lens.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the 400D).
• Longer lasting: Gets more shots (410 versus 370) out of a single battery charge.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 7 years and 2 months of technical progress since the 400D launch.

If the count of relative strengths (bullet points above) is taken as a measure, the Stylus 1 is the clear winner of the contest (20 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 400D and the Olympus Stylus 1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the 400D or the Stylus 1 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 400D	..	+ +	..	+ +	o	4/5	Aug 2006	US$ 799	ebay.com
2.		Olympus Stylus 1	..	+ +	..	..	4.5/5	4.5/5	Oct 2013	US$ 699	ebay.com
3.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	US$ 1 299	ebay.com
4.		Canon 350D	..	80/100	..	+ +	o	..	Feb 2005	US$ 899	ebay.com
5.		Canon 450D	..	+ +	..	+ +	4/5	4.5/5	Jan 2008	US$ 799	ebay.com
6.		Canon 500D	..	+ +	..	74/100	4.5/5	4.5/5	Mar 2009	US$ 799	ebay.com
7.		Canon 550D	..	+ +	..	77/100	4/5	4.5/5	Feb 2010	US$ 699	ebay.com
8.		Canon 650D	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	US$ 849	ebay.com
9.		Canon 750D	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	US$ 749	ebay.com
10.		Canon 760D	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	US$ 649	ebay.com
11.		Canon 1100D	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	US$ 449	ebay.com
12.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	US$ 799	ebay.com
13.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
14.		Nikon D40X	..	79/100	..	+ +	4/5	4/5	Mar 2007	US$ 729	ebay.com
15.		Nikon P7800	3/5	..	..	..	4/5	4.5/5	Sep 2013	US$ 549	ebay.com
16.		Olympus Stylus 1s	..	..	..	..	..	..	Apr 2015	US$ 699	ebay.com
17.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
