Canon 40D vs Panasonic GF1

The Canon EOS 40D and the Panasonic Lumix DMC-GF1 are two digital cameras that were revealed to the public, respectively, in August 2007 and September 2009. The 40D is a DSLR, while the GF1 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (40D) and a Four Thirds (GF1) sensor. The Canon has a resolution of 10.1 megapixels, whereas the Panasonic provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 40D		Panasonic GF1
Digital single lens reflex		Mirrorless system camera
Canon EF mount lenses		Micro Four Thirds lenses
10.1 MP – APS-C sensor		12 MP – Four Thirds sensor
no Video		720/30p Video
ISO 100-1,600 (100 - 3,200)		ISO 100-3,200
Optical viewfinder		Viewfinder optional
3.0" LCD – 230k dots		3.0" LCD – 460k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
6.5 shutter flaps per second		3 shutter flaps per second
750 shots per battery charge		380 shots per battery charge
146 x 108 x 74 mm, 822 g		119 x 71 x 36 mm, 385 g

Check 40D offers at
ebay.com
Check GF1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 40D and the Panasonic Lumix DMC-GF1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

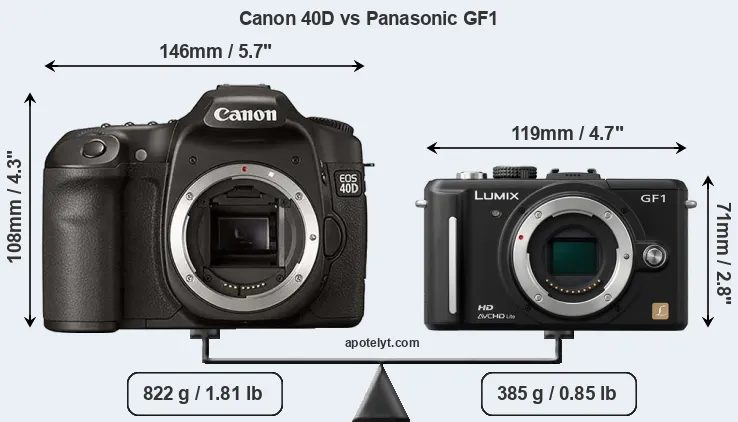

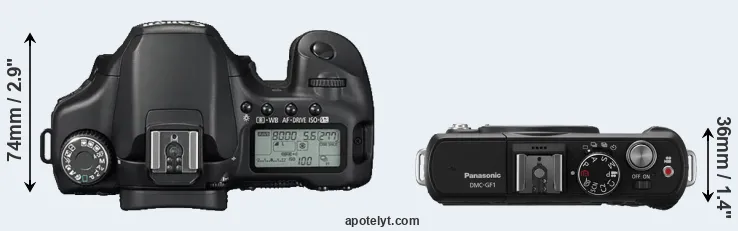

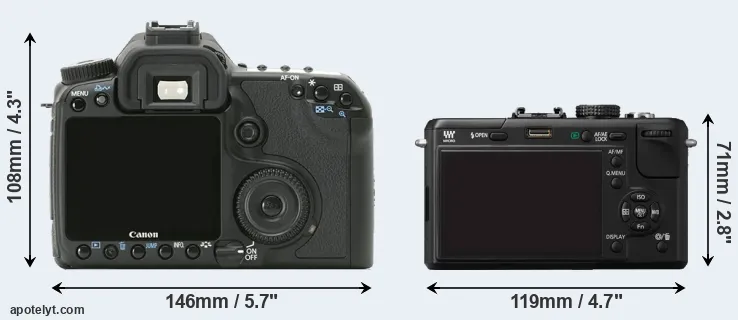

An illustration of the physical size and weight of the Canon 40D and the Panasonic GF1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GF1 is considerably smaller (46 percent) than the Canon 40D. Moreover, the GF1 is substantially lighter (53 percent) than the 40D. In this context, it is worth noting that neither the 40D nor the GF1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (40D) and the Micro Four Thirds Lens Catalog (GF1). Mirrorless cameras, such as the GF1, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the 40D gets 750 shots out of its Canon BP-511A battery, while the GF1 can take 380 images on a single charge of its Panasonic DMW-BLB13 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	US$ 1 299	ebay.com
2.		Panasonic GF1	119 mm	71 mm	36 mm	385 g	380	n	Sep 2009	US$ 749	ebay.com
3.		Canon 20D	144 mm	106 mm	72 mm	770 g	700	n	Aug 2004	US$ 1 499	ebay.com
4.		Canon 30D	144 mm	106 mm	74 mm	785 g	750	n	Feb 2006	US$ 1 399	ebay.com
5.		Canon 50D	146 mm	108 mm	74 mm	822 g	800	Y	Aug 2008	US$ 1 299	ebay.com
6.		Canon 60D	145 mm	106 mm	79 mm	755 g	1100	Y	Aug 2010	US$ 1 399	ebay.com
7.		Canon 70D	139 mm	104 mm	79 mm	755 g	920	Y	Jul 2013	US$ 1 199	ebay.com
8.		Canon 400D	127 mm	84 mm	65 mm	556 g	370	n	Aug 2006	US$ 799	ebay.com
9.		Canon 450D	129 mm	98 mm	62 mm	524 g	500	n	Jan 2008	US$ 799	ebay.com
10.		Canon 1000D	126 mm	98 mm	65 mm	502 g	500	n	Jun 2008	US$ 449	ebay.com
11.		Nikon D90	132 mm	103 mm	77 mm	703 g	850	n	Aug 2008	US$ 1 299	ebay.com
12.		Olympus E-30	142 mm	108 mm	75 mm	701 g	750	n	Nov 2008	US$ 1 299	ebay.com
13.		Panasonic G1	124 mm	84 mm	45 mm	360 g	410	n	Sep 2008	US$ 599	ebay.com
14.		Panasonic G2	124 mm	84 mm	74 mm	428 g	360	n	Mar 2010	US$ 599	ebay.com
15.		Panasonic G10	124 mm	84 mm	74 mm	388 g	380	n	Mar 2010	US$ 499	ebay.com
16.		Panasonic GH1	124 mm	90 mm	45 mm	385 g	300	n	Mar 2009	US$ 899	ebay.com
17.		Panasonic GX1	116 mm	68 mm	39 mm	318 g	320	n	Nov 2011	US$ 699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The GF1 was launched at a markedly lower price (by 42 percent) than the 40D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

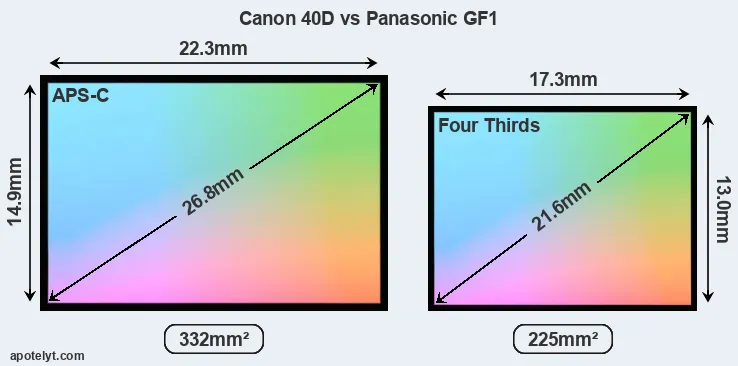

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 40D features an APS-C sensor and the Panasonic GF1 a Four Thirds sensor. The sensor area in the GF1 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 40D has a native 3:2 aspect ratio, while the one in the GF1 offers a 4:3 aspect.

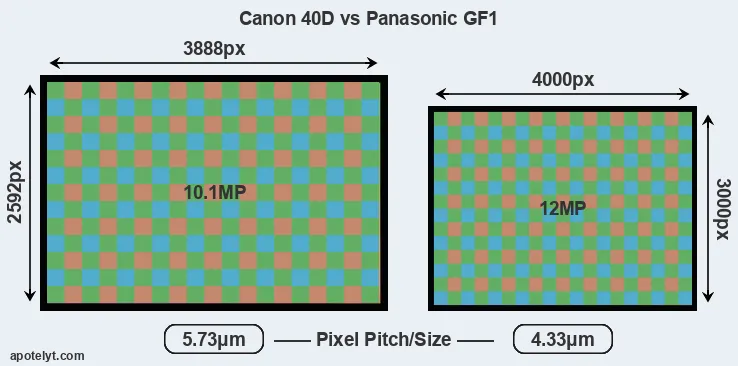

Despite having a smaller sensor, the GF1 offers a higher resolution of 12 megapixels, compared with 10.1 MP of the 40D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.33μm versus 5.73μm for the 40D). However, it should be noted that the GF1 is much more recent (by 2 years) than the 40D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Panasonic GF1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the GF1 for good quality output (200 dots per inch) amounts to 20 x 15 inches or 50.8 x 38.1 cm, for very good quality (250 dpi) 16 x 12 inches or 40.6 x 30.5 cm, and for excellent quality (300 dpi) 13.3 x 10 inches or 33.9 x 25.4 cm. The corresponding values for the Canon 40D are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.

The Canon EOS 40D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Panasonic Lumix DMC-GF1 are ISO 100 to ISO 3200 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the 40D has a notably higher overall DXO score than the GF1 (overall score 10 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.9 bits higher color depth, 1 EV in additional dynamic range, and 0.5 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
2.		Panasonic GF1	Four Thirds	12.0	4000	3000	720/30p	21.2	10.3	513	54
3.		Canon 20D	APS-C	8.2	3504	2336	none	21.9	11.0	721	62
4.		Canon 30D	APS-C	8.2	3504	2336	none	21.5	10.8	736	59
5.		Canon 50D	APS-C	15.1	4752	3168	none	21.8	11.4	696	63
6.		Canon 60D	APS-C	17.9	5184	3456	1080/30p	22.2	11.5	813	66
7.		Canon 70D	APS-C	20.0	5472	3648	1080/30p	22.5	11.6	926	68
8.		Canon 400D	APS-C	10.1	3888	2592	none	22.1	11.0	664	62
9.		Canon 450D	APS-C	12.2	4272	2848	none	21.9	10.8	692	61
10.		Canon 1000D	APS-C	10.1	3888	2592	none	22.0	10.9	719	62
11.		Nikon D90	APS-C	12.2	4288	2848	720/24p	22.7	12.5	977	73
12.		Olympus E-30	Four Thirds	12.2	4032	3024	none	21.3	10.4	530	55
13.		Panasonic G1	Four Thirds	12.0	4000	3000	none	21.1	10.3	463	53
14.		Panasonic G2	Four Thirds	12.0	4000	3000	720/30p	21.2	10.3	493	53
15.		Panasonic G10	Four Thirds	12.0	4000	3000	720/30p	21.2	10.1	411	52
16.		Panasonic GH1	Four Thirds	12.0	4000	3000	1080/24p	21.6	11.6	772	64
17.		Panasonic GX1	Four Thirds	15.8	4592	3448	1080/60p	20.8	10.6	703	55

Many modern cameras are not only capable of taking still images, but can also record movies. The GF1 indeed provides for movie recording, while the 40D does not. The highest resolution format that the GF1 can use is 720/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the 40D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the GF1 relies on live view and the rear LCD for framing. That said, the GF1 can be equipped with an optional viewfinder – the DMW-LVF1. The table below summarizes some of the other core capabilities of the Canon 40D and Panasonic GF1 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
2.		Panasonic GF1	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
3.		Canon 20D	optical	Y	1.8 / 118	fixed	n	1/8000s	5.0/s	Y	n
4.		Canon 30D	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
5.		Canon 50D	optical	Y	3.0 / 920	fixed	n	1/8000s	6.3/s	Y	n
6.		Canon 60D	optical	Y	3.0 / 1040	swivel	n	1/8000s	5.3/s	Y	n
7.		Canon 70D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
8.		Canon 400D	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
9.		Canon 450D	optical	n	3.0 / 230	fixed	n	1/4000s	3.5/s	Y	n
10.		Canon 1000D	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
11.		Nikon D90	optical	Y	3.0 / 920	fixed	n	1/4000s	4.5/s	Y	n
12.		Olympus E-30	optical	Y	2.7 / 230	swivel	n	1/8000s	5.0/s	Y	Y
13.		Panasonic G1	1440	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
14.		Panasonic G2	1440	n	3.0 / 460	swivel	Y	1/4000s	2.6/s	Y	n
15.		Panasonic G10	202	n	3.0 / 460	fixed	n	1/4000s	2.6/s	Y	n
16.		Panasonic GH1	1440	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
17.		Panasonic GX1	optional	n	3.0 / 460	fixed	Y	1/4000s	4.2/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 40D, but is missing on the GF1 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The 40D writes its imaging data to Compact Flash cards, while the GF1 uses SDHC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 40D and Panasonic Lumix DMC-GF1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
2.		Panasonic GF1	Y	mono / mono	-	-	mini	2.0	-	-	-
3.		Canon 20D	Y	- / -	-	-	-	1.1	-	-	-
4.		Canon 30D	Y	- / -	-	-	-	2.0	-	-	-
5.		Canon 50D	Y	- / -	-	-	mini	2.0	-	-	-
6.		Canon 60D	Y	mono / mono	Y	-	mini	2.0	-	-	-
7.		Canon 70D	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
8.		Canon 400D	Y	- / -	-	-	-	2.0	-	-	-
9.		Canon 450D	Y	- / -	-	-	mini	2.0	-	-	-
10.		Canon 1000D	Y	- / -	-	-	-	2.0	-	-	-
11.		Nikon D90	Y	mono / mono	-	-	mini	2.0	-	-	-
12.		Olympus E-30	Y	- / -	-	-	-	2.0	-	-	-
13.		Panasonic G1	Y	- / -	-	-	mini	2.0	-	-	-
14.		Panasonic G2	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Panasonic G10	Y	mono / -	-	-	mini	2.0	-	-	-
16.		Panasonic GH1	Y	stereo / -	Y	-	mini	2.0	-	-	-
17.		Panasonic GX1	Y	stereo / mono	-	-	mini	2.0	-	-	-

Studio photographers will appreciate that the Canon 40D (unlike the GF1) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the 40D and the GF1 have been discontinued, but can regularly be found used on ebay. The 40D was replaced by the Canon 50D, while the GF1 was followed by the Panasonic DMC-GF2. Further information on the features and operation of the 40D and GF1 can be found, respectively, in the Canon 40D Manual (free pdf) or the online Panasonic GF1 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Canon 40D and the Panasonic GF1? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Canon EOS 40D:

• Better image quality: Scores markedly higher (10 points) in the DXO overall assessment.
• More dynamic range: Captures a larger spectrum of light and dark details (1 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (0.5 stops ISO advantage).
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (6.5 vs 3 flaps/sec) to capture the decisive moment.
• Longer lasting: Can take more shots (750 versus 380) on a single battery charge.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in August 2007).

Reasons to prefer the Panasonic Lumix DMC-GF1:

• More detail: Has more megapixels (12 vs 10.1MP), which boosts linear resolution by 7%.
• Broader imaging potential: Can capture not only stills but also 720/30p video.
• More detailed LCD: Has a higher resolution rear screen (460k vs 230k dots).
• More compact: Is smaller (119x71mm vs 146x108mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 437g or 53 percent) and is thus easier to take along.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• More affordable: Was introduced into a lower priced category (42 percent cheaper at launch).
• More modern: Reflects 2 years of technical progress since the 40D launch.

If the count of relative strengths (bullet points above) is taken as a measure, the 40D emerges as the winner of the contest (10 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 40D and the Panasonic GF1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the 40D and the GF1 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	US$ 1 299	ebay.com
2.		Panasonic GF1	..	85/100	..	69/100	4.5/5	4.5/5	Sep 2009	US$ 749	ebay.com
3.		Canon 20D	..	..	..	+ +	..	..	Aug 2004	US$ 1 499	ebay.com
4.		Canon 30D	..	+ +	..	+ +	o	..	Feb 2006	US$ 1 399	ebay.com
5.		Canon 50D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2008	US$ 1 299	ebay.com
6.		Canon 60D	5/5	+	..	79/100	4/5	4.5/5	Aug 2010	US$ 1 399	ebay.com
7.		Canon 70D	5/5	+ +	..	83/100	4.5/5	5/5	Jul 2013	US$ 1 199	ebay.com
8.		Canon 400D	..	+ +	..	+ +	o	4/5	Aug 2006	US$ 799	ebay.com
9.		Canon 450D	..	+ +	..	+ +	4/5	4.5/5	Jan 2008	US$ 799	ebay.com
10.		Canon 1000D	..	82/100	..	+ +	3.5/5	4.5/5	Jun 2008	US$ 449	ebay.com
11.		Nikon D90	..	+ +	..	+ +	4/5	4.5/5	Aug 2008	US$ 1 299	ebay.com
12.		Olympus E-30	..	..	..	71/100	4.5/5	4/5	Nov 2008	US$ 1 299	ebay.com
13.		Panasonic G1	..	+ +	..	70/100	4/5	4.5/5	Sep 2008	US$ 599	ebay.com
14.		Panasonic G2	..	..	..	72/100	4/5	4.5/5	Mar 2010	US$ 599	ebay.com
15.		Panasonic G10	3/5	..	..	70/100	4/5	4/5	Mar 2010	US$ 499	ebay.com
16.		Panasonic GH1	..	+ +	..	72/100	4.5/5	4.5/5	Mar 2009	US$ 899	ebay.com
17.		Panasonic GX1	3/5	+	..	77/100	4.5/5	4.5/5	Nov 2011	US$ 699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
