Canon 550D vs SX30

The Canon EOS 550D (called Canon T2i in some regions) and the Canon PowerShot SX30 IS are two digital cameras that were officially introduced, respectively, in February 2010 and September 2010. The 550D is a DSLR, while the SX30 is a fixed lens compact. The cameras are based on an APS-C (550D) and a 1/2.3-inch (SX30) sensor. The 550D has a resolution of 17.9 megapixels, whereas the SX30 provides 14 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 550D		Canon SX30
Digital single lens reflex		Fixed lens compact camera
Canon EF mount lenses		24-840mm f/2.7-5.8
17.9 MP – APS-C sensor		14 MP – 1/2.3" sensor
1080/30p Video		720/30p Video
ISO 100-6,400 (100 - 12,800)		ISO 100-1,600 (100 - 6,400)
Optical viewfinder		Electronic viewfinder (202k dots)
3.0" LCD – 1040k dots		2.7" LCD – 230k dots
Fixed screen (not touch-sensitive)		Swivel screen (not touch-sensitive)
3.7 shutter flaps per second		0.6 shutter flaps per second
440 shots per battery charge		370 shots per battery charge
129 x 98 x 62 mm, 530 g		123 x 92 x 108 mm, 601 g

Check 550D offers at
ebay.com
Check SX30 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 550D and the Canon PowerShot SX30 IS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

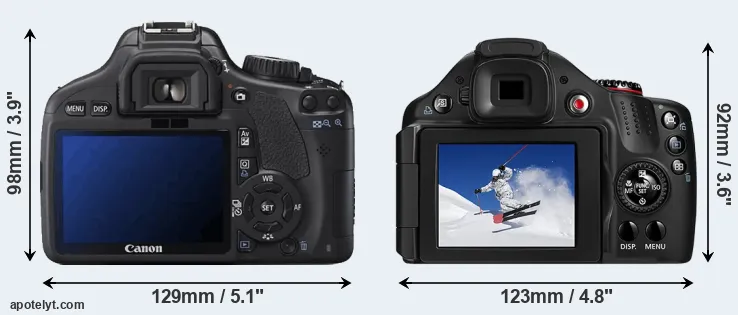

The physical size and weight of the Canon 550D and the Canon SX30 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX30 is notably smaller (10 percent) than the Canon 550D. In this context, it is worth noting that neither the 550D nor the SX30 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX30 has a lens built in, whereas the 550D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 550D and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the 550D gets 440 shots out of its Canon LP-E8 battery, while the SX30 can take 370 images on a single charge of its Canon NB-7L power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 550D	129 mm	98 mm	62 mm	530 g	440	n	Feb 2010	US$ 699	ebay.com
2.		Canon SX30	123 mm	92 mm	108 mm	601 g	370	n	Sep 2010	US$ 429	ebay.com
3.		Canon 500D	129 mm	98 mm	62 mm	520 g	400	n	Mar 2009	US$ 799	ebay.com
4.		Canon 600D	133 mm	100 mm	80 mm	570 g	440	n	Feb 2011	US$ 599	ebay.com
5.		Canon 650D	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	US$ 849	ebay.com
6.		Canon 700D	133 mm	100 mm	79 mm	580 g	440	n	Mar 2013	US$ 649	ebay.com
7.		Canon 750D	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	US$ 749	ebay.com
8.		Canon 760D	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	US$ 649	ebay.com
9.		Canon 1100D	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	US$ 449	ebay.com
10.		Canon 1200D	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	US$ 449	ebay.com
11.		Canon 4000D	129 mm	102 mm	77 mm	436 g	500	n	Feb 2018	US$ 399	amazon.com
12.		Canon SX20	123 mm	88 mm	87 mm	600 g	..	n	Aug 2009	US$ 399	ebay.com
13.		Canon SX40	123 mm	92 mm	108 mm	600 g	380	n	Sep 2011	US$ 429	ebay.com
14.		Canon SX50	123 mm	87 mm	106 mm	595 g	315	n	Sep 2012	US$ 429	ebay.com
15.		Nikon D5100	128 mm	97 mm	79 mm	560 g	660	n	Apr 2011	US$ 749	ebay.com
16.		Panasonic FZ100	124 mm	82 mm	92 mm	540 g	410	n	Jul 2010	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX30 was launched at a lower price than the 550D, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon 550D features an APS-C sensor and the Canon SX30 a 1/2.3-inch sensor. The sensor area in the SX30 is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 5.6. The sensor in the 550D has a native 3:2 aspect ratio, while the one in the SX30 offers a 4:3 aspect.

With 17.9MP, the 550D offers a higher resolution than the SX30 (14MP), but the 550D nevertheless has larger individual pixels (pixel pitch of 4.31μm versus 1.41μm for the SX30) due to its larger sensor. However, the SX30 is a somewhat more recent model (by 7 months) than the 550D, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the SX30 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon 550D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 550D for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Canon SX30 are 21.6 x 16.2 inches or 54.9 x 41.1 cm for good quality, 17.3 x 13 inches or 43.9 x 32.9 cm for very good quality, and 14.4 x 10.8 inches or 36.6 x 27.4 cm for excellent quality prints.

The Canon EOS 550D has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Canon PowerShot SX30 IS are ISO 100 to ISO 1600, with the possibility to increase the ISO range to 100-6400.

In terms of underlying technology, the 550D is build around a CMOS sensor, while the SX30 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 550D	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	784	66
2.		Canon SX30	1/2.3	14.0	4320	3240	720/30p	19.4	10.7	320	39
3.		Canon 500D	APS-C	15.1	4752	3168	1080/20p	21.7	11.5	663	63
4.		Canon 600D	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	793	65
5.		Canon 650D	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
6.		Canon 700D	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	681	61
7.		Canon 750D	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
8.		Canon 760D	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
9.		Canon 1100D	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
10.		Canon 1200D	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
11.		Canon 4000D	APS-C	17.9	5184	3456	1080/30p	21.9	11.4	695	63
12.		Canon SX20	1/2.3	12.0	4000	3000	720/30p	19.2	10.5	225	37
13.		Canon SX40	1/2.3	12.0	4000	3000	1080/24p	19.6	10.9	409	41
14.		Canon SX50	1/2.3	12.0	4000	3000	1080/24p	20.3	11.2	179	47
15.		Nikon D5100	APS-C	16.1	4928	3264	1080/30p	23.5	13.6	1183	80
16.		Panasonic FZ100	1/2.3	14.0	4320	3240	1080/60i	19.4	10.7	306	39
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the 550D provides a higher video resolution than the SX30. It can shoot video footage at 1080/30p, while the SX30 is limited to 720/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the SX30 has an electronic viewfinder (202k dots), while the 550D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The table below summarizes some of the other core capabilities of the Canon 550D and Canon SX30 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 550D	optical	n	3.0 / 1040	fixed	n	1/4000s	3.7/s	Y	n
2.		Canon SX30	202	n	2.7 / 230	swivel	n	1/3200s	0.6/s	Y	Y
3.		Canon 500D	optical	n	3.0 / 920	fixed	n	1/4000s	3.4/s	Y	n
4.		Canon 600D	optical	n	3.0 / 1040	swivel	n	1/4000s	3.7/s	Y	n
5.		Canon 650D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
6.		Canon 700D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
7.		Canon 750D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
8.		Canon 760D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
9.		Canon 1100D	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
10.		Canon 1200D	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
11.		Canon 4000D	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
12.		Canon SX20	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
13.		Canon SX40	202	n	2.7 / 230	swivel	n	1/3200s	10.3/s	Y	Y
14.		Canon SX50	202	n	3.0 / 461	swivel	n	1/2000s	2.2/s	Y	Y
15.		Nikon D5100	optical	n	3.0 / 921	swivel	n	1/4000s	4.0/s	Y	n
16.		Panasonic FZ100	202	n	3.0 / 460	swivel	n	1/2000s	11.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Concerning the storage of imaging data, both the 550D and the SX30 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 550D and Canon PowerShot SX30 IS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 550D	Y	stereo / -	Y	-	mini	2.0	-	-	-
2.		Canon SX30	Y	stereo / mono	-	-	YES	2.0	-	-	-
3.		Canon 500D	Y	mono / mono	-	-	mini	2.0	-	-	-
4.		Canon 600D	Y	mono / mono	Y	-	mini	2.0	-	-	-
5.		Canon 650D	Y	stereo / mono	Y	-	mini	2.0	-	-	-
6.		Canon 700D	Y	stereo / mono	Y	-	mini	2.0	-	-	-
7.		Canon 750D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
8.		Canon 760D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
9.		Canon 1100D	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Canon 1200D	Y	mono / mono	-	-	mini	2.0	-	-	-
11.		Canon 4000D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
12.		Canon SX20	Y	stereo / mono	-	-	YES	2.0	-	-	-
13.		Canon SX40	Y	stereo / mono	-	-	YES	2.0	-	-	-
14.		Canon SX50	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Nikon D5100	Y	mono / mono	Y	-	mini	2.0	-	-	-
16.		Panasonic FZ100	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the 550D has a microphone port, which is missing on the SX30. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Both the 550D and the SX30 have been discontinued, but can regularly be found used on ebay. The 550D was replaced by the Canon 600D, while the SX30 was followed by the Canon SX40. Further information on the features and operation of the 550D and SX30 can be found, respectively, in the Canon 550D Manual (free pdf) or the online Canon SX30 Manual.

Review summary

So how do things add up? Is the Canon 550D better than the Canon SX30 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon EOS 550D:

• More detail: Offers more megapixels (17.9 vs 14MP) with a 15% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better video: Provides higher definition movie capture (1080/30p vs 720/30p).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/3200s) to freeze action.
• Faster burst: Shoots at higher frequency (3.7 vs 0.6 flaps/sec) to capture the decisive moment.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (440 versus 370) on a single battery charge.
• More heavily discounted: Has been on the market for longer (launched in February 2010).

Advantages of the Canon PowerShot SX30 IS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• More framing info: Has an electronic viewfinder that displays shooting data.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Ready to shoot: Comes with an integrated lens, while the 550D requires a separate lens.
• More compact: Is smaller (123x92mm vs 129x98mm) and will fit more readily into a bag.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Was introduced somewhat (7 months) more recently.

If the count of individual advantages (bullet points above) is taken as a guide, the 550D is the clear winner of the match-up (16 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 550D and the Canon SX30 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the 550D or the SX30 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 550D	..	+ +	..	77/100	4/5	4.5/5	Feb 2010	US$ 699	ebay.com
2.		Canon SX30	3/5	+ +	..	..	3.5/5	4/5	Sep 2010	US$ 429	ebay.com
3.		Canon 500D	..	+ +	..	74/100	4.5/5	4.5/5	Mar 2009	US$ 799	ebay.com
4.		Canon 600D	3/5	o	..	77/100	4.5/5	4.5/5	Feb 2011	US$ 599	ebay.com
5.		Canon 650D	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	US$ 849	ebay.com
6.		Canon 700D	..	..	..	76/100	4.5/5	4.5/5	Mar 2013	US$ 649	ebay.com
7.		Canon 750D	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	US$ 749	ebay.com
8.		Canon 760D	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	US$ 649	ebay.com
9.		Canon 1100D	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	US$ 449	ebay.com
10.		Canon 1200D	3/5	+	..	..	4/5	4.5/5	Feb 2014	US$ 449	ebay.com
11.		Canon 4000D	2.5/5	o	3/5	..	3.5/5	3.5/5	Feb 2018	US$ 399	amazon.com
12.		Canon SX20	..	+ +	..	73/100	..	4/5	Aug 2009	US$ 399	ebay.com
13.		Canon SX40	..	+	..	..	4.5/5	4/5	Sep 2011	US$ 429	ebay.com
14.		Canon SX50	3/5	+ +	..	72/100	4.5/5	4.5/5	Sep 2012	US$ 429	ebay.com
15.		Nikon D5100	5/5	+ +	..	76/100	4.5/5	4.5/5	Apr 2011	US$ 749	ebay.com
16.		Panasonic FZ100	..	+	..	..	4.5/5	4.5/5	Jul 2010	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
