Canon 5D Mark IV vs Leica S1

The Canon EOS 5D Mark IV and the Leica S1 Pro are two professional cameras that were announced, respectively, in August 2016 and August 1996. The 5D Mark IV is a DSLR, while the S1 is a mirrorless interchangeable lens camera. The cameras are based on a full frame (5D Mark IV) and a medium format (S1) sensor. The Canon has a resolution of 30.1 megapixels, whereas the Leica provides 26.4 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 5D Mark IV		Leica S1
Digital single lens reflex		Mirrorless system camera
Canon EF mount lenses		Leica R mount lenses
30.1 MP – Full Frame sensor		26.4 MP – Medium Format sensor
4K/30p Video		no Video
ISO 100-32,000 (50 - 102,400)		ISO 50-1,600
Optical viewfinder		Optical viewfinder
3.2" LCD – 1620k dots		no LCD
Fixed touchscreen		no rear screen
7 shutter flaps per second		0.01 shutter flaps per second
Weathersealed body		not weather sealed
151 x 116 x 76 mm, 890 g		339 x 214 x 119 mm, 2500 g

Check 5D Mark IV price at
amazon.com
Check S1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D Mark IV and the Leica S1 Pro? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

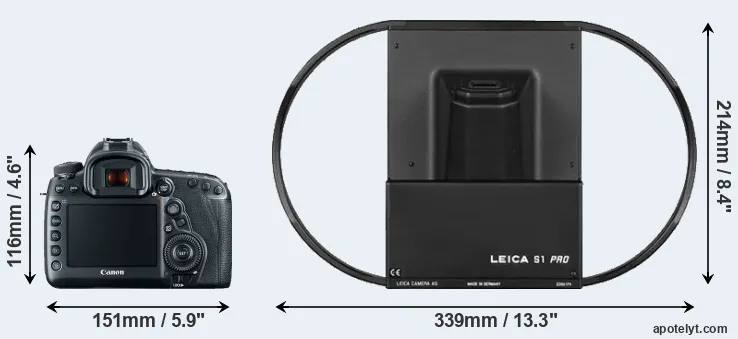

The physical size and weight of the Canon 5D Mark IV and the Leica S1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica S1 is considerably larger (314 percent) than the Canon 5D Mark IV. Moreover, the S1 is substantially heavier (181 percent) than the 5D Mark IV. It is worth mentioning in this context that the 5D Mark IV is splash and dust resistant, while the S1 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (5D Mark IV) and the Leica R Lens Catalog (S1). Mirrorless cameras, such as the S1, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 5D Mark IV	151 mm	116 mm	76 mm	890 g	900	Y	Aug 2016	US$ 3 499	amazon.com
2.		Leica S1	339 mm	214 mm	119 mm	2500 g	..	n	Aug 1996	US$ 21 499	ebay.com
3.		Canon 1D X Mark II	158 mm	168 mm	83 mm	1530 g	1210	Y	Feb 2016	US$ 5 999	ebay.com
4.		Canon 5D Mark II	152 mm	114 mm	75 mm	850 g	850	Y	Sep 2008	US$ 3 499	ebay.com
5.		Canon 5D Mark III	152 mm	116 mm	76 mm	950 g	950	Y	Mar 2012	US$ 3 499	ebay.com
6.		Canon 5DS	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	US$ 3 699	ebay.com
7.		Canon 5DS R	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	US$ 3 699	ebay.com
8.		Canon 6D	145 mm	111 mm	71 mm	770 g	1090	Y	Sep 2012	US$ 2 099	ebay.com
9.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	US$ 1 999	amazon.com
10.		Canon 80D	139 mm	105 mm	79 mm	730 g	960	Y	Feb 2016	US$ 1 199	ebay.com
11.		Leica CL	131 mm	78 mm	45 mm	403 g	220	n	Nov 2017	US$ 2 795	ebay.com
12.		Leica Q Typ 116	130 mm	80 mm	93 mm	640 g	300	n	Jun 2015	US$ 4 249	ebay.com
13.		Leica S2	160 mm	120 mm	80 mm	1410 g	..	Y	Sep 2008	US$ 22 999	ebay.com
14.		Leica TL2	134 mm	69 mm	33 mm	399 g	250	n	Jul 2017	US$ 1 949	ebay.com
15.		Nikon D810	146 mm	123 mm	82 mm	980 g	1200	Y	Jun 2014	US$ 3 299	ebay.com
16.		Nikon D850	146 mm	124 mm	79 mm	1005 g	1840	Y	Jul 2017	US$ 3 299	amazon.com
17.		Sony A6400	120 mm	67 mm	50 mm	403 g	410	Y	Jan 2019	US$ 899	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The 5D Mark IV was launched at a markedly lower price (by 84 percent) than the S1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 5D Mark IV features a full frame sensor and the Leica S1 a medium format sensor. The sensor area in the S1 is 50 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 0.85. The sensor in the 5D Mark IV has a native 3:2 aspect ratio, while the one in the S1 offers a 1:1 aspect.

Despite having a smaller sensor, the Canon 5D Mark IV offers a higher resolution of 30.1 megapixels, compared with 26.4 MP of the Leica S1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 5.36μm versus 7.01μm for the S1). However, it should be noted that the 5D Mark IV is much more recent (by 20 years) than the S1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the S1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon 5D Mark IV implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5D Mark IV for good quality output (200 dots per inch) amounts to 33.6 x 22.4 inches or 85.3 x 56.9 cm, for very good quality (250 dpi) 26.9 x 17.9 inches or 68.3 x 45.5 cm, and for excellent quality (300 dpi) 22.4 x 14.9 inches or 56.9 x 37.9 cm. The corresponding values for the Leica S1 are 25.7 x 25.7 inches or 65.3 x 65.3 cm for good quality, 20.6 x 20.6 inches or 52.2 x 52.2 cm for very good quality, and 17.1 x 17.1 inches or 43.5 x 43.5 cm for excellent quality prints.

The 5D Mark IV has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 5D Mark IV has a native sensitivity range from ISO 100 to ISO 32000, which can be extended to ISO 50-102400. The corresponding ISO settings for the Leica S1 Pro are ISO 50 to ISO 1600 (no boost).

In terms of underlying technology, the 5D Mark IV is build around a CMOS sensor, while the S1 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 5D Mark IV	Full Frame	30.1	6720	4480	4K/30p	24.8	13.6	2995	91
2.		Leica S1	Medium Format	26.4	5140	5140	none	..	..	..	..
3.		Canon 1D X Mark II	Full Frame	20.0	5472	3648	4K/60p	24.1	13.5	3207	88
4.		Canon 5D Mark II	Full Frame	21.0	5616	3744	1080/30p	23.7	11.9	1815	79
5.		Canon 5D Mark III	Full Frame	22.1	5760	3840	1080/30p	24.0	11.7	2293	81
6.		Canon 5DS	Full Frame	50.3	8688	5792	1080/30p	24.7	12.4	2381	87
7.		Canon 5DS R	Full Frame	50.3	8688	5792	1080/30p	24.6	12.4	2308	86
8.		Canon 6D	Full Frame	20.0	5472	3648	1080/30p	23.8	12.1	2340	82
9.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
10.		Canon 80D	APS-C	24.0	6000	4000	1080/60p	23.6	13.2	1135	79
11.		Leica CL	APS-C	24.1	6014	4014	4K/30p	24.0	13.3	1788	82
12.		Leica Q Typ 116	Full Frame	24.0	6000	4000	1080/60p	24.3	12.7	2221	85
13.		Leica S2	Medium Format	37.5	7500	5000	none	23.9	12.5	2224	82
14.		Leica TL2	APS-C	24.1	6014	4014	4K/30p	23.9	13.3	1753	82
15.		Nikon D810	Full Frame	36.2	7360	4912	1080/60p	25.7	14.8	2853	97
16.		Nikon D850	Full Frame	45.4	8256	5504	4K/30p	26.4	14.8	2660	100
17.		Sony A6400	APS-C	24.0	6000	4000	4K/30p	24.0	13.6	1431	83
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The 5D Mark IV indeed provides movie recording capabilities, while the S1 does not. The highest resolution format that the 5D Mark IV can use is 4K/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The 5D Mark IV and the S1 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The adjacent table lists some of the other core features of the Canon 5D Mark IV and Leica S1 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 5D Mark IV	optical	Y	3.2 / 1620	fixed	Y	1/8000s	7.0/s	n	n
2.		Leica S1	optical	n	none / none	none	n	..	0.01/s	n	n
3.		Canon 1D X Mark II	optical	Y	3.2 / 1620	fixed	Y	1/8000s	16.0/s	n	n
4.		Canon 5D Mark II	optical	Y	3.0 / 920	fixed	n	1/8000s	3.9/s	n	n
5.		Canon 5D Mark III	optical	Y	3.2 / 1040	fixed	n	1/8000s	6.0/s	n	n
6.		Canon 5DS	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
7.		Canon 5DS R	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
8.		Canon 6D	optical	Y	3.0 / 1040	fixed	n	1/4000s	4.5/s	n	n
9.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
10.		Canon 80D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
11.		Leica CL	2360	Y	3.0 / 1040	fixed	Y	1/8000s	10.0/s	n	n
12.		Leica Q Typ 116	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
13.		Leica S2	optical	Y	3.0 / 460	fixed	n	1/4000s	1.5/s	n	n
14.		Leica TL2	optional	n	3.7 / 1230	fixed	Y	1/4000s	7.0/s	n	n
15.		Nikon D810	optical	Y	3.2 / 1229	fixed	n	1/8000s	5.0/s	Y	n
16.		Nikon D850	optical	Y	3.2 / 2359	tilting	Y	1/8000s	9.0/s	n	n
17.		Sony A6400	2359	n	3.0 / 922	tilting	Y	1/4000s	11.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 5D Mark IV, but is missing on the S1 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Canon 5D Mark IV has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 5D Mark IV writes its imaging data to Compact Flash or SDXC cards, while the S1 uses external storage.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark IV and Leica S1 Pro and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 5D Mark IV	Y	mono / mono	Y	Y	mini	3.0	Y	Y	-
2.		Leica S1	-	- / -	-	-	-	-	-	-	-
3.		Canon 1D X Mark II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
4.		Canon 5D Mark II	Y	mono / mono	Y	-	mini	2.0	-	-	-
5.		Canon 5D Mark III	Y	mono / mono	Y	Y	mini	2.0	-	-	-
6.		Canon 5DS	Y	mono / mono	Y	-	mini	3.0	-	-	-
7.		Canon 5DS R	Y	mono / mono	Y	-	mini	3.0	-	-	-
8.		Canon 6D	Y	mono / mono	Y	-	mini	2.0	Y	-	-
9.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
10.		Canon 80D	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
11.		Leica CL	Y	stereo / mono	-	-	-	-	Y	-	-
12.		Leica Q Typ 116	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
13.		Leica S2	Y	- / -	-	-	mini	2.0	-	-	-
14.		Leica TL2	Y	stereo / mono	-	-	micro	3.0	Y	-	-
15.		Nikon D810	Y	stereo / mono	Y	Y	mini	3.0	Y	-	-
16.		Nikon D850	Y	stereo / mono	Y	Y	mini	3.0	Y	Y	Y
17.		Sony A6400	Y	stereo / mono	Y	-	micro	2.0	Y	Y	Y

It is notable that the 5D Mark IV has a hotshoe, while the S1 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Studio photographers will appreciate that the Canon 5D Mark IV (unlike the S1) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Travel and landscape photographers will find it useful that the 5D Mark IV has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

The 5D Mark IV is a recent model that features in the current product line-up of Canon. In contrast, the S1 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the S1 was succeeded by the Leica S2. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Leica websites.

Review summary

So what conclusions can be drawn? Is the Canon 5D Mark IV better than the Leica S1 or vice versa? The listing below highlights the relative strengths of the two models.

Advantages of the Canon EOS 5D Mark IV:

• More detail: Offers more megapixels (30.1 vs 26.4MP) with a 11% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Broader imaging potential: Can record not only still images but also 4K/30p movies.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Rear screen: Has a backside LCD (3.2") for image review and settings control.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Faster burst: Shoots at higher frequency (7 vs 0.01 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (151x116mm vs 339x214mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 1610g or 64 percent) and hence easier to carry around.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Easier geotagging: Features an internal GPS sensor to log localization data.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More affordable: Was introduced into a lower priced category (84 percent cheaper at launch).
• More modern: Reflects 20 years of technical progress since the S1 launch.

Arguments in favor of the Leica S1 Pro:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
• More heavily discounted: Has been around for much longer (launched in August 1996).

If the number of relative strengths (bullet points above) is taken as a guide, the 5D Mark IV is the clear winner of the match-up (19 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 5D Mark IV and the Leica S1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 5D Mark IV and the S1 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 5D Mark IV	4.5/5	+ +	4/5	87/100	4.5/5	4.5/5	Aug 2016	US$ 3 499	amazon.com
2.		Leica S1	..	..	..	..	..	..	Aug 1996	US$ 21 499	ebay.com
3.		Canon 1D X Mark II	..	..	4.5/5	89/100	4.5/5	4.5/5	Feb 2016	US$ 5 999	ebay.com
4.		Canon 5D Mark II	4/5	91/100	..	79/100	4/5	..	Sep 2008	US$ 3 499	ebay.com
5.		Canon 5D Mark III	..	+ +	..	82/100	4.5/5	4.5/5	Mar 2012	US$ 3 499	ebay.com
6.		Canon 5DS	..	+	..	83/100	4.5/5	4.5/5	Feb 2015	US$ 3 699	ebay.com
7.		Canon 5DS R	5/5	+	..	83/100	5/5	4.5/5	Feb 2015	US$ 3 699	ebay.com
8.		Canon 6D	5/5	+ +	..	83/100	4.5/5	4.5/5	Sep 2012	US$ 2 099	ebay.com
9.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	US$ 1 999	amazon.com
10.		Canon 80D	4/5	+ +	4.5/5	84/100	4.5/5	4.5/5	Feb 2016	US$ 1 199	ebay.com
11.		Leica CL	..	..	4.2/5	..	..	4/5	Nov 2017	US$ 2 795	ebay.com
12.		Leica Q Typ 116	5/5	..	..	80/100	4.5/5	4.5/5	Jun 2015	US$ 4 249	ebay.com
13.		Leica S2	..	..	..	..	..	..	Sep 2008	US$ 22 999	ebay.com
14.		Leica TL2	3.5/5	..	3/5	..	4/5	4/5	Jul 2017	US$ 1 949	ebay.com
15.		Nikon D810	5/5	..	5/5	86/100	5/5	4.5/5	Jun 2014	US$ 3 299	ebay.com
16.		Nikon D850	4.5/5	+ +	5/5	89/100	4.5/5	5/5	Jul 2017	US$ 3 299	amazon.com
17.		Sony A6400	4/5	+	4/5	85/100	4.5/5	4/5	Jan 2019	US$ 899	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
