Canon 800D vs R5 Mark II

The Canon EOS 800D (called Canon T7i in some regions) and the Canon EOS R5 Mark II are two digital cameras that were announced, respectively, in February 2017 and July 2024. The 800D is a DSLR, while the R5 Mark II is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (800D) and a full frame (R5 Mark II) sensor. The 800D has a resolution of 24 megapixels, whereas the R5 Mark II provides 44.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon 800D
versus
Canon R5 Mark II
Canon 800D   Canon R5 Mark II
Digital single lens reflex Mirrorless system camera
Canon EF mount lenses Canon RF mount lenses
24 MP – APS-C sensor 44.8 MP – Full Frame sensor
1080/60p Video 8k/60p Video
ISO 100-25,600 (100 - 51,200) ISO 100-51,200 (50 - 102,400)
Optical viewfinder Electronic viewfinder (5760k dots)
3.0" LCD – 1040k dots 3.2" LCD – 2100k dots
Swivel touchscreen Swivel touchscreen
6 shutter flaps per second 12 shutter flaps per second
Lens stabilization onlyIn-body stabilization
not weather sealedWeathersealed body
600 shots per battery charge340 shots per battery charge
131 x 100 x 76 mm, 532 g 138 x 98 x 88 mm, 746 g
logo
Check 800D offers at
ebay.com
logo
Check R5 Mark II price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 800D and the Canon EOS R5 Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon 800D and the Canon R5 Mark II. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

Size Canon 800D vs Canon R5 Mark II

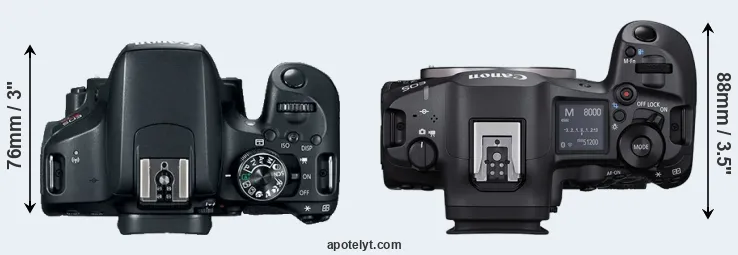

Compare 800D versus R5 Mark II top
Comparison 800D or R5 Mark II rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon R5 Mark II is somewhat larger (3 percent) than the Canon 800D. Moreover, the R5 Mark II is substantially heavier (40 percent) than the 800D. It is noteworthy in this context that the R5 Mark II is splash and dust-proof, while the 800D does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The power pack in the R5 Mark II can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

scroll hint
Body Specifications
  empty Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price
Street
Price
1.

Canon 800D 131 mm 100 mm 76 mm 532 g 600 n Feb 2017 EUR 849ebay.com
2.

Canon R5 Mark II 138 mm 98 mm 88 mm 746 g 340 Y Jul 2024 EUR 4 799 amazon.com
3.

Canon 77D 131 mm 100 mm 76 mm 540 g 600 n Feb 2017 EUR 899ebay.com
4.

Canon 200D 122 mm 93 mm 70 mm 453 g 650 n Jun 2017 EUR 599ebay.com
5.

Canon 750D 132 mm 101 mm 78 mm 555 g 440 n Feb 2015 EUR 699ebay.com
6.

Canon 760D 132 mm 101 mm 78 mm 565 g 440 n Feb 2015 EUR 749ebay.com
7.

Canon 850D 131 mm 103 mm 76 mm 515 g 800 n Feb 2020 EUR 899ebay.com
8.

Canon 1300D 129 mm 101 mm 78 mm 485 g 500 n Mar 2016 EUR 449ebay.com
9.

Canon 2000D 129 mm 101 mm 78 mm 475 g 500 n Feb 2018 EUR 499 amazon.com
10.

Canon G7 X Mark II 106 mm 61 mm 42 mm 319 g 265 n Feb 2016 EUR 685ebay.com
11.

Canon M6 112 mm 68 mm 45 mm 390 g 295 n Feb 2017 EUR 799ebay.com
12.

Canon R5 138 mm 98 mm 88 mm 738 g 320 Y Jul 2020 EUR 4 499 amazon.com
13.

Canon R5 C 142 mm 101 mm 111 mm 770 g 320 Y Jan 2022 EUR 4 999 amazon.com
14.

Canon R6 138 mm 98 mm 88 mm 680 g 360 Y Jul 2020 EUR 2 699 amazon.com
15.

Fujifilm GFX 50S II 150 mm 104 mm 87 mm 900 g 440 Y Sep 2021 EUR 3 999 amazon.com
16.

Nikon D5600 124 mm 97 mm 70 mm 465 g 970 n Nov 2016 EUR 819ebay.com
17.

Nikon Z8 144 mm 119 mm 83 mm 910 g 340 Y May 2023 EUR 4 599 amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The 800D was launched at a markedly lower price (by 83 percent) than the R5 Mark II, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon 800D features an APS-C sensor and the Canon R5 Mark II a full frame sensor. The sensor area in the R5 Mark II is 160 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the R5 Mark II uses a more advanced image processing engine (DIGIC X) than the 800D (DIGIC 7), with benefits for noise reduction, color accuracy, and processing speed.

Canon 800D and Canon R5 Mark II sensor measures

With 44.8MP, the R5 Mark II offers a higher resolution than the 800D (24MP), but the R5 Mark II nevertheless has larger individual pixels (pixel pitch of 4.39μm versus 3.72μm for the 800D) due to its larger sensor. Moreover, the R5 Mark II is a much more recent model (by 7 years and 5 months) than the 800D, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Canon R5 Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the R5 Mark II for good quality output (200 dots per inch) amounts to 41 x 27.3 inches or 104 x 69.4 cm, for very good quality (250 dpi) 32.8 x 21.9 inches or 83.2 x 55.5 cm, and for excellent quality (300 dpi) 27.3 x 18.2 inches or 69.4 x 46.3 cm. The corresponding values for the Canon 800D are 30 x 20 inches or 76.2 x 50.8 cm for good quality, 24 x 16 inches or 61 x 40.6 cm for very good quality, and 20 x 13.3 inches or 50.8 x 33.9 cm for excellent quality prints.

The Canon EOS 800D has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Canon EOS R5 Mark II are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-102400.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

800D versus R5 Mark II MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

scroll hint
Sensor Characteristics
  empty Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon 800D APS-C 24.0 6000 40001080/60p23.713.1158680
2.

Canon R5 Mark II Full Frame 44.8 8192 54648k/60p25.414.8333297
3.

Canon 77D APS-C 24.0 6000 40001080/60p23.613.397178
4.

Canon 200D APS-C 24.0 6000 40001080/60p23.613.4104179
5.

Canon 750D APS-C 24.0 6000 40001080/30p22.712.091971
6.

Canon 760D APS-C 24.0 6000 40001080/30p22.612.091570
7.

Canon 850D APS-C 24.0 6000 40004K/24p24.013.5187383
8.

Canon 1300D APS-C 17.9 5184 34561080/30p22.011.778166
9.

Canon 2000D APS-C 24.0 6000 40001080/30p22.611.9100971
10.

Canon G7 X Mark II 1-inch 20.0 5472 36481080/60p21.811.926062
11.

Canon M6 APS-C 24.0 6000 40001080/60p23.412.6131778
12.

Canon R5 Full Frame 44.8 8192 54648K/30p25.314.6304295
13.

Canon R5 C Full Frame 44.8 8192 54648k/60p25.414.5308296
14.

Canon R6 Full Frame 20.0 5472 36484k/60p24.214.3339490
15.

Fujifilm GFX 50S II Medium Format 51.1 8256 61921080/30p25.914.83456100
16.

Nikon D5600 APS-C 24.0 6000 40001080/60p24.114.0130684
17.

Nikon Z8 Full Frame 45.4 8256 55048K/30p26.314.2254898
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the R5 Mark II provides a better video resolution than the 800D. It can shoot movie footage at 8k/60p, while the 800D is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the R5 Mark II has an electronic viewfinder (5760k dots), while the 800D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the R5 Mark II offers a wider field of view (100%) than the one in the 800D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the R5 Mark II has a higher magnification (0.76x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 800D and Canon R5 Mark II in connection with corresponding information for a sample of similar cameras.

scroll hint
Core Features
  empty Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon 800Doptical n3.0 / 1040 swivel Y 1/4000s 6.0/s Y n
2.

Canon R5 Mark II5760 Y3.2 / 2100 swivel Y 1/8000s 12.0/s n Y
3.

Canon 77Doptical Y3.0 / 1040 swivel Y 1/4000s 6.0/s Y n
4.

Canon 200Doptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
5.

Canon 750Doptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
6.

Canon 760Doptical Y3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
7.

Canon 850Doptical n3.0 / 1040 swivel Y 1/4000s 7.5/s Y n
8.

Canon 1300Doptical n3.0 / 920 fixed n 1/4000s 3.0/s Y n
9.

Canon 2000Doptical n3.0 / 920 fixed n 1/4000s 3.0/s Y n
10.

Canon G7 X Mark IInone n3.0 / 1040 tilting Y 1/2000s 8.0/s Y Y
11.

Canon M6optional n3.0 / 1040 tilting Y 1/4000s 9.0/s Y n
12.

Canon R55760 Y3.2 / 2100 swivel Y 1/8000s 12.0/s n Y
13.

Canon R5 C5760 Y3.2 / 2100 swivel Y 1/8000s 12.0/s n n
14.

Canon R63690 n3.0 / 1620 swivel Y 1/8000s 12.0/s n Y
15.

Fujifilm GFX 50S II3690 Y3.2 / 2360 full-flex Y 1/4000s 3.0/s n Y
16.

Nikon D5600optical n3.2 / 1037 swivel Y 1/4000s 5.0/s Y n
17.

Nikon Z83690 Y3.2 / 2089 full-flex Y 1/32000s 30.0/s n Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The 800D has one, while the R5 Mark II does not. While the built-in flash of the 800D is not very powerful, it can at times be useful as a fill-in light.

Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the R5 Mark II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon R5 Mark II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 800D writes its imaging data to SDXC cards, while the R5 Mark II uses CFexpress (type B) or SDXC cards. The R5 Mark II features dual card slots, which can be very useful in case a memory card fails. In contrast, the 800D only has one slot. The R5 Mark II supports UHS-II cards (on both slots), while the 800D can use UHS-I cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 800D and Canon EOS R5 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  empty Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon 800DYstereo / monoY-mini2.0YYY
2.

Canon R5 Mark IIYmono / monoYYfull3.2Y-Y
3.

Canon 77DYstereo / monoY-mini2.0YYY
4.

Canon 200DYstereo / monoY-mini2.0YYY
5.

Canon 750DYstereo / monoY-mini2.0YY-
6.

Canon 760DYstereo / monoY-mini2.0YY-
7.

Canon 850DYstereo / monoY-mini2.0Y-Y
8.

Canon 1300DYmono / mono--mini2.0YY-
9.

Canon 2000DYmono / mono--mini2.0YY-
10.

Canon G7 X Mark II-stereo / mono--micro2.0YY-
11.

Canon M6Ystereo / monoY-mini2.0YYY
12.

Canon R5Ymono / monoYYmicro3.2Y-Y
13.

Canon R5 CYstereo / monoYYmicro3.2Y-Y
14.

Canon R6Ymono / monoYYmicro3.2Y-Y
15.

Fujifilm GFX 50S IIYstereo / monoYYmicro3.2Y--
16.

Nikon D5600Ystereo / monoY-mini2.0YYY
17.

Nikon Z8Ystereo / monoYYfull3.2Y-Y

It is notable that the R5 Mark II has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The 800D lacks such a headphone port.

Studio photographers will appreciate that the Canon R5 Mark II (unlike the 800D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The R5 Mark II is a recent model that features in the current product line-up of Canon. In contrast, the 800D has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the 800D was succeeded by the Canon 850D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon 800D and the Canon R5 Mark II? Which camera is better? The listing below highlights the relative strengths of the two models.


Reasons to prefer the Canon EOS 800D:

  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Less heavy: Is lighter (by 214g or 29 percent) and hence easier to carry around.
  • Longer lasting: Can take more shots (600 versus 340) on a single battery charge.
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • More affordable: Was introduced into a lower priced category (83 percent cheaper at launch).
  • More heavily discounted: Has been available for much longer (launched in February 2017).


Advantages of the Canon EOS R5 Mark II:

  • More detail: Has more megapixels (44.8 vs 24MP), which boosts linear resolution by 37%.
  • Better image quality: Is equipped with a larger and more technologically advanced sensor.
  • Richer colors: The sensor size advantage translates into images with better, more accurate colors.
  • More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
  • Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
  • Better jpgs: Has a more modern image processing engine (DIGIC X vs DIGIC 7).
  • Better video: Provides higher definition movie capture (8k/60p vs 1080/60p).
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.51x).
  • Easier setting verification: Features a control panel on top to check shooting parameters.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (2100k vs 1040k dots).
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • Faster burst: Shoots at higher frequency (12 vs 6 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • Easier travel charging: Can be conveniently charged via its USB port.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
  • More solid recording: Has a full-sized HDMI port for a sturdy connection to an external recorder.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
  • More modern: Reflects 7 years and 5 months of technical progress since the 800D launch.

If the number of relative strengths (bullet points above) is taken as a guide, the R5 Mark II is the clear winner of the contest (28 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

800D 07:28 R5 Mark II

How about other alternatives? Do the specifications of the Canon 800D and the Canon R5 Mark II place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the 800D and the R5 Mark II in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
  empty  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price
Street
Price
1.

Canon 800D4.5/5..3.5/580/1004.5/54/5 Feb 2017 EUR 849ebay.com
2.

Canon R5 Mark II......93/100.... Jul 2024 EUR 4 799 amazon.com
3.

Canon 77D4.5/5..4/582/1004.5/54/5 Feb 2017 EUR 899ebay.com
4.

Canon 200D4/5+ +4/578/1004.5/54.5/5 Jun 2017 EUR 599ebay.com
5.

Canon 750D5/5....75/1004.5/54.5/5 Feb 2015 EUR 699ebay.com
6.

Canon 760D5/5+..77/1004.5/54.5/5 Feb 2015 EUR 749ebay.com
7.

Canon 850D4/5+3/580/1004/53.5/5 Feb 2020 EUR 899ebay.com
8.

Canon 1300D4/5o4/573/1004/54/5 Mar 2016 EUR 449ebay.com
9.

Canon 2000D3/5o3.5/5..3.5/53.5/5 Feb 2018 EUR 499 amazon.com
10.

Canon G7 X Mark II4.5/5+ +..81/1004.5/54.5/5 Feb 2016 EUR 685ebay.com
11.

Canon M6......80/1004/54/5 Feb 2017 EUR 799ebay.com
12.

Canon R54.5/5+4/591/1004.5/54.5/5 Jul 2020 EUR 4 499 amazon.com
13.

Canon R5 C..+ +........ Jan 2022 EUR 4 999 amazon.com
14.

Canon R65/5+ +4/590/1004.5/55/5 Jul 2020 EUR 2 699 amazon.com
15.

Fujifilm GFX 50S II5/5..5/587/100..5/5 Sep 2021 EUR 3 999 amazon.com
16.

Nikon D56004/5..4/579/1004.5/54/5 Nov 2016 EUR 819ebay.com
17.

Nikon Z85/5..5/594/1005/54.5/5 May 2023 EUR 4 599 amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

logo
Check 800D offers at
ebay.com
logo
Check R5 Mark II price at
amazon.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad

    Specifications: Canon 800D vs Canon R5 Mark II

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon 800D Canon R5 Mark II
    Camera Type Digital single lens reflex Mirrorless system camera
    Camera Lens Canon EF mount lenses Canon RF mount lenses
    Launch Date February 2017 July 2024
    Launch Price USD 749 USD 4,299
    Sensor Specs Canon 800D Canon R5 Mark II
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor Full Frame Sensor
    Sensor Size 22.3 x 14.9 mm 36.0 x 24.0 mm
    Sensor Area 332.27 mm2 864 mm2
    Sensor Diagonal 26.8 mm 43.3 mm
    Crop Factor 1.6x 1.0x
    Sensor Resolution 24 Megapixels 44.8 Megapixels
    Image Resolution 6000 x 4000 pixels 8192 x 5464 pixels
    Pixel Pitch 3.72 μm 4.39 μm
    Pixel Density 7.22 MP/cm2 5.18 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 1080/60p Video 8k/60p Video
    ISO Setting 100 - 25,600 ISO 100 - 51,200 ISO
    ISO Boost 100 - 51,200 ISO 50 - 102,400 ISO
    Image Processor DIGIC 7 DIGIC X
    Screen Specs Canon 800D Canon R5 Mark II
    Viewfinder Type Optical viewfinder Electronic viewfinder
    Viewfinder Field of View 95% 100%
    Viewfinder Magnification 0.51x 0.76x
    Viewfinder Resolution 5760k dots
    Top-Level Screen no Top Display Control Panel
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.2inch
    LCD Resolution 1040k dots 2100k dots
    LCD Attachment Swivel screen Swivel screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs Canon 800D Canon R5 Mark II
    Focus System Phase-detect AF On-Sensor Phase-detect
    Manual Focusing Aidno Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/4000s 1/8000s
    Continuous Shooting 6 shutter flaps/s 12 shutter flaps/s
    Electronic Shutterno E-Shutterup to 1/32000s
    Time-Lapse Photographyno IntervalometerIntervalometer built-in
    Image StabilizationLens stabilization onlyIn-body stabilization
    Fill Flash Built-in Flash no On-Board Flash
    Storage Medium SDXC cards CFexB or SDXC cards
    Single or Dual Card Slots Single card slot Dual card slots
    UHS card support UHS-I Dual UHS-II
    Connectivity Specs Canon 800D Canon R5 Mark II
    External Flash Hotshoe Hotshoe
    Studio Flash no PC Sync PC Sync socket
    USB Connector USB 2.0 USB 3.2
    HDMI Port mini HDMI full HDMI
    Microphone Port External MIC port External MIC port
    Headphone Socket no Headphone port Headphone port
    Wifi Support Wifi built-in Wifi built-in
    Near-Field Communication NFC built-in no NFC
    Bluetooth Support Bluetooth built-in Bluetooth built-in
    Body Specs Canon 800D Canon R5 Mark II
    Environmental Sealingnot weather sealedWeathersealed body
    Battery Type Canon LP-E17 Canon LP-E6P
    Battery Life (CIPA)600 shots per charge340 shots per charge
    In-Camera Charging no USB charging USB charging
    Body Dimensions 131 x 100 x 76 mm
    (5.2 x 3.9 x 3.0 in)
    138 x 98 x 88 mm
    (5.4 x 3.9 x 3.5 in)
    Camera Weight 532 g (18.8 oz) 746 g (26.3 oz)
    logo
    Check 800D offers at
    ebay.com
    logo
    Check R5 Mark II price at
    amazon.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon 800D vs Canon R5 Mark II
