Canon 80D vs R5 Mark II

The Canon EOS 80D and the Canon EOS R5 Mark II are two enthusiast cameras that were officially introduced, respectively, in February 2016 and July 2024. The 80D is a DSLR, while the R5 Mark II is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (80D) and a full frame (R5 Mark II) sensor. The 80D has a resolution of 24 megapixels, whereas the R5 Mark II provides 44.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon 80D
versus
Canon R5 Mark II
Canon 80D   Canon R5 Mark II
Digital single lens reflex Mirrorless system camera
Canon EF mount lenses Canon RF mount lenses
24 MP – APS-C sensor 44.8 MP – Full Frame sensor
1080/60p Video 8k/60p Video
ISO 100-16,000 (100 - 25,600) ISO 100-51,200 (50 - 102,400)
Optical viewfinder Electronic viewfinder (5760k dots)
3.0" LCD – 1040k dots 3.2" LCD – 2100k dots
Swivel touchscreen Swivel touchscreen
7 shutter flaps per second 12 shutter flaps per second
Lens stabilization onlyIn-body stabilization
Weathersealed bodyWeathersealed body
960 shots per battery charge340 shots per battery charge
139 x 105 x 79 mm, 730 g 138 x 98 x 88 mm, 746 g
logo
Check 80D offers at
ebay.com
logo
Check R5 Mark II price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 80D and the Canon EOS R5 Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The physical size and weight of the Canon 80D and the Canon R5 Mark II are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

Size Canon 80D vs Canon R5 Mark II

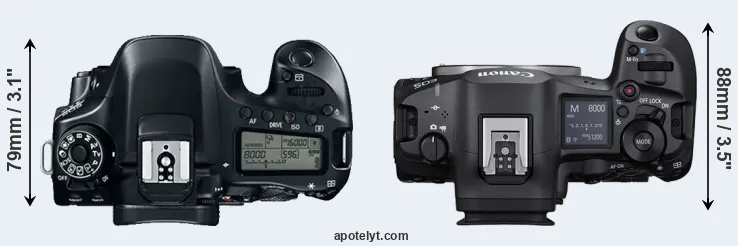

Compare 80D versus R5 Mark II top

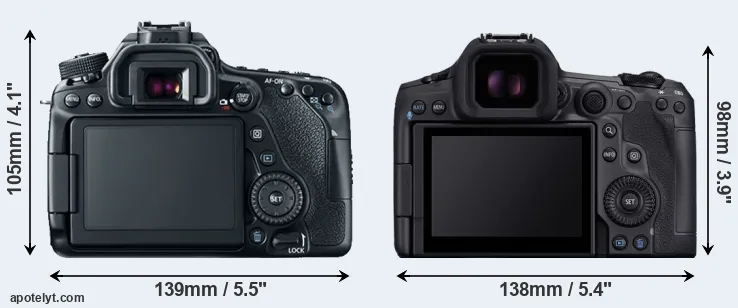

Comparison 80D or R5 Mark II rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon R5 Mark II is notably smaller (7 percent) than the Canon 80D. However, the R5 Mark II is slightly heavier (2 percent) than the 80D. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The power pack in the R5 Mark II can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

scroll hint
Body Specifications
  empty Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price
Street
Price
1.

Canon 80D 139 mm 105 mm 79 mm 730 g 960 Y Feb 2016 US$ 1 199ebay.com
2.

Canon R5 Mark II 138 mm 98 mm 88 mm 746 g 340 Y Jul 2024 US$ 4 299 amazon.com
3.

Canon 5D Mark IV 151 mm 116 mm 76 mm 890 g 900 Y Aug 2016 US$ 3 499 amazon.com
4.

Canon 6D Mark II 144 mm 111 mm 75 mm 765 g 1200 Y Jun 2017 US$ 1 999 amazon.com
5.

Canon 60D 145 mm 106 mm 79 mm 755 g 1100 Y Aug 2010 US$ 1 399ebay.com
6.

Canon 70D 139 mm 104 mm 79 mm 755 g 920 Y Jul 2013 US$ 1 199ebay.com
7.

Canon 77D 131 mm 100 mm 76 mm 540 g 600 n Feb 2017 US$ 899ebay.com
8.

Canon 90D 141 mm 105 mm 77 mm 701 g 1300 Y Aug 2019 US$ 1 199 amazon.com
9.

Canon G3 X 123 mm 77 mm 105 mm 733 g 300 Y Jun 2015 US$ 999ebay.com
10.

Canon R5 138 mm 98 mm 88 mm 738 g 320 Y Jul 2020 US$ 3 899 amazon.com
11.

Canon R5 C 142 mm 101 mm 111 mm 770 g 320 Y Jan 2022 US$ 4 499 amazon.com
12.

Canon R6 138 mm 98 mm 88 mm 680 g 360 Y Jul 2020 US$ 2 499 amazon.com
13.

Fujifilm GFX 50S II 150 mm 104 mm 87 mm 900 g 440 Y Sep 2021 US$ 3 999 amazon.com
14.

Nikon D7200 136 mm 107 mm 76 mm 765 g 1110 Y Mar 2015 US$ 1 199ebay.com
15.

Nikon D7500 136 mm 104 mm 73 mm 720 g 950 Y Apr 2017 US$ 1 299 amazon.com
16.

Nikon Z8 144 mm 119 mm 83 mm 910 g 340 Y May 2023 US$ 3 999 amazon.com
17.

Sony RX10 II 129 mm 88 mm 102 mm 813 g 400 Y Jun 2015 US$ 1 299ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 80D was launched at a markedly lower price (by 72 percent) than the R5 Mark II, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 80D features an APS-C sensor and the Canon R5 Mark II a full frame sensor. The sensor area in the R5 Mark II is 156 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the R5 Mark II uses a more advanced image processing engine (DIGIC X) than the 80D (DIGIC 6), with benefits for noise reduction, color accuracy, and processing speed.

Canon 80D and Canon R5 Mark II sensor measures

With 44.8MP, the R5 Mark II offers a higher resolution than the 80D (24MP), but the R5 Mark II nevertheless has larger individual pixels (pixel pitch of 4.39μm versus 3.75μm for the 80D) due to its larger sensor. Moreover, the R5 Mark II is a much more recent model (by 8 years and 4 months) than the 80D, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Canon R5 Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the R5 Mark II for good quality output (200 dots per inch) amounts to 41 x 27.3 inches or 104 x 69.4 cm, for very good quality (250 dpi) 32.8 x 21.9 inches or 83.2 x 55.5 cm, and for excellent quality (300 dpi) 27.3 x 18.2 inches or 69.4 x 46.3 cm. The corresponding values for the Canon 80D are 30 x 20 inches or 76.2 x 50.8 cm for good quality, 24 x 16 inches or 61 x 40.6 cm for very good quality, and 20 x 13.3 inches or 50.8 x 33.9 cm for excellent quality prints.

The Canon EOS 80D has a native sensitivity range from ISO 100 to ISO 16000, which can be extended to ISO 100-25600. The corresponding ISO settings for the Canon EOS R5 Mark II are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-102400.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

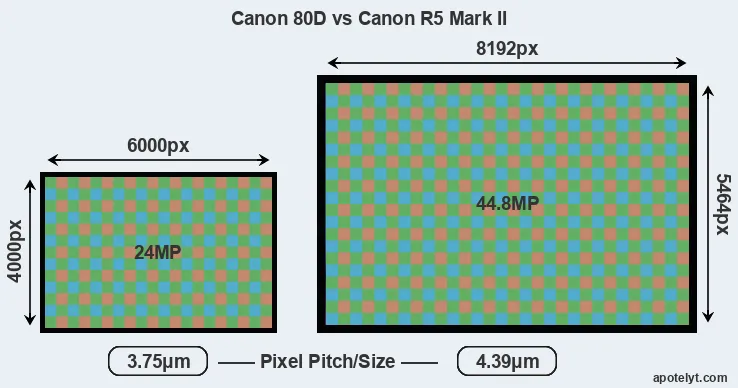

80D versus R5 Mark II MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

scroll hint
Sensor Characteristics
  empty Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon 80D APS-C 24.0 6000 40001080/60p23.613.2113579
2.

Canon R5 Mark II Full Frame 44.8 8192 54648k/60p25.414.8333297
3.

Canon 5D Mark IV Full Frame 30.1 6720 44804K/30p24.813.6299591
4.

Canon 6D Mark II Full Frame 26.0 6240 41601080/60p24.411.9286285
5.

Canon 60D APS-C 17.9 5184 34561080/30p22.211.581366
6.

Canon 70D APS-C 20.0 5472 36481080/30p22.511.692668
7.

Canon 77D APS-C 24.0 6000 40001080/60p23.613.397178
8.

Canon 90D APS-C 32.3 6960 46404K/30p24.013.5184883
9.

Canon G3 X 1-inch 20.0 5472 36481080/60p21.412.352163
10.

Canon R5 Full Frame 44.8 8192 54648K/30p25.314.6304295
11.

Canon R5 C Full Frame 44.8 8192 54648k/60p25.414.5308296
12.

Canon R6 Full Frame 20.0 5472 36484k/60p24.214.3339490
13.

Fujifilm GFX 50S II Medium Format 51.1 8256 61921080/30p25.914.83456100
14.

Nikon D7200 APS-C 24.0 6000 40001080/60p24.514.6133387
15.

Nikon D7500 APS-C 20.7 5568 37124K/30p24.314.0148386
16.

Nikon Z8 Full Frame 45.4 8256 55048K/30p26.314.2254898
17.

Sony RX10 II 1-inch 20.0 5472 36484K/30p23.012.653170
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the R5 Mark II provides a better video resolution than the 80D. It can shoot movie footage at 8k/60p, while the 80D is limited to 1080/60p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the R5 Mark II has an electronic viewfinder (5760k dots), while the 80D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the R5 Mark II has a higher magnification than the one of the 80D (0.76x vs 0.59x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 80D, the Canon R5 Mark II, and comparable cameras.

scroll hint
Core Features
  empty Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon 80Doptical Y3.0 / 1040 swivel Y 1/8000s 7.0/s Y n
2.

Canon R5 Mark II5760 Y3.2 / 2100 swivel Y 1/8000s 12.0/s n Y
3.

Canon 5D Mark IVoptical Y3.2 / 1620 fixed Y 1/8000s 7.0/s n n
4.

Canon 6D Mark IIoptical Y3.0 / 1040 swivel Y 1/4000s 6.5/s n n
5.

Canon 60Doptical Y3.0 / 1040 swivel n 1/8000s 5.3/s Y n
6.

Canon 70Doptical Y3.0 / 1040 swivel Y 1/8000s 7.0/s Y n
7.

Canon 77Doptical Y3.0 / 1040 swivel Y 1/4000s 6.0/s Y n
8.

Canon 90Doptical Y3.0 / 1040 swivel Y 1/8000s 11.0/s Y n
9.

Canon G3 Xoptional n3.2 / 1620 tilting Y 1/2000s 5.9/s Y Y
10.

Canon R55760 Y3.2 / 2100 swivel Y 1/8000s 12.0/s n Y
11.

Canon R5 C5760 Y3.2 / 2100 swivel Y 1/8000s 12.0/s n n
12.

Canon R63690 n3.0 / 1620 swivel Y 1/8000s 12.0/s n Y
13.

Fujifilm GFX 50S II3690 Y3.2 / 2360 full-flex Y 1/4000s 3.0/s n Y
14.

Nikon D7200optical Y3.2 / 1229 fixed n 1/8000s 6.0/s Y n
15.

Nikon D7500optical Y3.2 / 922 tilting Y 1/8000s 8.0/s Y n
16.

Nikon Z83690 Y3.2 / 2089 full-flex Y 1/32000s 30.0/s n Y
17.

Sony RX10 II2359 Y3.0 / 1229 tilting n 1/3200s 14.0/s Y Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The 80D has one, while the R5 Mark II does not. While the built-in flash of the 80D is not very powerful, it can at times be useful as a fill-in light.

Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the R5 Mark II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon 80D and the Canon R5 Mark II both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 80D writes its imaging data to SDXC cards, while the R5 Mark II uses CFexpress (type B) or SDXC cards. The R5 Mark II features dual card slots, which can be very useful in case a memory card fails. In contrast, the 80D only has one slot. The R5 Mark II supports UHS-II cards (on both slots), while the 80D can use UHS-I cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 80D and Canon EOS R5 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  empty Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon 80DYstereo / monoYYmini2.0YY-
2.

Canon R5 Mark IIYmono / monoYYfull3.2Y-Y
3.

Canon 5D Mark IVYmono / monoYYmini3.0YY-
4.

Canon 6D Mark IIYstereo / monoY-mini2.0YYY
5.

Canon 60DYmono / monoY-mini2.0---
6.

Canon 70DYstereo / monoY-mini2.0Y--
7.

Canon 77DYstereo / monoY-mini2.0YYY
8.

Canon 90DYstereo / monoYYmini2.0Y-Y
9.

Canon G3 XYstereo / monoYYmini2.0YY-
10.

Canon R5Ymono / monoYYmicro3.2Y-Y
11.

Canon R5 CYstereo / monoYYmicro3.2Y-Y
12.

Canon R6Ymono / monoYYmicro3.2Y-Y
13.

Fujifilm GFX 50S IIYstereo / monoYYmicro3.2Y--
14.

Nikon D7200Ystereo / monoYYmini2.0YY-
15.

Nikon D7500Ystereo / monoYYmini2.0Y-Y
16.

Nikon Z8Ystereo / monoYYfull3.2Y-Y
17.

Sony RX10 IIYstereo / monoYYmicro2.0YY-

Studio photographers will appreciate that the Canon R5 Mark II (unlike the 80D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The R5 Mark II is a recent model that features in the current product line-up of Canon. In contrast, the 80D has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the 80D was succeeded by the Canon 90D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon 80D and the Canon R5 Mark II? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.


Reasons to prefer the Canon EOS 80D:

  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Longer lasting: Can take more shots (960 versus 340) on a single battery charge.
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • More affordable: Was introduced into a lower priced category (72 percent cheaper at launch).
  • More heavily discounted: Has been available for much longer (launched in February 2016).


Arguments in favor of the Canon EOS R5 Mark II:

  • More detail: Has more megapixels (44.8 vs 24MP), which boosts linear resolution by 37%.
  • Better image quality: Is equipped with a larger and more technologically advanced sensor.
  • Richer colors: The sensor size advantage translates into images with better, more accurate colors.
  • More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
  • Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
  • Better jpgs: Has a more modern image processing engine (DIGIC X vs DIGIC 6).
  • Better video: Provides higher definition movie capture (8k/60p vs 1080/60p).
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.59x).
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (2100k vs 1040k dots).
  • Faster burst: Shoots at higher frequency (12 vs 7 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • Easier travel charging: Can be conveniently charged via its USB port.
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
  • More solid recording: Has a full-sized HDMI port for a sturdy connection to an external recorder.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
  • More modern: Reflects 8 years and 4 months of technical progress since the 80D launch.

If the count of relative strengths (bullet points above) is taken as a measure, the R5 Mark II is the clear winner of the contest (23 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

80D 06:23 R5 Mark II

How about other alternatives? Do the specifications of the Canon 80D and the Canon R5 Mark II place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 80D or the R5 Mark II. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
  empty  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price
Street
Price
1.

Canon 80D4/5+ +4.5/584/1004.5/54.5/5 Feb 2016 US$ 1 199ebay.com
2.

Canon R5 Mark II......93/100.... Jul 2024 US$ 4 299 amazon.com
3.

Canon 5D Mark IV4.5/5+ +4/587/1004.5/54.5/5 Aug 2016 US$ 3 499 amazon.com
4.

Canon 6D Mark II4/5+4/580/1004.5/54/5 Jun 2017 US$ 1 999 amazon.com
5.

Canon 60D5/5+..79/1004/54.5/5 Aug 2010 US$ 1 399ebay.com
6.

Canon 70D5/5+ +..83/1004.5/55/5 Jul 2013 US$ 1 199ebay.com
7.

Canon 77D4.5/5..4/582/1004.5/54/5 Feb 2017 US$ 899ebay.com
8.

Canon 90D4/5+4.5/585/1004.5/54.5/5 Aug 2019 US$ 1 199 amazon.com
9.

Canon G3 X3.5/5+....4.5/54/5 Jun 2015 US$ 999ebay.com
10.

Canon R54.5/5+4/591/1004.5/54.5/5 Jul 2020 US$ 3 899 amazon.com
11.

Canon R5 C..+ +........ Jan 2022 US$ 4 499 amazon.com
12.

Canon R65/5+ +4/590/1004.5/55/5 Jul 2020 US$ 2 499 amazon.com
13.

Fujifilm GFX 50S II5/5..5/587/100..5/5 Sep 2021 US$ 3 999 amazon.com
14.

Nikon D72004/5+ +..84/1004.5/54.5/5 Mar 2015 US$ 1 199ebay.com
15.

Nikon D75004.5/5+ +4.5/586/1005/54.5/5 Apr 2017 US$ 1 299 amazon.com
16.

Nikon Z85/5..5/594/1005/54.5/5 May 2023 US$ 3 999 amazon.com
17.

Sony RX10 II5/5+ +..82/1004.5/54/5 Jun 2015 US$ 1 299ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

logo
Check 80D offers at
ebay.com
logo
Check R5 Mark II price at
amazon.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~
    loader
    ad

    Specifications: Canon 80D vs Canon R5 Mark II

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon 80D Canon R5 Mark II
    Camera Type Digital single lens reflex Mirrorless system camera
    Camera Lens Canon EF mount lenses Canon RF mount lenses
    Launch Date February 2016 July 2024
    Launch Price USD 1,199 USD 4,299
    Sensor Specs Canon 80D Canon R5 Mark II
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor Full Frame Sensor
    Sensor Size 22.5 x 15.0 mm 36.0 x 24.0 mm
    Sensor Area 337.5 mm2 864 mm2
    Sensor Diagonal 27 mm 43.3 mm
    Crop Factor 1.6x 1.0x
    Sensor Resolution 24 Megapixels 44.8 Megapixels
    Image Resolution 6000 x 4000 pixels 8192 x 5464 pixels
    Pixel Pitch 3.75 μm 4.39 μm
    Pixel Density 7.11 MP/cm2 5.18 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 1080/60p Video 8k/60p Video
    ISO Setting 100 - 16,000 ISO 100 - 51,200 ISO
    ISO Boost 100 - 25,600 ISO 50 - 102,400 ISO
    Image Processor DIGIC 6 DIGIC X
    DXO Sensor Quality (score) 79 ..
    DXO Color Depth (bits) 23.6 ..
    DXO Dynamic Range (EV) 13.2 ..
    DXO Low Light (ISO) 1135 ..
    Screen Specs Canon 80D Canon R5 Mark II
    Viewfinder Type Optical viewfinder Electronic viewfinder
    Viewfinder Field of View 100% 100%
    Viewfinder Magnification 0.59x 0.76x
    Viewfinder Resolution 5760k dots
    Top-Level Screen Control Panel Control Panel
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.2inch
    LCD Resolution 1040k dots 2100k dots
    LCD Attachment Swivel screen Swivel screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs Canon 80D Canon R5 Mark II
    Focus System Phase-detect AF On-Sensor Phase-detect
    Manual Focusing Aidno Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/8000s 1/8000s
    Continuous Shooting 7 shutter flaps/s 12 shutter flaps/s
    Electronic Shutterno E-Shutterup to 1/32000s
    Time-Lapse PhotographyIntervalometer built-inIntervalometer built-in
    Image StabilizationLens stabilization onlyIn-body stabilization
    Fill Flash Built-in Flash no On-Board Flash
    Storage Medium SDXC cards CFexB or SDXC cards
    Single or Dual Card Slots Single card slot Dual card slots
    UHS card support UHS-I Dual UHS-II
    Connectivity Specs Canon 80D Canon R5 Mark II
    External Flash Hotshoe Hotshoe
    Studio Flash no PC Sync PC Sync socket
    USB Connector USB 2.0 USB 3.2
    HDMI Port mini HDMI full HDMI
    Microphone Port External MIC port External MIC port
    Headphone Socket Headphone port Headphone port
    Wifi Support Wifi built-in Wifi built-in
    Near-Field Communication NFC built-in no NFC
    Bluetooth Support no Bluetooth Bluetooth built-in
    Body Specs Canon 80D Canon R5 Mark II
    Environmental SealingWeathersealed bodyWeathersealed body
    Battery Type Canon LP-E6N Canon LP-E6P
    Battery Life (CIPA)960 shots per charge340 shots per charge
    In-Camera Charging no USB charging USB charging
    Body Dimensions 139 x 105 x 79 mm
    (5.5 x 4.1 x 3.1 in)
    138 x 98 x 88 mm
    (5.4 x 3.9 x 3.5 in)
    Camera Weight 730 g (25.8 oz) 746 g (26.3 oz)
    logo
    Check 80D offers at
    ebay.com
    logo
    Check R5 Mark II price at
    amazon.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon 80D vs Canon R5 Mark II
