Canon G12 vs SX1

The Canon PowerShot G12 and the Canon PowerShot SX1 IS are two digital cameras that were revealed to the public, respectively, in September 2010 and September 2008. Both the G12 and the SX1 are fixed lens compact cameras that are based on a 1/1.7-inch (G12) and a 1/2.3-inch (SX1) sensor. Both cameras offer a resolution of 10 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon G12		Canon SX1
Fixed lens compact camera		Fixed lens compact camera
28-140mm f/2.8-4.5		28-560mm f/2.8-5.7
10 MP – 1/1.7" sensor		10 MP – 1/2.3" sensor
720/24p Video		1080/30p Video
ISO 80-3,200 (80 - 12,800)		ISO 100-1,600 (100 - 3,200)
Optical viewfinder		Electronic viewfinder (202k dots)
2.8" LCD – 461k dots		2.8" LCD – 230k dots
Swivel screen (not touch-sensitive)		Swivel screen (not touch-sensitive)
1.1 shutter flaps per second		4 shutter flaps per second
112 x 76 x 48 mm, 401 g		128 x 88 x 88 mm, 615 g

Check G12 offers at
ebay.com
Check SX1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G12 and the Canon PowerShot SX1 IS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

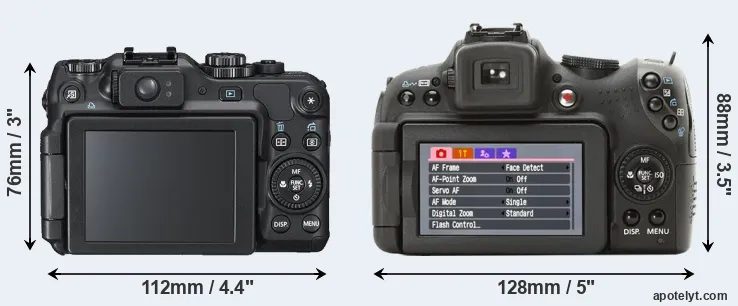

The physical size and weight of the Canon G12 and the Canon SX1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX1 is notably larger (32 percent) than the Canon G12. Moreover, the SX1 is substantially heavier (53 percent) than the G12. In this context, it is worth noting that neither the G12 nor the SX1 are weather-sealed.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon G12	112 mm	76 mm	48 mm	401 g	370	n	Sep 2010	US$ 499	ebay.com
2.		Canon SX1	128 mm	88 mm	88 mm	615 g	..	n	Sep 2008	US$ 599	ebay.com
3.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	US$ 499	ebay.com
4.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
5.		Canon SX10	123 mm	88 mm	87 mm	600 g	..	n	Sep 2008	US$ 399	ebay.com
6.		Canon SX20	123 mm	88 mm	87 mm	600 g	..	n	Aug 2009	US$ 399	ebay.com
7.		Canon SX50	123 mm	87 mm	106 mm	595 g	315	n	Sep 2012	US$ 429	ebay.com
8.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	US$ 549	ebay.com
9.		Fujifilm X10	117 mm	70 mm	57 mm	350 g	270	n	Sep 2011	US$ 599	ebay.com
10.		Nikon P7800	119 mm	78 mm	50 mm	399 g	350	n	Sep 2013	US$ 549	ebay.com
11.		Olympus E-450	130 mm	91 mm	53 mm	440 g	500	n	Mar 2009	US$ 499	ebay.com
12.		Panasonic FZ150	124 mm	82 mm	92 mm	528 g	410	n	Aug 2011	US$ 499	ebay.com
13.		Panasonic FZ200	125 mm	87 mm	110 mm	588 g	540	n	Jul 2012	US$ 599	ebay.com
14.		Panasonic G2	124 mm	84 mm	74 mm	428 g	360	n	Mar 2010	US$ 599	ebay.com
15.		Panasonic G10	124 mm	84 mm	74 mm	388 g	380	n	Mar 2010	US$ 499	ebay.com
16.		Panasonic LX5	110 mm	65 mm	43 mm	271 g	400	n	Jul 2010	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The G12 was launched at a somewhat lower price (by 17 percent) than the SX1, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon G12 features a 1/1.7-inch sensor and the Canon SX1 a 1/2.3-inch sensor. The sensor area in the SX1 is 35 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 4.6 and 5.6. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Even though the G12 has a larger sensor, both cameras offer the same resolution of 10 megapixels. This implies that the G12 has a lower pixel density and larger individual pixels (with a pixel pitch of 2.07μm versus 1.67μm for the SX1), which gives it a potential advantage in terms of light gathering capacity. In addition, the G12 is a somewhat more recent model (by 1 year and 11 months) than the SX1, and its sensor might have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that the SX1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Canon PowerShot G12 has a native sensitivity range from ISO 80 to ISO 3200, which can be extended to ISO 80-12800. The corresponding ISO settings for the Canon PowerShot SX1 IS are ISO 100 to ISO 1600, with the possibility to increase the ISO range to 100-3200.

In terms of underlying technology, the G12 is build around a CCD sensor, while the SX1 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon G12	1/1.7	10.0	3648	2736	720/24p	20.4	11.2	161	47
2.		Canon SX1	1/2.3	10.0	3648	2736	1080/30p	19.0	10.3	144	35
3.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
4.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
5.		Canon SX10	1/2.3	10.0	3648	2736	480/30p	19.0	10.3	144	35
6.		Canon SX20	1/2.3	12.0	4000	3000	720/30p	19.2	10.5	225	37
7.		Canon SX50	1/2.3	12.0	4000	3000	1080/24p	20.3	11.2	179	47
8.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
9.		Fujifilm X10	2/3	12.0	4000	3000	1080/30p	20.5	11.3	245	50
10.		Nikon P7800	1/1.7	12.0	4000	3000	1080/30p	21.2	11.7	200	54
11.		Olympus E-450	Four Thirds	10.0	3648	2736	none	21.5	10.5	512	56
12.		Panasonic FZ150	1/2.3	12.0	4000	3000	1080/60p	19.4	10.9	132	40
13.		Panasonic FZ200	1/2.3	12.0	4000	3000	1080/60p	19.1	10.8	114	37
14.		Panasonic G2	Four Thirds	12.0	4000	3000	720/30p	21.2	10.3	493	53
15.		Panasonic G10	Four Thirds	12.0	4000	3000	720/30p	21.2	10.1	411	52
16.		Panasonic LX5	1/1.7	10.0	3648	2736	720/60p	19.6	10.8	132	41
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the SX1 provides a better video resolution than the G12. It can shoot movie footage at 1080/30p, while the G12 is limited to 720/24p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the SX1 has an electronic viewfinder (202k dots), while the G12 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The table below summarizes some of the other core capabilities of the Canon G12 and Canon SX1 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon G12	optical	n	2.8 / 461	swivel	n	1/4000s	1.1/s	Y	Y
2.		Canon SX1	202	n	2.8 / 230	swivel	n	1/3200s	4.0/s	Y	Y
3.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
4.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
5.		Canon SX10	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
6.		Canon SX20	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
7.		Canon SX50	202	n	3.0 / 461	swivel	n	1/2000s	2.2/s	Y	Y
8.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
9.		Fujifilm X10	optical	n	2.8 / 460	fixed	n	1/4000s	10.0/s	Y	Y
10.		Nikon P7800	921	n	3.0 / 921	swivel	n	1/4000s	8.0/s	Y	Y
11.		Olympus E-450	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	n
12.		Panasonic FZ150	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
13.		Panasonic FZ200	1312	n	3.0 / 460	swivel	n	1/4000s	12.0/s	Y	Y
14.		Panasonic G2	1440	n	3.0 / 460	swivel	Y	1/4000s	2.6/s	Y	n
15.		Panasonic G10	202	n	3.0 / 460	fixed	n	1/4000s	2.6/s	Y	n
16.		Panasonic LX5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Both the G12 and the SX1 have zoom lenses built in. The G12 has a 28-140mm f/2.8-4.5 optic and the SX1 offers a 28-560mm f/2.8-5.7 (focal lengths in full frame equivalent terms). Hence, the G12 and SX1 provide the same view at the wide-angle end, but the SX1 has more tele-photo reach at the long end. Both cameras offer the same maximum aperture.

The G12 writes its imaging data to SDXC cards, while the SX1 uses SDHC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G12 and Canon PowerShot SX1 IS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon G12	Y	stereo / mono	-	-	mini	2.0	-	-	-
2.		Canon SX1	Y	stereo / mono	-	-	YES	2.0	-	-	-
3.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
5.		Canon SX10	Y	stereo / mono	-	-	-	2.0	-	-	-
6.		Canon SX20	Y	stereo / mono	-	-	YES	2.0	-	-	-
7.		Canon SX50	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
9.		Fujifilm X10	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Nikon P7800	Y	stereo / mono	Y	-	mini	2.0	-	-	-
11.		Olympus E-450	Y	- / -	-	-	-	2.0	-	-	-
12.		Panasonic FZ150	Y	stereo / -	-	-	mini	2.0	-	-	-
13.		Panasonic FZ200	Y	stereo / mono	Y	-	mini	2.0	-	-	-
14.		Panasonic G2	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Panasonic G10	Y	mono / -	-	-	mini	2.0	-	-	-
16.		Panasonic LX5	Y	mono / mono	-	-	mini	2.0	-	-	-

Both the G12 and the SX1 have been discontinued, but can regularly be found used on ebay. The G12 was replaced by the Canon G15, while the SX1 does not have a direct successor. Further information on the features and operation of the G12 and SX1 can be found, respectively, in the Canon G12 Manual (free pdf) or the online Canon SX1 Manual.

Review summary

So how do things add up? Is the Canon G12 better than the Canon SX1 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon PowerShot G12:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• More detailed LCD: Has a higher resolution rear screen (461k vs 230k dots).
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/3200s) to freeze action.
• More compact: Is smaller (112x76mm vs 128x88mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 214g or 35 percent) and hence easier to carry around.
• More affordable: Was introduced into a lower priced segment (17 percent cheaper at launch).
• More modern: Is somewhat more recent (announced 1 year and 11 months after the SX1).

Advantages of the Canon PowerShot SX1 IS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better video: Provides higher definition movie capture (1080/30p vs 720/24p).
• More framing info: Has an electronic viewfinder that displays shooting data.
• Faster burst: Shoots at higher frequency (4 vs 1.1 flaps/sec) to capture the decisive moment.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• More heavily discounted: Has been on the market for longer (launched in September 2008).

If the count of individual advantages (bullet points above) is taken as a guide, the G12 is the clear winner of the match-up (12 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon G12 and the Canon SX1 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the G12 or the SX1 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon G12	4/5	+	..	73/100	4.5/5	4.5/5	Sep 2010	US$ 499	ebay.com
2.		Canon SX1	..	+ +	..	+	..	3.5/5	Sep 2008	US$ 599	ebay.com
3.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	US$ 499	ebay.com
4.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
5.		Canon SX10	..	+ +	..	..	..	4/5	Sep 2008	US$ 399	ebay.com
6.		Canon SX20	..	+ +	..	73/100	..	4/5	Aug 2009	US$ 399	ebay.com
7.		Canon SX50	3/5	+ +	..	72/100	4.5/5	4.5/5	Sep 2012	US$ 429	ebay.com
8.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	US$ 549	ebay.com
9.		Fujifilm X10	..	..	..	76/100	4/5	4.5/5	Sep 2011	US$ 599	ebay.com
10.		Nikon P7800	3/5	..	..	..	4/5	4.5/5	Sep 2013	US$ 549	ebay.com
11.		Olympus E-450	..	..	..	..	4/5	4/5	Mar 2009	US$ 499	ebay.com
12.		Panasonic FZ150	3/5	+ +	..	76/100	4/5	4.5/5	Aug 2011	US$ 499	ebay.com
13.		Panasonic FZ200	3/5	+ +	..	80/100	4.5/5	4.5/5	Jul 2012	US$ 599	ebay.com
14.		Panasonic G2	..	..	..	72/100	4/5	4.5/5	Mar 2010	US$ 599	ebay.com
15.		Panasonic G10	3/5	..	..	70/100	4/5	4/5	Mar 2010	US$ 499	ebay.com
16.		Panasonic LX5	4/5	+	..	73/100	4.5/5	4.5/5	Jul 2010	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
