Canon M vs Leica X-U Typ 113

The Canon EOS M and the Leica X-U (Typ 113) are two digital cameras that were announced, respectively, in July 2012 and January 2016. The Canon M is a mirrorless interchangeable lens camera, while the X-U Typ 113 is a fixed lens compact. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 17.9 megapixels, whereas the Leica provides 16.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M		Leica X-U Typ 113
Mirrorless system camera		Fixed lens compact camera
Canon EF-M mount lenses		35mm f/1.7
17.9 MP – APS-C sensor		16.1 MP – APS-C sensor
1080/30p Video		1080/30p Video
ISO 100-12,800 (100 - 25,600)		ISO 100-12,500
No viewfinder, LCD framing		Viewfinder optional
3.0" LCD – 1040k dots		3.0" LCD – 920k dots
Fixed touchscreen		Fixed screen (not touch-sensitive)
4.3 shutter flaps per second		5 shutter flaps per second
not weather sealed		Waterproof body (3m)
230 shots per battery charge		450 shots per battery charge
109 x 66 x 32 mm, 298 g		140 x 79 x 88 mm, 635 g

Check Canon M offers at
ebay.com
Check X-U Typ 113 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M and the Leica X-U (Typ 113)? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Canon M and the Leica X-U Typ 113 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

The Canon M can be obtained in two different colors (black, white), while the X-U Typ 113 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica X-U Typ 113 is considerably larger (54 percent) than the Canon M. It is noteworthy in this context that the X-U Typ 113 is splash and dust-proof, while the Canon M does not feature any corresponding weather-sealing. More than that, the X-U Typ 113 is water-proof up to 3m and can, thus, be used for underwater photography.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the X-U Typ 113 has a lens built in, whereas the Canon M is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

Concerning battery life, the Canon M gets 230 shots out of its Canon LP-E12 battery, while the X-U Typ 113 can take 450 images on a single charge of its Leica BP-DC8 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	US$ 599	ebay.com
2.		Leica X-U Typ 113	140 mm	79 mm	88 mm	635 g	450	Y	Jan 2016	US$ 2 949	ebay.com
3.		Canon G1 X Mark III	115 mm	78 mm	51 mm	399 g	200	Y	Oct 2017	US$ 1 299	ebay.com
4.		Canon G3 X	123 mm	77 mm	105 mm	733 g	300	Y	Jun 2015	US$ 999	ebay.com
5.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
6.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
7.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	US$ 499	ebay.com
8.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	US$ 499	ebay.com
9.		Canon SL1	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	US$ 549	ebay.com
10.		Canon T3i	133 mm	100 mm	80 mm	570 g	440	n	Feb 2011	US$ 599	ebay.com
11.		Canon T5i	133 mm	100 mm	79 mm	580 g	440	n	Mar 2013	US$ 649	ebay.com
12.		Leica Q Typ 116	130 mm	80 mm	93 mm	640 g	300	n	Jun 2015	US$ 4 249	ebay.com
13.		Leica X Vario	133 mm	73 mm	95 mm	680 g	450	n	Jun 2013	US$ 2 849	ebay.com
14.		Nikon Df	144 mm	110 mm	67 mm	760 g	1400	Y	Nov 2013	US$ 2 749	ebay.com
15.		Panasonic G3	115 mm	84 mm	47 mm	336 g	270	n	May 2011	US$ 599	ebay.com
16.		Panasonic GF6	111 mm	65 mm	38 mm	323 g	340	n	Apr 2013	US$ 499	ebay.com
17.		Sony NEX-3N	110 mm	62 mm	35 mm	269 g	480	n	Feb 2013	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

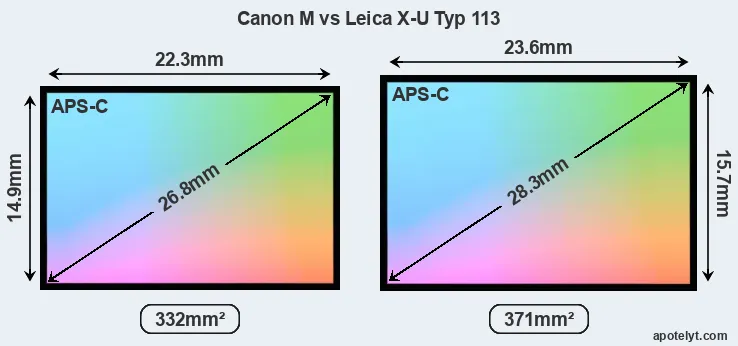

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the X-U Typ 113 is 12 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (Canon M) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Despite having a smaller sensor, the Canon M offers a higher resolution of 17.9 megapixels, compared with 16.1 MP of the Leica X-U Typ 113. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.31μm versus 4.80μm for the X-U Typ 113). Moreover, it should be noted that the X-U Typ 113 is much more recent (by 3 years and 5 months) than the Canon M, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Canon M implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the Canon M for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Leica X-U Typ 113 are 24.6 x 16.3 inches or 62.6 x 41.5 cm for good quality, 19.7 x 13.1 inches or 50.1 x 33.2 cm for very good quality, and 16.4 x 10.9 inches or 41.7 x 27.6 cm for excellent quality prints.

The Canon M has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS M has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Leica X-U (Typ 113) are ISO 100 to ISO 12500 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
2.		Leica X-U Typ 113	APS-C	16.1	4928	3264	1080/30p	23.8	13.0	1614	80
3.		Canon G1 X Mark III	APS-C	24.0	6000	4000	1080/60p	23.8	13.2	1649	81
4.		Canon G3 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	521	63
5.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
6.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
7.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
8.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
9.		Canon SL1	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
10.		Canon T3i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	793	65
11.		Canon T5i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	681	61
12.		Leica Q Typ 116	Full Frame	24.0	6000	4000	1080/60p	24.3	12.7	2221	85
13.		Leica X Vario	APS-C	16.1	4928	3272	1080/30p	23.4	12.7	1320	78
14.		Nikon Df	Full Frame	16.2	4928	3280	none	24.6	13.1	3279	89
15.		Panasonic G3	Four Thirds	15.8	4592	3448	1080/60i	21.0	10.6	667	56
16.		Panasonic GF6	Four Thirds	15.8	4592	3448	1080/60i	20.7	10.6	622	54
17.		Sony NEX-3N	APS-C	16.0	4912	3264	1080/60i	22.8	12.5	1067	74
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (1080/30p).

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The Canon M and the X-U Typ 113 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the X-U Typ 113 can be equipped with an optional viewfinder – the Visoflex (Typ 020). The adjacent table lists some of the other core features of the Canon M and Leica X-U Typ 113 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
2.		Leica X-U Typ 113	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
3.		Canon G1 X Mark III	2360	n	3.0 / 1040	swivel	Y	1/2000s	9.0/s	Y	Y
4.		Canon G3 X	optional	n	3.2 / 1620	tilting	Y	1/2000s	5.9/s	Y	Y
5.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
6.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
7.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
8.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
9.		Canon SL1	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
10.		Canon T3i	optical	n	3.0 / 1040	swivel	n	1/4000s	3.7/s	Y	n
11.		Canon T5i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
12.		Leica Q Typ 116	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
13.		Leica X Vario	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
14.		Nikon Df	optical	Y	3.2 / 921	fixed	n	1/4000s	5.5/s	n	n
15.		Panasonic G3	1440	n	3.0 / 460	swivel	Y	1/4000s	4.0/s	Y	n
16.		Panasonic GF6	none	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
17.		Sony NEX-3N	optional	n	3.0 / 460	tilting	n	1/4000s	4.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The Canon M has a touchscreen, while the X-U Typ 113 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

Concerning the storage of imaging data, both the Canon M and the X-U Typ 113 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M and Leica X-U (Typ 113) and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
2.		Leica X-U Typ 113	Y	stereo / mono	-	-	-	2.0	-	-	-
3.		Canon G1 X Mark III	Y	stereo / mono	-	-	micro	2.0	Y	Y	Y
4.		Canon G3 X	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
5.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
7.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
8.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
9.		Canon SL1	Y	mono / mono	Y	-	mini	2.0	-	-	-
10.		Canon T3i	Y	mono / mono	Y	-	mini	2.0	-	-	-
11.		Canon T5i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
12.		Leica Q Typ 116	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
13.		Leica X Vario	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Nikon Df	Y	- / -	-	-	mini	2.0	-	-	-
15.		Panasonic G3	Y	stereo / mono	-	-	mini	2.0	-	-	-
16.		Panasonic GF6	-	stereo / mono	-	-	mini	2.0	Y	Y	-
17.		Sony NEX-3N	-	stereo / mono	-	-	micro	2.0	-	-	-

It is notable that the Canon M has a microphone port, which is missing on the X-U Typ 113. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Both the Canon M and the X-U Typ 113 have been discontinued, but can regularly be found used on ebay. The Canon M was replaced by the Canon EOS M3, while the X-U Typ 113 does not have a direct successor. Further information on the features and operation of the Canon M and X-U Typ 113 can be found, respectively, in the Canon M Manual (free pdf) or the online Leica X-U Typ 113 Manual.

Review summary

So what conclusions can be drawn? Is the Canon M better than the Leica X-U Typ 113 or vice versa? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Canon EOS M:

• More detail: Offers more megapixels (17.9 vs 16.1MP) with a 5% higher linear resolution.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• More compact: Is smaller (109x66mm vs 140x79mm) and thus needs less room in the bag.
• More heavily discounted: Has been available for much longer (launched in July 2012).

Advantages of the Leica X-U (Typ 113):

• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• Faster burst: Shoots at higher frequency (5 vs 4.3 flaps/sec) to capture the decisive moment.
• Ready to shoot: Has an integrated lens, whereas the Canon M necessitates an extra lens.
• Longer lasting: Gets more shots (450 versus 230) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 3m).
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
• More modern: Reflects 3 years and 5 months of technical progress since the Canon M launch.

If the count of relative strengths (bullet points above) is taken as a measure, the match-up finishes in a tie (9 points each). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M and the Leica X-U Typ 113 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Prime Lens Compact Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the Canon M or the X-U Typ 113. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	US$ 599	ebay.com
2.		Leica X-U Typ 113	3.5/5	..	..	..	..	3.5/5	Jan 2016	US$ 2 949	ebay.com
3.		Canon G1 X Mark III	5/5	+	4/5	79/100	4.5/5	4.5/5	Oct 2017	US$ 1 299	ebay.com
4.		Canon G3 X	3.5/5	+	..	..	4.5/5	4/5	Jun 2015	US$ 999	ebay.com
5.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
6.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
7.		Canon M10	..	..	..	..	..	4/5	Oct 2015	US$ 499	ebay.com
8.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	US$ 499	ebay.com
9.		Canon SL1	4/5	+	..	78/100	4/5	4/5	Mar 2013	US$ 549	ebay.com
10.		Canon T3i	3/5	o	..	77/100	4.5/5	4.5/5	Feb 2011	US$ 599	ebay.com
11.		Canon T5i	..	..	..	76/100	4.5/5	4.5/5	Mar 2013	US$ 649	ebay.com
12.		Leica Q Typ 116	5/5	..	..	80/100	4.5/5	4.5/5	Jun 2015	US$ 4 249	ebay.com
13.		Leica X Vario	3/5	..	..	..	4/5	4/5	Jun 2013	US$ 2 849	ebay.com
14.		Nikon Df	4/5	..	..	81/100	4/5	4/5	Nov 2013	US$ 2 749	ebay.com
15.		Panasonic G3	3/5	+ +	..	75/100	4.5/5	5/5	May 2011	US$ 599	ebay.com
16.		Panasonic GF6	..	+ +	..	..	4.5/5	4.5/5	Apr 2013	US$ 499	ebay.com
17.		Sony NEX-3N	3/5	..	..	..	4.5/5	4.5/5	Feb 2013	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
