Canon M vs Sigma fp L

The Canon EOS M and the Sigma fp L are two digital cameras that were officially introduced, respectively, in July 2012 and March 2021. Both the Canon M and the fp L are mirrorless interchangeable lens cameras that are based on an APS-C (Canon M) and a full frame (fp L) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Sigma provides 60.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M		Sigma fp L
Mirrorless system camera		Mirrorless system camera
Canon EF-M mount lenses		Leica L mount lenses
17.9 MP – APS-C sensor		60.2 MP – Full Frame sensor
1080/30p Video		4K/30p Video
ISO 100-12,800 (100 - 25,600)		ISO 100-25,600 (6 - 102,400)
No viewfinder, LCD framing		Viewfinder optional
3.0" LCD – 1040k dots		3.2" LCD – 2100k dots
Fixed touchscreen		Fixed touchscreen
4.3 shutter flaps per second		10 shutter flaps per second
not weather sealed		Weathersealed body
230 shots per battery charge		240 shots per battery charge
109 x 66 x 32 mm, 298 g		113 x 70 x 45 mm, 427 g

Check Canon M offers at
ebay.com
Check fp L price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M and the Sigma fp L? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon M and the Sigma fp L. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The Canon M can be obtained in two different colors (black, white), while the fp L is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sigma fp L is notably larger (10 percent) than the Canon M. Moreover, the fp L is substantially heavier (43 percent) than the Canon M. It is noteworthy in this context that the fp L is splash and dust-proof, while the Canon M does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the Canon M gets 230 shots out of its Canon LP-E12 battery, while the fp L can take 240 images on a single charge of its Sigma BP-51 power pack. The power pack in the fp L can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	US$ 599	ebay.com
2.		Sigma fp L	113 mm	70 mm	45 mm	427 g	240	Y	Mar 2021	US$ 2 499	amazon.com
3.		Canon 100D	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	US$ 549	ebay.com
4.		Canon 700D	133 mm	100 mm	79 mm	580 g	440	n	Mar 2013	US$ 649	ebay.com
5.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
6.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
7.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	US$ 499	ebay.com
8.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	US$ 499	ebay.com
9.		Fujifilm X100V	128 mm	75 mm	53 mm	478 g	420	Y	Feb 2020	US$ 1 399	ebay.com
10.		Nikon D780	144 mm	116 mm	76 mm	840 g	2260	Y	Jan 2020	US$ 2 299	amazon.com
11.		Panasonic G3	115 mm	84 mm	47 mm	336 g	270	n	May 2011	US$ 599	ebay.com
12.		Panasonic GF6	111 mm	65 mm	38 mm	323 g	340	n	Apr 2013	US$ 499	ebay.com
13.		Sigma fp	113 mm	70 mm	45 mm	422 g	280	Y	Jul 2019	US$ 1 899	amazon.com
14.		Sony A7R	127 mm	94 mm	48 mm	465 g	340	Y	Oct 2013	US$ 2 299	ebay.com
15.		Sony A7S	127 mm	94 mm	48 mm	489 g	380	Y	Apr 2014	US$ 2 499	ebay.com
16.		Sony NEX-3N	110 mm	62 mm	35 mm	269 g	480	n	Feb 2013	US$ 499	ebay.com
17.		Sony NEX-F3	117 mm	67 mm	42 mm	314 g	470	n	May 2012	US$ 599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The Canon M was launched at a markedly lower price (by 76 percent) than the fp L, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

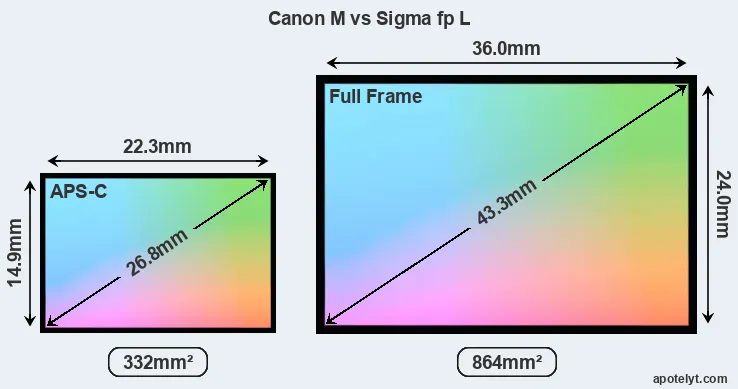

Of the two cameras under consideration, the Canon M features an APS-C sensor and the Sigma fp L a full frame sensor. The sensor area in the fp L is 160 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

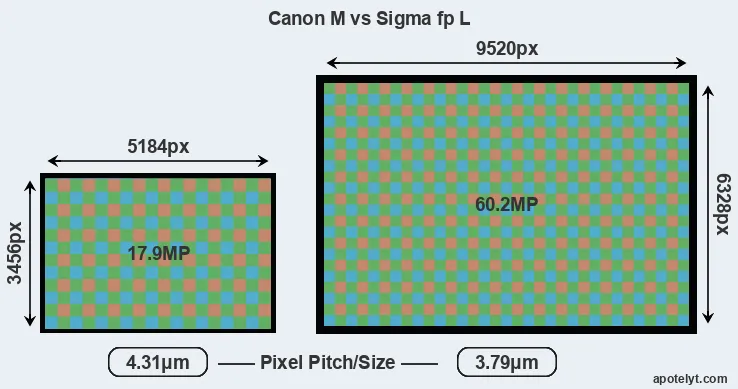

With 60.2MP, the fp L offers a higher resolution than the Canon M (17.9MP), but the fp L has smaller individual pixels (pixel pitch of 3.79μm versus 4.31μm for the Canon M). Yet, the fp L is a much more recent model (by 8 years and 8 months) than the Canon M, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Sigma fp L implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the fp L for good quality output (200 dots per inch) amounts to 47.6 x 31.6 inches or 120.9 x 80.4 cm, for very good quality (250 dpi) 38.1 x 25.3 inches or 96.7 x 64.3 cm, and for excellent quality (300 dpi) 31.7 x 21.1 inches or 80.6 x 53.6 cm. The corresponding values for the Canon M are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.

The Canon M has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS M has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Sigma fp L are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 6-102400.

In terms of underlying technology, the Canon M is build around a CMOS sensor, while the fp L uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
2.		Sigma fp L	Full Frame	60.2	9520	6328	4K/30p	25.3	14.4	3001	96
3.		Canon 100D	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
4.		Canon 700D	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	681	61
5.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
6.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
7.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
8.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
9.		Fujifilm X100V	APS-C	26.0	6240	4160	4K/30p	24.2	13.6	1996	84
10.		Nikon D780	Full Frame	24.3	6048	4024	4K/30p	25.3	14.3	2877	95
11.		Panasonic G3	Four Thirds	15.8	4592	3448	1080/60i	21.0	10.6	667	56
12.		Panasonic GF6	Four Thirds	15.8	4592	3448	1080/60i	20.7	10.6	622	54
13.		Sigma fp	Full Frame	24.0	6000	4000	4K/30p	25.2	14.2	2829	94
14.		Sony A7R	Full Frame	36.2	7360	4912	1080/60p	25.6	14.1	2746	95
15.		Sony A7S	Full Frame	12.0	4240	2832	1080/60p	23.9	13.2	3702	87
16.		Sony NEX-3N	APS-C	16.0	4912	3264	1080/60i	22.8	12.5	1067	74
17.		Sony NEX-F3	APS-C	16.0	4912	3264	1080/60i	22.7	12.3	1114	73
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the fp L provides a better video resolution than the Canon M. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The Canon M and the fp L are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the fp L can be equipped with an optional viewfinder – the EVF-11. The adjacent table lists some of the other core features of the Canon M and Sigma fp L along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
2.		Sigma fp L	optional	n	3.2 / 2100	fixed	Y	1/8000s	10.0/s	n	n
3.		Canon 100D	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
4.		Canon 700D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
5.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
6.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
7.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
8.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
9.		Fujifilm X100V	3690	n	3.0 / 1620	tilting	Y	1/4000s	11.0/s	n	n
10.		Nikon D780	optical	Y	3.2 / 2359	tilting	Y	1/8000s	12.0/s	n	n
11.		Panasonic G3	1440	n	3.0 / 460	swivel	Y	1/4000s	4.0/s	Y	n
12.		Panasonic GF6	none	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
13.		Sigma fp	optional	n	3.2 / 2100	fixed	Y	1/8000s	12.0/s	n	n
14.		Sony A7R	2400	n	3.0 / 1230	tilting	n	1/8000s	4.0/s	n	n
15.		Sony A7S	2400	n	3.0 / 921	tilting	n	1/8000s	5.0/s	n	n
16.		Sony NEX-3N	optional	n	3.0 / 460	tilting	n	1/4000s	4.0/s	Y	n
17.		Sony NEX-F3	optional	n	3.0 / 920	tilting	n	1/4000s	5.5/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the fp L is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Sigma fp L has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the Canon M and the fp L write their files to SDXC cards. The fp L supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the Canon M can use UHS-I cards (up to 104 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M and Sigma fp L and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
2.		Sigma fp L	Y	stereo / mono	Y	Y	micro	3.2	Y	-	-
3.		Canon 100D	Y	mono / mono	Y	-	mini	2.0	-	-	-
4.		Canon 700D	Y	stereo / mono	Y	-	mini	2.0	-	-	-
5.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
7.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
8.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
9.		Fujifilm X100V	Y	stereo / mono	Y	-	micro	3.1	Y	-	Y
10.		Nikon D780	Y	stereo / mono	Y	Y	mini	3.1	Y	-	Y
11.		Panasonic G3	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Panasonic GF6	-	stereo / mono	-	-	mini	2.0	Y	Y	-
13.		Sigma fp	Y	stereo / mono	Y	-	micro	3.1	-	-	-
14.		Sony A7R	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-
15.		Sony A7S	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-
16.		Sony NEX-3N	-	stereo / mono	-	-	micro	2.0	-	-	-
17.		Sony NEX-F3	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the fp L offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the Canon M does not provide wifi capability.

The fp L is a recent model that features in the current product line-up of Sigma. In contrast, the Canon M has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the Canon M was succeeded by the Canon EOS M3. Further information on the features and operation of the Canon M and fp L can be found, respectively, in the Canon M Manual (free pdf) or the online Sigma fp L Manual.

Review summary

So what conclusions can be drawn? Is the Canon M better than the Sigma fp L or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon EOS M:

• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Less heavy: Is lighter (by 129g or 30 percent) and hence easier to carry around.
• More affordable: Was introduced into a lower priced category (76 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in July 2012).

Advantages of the Sigma fp L:

• More detail: Has more megapixels (60.2 vs 17.9MP), which boosts linear resolution by 83%.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (2100k vs 1040k dots).
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (10 vs 4.3 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Easier travel charging: Can be conveniently charged via its USB port.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More modern: Reflects 8 years and 8 months of technical progress since the Canon M launch.

If the count of individual advantages (bullet points above) is taken as a guide, the fp L is the clear winner of the contest (20 : 4 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M and the Sigma fp L place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the Canon M and the fp L in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	US$ 599	ebay.com
2.		Sigma fp L	4/5	..	4/5	..	4/5	4/5	Mar 2021	US$ 2 499	amazon.com
3.		Canon 100D	4/5	+	..	78/100	4/5	4/5	Mar 2013	US$ 549	ebay.com
4.		Canon 700D	..	..	..	76/100	4.5/5	4.5/5	Mar 2013	US$ 649	ebay.com
5.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
6.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
7.		Canon M10	..	..	..	..	..	4/5	Oct 2015	US$ 499	ebay.com
8.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	US$ 499	ebay.com
9.		Fujifilm X100V	5/5	+ +	4.5/5	86/100	5/5	4.5/5	Feb 2020	US$ 1 399	ebay.com
10.		Nikon D780	5/5	..	5/5	87/100	4.5/5	4.5/5	Jan 2020	US$ 2 299	amazon.com
11.		Panasonic G3	3/5	+ +	..	75/100	4.5/5	5/5	May 2011	US$ 599	ebay.com
12.		Panasonic GF6	..	+ +	..	..	4.5/5	4.5/5	Apr 2013	US$ 499	ebay.com
13.		Sigma fp	4/5	..	4/5	..	4/5	4.5/5	Jul 2019	US$ 1 899	amazon.com
14.		Sony A7R	5/5	+ +	..	82/100	4.5/5	5/5	Oct 2013	US$ 2 299	ebay.com
15.		Sony A7S	4/5	..	..	86/100	4.5/5	5/5	Apr 2014	US$ 2 499	ebay.com
16.		Sony NEX-3N	3/5	..	..	..	4.5/5	4.5/5	Feb 2013	US$ 499	ebay.com
17.		Sony NEX-F3	4/5	..	..	74/100	4.5/5	4.5/5	May 2012	US$ 599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
