Canon M10 vs OM System OM-1

The Canon EOS M10 and the OM System OM-1 are two digital cameras that were announced, respectively, in October 2015 and February 2022. Both the M10 and the OM-1 are mirrorless interchangeable lens cameras that are based on an APS-C (M10) and a Four Thirds (OM-1) sensor. The Canon has a resolution of 17.9 megapixels, whereas the OM System provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M10		OM System OM-1
Mirrorless system camera		Mirrorless system camera
Canon EF-M mount lenses		Micro Four Thirds lenses
17.9 MP – APS-C sensor		20.2 MP – Four Thirds sensor
1080/30p Video		4K/60p Video
ISO 100-12,800 (100 - 25,600)		ISO 80-25,600 (80 - 102,400)
No viewfinder, LCD framing		Electronic viewfinder (5760k dots)
3.0" LCD – 1040k dots		3.0" LCD – 1640k dots
Tilting touchscreen		Swivel touchscreen
4.6 shutter flaps per second		10 shutter flaps per second
Lens stabilization only		In-body stabilization
not weather sealed		Weathersealed body
255 shots per battery charge		520 shots per battery charge
108 x 67 x 35 mm, 301 g		135 x 92 x 73 mm, 599 g

Check M10 offers at
ebay.com
Check OM-1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M10 and the OM System OM-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

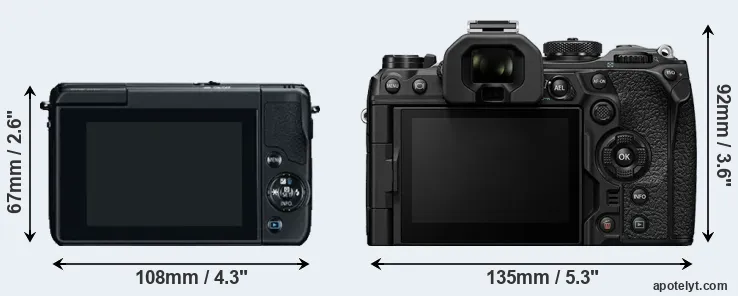

Body comparison

The physical size and weight of the Canon M10 and the OM System OM-1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

The M10 can be obtained in two different colors (black, white), while the OM-1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the OM System OM-1 is considerably larger (72 percent) than the Canon M10. Moreover, the OM-1 is substantially heavier (99 percent) than the M10. It is noteworthy in this context that the OM-1 is splash and dust-proof, while the M10 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the M10 gets 255 shots out of its Canon LP-E12 battery, while the OM-1 can take 520 images on a single charge of its OM System BLX-1 power pack. The power pack in the OM-1 can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	US$ 499	ebay.com
2.		OM System OM-1	135 mm	92 mm	73 mm	599 g	520	Y	Feb 2022	US$ 2 199	ebay.com
3.		Canon 1200D	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	US$ 449	ebay.com
4.		Canon 1300D	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	US$ 449	ebay.com
5.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	US$ 799	ebay.com
6.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
7.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	US$ 529	ebay.com
8.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	US$ 599	ebay.com
9.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	US$ 679	ebay.com
10.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	US$ 979	ebay.com
11.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	US$ 499	ebay.com
12.		Olympus E-M1 II	134 mm	91 mm	67 mm	574 g	440	Y	Sep 2016	US$ 1 999	ebay.com
13.		Olympus E-M1 III	134 mm	91 mm	69 mm	580 g	420	Y	Feb 2020	US$ 1 799	ebay.com
14.		OM System OM-1 II	135 mm	92 mm	73 mm	599 g	500	Y	Jan 2024	US$ 2 399	amazon.com
15.		OM System OM-3	139 mm	89 mm	46 mm	496 g	590	Y	Feb 2025	US$ 1 999	amazon.com
16.		Panasonic GH5	139 mm	98 mm	87 mm	725 g	410	Y	Jan 2017	US$ 1 999	ebay.com
17.		Sony A5000	110 mm	63 mm	36 mm	269 g	420	n	Jan 2014	US$ 449	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The M10 was launched at a markedly lower price (by 77 percent) than the OM-1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

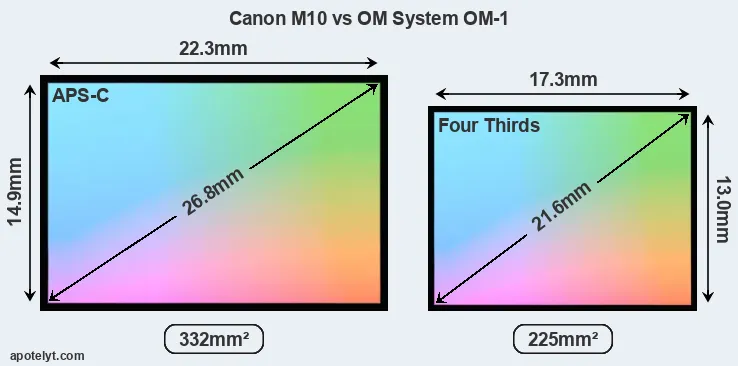

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon M10 features an APS-C sensor and the OM System OM-1 a Four Thirds sensor. The sensor area in the OM-1 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the M10 has a native 3:2 aspect ratio, while the one in the OM-1 offers a 4:3 aspect.

Despite having a smaller sensor, the OM-1 offers a higher resolution of 20.2 megapixels, compared with 17.9 MP of the M10. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.34μm versus 4.31μm for the M10). However, it should be noted that the OM-1 is much more recent (by 6 years and 4 months) than the M10, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the OM-1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

Unlike the M10, the OM-1 has the capacity to capture high quality composite images (80MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Canon EOS M10 has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the OM System OM-1 are ISO 80 to ISO 25600, with the possibility to increase the ISO range to 80-102400.

In terms of underlying technology, the M10 is build around a CMOS sensor, while the OM-1 uses a Stacked BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
2.		OM System OM-1	Four Thirds	20.2	5184	3888	4K/60p	23.4	13.4	1553	77
3.		Canon 1200D	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
4.		Canon 1300D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
5.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
6.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
7.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
8.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
9.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
10.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
11.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
12.		Olympus E-M1 II	Four Thirds	20.2	5184	3888	4K/30p	23.7	12.8	1312	80
13.		Olympus E-M1 III	Four Thirds	20.2	5184	3888	4K/30p	23.3	13.1	1356	76
14.		OM System OM-1 II	Four Thirds	20.2	5184	3888	4K/60p	23.4	13.6	1749	78
15.		OM System OM-3	Four Thirds	20.2	5184	3888	4K/60p	23.4	13.7	1852	78
16.		Panasonic GH5	Four Thirds	20.2	5184	3888	4K/60p	23.9	13.0	807	77
17.		Sony A5000	APS-C	19.8	5456	3632	1080/60i	23.8	13.0	1089	79
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the OM-1 provides a better video resolution than the M10. It can shoot movie footage at 4K/60p, while the Canon is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the OM-1 has an electronic viewfinder (5760k dots), which can be very helpful when shooting in bright sunlight. In contrast, the M10 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon M10 and OM System OM-1 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
2.		OM System OM-1	5760	n	3.0 / 1640	swivel	Y	1/8000s	10.0/s	n	Y
3.		Canon 1200D	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
4.		Canon 1300D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
5.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
6.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
7.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
8.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
9.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
10.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
11.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
12.		Olympus E-M1 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	18.0/s	n	Y
13.		Olympus E-M1 III	2360	n	3.0 / 1037	swivel	Y	1/8000s	18.0/s	n	Y
14.		OM System OM-1 II	5760	n	3.0 / 1640	swivel	Y	1/8000s	10.0/s	n	Y
15.		OM System OM-3	2360	n	3.0 / 1640	swivel	Y	1/8000s	6.0/s	n	Y
16.		Panasonic GH5	3680	n	3.2 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
17.		Sony A5000	none	n	3.0 / 461	tilting	n	1/4000s	3.5/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The M10 has one, while the OM-1 does not. While the built-in flash of the M10 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the OM-1 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The OM System OM-1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the M10 and the OM-1 write their files to SDXC cards. The OM-1 features dual card slots, which can be very useful in case a memory card fails. In contrast, the M10 only has one slot. The OM-1 supports UHS-II cards (on both slots), while the M10 can use UHS-I cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M10 and OM System OM-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
2.		OM System OM-1	Y	stereo / mono	Y	Y	micro	3.0	Y	-	Y
3.		Canon 1200D	Y	mono / mono	-	-	mini	2.0	-	-	-
4.		Canon 1300D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
5.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
6.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
8.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
9.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
10.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
11.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
12.		Olympus E-M1 II	Y	stereo / mono	Y	Y	micro	3.0	Y	-	-
13.		Olympus E-M1 III	Y	stereo / mono	Y	Y	micro	3.1	Y	-	Y
14.		OM System OM-1 II	Y	stereo / mono	Y	Y	micro	3.0	Y	-	Y
15.		OM System OM-3	Y	stereo / mono	Y	Y	micro	3.0	Y	-	Y
16.		Panasonic GH5	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y
17.		Sony A5000	-	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the OM-1 has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The M10 lacks such a headphone port.

Studio photographers will appreciate that the OM System OM-1 (unlike the M10) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the M10 and the OM-1 have been discontinued, but can regularly be found used on ebay. The M10 was replaced by the Canon M100, while the OM-1 was followed by the OM System OM-1 II. Further information on the features and operation of the M10 and OM-1 can be found, respectively, in the Canon M10 Manual (free pdf) or the online OM System OM-1 Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Canon M10 or the OM System OM-1 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Canon EOS M10:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• More compact: Is smaller (108x67mm vs 135x92mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 298g or 50 percent) and hence easier to carry around.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced into a lower priced category (77 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in October 2015).

Reasons to prefer the OM System OM-1:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• High quality composites: Can combine several shots after pixel-shifting its sensor.
• Better video: Provides higher definition movie capture (4K/60p vs 1080/30p).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (1640k vs 1040k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (10 vs 4.6 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Longer lasting: Gets more shots (520 versus 255) out of a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More modern: Reflects 6 years and 4 months of technical progress since the M10 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the OM-1 is the clear winner of the contest (23 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M10 and the OM System OM-1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the M10 or the OM-1. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon M10	..	..	..	..	..	4/5	Oct 2015	US$ 499	ebay.com
2.		OM System OM-1	5/5	..	..	87/100	5/5	4.5/5	Feb 2022	US$ 2 199	ebay.com
3.		Canon 1200D	3/5	+	..	..	4/5	4.5/5	Feb 2014	US$ 449	ebay.com
4.		Canon 1300D	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	US$ 449	ebay.com
5.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	US$ 799	ebay.com
6.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
7.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	US$ 529	ebay.com
8.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	US$ 599	ebay.com
9.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	US$ 679	ebay.com
10.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	US$ 979	ebay.com
11.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	US$ 499	ebay.com
12.		Olympus E-M1 II	5/5	+ +	5/5	85/100	4.5/5	4.5/5	Sep 2016	US$ 1 999	ebay.com
13.		Olympus E-M1 III	5/5	..	5/5	83/100	4.5/5	4/5	Feb 2020	US$ 1 799	ebay.com
14.		OM System OM-1 II	..	..	..	..	..	..	Jan 2024	US$ 2 399	amazon.com
15.		OM System OM-3	..	..	..	86/100	..	..	Feb 2025	US$ 1 999	amazon.com
16.		Panasonic GH5	4.5/5	+ +	..	85/100	4.5/5	5/5	Jan 2017	US$ 1 999	ebay.com
17.		Sony A5000	3/5	+	..	..	4.5/5	4.5/5	Jan 2014	US$ 449	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check M10 offers at
ebay.com
Check OM-1 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check M10 offers at
ebay.com
Check OM-1 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
