Canon M5 vs Fujifilm X-H2S

The Canon EOS M5 and the Fujifilm X-H2S are two digital cameras that were officially introduced, respectively, in September 2016 and May 2022. Both the M5 and the X-H2S are mirrorless interchangeable lens cameras that are equipped with an APS-C sensor. The Canon has a resolution of 24 megapixels, whereas the Fujifilm provides 26 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M5		Fujifilm X-H2S
Mirrorless system camera		Mirrorless system camera
Canon EF-M mount lenses		Fujifilm X mount lenses
24 MP – APS-C sensor		26 MP – APS-C sensor
1080/60p Video		6.2k/30p Video
ISO 100-25,600		ISO 160-12,800 (80 - 51,200)
Electronic viewfinder (2360k dots)		Electronic viewfinder (5760k dots)
3.2" LCD – 1620k dots		3.0" LCD – 1620k dots
Tilting touchscreen		Swivel touchscreen
9 shutter flaps per second		15 shutter flaps per second
Lens stabilization only		In-body stabilization
not weather sealed		Weathersealed body
295 shots per battery charge		580 shots per battery charge
116 x 89 x 61 mm, 427 g		136 x 93 x 85 mm, 660 g

Check M5 offers at
ebay.com
Check X-H2S price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M5 and the Fujifilm X-H2S? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

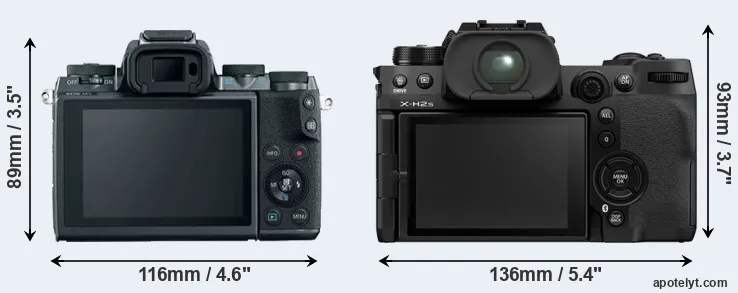

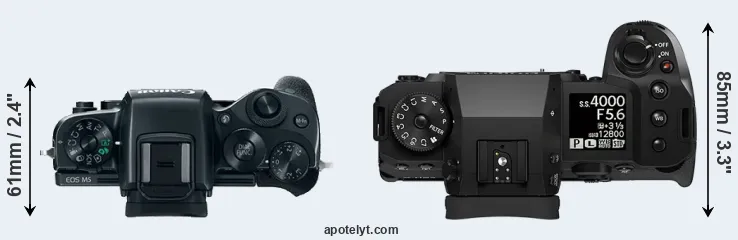

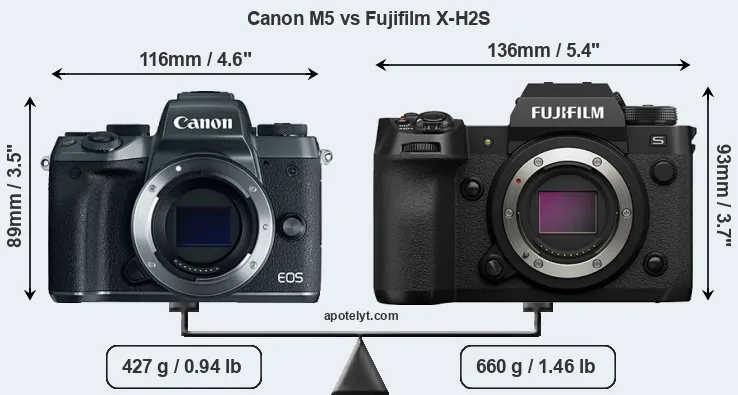

An illustration of the physical size and weight of the Canon M5 and the Fujifilm X-H2S is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X-H2S is notably larger (23 percent) than the Canon M5. Moreover, the X-H2S is substantially heavier (55 percent) than the M5. It is noteworthy in this context that the X-H2S is splash and dust-proof, while the M5 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the M5 gets 295 shots out of its Canon LP-E17 battery, while the X-H2S can take 580 images on a single charge of its Fujifilm NP-W235 power pack. The power pack in the X-H2S can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	US$ 979	ebay.com
2.		Fujifilm X-H2S	136 mm	93 mm	85 mm	660 g	580	Y	May 2022	US$ 2 499	amazon.com
3.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	US$ 899	ebay.com
4.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	US$ 679	ebay.com
5.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	US$ 779	ebay.com
6.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	US$ 499	ebay.com
7.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	US$ 779	ebay.com
8.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	US$ 499	ebay.com
9.		Canon R6 Mark II	138 mm	98 mm	88 mm	670 g	450	Y	Nov 2022	US$ 2 499	amazon.com
10.		Canon SL2	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
11.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	US$ 749	ebay.com
12.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	US$ 649	ebay.com
13.		Fujifilm X-H1	140 mm	97 mm	86 mm	673 g	310	Y	Feb 2018	US$ 1 899	ebay.com
14.		Fujifilm X-H2	136 mm	93 mm	85 mm	660 g	680	Y	Sep 2022	US$ 1 999	amazon.com
15.		Fujifilm X-T4	135 mm	93 mm	64 mm	607 g	500	Y	Feb 2020	US$ 1 699	ebay.com
16.		Fujifilm X-T5	130 mm	91 mm	64 mm	557 g	580	Y	Nov 2022	US$ 1 699	amazon.com
17.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	US$ 899	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The M5 was launched at a markedly lower price (by 61 percent) than the X-H2S, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

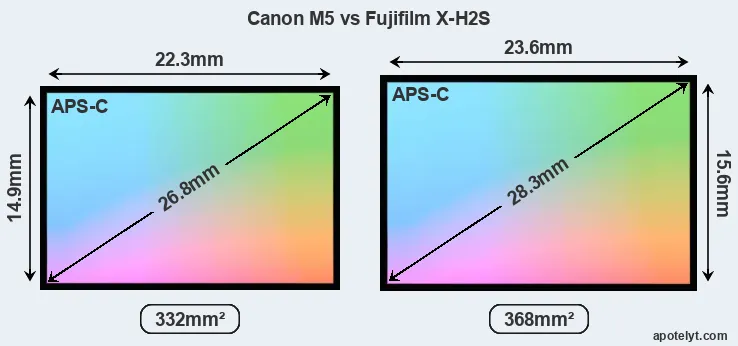

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the X-H2S is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (M5) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

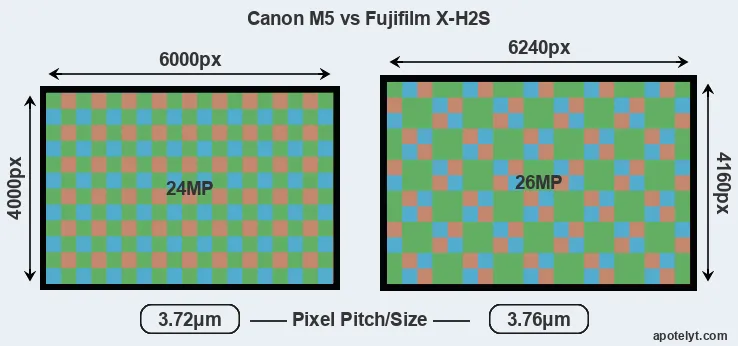

With 26MP, the X-H2S offers a higher resolution than the M5 (24MP), but the X-H2S nevertheless has marginally larger individual pixels (pixel pitch of 3.76μm versus 3.72μm for the M5) due to its larger sensor. Moreover, the X-H2S is a much more recent model (by 5 years and 8 months) than the M5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the X-H2S has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Canon EOS M5 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Fujifilm X-H2S are ISO 160 to ISO 12800, with the possibility to increase the ISO range to 80-51200.

In terms of underlying technology, the M5 is build around a CMOS sensor, while the X-H2S uses a Stacked BSI-CMOS imager. Like most digital cameras, the M5 uses a Bayer filter for capturing RGB colors on a square grid of photosensors. In contrast, the X-H2S employs a more randomized X-Trans layout of photosites, which according to Fujifilm helps to minimize moiré.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
2.		Fujifilm X-H2S	APS-C	26.0	6240	4160	6.2k/30p	24.3	13.9	2224	86
3.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
4.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
5.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
6.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
7.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
8.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
9.		Canon R6 Mark II	Full Frame	24.0	6000	4000	4k/60p	25.4	14.6	3154	96
10.		Canon SL2	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
11.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
12.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
13.		Fujifilm X-H1	APS-C	24.0	6000	4000	4K/30p	24.0	13.3	1806	82
14.		Fujifilm X-H2	APS-C	39.8	7728	5152	8k/30p	24.3	13.9	2249	86
15.		Fujifilm X-T4	APS-C	26.0	6240	4160	4K/60p	24.1	13.6	1995	84
16.		Fujifilm X-T5	APS-C	39.8	7728	5152	6.2k/30p	24.3	13.9	2264	86
17.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the X-H2S provides a better video resolution than the M5. It can shoot movie footage at 6.2k/30p, while the Canon is limited to 1080/60p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The two cameras under review are similar with respect to both having an electronic viewfinder. However, the one in the X-H2S offers a substantially higher resolution than the one in the M5 (5760k vs 2360k dots). The following table reports on some other key feature differences and similarities of the Canon M5, the Fujifilm X-H2S, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
2.		Fujifilm X-H2S	5760	Y	3.0 / 1620	swivel	Y	1/8000s	15.0/s	n	Y
3.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
4.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
5.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
6.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
7.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
8.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
9.		Canon R6 Mark II	3690	n	3.0 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
10.		Canon SL2	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
11.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
12.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
13.		Fujifilm X-H1	3690	Y	3.0 / 1040	full-flex	Y	1/8000s	14.0/s	n	Y
14.		Fujifilm X-H2	5760	Y	3.0 / 1620	swivel	Y	1/8000s	15.0/s	n	Y
15.		Fujifilm X-T4	3690	n	3.0 / 1620	swivel	Y	1/8000s	15.0/s	n	Y
16.		Fujifilm X-T5	3690	n	3.0 / 1840	tilting	Y	1/8000s	15.0/s	n	Y
17.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The M5 has one, while the X-H2S does not. While the built-in flash of the M5 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the X-H2S is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Fujifilm X-H2S has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The M5 writes its imaging data to SDXC cards, while the X-H2S uses CFexpress (type B) or SDXC cards. The X-H2S features dual card slots, which can be very useful in case a memory card fails. In contrast, the M5 only has one slot. The X-H2S supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the M5 can use UHS-I cards (up to 104 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M5 and Fujifilm X-H2S and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
2.		Fujifilm X-H2S	Y	stereo / mono	Y	Y	full	3.0	Y	-	Y
3.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
5.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
6.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
7.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
8.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
9.		Canon R6 Mark II	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
10.		Canon SL2	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
11.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
12.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
13.		Fujifilm X-H1	Y	stereo / mono	Y	-	micro	3.0	Y	-	-
14.		Fujifilm X-H2	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
15.		Fujifilm X-T4	Y	stereo / mono	Y	-	micro	3.1	Y	-	Y
16.		Fujifilm X-T5	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
17.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-

It is notable that the X-H2S has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The M5 lacks such a headphone port.

Studio photographers will appreciate that the Fujifilm X-H2S (unlike the M5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The X-H2S is a recent model that features in the current product line-up of Fujifilm. In contrast, the M5 has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the M5 from Canon. Further information on the features and operation of the M5 and X-H2S can be found, respectively, in the Canon M5 Manual (free pdf) or the online Fujifilm X-H2S Manual.

Review summary

So what is the bottom line? Is the Canon M5 better than the Fujifilm X-H2S or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon EOS M5:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• More compact: Is smaller (116x89mm vs 136x93mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 233g or 35 percent) and hence easier to carry around.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced into a lower priced category (61 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in September 2016).

Arguments in favor of the Fujifilm X-H2S:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better video: Provides higher definition movie capture (6.2k/30p vs 1080/60p).
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• More detailed viewfinder: Has higher resolution electronic viewfinder (5760k vs 2360k dots).
• Easier setting verification: Features a control panel on top to check shooting parameters.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (15 vs 9 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Longer lasting: Gets more shots (580 versus 295) out of a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
• More solid recording: Has a full-sized HDMI port for a sturdy connection to an external recorder.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More modern: Reflects 5 years and 8 months of technical progress since the M5 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the X-H2S is the clear winner of the contest (20 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M5 and the Fujifilm X-H2S place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the M5 and the X-H2S in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	US$ 979	ebay.com
2.		Fujifilm X-H2S	5/5	+	5/5	90/100	5/5	5/5	May 2022	US$ 2 499	amazon.com
3.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	US$ 899	ebay.com
4.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	US$ 679	ebay.com
5.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	US$ 779	ebay.com
6.		Canon M10	..	..	..	..	..	4/5	Oct 2015	US$ 499	ebay.com
7.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	US$ 779	ebay.com
8.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	US$ 499	ebay.com
9.		Canon R6 Mark II	5/5	+ +	4.5/5	91/100	4.5/5	5/5	Nov 2022	US$ 2 499	amazon.com
10.		Canon SL2	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
11.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	US$ 749	ebay.com
12.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	US$ 649	ebay.com
13.		Fujifilm X-H1	..	+	5/5	86/100	4.5/5	4.5/5	Feb 2018	US$ 1 899	ebay.com
14.		Fujifilm X-H2	5/5	+ +	5/5	89/100	5/5	5/5	Sep 2022	US$ 1 999	amazon.com
15.		Fujifilm X-T4	5/5	+ +	5/5	88/100	5/5	5/5	Feb 2020	US$ 1 699	ebay.com
16.		Fujifilm X-T5	5/5	+ +	4.5/5	90/100	4.5/5	..	Nov 2022	US$ 1 699	amazon.com
17.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	US$ 899	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check M5 offers at
ebay.com
Check X-H2S price at
amazon.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check M5 offers at
ebay.com
Check X-H2S price at
amazon.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
