Canon M5 vs Sigma fp

The Canon EOS M5 and the Sigma fp are two digital cameras that were revealed to the public, respectively, in September 2016 and July 2019. Both the M5 and the fp are mirrorless interchangeable lens cameras that are based on an APS-C (M5) and a full frame (fp) sensor. Both cameras offer a resolution of 24 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M5		Sigma fp
Mirrorless system camera		Mirrorless system camera
Canon EF-M mount lenses		Leica L mount lenses
24 MP – APS-C sensor		24 MP – Full Frame sensor
1080/60p Video		4K/30p Video
ISO 100-25,600		ISO 100-25,600 (6 - 102,400)
Electronic viewfinder (2360k dots)		Viewfinder optional
3.2" LCD – 1620k dots		3.2" LCD – 2100k dots
Tilting touchscreen		Fixed touchscreen
9 shutter flaps per second		12 shutter flaps per second
not weather sealed		Weathersealed body
295 shots per battery charge		280 shots per battery charge
116 x 89 x 61 mm, 427 g		113 x 70 x 45 mm, 422 g

Check M5 offers at
ebay.com
Check fp price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M5 and the Sigma fp? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

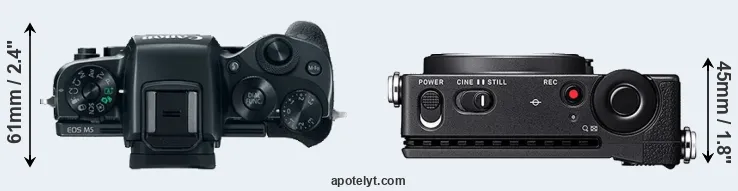

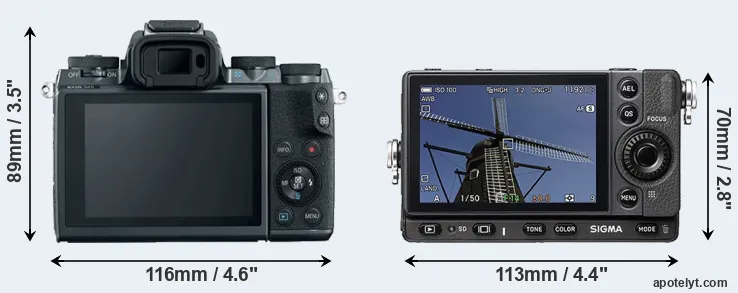

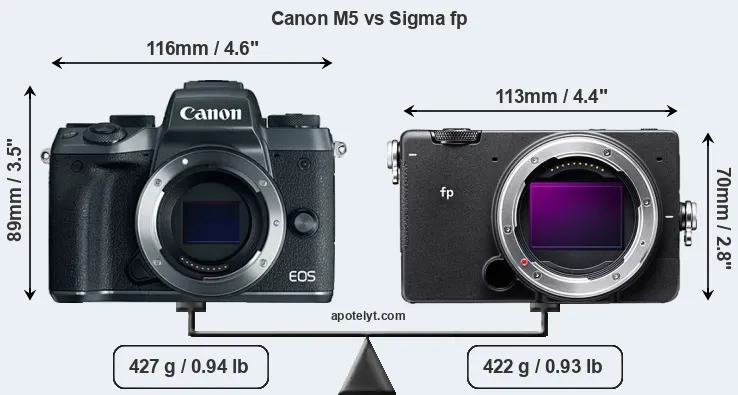

The physical size and weight of the Canon M5 and the Sigma fp are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sigma fp is notably smaller (23 percent) than the Canon M5. Moreover, the fp is slightly lighter (1 percent) than the M5. It is noteworthy in this context that the fp is splash and dust-proof, while the M5 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the M5 gets 295 shots out of its Canon LP-E17 battery, while the fp can take 280 images on a single charge of its Sigma BP-51 power pack. The power pack in the fp can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	US$ 979	ebay.com
2.		Sigma fp	113 mm	70 mm	45 mm	422 g	280	Y	Jul 2019	US$ 1 899	amazon.com
3.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	US$ 899	ebay.com
4.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	US$ 679	ebay.com
5.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	US$ 779	ebay.com
6.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	US$ 499	ebay.com
7.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	US$ 779	ebay.com
8.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	US$ 499	ebay.com
9.		Canon SL2	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
10.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	US$ 749	ebay.com
11.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	US$ 649	ebay.com
12.		Fujifilm X-Pro3	141 mm	83 mm	46 mm	497 g	440	Y	Oct 2019	US$ 1 799	amazon.com
13.		Nikon D780	144 mm	116 mm	76 mm	840 g	2260	Y	Jan 2020	US$ 2 299	amazon.com
14.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	US$ 899	ebay.com
15.		Panasonic S1	149 mm	110 mm	97 mm	1017 g	400	Y	Feb 2019	US$ 2 499	ebay.com
16.		Panasonic S1H	151 mm	114 mm	110 mm	1052 g	400	Y	May 2019	US$ 3 999	amazon.com
17.		Panasonic S5	133 mm	98 mm	82 mm	714 g	440	Y	Sep 2020	US$ 1 999	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The M5 was launched at a markedly lower price (by 48 percent) than the fp, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

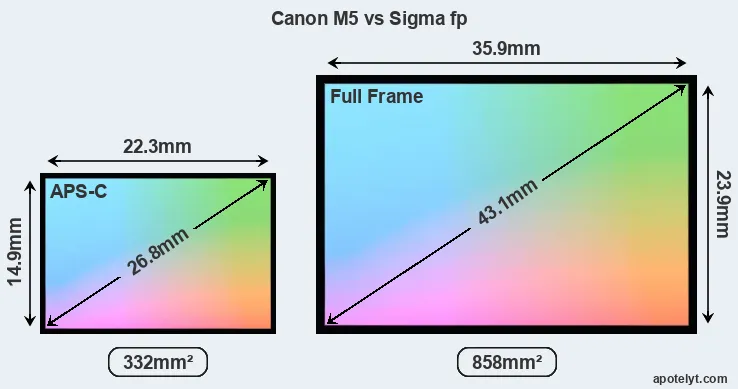

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon M5 features an APS-C sensor and the Sigma fp a full frame sensor. The sensor area in the fp is 158 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

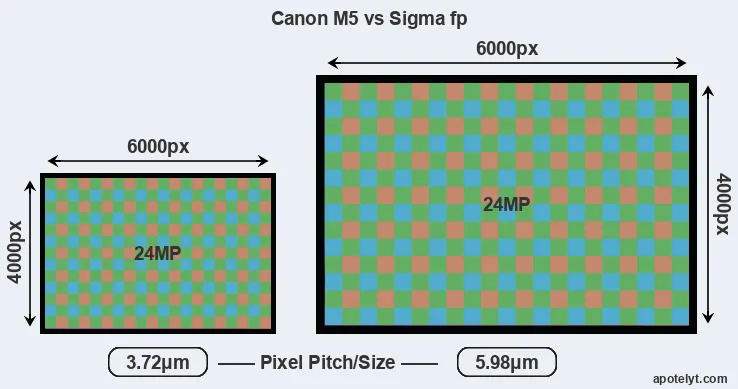

Even though the fp has a larger sensor, both cameras offer the same resolution of 24 megapixels. This implies that the fp has a lower pixel density and larger individual pixels (with a pixel pitch of 5.98μm versus 3.72μm for the M5), which gives it a potential advantage in terms of light gathering capacity. In addition, the fp is much more recent (by 2 years and 9 months) than the M5, and its sensor will have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that the fp has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The M5 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS M5 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Sigma fp are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 6-102400.

In terms of underlying technology, the M5 is build around a CMOS sensor, while the fp uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
2.		Sigma fp	Full Frame	24.0	6000	4000	4K/30p	25.2	14.2	2829	94
3.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
4.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
5.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
6.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
7.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
8.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
9.		Canon SL2	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
10.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
11.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
12.		Fujifilm X-Pro3	APS-C	26.0	6240	4160	4K/30p	24.1	13.6	1968	84
13.		Nikon D780	Full Frame	24.3	6048	4024	4K/30p	25.3	14.3	2877	95
14.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84
15.		Panasonic S1	Full Frame	24.0	6000	4000	4K/60p	25.2	14.5	3333	95
16.		Panasonic S1H	Full Frame	24.0	6000	4000	6K/30p	25.2	14.2	2805	94
17.		Panasonic S5	Full Frame	24.0	6000	4000	4K/60p	25.1	14.5	2697	94
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the fp provides a better video resolution than the M5. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the M5 has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the fp relies on live view and the rear LCD for framing. That said, the fp can be equipped with an optional viewfinder – the EVF-11. The adjacent table lists some of the other core features of the Canon M5 and Sigma fp along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
2.		Sigma fp	optional	n	3.2 / 2100	fixed	Y	1/8000s	12.0/s	n	n
3.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
4.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
5.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
6.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
7.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
8.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
9.		Canon SL2	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
10.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
11.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
12.		Fujifilm X-Pro3	3690	n	3.0 / 1620	tilting	Y	1/8000s	8.0/s	n	n
13.		Nikon D780	optical	Y	3.2 / 2359	tilting	Y	1/8000s	12.0/s	n	n
14.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
15.		Panasonic S1	5760	Y	3.2 / 2100	full-flex	Y	1/8000s	9.0/s	n	Y
16.		Panasonic S1H	5760	Y	3.2 / 2330	swivel	Y	1/8000s	9.0/s	n	Y
17.		Panasonic S5	2360	n	3.0 / 1840	swivel	Y	1/8000s	7.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The M5 has one, while the fp does not. While the built-in flash of the M5 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the fp is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Sigma fp has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the M5 and the fp write their files to SDXC cards. The fp supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the M5 can use UHS-I cards (up to 104 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M5 and Sigma fp and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
2.		Sigma fp	Y	stereo / mono	Y	-	micro	3.1	-	-	-
3.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
5.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
6.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
7.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
8.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
9.		Canon SL2	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
10.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
11.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
12.		Fujifilm X-Pro3	Y	stereo / mono	Y	-	-	3.1	Y	-	Y
13.		Nikon D780	Y	stereo / mono	Y	Y	mini	3.1	Y	-	Y
14.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
15.		Panasonic S1	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y
16.		Panasonic S1H	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y
17.		Panasonic S5	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y

It is notable that the M5 offers wifi support, while the fp does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

The fp is a recent model that features in the current product line-up of Sigma. In contrast, the M5 has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the M5 from Canon. Further information on the features and operation of the M5 and fp can be found, respectively, in the Canon M5 Manual (free pdf) or the online Sigma fp Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon M5 and the Sigma fp? Which camera is better? The listing below highlights the relative strengths of the two models.

Advantages of the Canon EOS M5:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More affordable: Was introduced into a lower priced category (48 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in September 2016).

Arguments in favor of the Sigma fp:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
• More detailed LCD: Has a higher resolution rear screen (2100k vs 1620k dots).
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (12 vs 9 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (113x70mm vs 116x89mm) and will fit more readily into a bag.
• Easier travel charging: Can be conveniently charged via its USB port.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More modern: Reflects 2 years and 9 months of technical progress since the M5 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the fp is the clear winner of the contest (17 : 11 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M5 and the Sigma fp place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the M5 or the fp. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	US$ 979	ebay.com
2.		Sigma fp	4/5	..	4/5	..	4/5	4.5/5	Jul 2019	US$ 1 899	amazon.com
3.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	US$ 899	ebay.com
4.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	US$ 679	ebay.com
5.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	US$ 779	ebay.com
6.		Canon M10	..	..	..	..	..	4/5	Oct 2015	US$ 499	ebay.com
7.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	US$ 779	ebay.com
8.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	US$ 499	ebay.com
9.		Canon SL2	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
10.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	US$ 749	ebay.com
11.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	US$ 649	ebay.com
12.		Fujifilm X-Pro3	4/5	+	4/5	85/100	4/5	..	Oct 2019	US$ 1 799	amazon.com
13.		Nikon D780	5/5	..	5/5	87/100	4.5/5	4.5/5	Jan 2020	US$ 2 299	amazon.com
14.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	US$ 899	ebay.com
15.		Panasonic S1	4.5/5	+ +	4.5/5	88/100	4.5/5	4/5	Feb 2019	US$ 2 499	ebay.com
16.		Panasonic S1H	..	..	4/5	90/100	..	..	May 2019	US$ 3 999	amazon.com
17.		Panasonic S5	4.5/5	+ +	4.5/5	88/100	4.5/5	4.5/5	Sep 2020	US$ 1 999	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check M5 offers at
ebay.com
Check fp price at
amazon.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check M5 offers at
ebay.com
Check fp price at
amazon.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
