Canon M5 vs Sony A6700

The Canon EOS M5 and the Sony Alpha A6700 are two digital cameras that were announced, respectively, in September 2016 and July 2023. Both the M5 and the A6700 are mirrorless interchangeable lens cameras that are equipped with an APS-C sensor. The Canon has a resolution of 24 megapixels, whereas the Sony provides 25.6 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M5		Sony A6700
Mirrorless system camera		Mirrorless system camera
Canon EF-M mount lenses		Sony E mount lenses
24 MP – APS-C sensor		25.6 MP – APS-C sensor
1080/60p Video		4K/120p Video
ISO 100-25,600		ISO 100-32,000 (50 - 102,400)
Electronic viewfinder (2360k dots)		Electronic viewfinder (2360k dots)
3.2" LCD – 1620k dots		3.0" LCD – 1037k dots
Tilting touchscreen		Swivel touchscreen
9 shutter flaps per second		11 shutter flaps per second
Lens stabilization only		In-body stabilization
not weather sealed		Weathersealed body
295 shots per battery charge		570 shots per battery charge
116 x 89 x 61 mm, 427 g		122 x 69 x 64 mm, 493 g

Check M5 offers at
ebay.com
Check A6700 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M5 and the Sony Alpha A6700? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

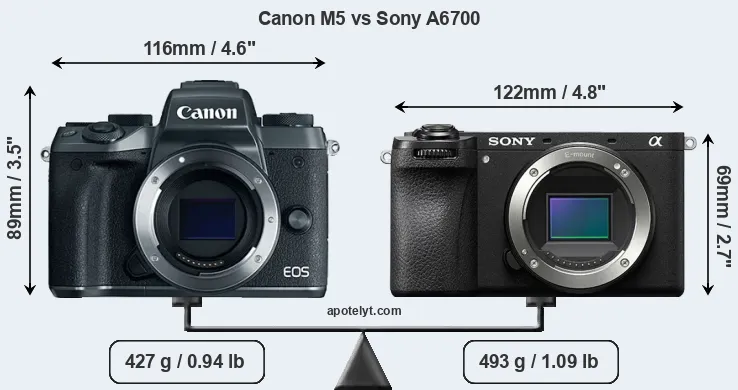

An illustration of the physical size and weight of the Canon M5 and the Sony A6700 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony A6700 is notably smaller (18 percent) than the Canon M5. However, the A6700 is markedly heavier (15 percent) than the M5. It is noteworthy in this context that the A6700 is splash and dust-proof, while the M5 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the M5 gets 295 shots out of its Canon LP-E17 battery, while the A6700 can take 570 images on a single charge of its Sony NP-FZ100 power pack. The power pack in the A6700 can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	US$ 979	ebay.com
2.		Sony A6700	122 mm	69 mm	64 mm	493 g	570	Y	Jul 2023	US$ 1 399	amazon.com
3.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	US$ 899	ebay.com
4.		Canon 200D	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
5.		Canon 760D	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	US$ 649	ebay.com
6.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	US$ 529	ebay.com
7.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	US$ 679	ebay.com
8.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	US$ 779	ebay.com
9.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	US$ 499	ebay.com
10.		Fujifilm X-T20	118 mm	83 mm	41 mm	383 g	350	n	Jan 2017	US$ 899	ebay.com
11.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	US$ 899	ebay.com
12.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	US$ 699	ebay.com
13.		Sony A7 II	127 mm	96 mm	60 mm	599 g	350	Y	Nov 2014	US$ 1 999	ebay.com
14.		Sony A77 II	143 mm	104 mm	81 mm	647 g	480	Y	May 2014	US$ 1 199	ebay.com
15.		Sony A6300	120 mm	67 mm	49 mm	404 g	400	Y	Feb 2016	US$ 999	ebay.com
16.		Sony A6500	120 mm	67 mm	53 mm	453 g	350	Y	Oct 2016	US$ 1 399	ebay.com
17.		Sony A6600	120 mm	67 mm	69 mm	503 g	810	Y	Aug 2019	US$ 1 399	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The M5 was launched at a markedly lower price (by 30 percent) than the A6700, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

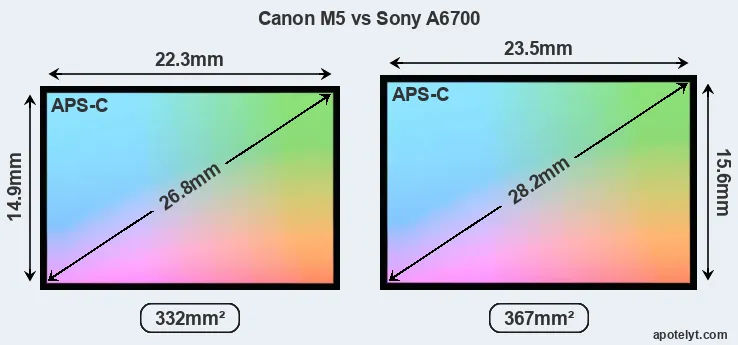

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the A6700 is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (M5) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

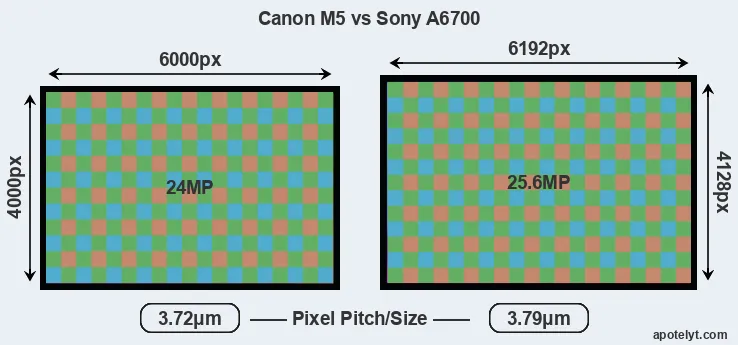

With 25.6MP, the A6700 offers a higher resolution than the M5 (24MP), but the A6700 nevertheless has marginally larger individual pixels (pixel pitch of 3.79μm versus 3.72μm for the M5) due to its larger sensor. Moreover, the A6700 is a much more recent model (by 6 years and 9 months) than the M5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.

The Canon EOS M5 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Sony Alpha A6700 are ISO 100 to ISO 32000, with the possibility to increase the ISO range to 50-102400.

In terms of underlying technology, the M5 is build around a CMOS sensor, while the A6700 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
2.		Sony A6700	APS-C	25.6	6192	4128	4K/120p	24.3	14.0	2329	86
3.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
4.		Canon 200D	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
5.		Canon 760D	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
6.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
7.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
8.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
9.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
10.		Fujifilm X-T20	APS-C	24.0	6000	4000	4K/30p	23.9	13.2	1704	81
11.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84
12.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
13.		Sony A7 II	Full Frame	24.0	6000	4000	1080/60p	24.9	13.6	2449	90
14.		Sony A77 II	APS-C	24.0	6000	4000	1080/60p	24.4	13.4	1013	82
15.		Sony A6300	APS-C	24.0	6000	4000	4K/30p	24.4	13.7	1437	85
16.		Sony A6500	APS-C	24.0	6000	4000	4K/30p	24.5	13.7	1405	85
17.		Sony A6600	APS-C	24.0	6000	4000	4K/30p	23.8	13.4	1497	82
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the A6700 provides a better video resolution than the M5. It can shoot movie footage at 4K/120p, while the Canon is limited to 1080/60p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The M5 and the A6700 are similar in the sense that both feature an electronic viewfinder, which is helpful when framing images in bright sunlight. Moreover, their viewfinders offer an identical resolution of 2360k dots. The table below summarizes some of the other core capabilities of the Canon M5 and Sony A6700 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
2.		Sony A6700	2360	n	3.0 / 1037	swivel	Y	1/4000s	11.0/s	n	Y
3.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
4.		Canon 200D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
5.		Canon 760D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
6.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
7.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
8.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
9.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
10.		Fujifilm X-T20	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
11.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
12.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
13.		Sony A7 II	2400	n	3.0 / 1230	tilting	n	1/8000s	5.0/s	n	Y
14.		Sony A77 II	2359	Y	3.0 / 1229	full-flex	n	1/8000s	12.0/s	Y	Y
15.		Sony A6300	2359	n	3.0 / 922	tilting	n	1/4000s	11.0/s	Y	n
16.		Sony A6500	2359	n	3.0 / 922	tilting	Y	1/4000s	11.0/s	Y	Y
17.		Sony A6600	2359	n	3.0 / 922	tilting	Y	1/4000s	11.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The M5 has one, while the A6700 does not. While the built-in flash of the M5 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the A6700 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Sony A6700 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The M5 writes its imaging data to SDXC cards, while the A6700 uses SDXC or Memory Stick PRO Duo cards. The A6700 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the M5 can use UHS-I cards (up to 104 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M5 and Sony Alpha A6700 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
2.		Sony A6700	Y	stereo / mono	Y	Y	YES	3.2	Y	Y	Y
3.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon 200D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon 760D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
6.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
7.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
8.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
9.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
10.		Fujifilm X-T20	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
11.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
12.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
13.		Sony A7 II	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-
14.		Sony A77 II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
15.		Sony A6300	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
16.		Sony A6500	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
17.		Sony A6600	Y	stereo / mono	Y	Y	YES	2.0	Y	Y	Y

It is notable that the A6700 has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The M5 lacks such a headphone port.

The A6700 is a recent model that features in the current product line-up of Sony. In contrast, the M5 has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the M5 from Canon. Further information on the features and operation of the M5 and A6700 can be found, respectively, in the Canon M5 Manual (free pdf) or the online Sony A6700 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Canon M5 and the Sony A6700? Which camera is better? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Canon EOS M5:

• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1620k vs 1037k dots).
• Less heavy: Is lighter (by 66g or 13 percent) and hence easier to carry around.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More affordable: Was introduced into a lower priced category (30 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in September 2016).

Advantages of the Sony Alpha A6700:

• Better video: Provides higher definition movie capture (4K/120p vs 1080/60p).
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Faster burst: Shoots at higher frequency (11 vs 9 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (122x69mm vs 116x89mm) and will fit more readily into a bag.
• Longer lasting: Gets more shots (570 versus 295) out of a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More modern: Reflects 6 years and 9 months of technical progress since the M5 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the A6700 is the clear winner of the contest (14 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M5 and the Sony A6700 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the M5 or the A6700 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	US$ 979	ebay.com
2.		Sony A6700	4.5/5	+	4.5/5	88/100	4.5/5	4.5/5	Jul 2023	US$ 1 399	amazon.com
3.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	US$ 899	ebay.com
4.		Canon 200D	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
5.		Canon 760D	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	US$ 649	ebay.com
6.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	US$ 529	ebay.com
7.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	US$ 679	ebay.com
8.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	US$ 779	ebay.com
9.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	US$ 499	ebay.com
10.		Fujifilm X-T20	5/5	+ +	5/5	82/100	5/5	4.5/5	Jan 2017	US$ 899	ebay.com
11.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	US$ 899	ebay.com
12.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	US$ 699	ebay.com
13.		Sony A7 II	5/5	+	4/5	82/100	4.5/5	5/5	Nov 2014	US$ 1 999	ebay.com
14.		Sony A77 II	4/5	..	..	80/100	4.5/5	5/5	May 2014	US$ 1 199	ebay.com
15.		Sony A6300	4.5/5	+	..	85/100	5/5	5/5	Feb 2016	US$ 999	ebay.com
16.		Sony A6500	5/5	+ +	3.5/5	85/100	4.5/5	4.5/5	Oct 2016	US$ 1 399	ebay.com
17.		Sony A6600	4/5	+	4/5	83/100	4.5/5	4/5	Aug 2019	US$ 1 399	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
