Canon M50 vs Pentax MX-1

The Canon EOS M50 and the Pentax MX-1 are two digital cameras that were revealed to the public, respectively, in February 2018 and January 2013. The M50 is a mirrorless interchangeable lens camera, while the MX-1 is a fixed lens compact. The cameras are based on an APS-C (M50) and a 1/1.7-inch (MX-1) sensor. The Canon has a resolution of 24 megapixels, whereas the Pentax provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M50		Pentax MX-1
Mirrorless system camera		Fixed lens compact camera
Canon EF-M mount lenses		28-112mm f/1.8-2.5
24 MP – APS-C sensor		12 MP – 1/1.7" sensor
4K/24p Video		1080/30p Video
ISO 100-25,600 (100 - 51,200)		ISO 100-12,800
Electronic viewfinder (2360k dots)		No viewfinder, LCD framing
3.0" LCD – 1040k dots		3.0" LCD – 920k dots
Swivel touchscreen		Tilting screen (no touchscreen)
10 shutter flaps per second		1 shutter flaps per second
Lens stabilization only		In-body stabilization
235 shots per battery charge		290 shots per battery charge
116 x 88 x 59 mm, 390 g		122 x 61 x 51 mm, 391 g

Check M50 offers at
ebay.com
Check MX-1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M50 and the Pentax MX-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

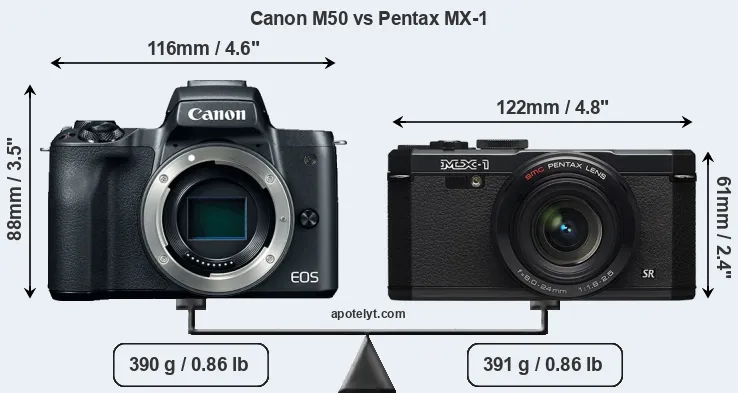

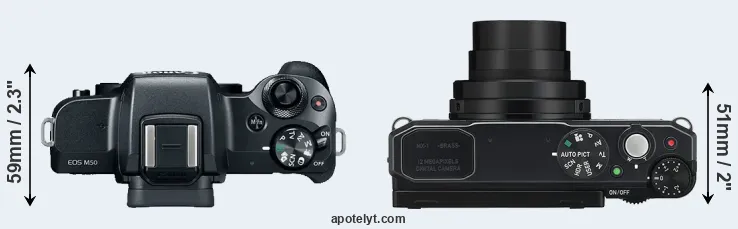

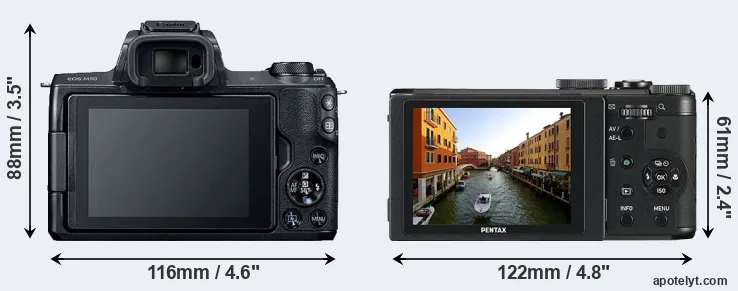

An illustration of the physical size and weight of the Canon M50 and the Pentax MX-1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The M50 can be obtained in two different colors (black, white), while the MX-1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax MX-1 is notably smaller (27 percent) than the Canon M50. In this context, it is worth noting that neither the M50 nor the MX-1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the MX-1 has a lens built in, whereas the M50 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	EUR 779	ebay.com
2.		Pentax MX-1	122 mm	61 mm	51 mm	391 g	290	n	Jan 2013	EUR 499	ebay.com
3.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	EUR 899	ebay.com
4.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	EUR 789	ebay.com
5.		Canon G5 X Mark II	111 mm	61 mm	46 mm	340 g	230	n	Jul 2019	EUR 929	ebay.com
6.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	EUR 579	ebay.com
7.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	EUR 599	ebay.com
8.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	EUR 749	ebay.com
9.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	EUR 1 129	ebay.com
10.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	EUR 799	ebay.com
11.		Canon M6 Mark II	120 mm	70 mm	49 mm	408 g	305	n	Aug 2019	EUR 929	ebay.com
12.		Canon M50 Mark II	116 mm	88 mm	59 mm	387 g	305	n	Oct 2020	EUR 599	ebay.com
13.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	EUR 479	ebay.com
14.		Fujifilm X-E3	121 mm	74 mm	43 mm	337 g	350	n	Sep 2017	EUR 899	ebay.com
15.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	EUR 549	ebay.com
16.		Nikon P7800	119 mm	78 mm	50 mm	399 g	350	n	Sep 2013	EUR 549	ebay.com
17.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	EUR 599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The MX-1 was launched at a lower price than the M50, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

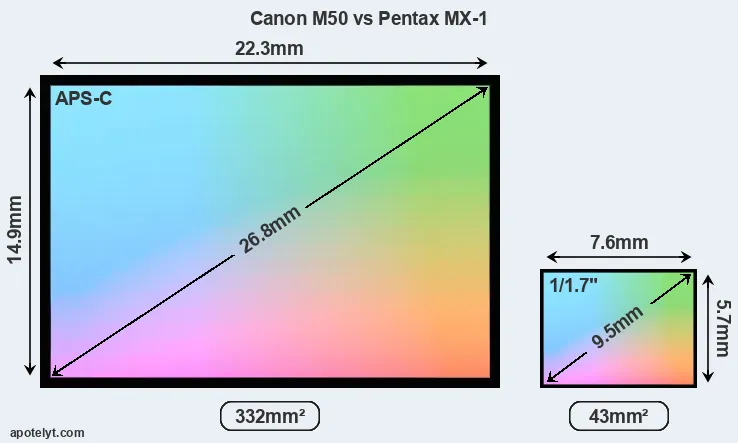

Of the two cameras under consideration, the Canon M50 features an APS-C sensor and the Pentax MX-1 a 1/1.7-inch sensor. The sensor area in the MX-1 is 87 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 4.5. The sensor in the M50 has a native 3:2 aspect ratio, while the one in the MX-1 offers a 4:3 aspect.

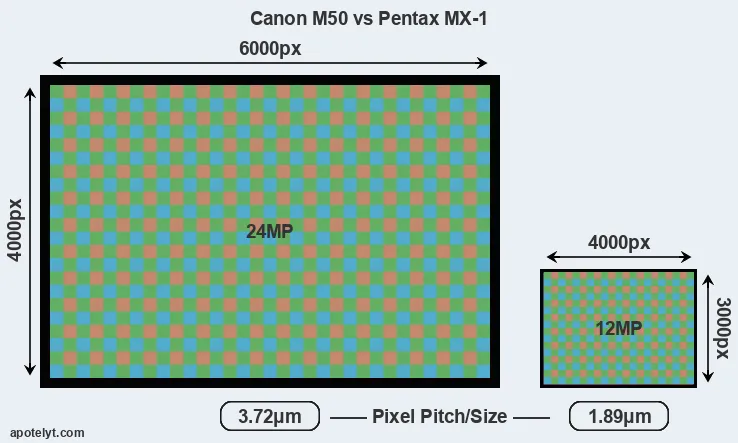

With 24MP, the M50 offers a higher resolution than the MX-1 (12MP), but the M50 nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 1.89μm for the MX-1) due to its larger sensor. Moreover, the M50 is a much more recent model (by 5 years and 1 month) than the MX-1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon M50 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M50 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Pentax MX-1 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The M50 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS M50 has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Pentax MX-1 are ISO 100 to ISO 12800 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
2.		Pentax MX-1	1/1.7	12.0	4000	3000	1080/30p	20.4	11.3	208	49
3.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
4.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
5.		Canon G5 X Mark II	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	583	65
6.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
7.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
8.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
9.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
10.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
11.		Canon M6 Mark II	APS-C	32.3	6960	4640	4K/30p	24.0	13.5	1848	83
12.		Canon M50 Mark II	APS-C	24.0	6000	4000	4K/24p	24.0	13.6	1939	83
13.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
14.		Fujifilm X-E3	APS-C	24.0	6000	4000	4K/30p	23.9	13.3	1764	82
15.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
16.		Nikon P7800	1/1.7	12.0	4000	3000	1080/30p	21.2	11.7	200	54
17.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the M50 provides a higher video resolution than the MX-1. It can shoot video footage at 4K/24p, while the Pentax is limited to 1080/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the M50 has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the MX-1 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon M50 and Pentax MX-1 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
2.		Pentax MX-1	none	n	3.0 / 920	tilting	n	1/8000s	1.0/s	Y	Y
3.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
4.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
5.		Canon G5 X Mark II	2360	n	3.0 / 1040	tilting	Y	1/2000s	30/s	Y	Y
6.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
7.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
8.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
9.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
10.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
11.		Canon M6 Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	14.0/s	Y	n
12.		Canon M50 Mark II	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
13.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
14.		Fujifilm X-E3	2360	n	3.0 / 1040	fixed	Y	1/4000s	8.0/s	n	n
15.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
16.		Nikon P7800	921	n	3.0 / 921	swivel	n	1/4000s	8.0/s	Y	Y
17.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M50 has a touchscreen, while the MX-1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Canon M50 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the M50 and the MX-1 write their files to SDXC cards. The M50 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the MX-1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M50 and Pentax MX-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
2.		Pentax MX-1	-	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
5.		Canon G5 X Mark II	-	stereo / mono	-	-	micro	3.1	Y	-	Y
6.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
7.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
8.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
9.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
10.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
11.		Canon M6 Mark II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
12.		Canon M50 Mark II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
13.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
14.		Fujifilm X-E3	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
15.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
16.		Nikon P7800	Y	stereo / mono	Y	-	mini	2.0	-	-	-
17.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the M50 has a hotshoe, while the MX-1 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Both the M50 and the MX-1 have been discontinued, but can regularly be found used on ebay. The M50 was replaced by the Canon M50 Mark II, while the MX-1 does not have a direct successor. Further information on the features and operation of the M50 and MX-1 can be found, respectively, in the Canon M50 Manual (free pdf) or the online Pentax MX-1 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon M50 and the Pentax MX-1? Which camera is better? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Canon EOS M50:

• More detail: Offers more megapixels (24 vs 12MP) with a 44% higher linear resolution.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher definition movie capture (4K/24p vs 1080/30p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (10 vs 1 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 5 years and 1 month of technical progress since the MX-1 launch.

Advantages of the Pentax MX-1:

• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Ready to shoot: Has an integrated lens, whereas the M50 necessitates an extra lens.
• More compact: Is smaller (122x61mm vs 116x88mm) and will fit more readily into a bag.
• Longer lasting: Gets more shots (290 versus 235) out of a single battery charge.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More heavily discounted: Has been around for much longer (launched in January 2013).

If the number of relative strengths (bullet points above) is taken as a guide, the M50 is the clear winner of the match-up (21 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M50 and the Pentax MX-1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the M50 and the MX-1 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	EUR 779	ebay.com
2.		Pentax MX-1	3/5	..	..	74/100	4/5	4/5	Jan 2013	EUR 499	ebay.com
3.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	EUR 899	ebay.com
4.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	EUR 789	ebay.com
5.		Canon G5 X Mark II	4/5	+	4/5	82/100	..	4/5	Jul 2019	EUR 929	ebay.com
6.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	EUR 579	ebay.com
7.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	EUR 599	ebay.com
8.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	EUR 749	ebay.com
9.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	EUR 1 129	ebay.com
10.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	EUR 799	ebay.com
11.		Canon M6 Mark II	..	+	4.5/5	85/100	4/5	4/5	Aug 2019	EUR 929	ebay.com
12.		Canon M50 Mark II	4/5	..	4/5	..	4.5/5	3.5/5	Oct 2020	EUR 599	ebay.com
13.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	EUR 479	ebay.com
14.		Fujifilm X-E3	4.5/5	+	4.5/5	84/100	4.5/5	4.5/5	Sep 2017	EUR 899	ebay.com
15.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	EUR 549	ebay.com
16.		Nikon P7800	3/5	..	..	..	4/5	4.5/5	Sep 2013	EUR 549	ebay.com
17.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	EUR 599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check M50 offers at
ebay.com
Check MX-1 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

Check M50 offers at
ebay.com
Check MX-1 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
