Canon SX40 vs Panasonic FZ80D

The Canon PowerShot SX40 HS and the Panasonic Lumix DC-FZ80D (labelled Panasonic FZ82D in some countries) are two digital cameras that were officially introduced, respectively, in September 2011 and July 2024. Both the SX40 and the FZ80D are fixed lens compact cameras that are equipped with a 1/2.3-inch sensor. The Canon has a resolution of 12 megapixels, whereas the Panasonic provides 18 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX40		Panasonic FZ80D
Fixed lens compact camera		Fixed lens compact camera
24-840mm f/2.7-5.8		20-1200mm f/2.8-5.9
12 MP – 1/2.3" sensor		18 MP – 1/2.3" sensor
1080/24p Video		4K/30p Video
ISO 100-3,200		ISO 80-3,200 (80 - 6,400)
Electronic viewfinder (202k dots)		Electronic viewfinder (2360k dots)
2.7" LCD – 230k dots		3.0" LCD – 1840k dots
Swivel screen (not touch-sensitive)		Fixed touchscreen
10.3 shutter flaps per second		10 shutter flaps per second
380 shots per battery charge		330 shots per battery charge
123 x 92 x 108 mm, 600 g		130 x 94 x 119 mm, 616 g

Check SX40 offers at
ebay.com
Check FZ80D price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX40 HS and the Panasonic Lumix DC-FZ80D? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

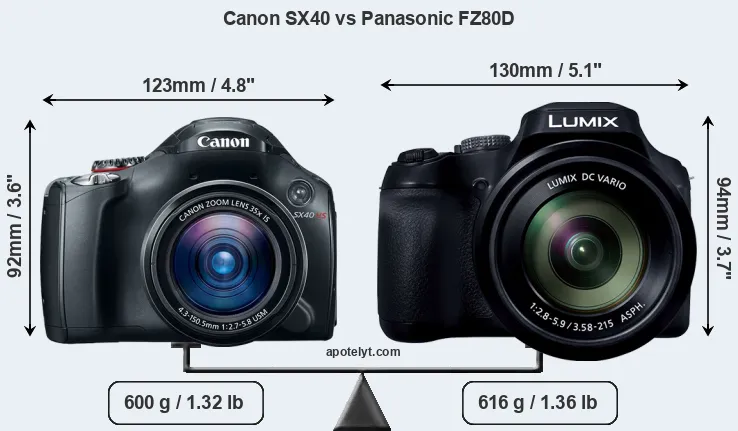

The side-by-side display below illustrates the physical size and weight of the Canon SX40 and the Panasonic FZ80D. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic FZ80D is notably larger (8 percent) than the Canon SX40. Moreover, the FZ80D is slightly heavier (3 percent) than the SX40. In this context, it is worth noting that neither the SX40 nor the FZ80D are weather-sealed.

Concerning battery life, the SX40 gets 380 shots out of its Canon NB-10L battery, while the FZ80D can take 330 images on a single charge of its Panasonic DMW-BMB9 power pack. The power pack in the FZ80D can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX40	123 mm	92 mm	108 mm	600 g	380	n	Sep 2011	US$ 429	ebay.com
2.		Panasonic FZ80D	130 mm	94 mm	119 mm	616 g	330	n	Jul 2024	US$ 479	amazon.com
3.		Canon G1 X	117 mm	81 mm	65 mm	534 g	250	n	Jan 2012	US$ 799	ebay.com
4.		Canon SX10	123 mm	88 mm	87 mm	600 g	..	n	Sep 2008	US$ 399	ebay.com
5.		Canon SX20	123 mm	88 mm	87 mm	600 g	..	n	Aug 2009	US$ 399	ebay.com
6.		Canon SX30	123 mm	92 mm	108 mm	601 g	370	n	Sep 2010	US$ 429	ebay.com
7.		Canon SX50	123 mm	87 mm	106 mm	595 g	315	n	Sep 2012	US$ 429	ebay.com
8.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	US$ 549	ebay.com
9.		Canon T3	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	US$ 449	ebay.com
10.		Panasonic FZ80	130 mm	94 mm	119 mm	616 g	330	n	Jan 2017	US$ 399	ebay.com
11.		Panasonic FZ100	124 mm	82 mm	92 mm	540 g	410	n	Jul 2010	US$ 499	ebay.com
12.		Panasonic FZ150	124 mm	82 mm	92 mm	528 g	410	n	Aug 2011	US$ 499	ebay.com
13.		Panasonic FZ200	125 mm	87 mm	110 mm	588 g	540	n	Jul 2012	US$ 599	ebay.com
14.		Panasonic ZS70	112 mm	67 mm	41 mm	322 g	380	n	Apr 2017	US$ 449	ebay.com
15.		Sony HX400V	130 mm	93 mm	103 mm	660 g	300	n	Feb 2014	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX40 was somewhat cheaper (by 10 percent) than the FZ80D at launch, but both cameras fall into the same price category. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a 1/2.3-inch sensor and have a format factor (sometimes also referred to as "crop factor") of 5.6. Within the spectrum of camera sensors, this places the review cameras among the smaller-sensor digicams that favor affordability and compact design. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

While the two cameras under review share the same sensor size, the FZ80D offers a higher resolution of 18 megapixels, compared with 12 MP of the SX40. This megapixels advantage translates into a 22 percent gain in linear resolution. On the other hand, these sensor specs imply that the FZ80D has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.25μm versus 1.53μm for the SX40). However, it should be noted that the FZ80D is much more recent (by 12 years and 9 months) than the SX40, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Panasonic FZ80D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the FZ80D for good quality output (200 dots per inch) amounts to 24.5 x 18.4 inches or 62.2 x 46.6 cm, for very good quality (250 dpi) 19.6 x 14.7 inches or 49.7 x 37.3 cm, and for excellent quality (300 dpi) 16.3 x 12.2 inches or 41.5 x 31.1 cm. The corresponding values for the Canon SX40 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Canon PowerShot SX40 HS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Panasonic Lumix DC-FZ80D are ISO 80 to ISO 3200, with the possibility to increase the ISO range to 80-6400.

Technology-wise, both cameras are equipped with BSI-CMOS (Backside Illuminated Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX40	1/2.3	12.0	4000	3000	1080/24p	19.6	10.9	409	41
2.		Panasonic FZ80D	1/2.3	18.0	4896	3672	4K/30p	20.9	12.8	1634	54
3.		Canon G1 X	1.5-inch	14.2	4352	3264	1080/24p	21.7	10.8	644	60
4.		Canon SX10	1/2.3	10.0	3648	2736	480/30p	19.0	10.3	144	35
5.		Canon SX20	1/2.3	12.0	4000	3000	720/30p	19.2	10.5	225	37
6.		Canon SX30	1/2.3	14.0	4320	3240	720/30p	19.4	10.7	320	39
7.		Canon SX50	1/2.3	12.0	4000	3000	1080/24p	20.3	11.2	179	47
8.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
9.		Canon T3	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
10.		Panasonic FZ80	1/2.3	18.0	4896	3672	4K/30p	20.5	11.9	900	49
11.		Panasonic FZ100	1/2.3	14.0	4320	3240	1080/60i	19.4	10.7	306	39
12.		Panasonic FZ150	1/2.3	12.0	4000	3000	1080/60p	19.4	10.9	132	40
13.		Panasonic FZ200	1/2.3	12.0	4000	3000	1080/60p	19.1	10.8	114	37
14.		Panasonic ZS70	1/2.3	20.2	5184	3888	4K/30p	19.1	10.6	106	36
15.		Sony HX400V	1/2.3	20.2	5184	3888	1080/60p	20.1	11.4	629	45
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the FZ80D provides a better video resolution than the SX40. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/24p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The two cameras under review are similar with respect to both having an electronic viewfinder. However, the one in the FZ80D offers a substantially higher resolution than the one in the SX40 (2360k vs 202k dots). The following table reports on some other key feature differences and similarities of the Canon SX40, the Panasonic FZ80D, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX40	202	n	2.7 / 230	swivel	n	1/3200s	10.3/s	Y	Y
2.		Panasonic FZ80D	2360	n	3.0 / 1840	fixed	Y	1/2000s	10.0/s	Y	Y
3.		Canon G1 X	optical	n	3.0 / 922	swivel	n	1/4000s	1.9/s	Y	Y
4.		Canon SX10	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
5.		Canon SX20	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
6.		Canon SX30	202	n	2.7 / 230	swivel	n	1/3200s	0.6/s	Y	Y
7.		Canon SX50	202	n	3.0 / 461	swivel	n	1/2000s	2.2/s	Y	Y
8.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
9.		Canon T3	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
10.		Panasonic FZ80	1166	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	Y	Y
11.		Panasonic FZ100	202	n	3.0 / 460	swivel	n	1/2000s	11.0/s	Y	Y
12.		Panasonic FZ150	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
13.		Panasonic FZ200	1312	n	3.0 / 460	swivel	n	1/4000s	12.0/s	Y	Y
14.		Panasonic ZS70	1166	n	3.0 / 1040	tilting	Y	1/2000s	10.0/s	Y	Y
15.		Sony HX400V	210	n	3.0 / 921	tilting	n	1/4000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The FZ80D has a touchscreen, while the SX40 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the FZ80D is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

Both the SX40 and the FZ80D have zoom lenses built in. The SX40 has a 24-840mm f/2.7-5.8 optic and the FZ80D offers a 20-1200mm f/2.8-5.9 (focal lengths in full frame equivalent terms). Hence, the Panasonic provides a wider angle of view at the short end, as well as more tele-photo reach at the long end than the Canon. The SX40 offers the faster maximum aperture.

Concerning the storage of imaging data, both the SX40 and the FZ80D write their files to SDXC cards. The FZ80D supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX40 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX40 HS and Panasonic Lumix DC-FZ80D and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX40	Y	stereo / mono	-	-	YES	2.0	-	-	-
2.		Panasonic FZ80D	Y	stereo / mono	-	-	micro	3.0	-	-	-
3.		Canon G1 X	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Canon SX10	Y	stereo / mono	-	-	-	2.0	-	-	-
5.		Canon SX20	Y	stereo / mono	-	-	YES	2.0	-	-	-
6.		Canon SX30	Y	stereo / mono	-	-	YES	2.0	-	-	-
7.		Canon SX50	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
9.		Canon T3	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Panasonic FZ80	Y	stereo / mono	-	-	micro	2.0	Y	-	-
11.		Panasonic FZ100	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Panasonic FZ150	Y	stereo / -	-	-	mini	2.0	-	-	-
13.		Panasonic FZ200	Y	stereo / mono	Y	-	mini	2.0	-	-	-
14.		Panasonic ZS70	-	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Sony HX400V	Y	stereo / mono	-	-	micro	2.0	Y	Y	-

The FZ80D is a recent model that features in the current product line-up of Panasonic. In contrast, the SX40 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the SX40 was succeeded by the Canon SX50. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Panasonic websites.

Review summary

So how do things add up? Which of the two cameras – the Canon SX40 or the Panasonic FZ80D – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Canon PowerShot SX40 HS:

• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/3200s vs 1/2000s) to freeze action.
• Better light gathering: Has a lens with a wider maximum aperture (f/2.7 vs f/2.8).
• Longer lasting: Can take more shots (380 versus 330) on a single battery charge.
• More heavily discounted: Has been available for much longer (launched in September 2011).

Arguments in favor of the Panasonic Lumix DC-FZ80D:

• More detail: Has more megapixels (18 vs 12MP), which boosts linear resolution by 22%.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/24p).
• More detailed viewfinder: Has higher resolution electronic viewfinder (2360k vs 202k dots).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1840k vs 230k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• Easier travel charging: Can be conveniently charged via its USB port.
• Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 12 years and 9 months of technical progress since the SX40 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the FZ80D is the clear winner of the contest (13 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX40 and the Panasonic FZ80D place the cameras among the top in their class? Find out in the latest Best Superzoom Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the SX40 and the FZ80D in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX40	..	+	..	..	4.5/5	4/5	Sep 2011	US$ 429	ebay.com
2.		Panasonic FZ80D	..	..	..	..	..	..	Jul 2024	US$ 479	amazon.com
3.		Canon G1 X	5/5	+	..	76/100	4/5	4.5/5	Jan 2012	US$ 799	ebay.com
4.		Canon SX10	..	+ +	..	..	..	4/5	Sep 2008	US$ 399	ebay.com
5.		Canon SX20	..	+ +	..	73/100	..	4/5	Aug 2009	US$ 399	ebay.com
6.		Canon SX30	3/5	+ +	..	..	3.5/5	4/5	Sep 2010	US$ 429	ebay.com
7.		Canon SX50	3/5	+ +	..	72/100	4.5/5	4.5/5	Sep 2012	US$ 429	ebay.com
8.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	US$ 549	ebay.com
9.		Canon T3	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	US$ 449	ebay.com
10.		Panasonic FZ80	..	+ +	..	..	4.5/5	4.5/5	Jan 2017	US$ 399	ebay.com
11.		Panasonic FZ100	..	+	..	..	4.5/5	4.5/5	Jul 2010	US$ 499	ebay.com
12.		Panasonic FZ150	3/5	+ +	..	76/100	4/5	4.5/5	Aug 2011	US$ 499	ebay.com
13.		Panasonic FZ200	3/5	+ +	..	80/100	4.5/5	4.5/5	Jul 2012	US$ 599	ebay.com
14.		Panasonic ZS70	..	+ +	..	..	4/5	4/5	Apr 2017	US$ 449	ebay.com
15.		Sony HX400V	4/5	+ +	..	..	4/5	4/5	Feb 2014	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
