Canon SX510 vs Fujifilm X20

The Canon PowerShot SX510 HS and the Fujifilm X20 are two digital cameras that were revealed to the public, respectively, in August 2013 and January 2013. Both the SX510 and the X20 are fixed lens compact cameras that are based on a 1/2.3-inch (SX510) and a 2/3 (X20) sensor. The Canon has a resolution of 15.9 megapixels, whereas the Fujifilm provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX510		Fujifilm X20
Fixed lens compact camera		Fixed lens compact camera
24-720mm f/3.4-5.8		28-112mm f/2.0-2.8
15.9 MP – 1/2.3" sensor		12 MP – Two Thirds sensor
1080/24p Video		1080/60p Video
ISO 80-3,200		ISO 100-12,800
No viewfinder, LCD framing		Optical viewfinder
3.0" LCD – 461k dots		2.8" LCD – 460k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3.8 shutter flaps per second		12 shutter flaps per second
250 shots per battery charge		270 shots per battery charge
104 x 70 x 80 mm, 349 g		117 x 70 x 57 mm, 353 g

Check SX510 offers at
ebay.com
Check X20 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX510 HS and the Fujifilm X20? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

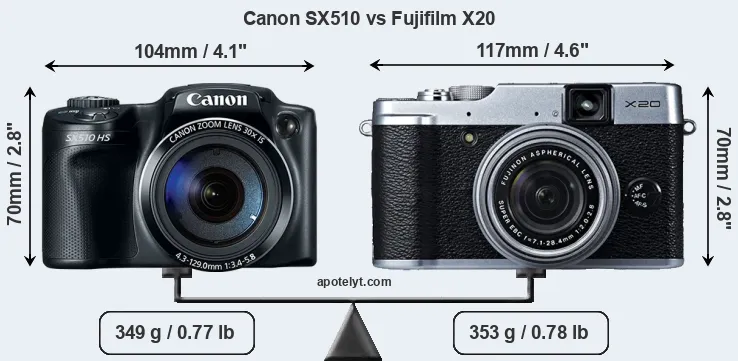

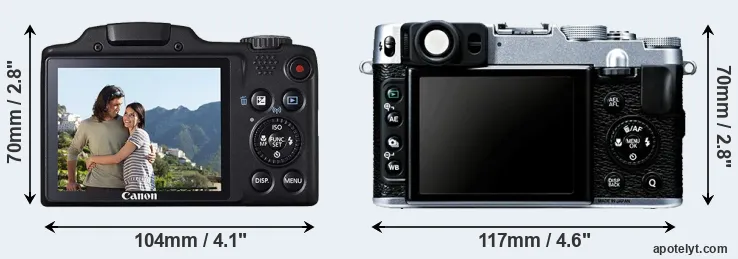

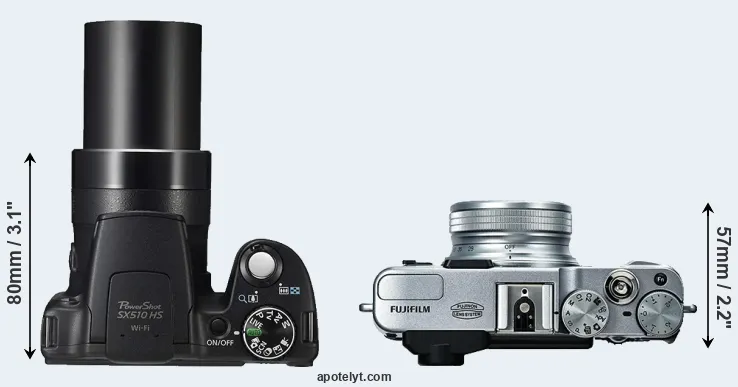

An illustration of the physical size and weight of the Canon SX510 and the Fujifilm X20 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The X20 can be obtained in two different colors (black, silver), while the SX510 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X20 is notably larger (13 percent) than the Canon SX510. Moreover, the X20 is slightly heavier (1 percent) than the SX510. In this context, it is worth noting that neither the SX510 nor the X20 are weather-sealed.

Concerning battery life, the SX510 gets 250 shots out of its Canon NB-6LH battery, while the X20 can take 270 images on a single charge of its Fujifilm NP-50 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX510	104 mm	70 mm	80 mm	349 g	250	n	Aug 2013	EUR 329	ebay.com
2.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	EUR 549	ebay.com
3.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	EUR 579	ebay.com
4.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	EUR 599	ebay.com
5.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	EUR 599	ebay.com
6.		Canon SX400	104 mm	69 mm	80 mm	313 g	190	n	Jul 2014	EUR 179	ebay.com
7.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	EUR 299	ebay.com
8.		Canon SX500	104 mm	70 mm	80 mm	341 g	195	n	Aug 2012	EUR 319	ebay.com
9.		Canon SX520	120 mm	82 mm	92 mm	441 g	210	n	Jul 2014	EUR 299	ebay.com
10.		Canon SX600	104 mm	61 mm	26 mm	188 g	290	n	Jan 2014	EUR 249	ebay.com
11.		Canon SX700	113 mm	66 mm	35 mm	269 g	250	n	Feb 2014	EUR 349	ebay.com
12.		Fujifilm X10	117 mm	70 mm	57 mm	350 g	270	n	Sep 2011	EUR 529	ebay.com
13.		Fujifilm X30	119 mm	72 mm	60 mm	423 g	470	n	Aug 2014	EUR 549	ebay.com
14.		Leica D-LUX 6	111 mm	68 mm	46 mm	298 g	330	n	Sep 2012	EUR 699	ebay.com
15.		Leica X2	124 mm	69 mm	52 mm	345 g	450	n	May 2012	EUR 1 749	ebay.com
16.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	EUR 529	ebay.com
17.		Sony H200	123 mm	83 mm	87 mm	530 g	240	n	Jan 2013	EUR 249	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX510 was launched at a markedly lower price (by 58 percent) than the X20, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

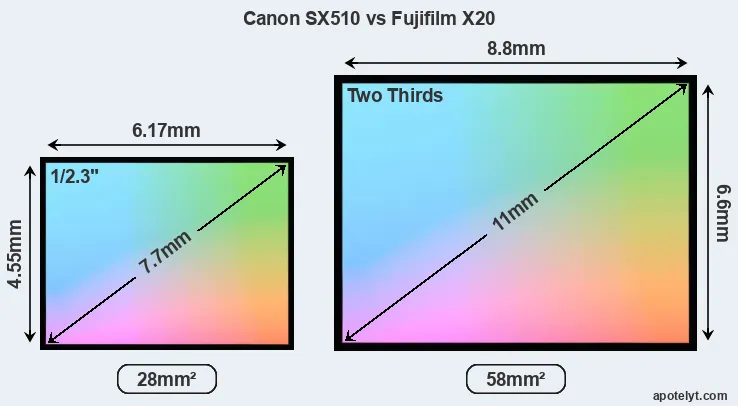

Of the two cameras under consideration, the Canon SX510 features a 1/2.3-inch sensor and the Fujifilm X20 a 2/3 sensor. The sensor area in the X20 is 107 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 3.9. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

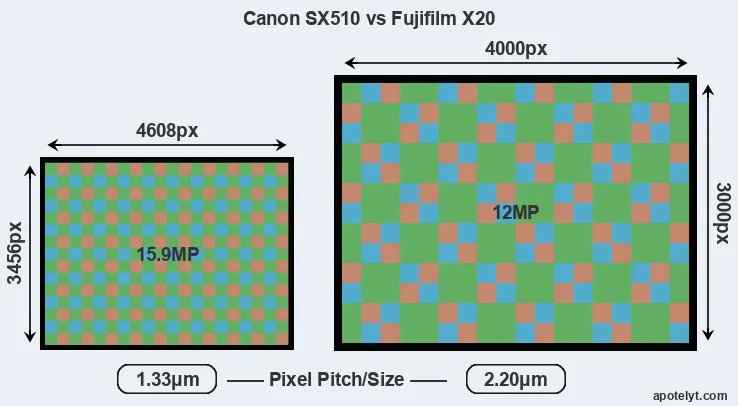

Despite having a smaller sensor, the Canon SX510 offers a higher resolution of 15.9 megapixels, compared with 12 MP of the Fujifilm X20. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.33μm versus 2.20μm for the X20). However, it should be noted that the SX510 is a somewhat more recent model (by 7 months) than the X20, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Canon SX510 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX510 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Fujifilm X20 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The X20 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon PowerShot SX510 HS has a native sensitivity range from ISO 80 to ISO 3200. The corresponding ISO settings for the Fujifilm X20 are ISO 100 to ISO 12800 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Like most digital cameras, the SX510 uses a Bayer filter for capturing RGB colors on a square grid of photosensors. In contrast, the X20 employs a more randomized X-Trans layout of photosites, which according to Fujifilm helps to minimize moiré.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX510	1/2.3	15.9	4608	3456	1080/24p	20.0	11.3	586	45
2.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
3.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
4.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
5.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
6.		Canon SX400	1/2.3	15.9	4608	3456	720/30p	20.1	11.5	672	46
7.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
8.		Canon SX500	1/2.3	15.9	4608	3456	720/30p	19.8	11.1	494	43
9.		Canon SX520	1/2.3	15.9	4608	3456	1080/30p	20.1	11.5	672	46
10.		Canon SX600	1/2.3	15.9	4608	3456	1080/30p	20.0	11.4	620	45
11.		Canon SX700	1/2.3	15.9	4608	3456	1080/60p	20.1	11.4	629	45
12.		Fujifilm X10	2/3	12.0	4000	3000	1080/30p	20.5	11.3	245	50
13.		Fujifilm X30	2/3	12.0	4000	3000	1080/60p	20.4	11.2	-312	49
14.		Leica D-LUX 6	1/1.7	10.0	3648	2736	1080/60p	19.8	10.8	-303	43
15.		Leica X2	APS-C	16.1	4928	3264	none	23.2	12.4	1275	74
16.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50
17.		Sony H200	1/2.3	15.2	5184	2930	720/30p	19.9	11.2	529	44
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the X20 provides a faster frame rate than the SX510. It can shoot movie footage at 1080/60p, while the Canon is limited to 1080/24p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the X20 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the SX510 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon SX510 and Fujifilm X20 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX510	none	n	3.0 / 461	fixed	n	1/1600s	3.8/s	Y	Y
2.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
3.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
4.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
5.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
6.		Canon SX400	none	n	3.0 / 230	fixed	n	1/1600s	0.8/s	Y	Y
7.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
8.		Canon SX500	none	n	3.0 / 461	fixed	n	1/1600s	0.8/s	Y	Y
9.		Canon SX520	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
10.		Canon SX600	none	n	3.0 / 461	fixed	n	1/2000s	3.9/s	Y	Y
11.		Canon SX700	none	n	3.0 / 922	fixed	n	1/3200s	8.5/s	Y	Y
12.		Fujifilm X10	optical	n	2.8 / 460	fixed	n	1/4000s	10.0/s	Y	Y
13.		Fujifilm X30	2360	n	3.0 / 920	tilting	n	1/4000s	12.0/s	Y	Y
14.		Leica D-LUX 6	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
15.		Leica X2	optional	n	2.7 / 230	fixed	n	1/2000s	5.0/s	Y	n
16.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
17.		Sony H200	none	n	3.0 / 460	fixed	n	1/1500s	0.8/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Both the SX510 and the X20 have zoom lenses built in. The SX510 has a 24-720mm f/3.4-5.8 optic and the X20 offers a 28-112mm f/2.0-2.8 (focal lengths in full frame equivalent terms). Hence, the Canon provides a wider angle of view at the short end, as well as more tele-photo reach at the long end than the Fujifilm. The X20 offers the faster maximum aperture.

Concerning the storage of imaging data, both the SX510 and the X20 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX510 HS and Fujifilm X20 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX510	-	stereo / mono	-	-	mini	2.0	Y	-	-
2.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
3.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
5.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
6.		Canon SX400	-	stereo / mono	-	-	-	2.0	-	-	-
7.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
8.		Canon SX500	-	stereo / mono	-	-	-	2.0	-	-	-
9.		Canon SX520	-	stereo / mono	-	-	mini	2.0	-	-	-
10.		Canon SX600	-	mono / mono	-	-	micro	2.0	Y	Y	-
11.		Canon SX700	-	stereo / mono	-	-	micro	2.0	Y	Y	-
12.		Fujifilm X10	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Fujifilm X30	Y	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Leica D-LUX 6	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Leica X2	Y	- / -	-	-	mini	2.0	-	-	-
16.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Sony H200	-	mono / mono	-	-	-	2.0	-	-	-

It is notable that the SX510 offers wifi support, while the X20 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the SX510 and the X20 have been discontinued, but can regularly be found used on ebay. The X20 was replaced by the Fujifilm X30, while the SX510 was followed by the Canon SX520. Further information on the features and operation of the SX510 and X20 can be found, respectively, in the Canon SX510 Manual (free pdf) or the online Fujifilm X20 Manual.

Review summary

So how do things add up? Which of the two cameras – the Canon SX510 or the Fujifilm X20 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Canon PowerShot SX510 HS:

• More detail: Offers more megapixels (15.9 vs 12MP) with a 15% higher linear resolution.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.8") for image review and settings control.
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• More compact: Is smaller (104x70mm vs 117x70mm) and thus needs less room in the bag.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More affordable: Was introduced into a lower priced category (58 percent cheaper at launch).
• More modern: Is somewhat more recent (announced 7 months after the X20).

Arguments in favor of the Fujifilm X20:

• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better video: Provides higher movie framerates (1080/60p versus 1080/24p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/1600s) to freeze action.
• Faster burst: Shoots at higher frequency (12 vs 3.8 flaps/sec) to capture the decisive moment.
• Better light gathering: Has a lens with a wider maximum aperture (f/2.0 vs f/3.4).
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been on the market for longer (launched in January 2013).

If the count of relative strengths (bullet points above) is taken as a measure, the X20 is the clear winner of the contest (12 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX510 and the Fujifilm X20 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the SX510 or the X20 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX510	..	+ +	..	..	4.5/5	4/5	Aug 2013	EUR 329	ebay.com
2.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	EUR 549	ebay.com
3.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	EUR 579	ebay.com
4.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	EUR 599	ebay.com
5.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	EUR 599	ebay.com
6.		Canon SX400	..	+	..	..	..	..	Jul 2014	EUR 179	ebay.com
7.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	EUR 299	ebay.com
8.		Canon SX500	..	+ +	..	..	4/5	4/5	Aug 2012	EUR 319	ebay.com
9.		Canon SX520	..	+	..	..	3.5/5	3.5/5	Jul 2014	EUR 299	ebay.com
10.		Canon SX600	..	+	..	..	4/5	4/5	Jan 2014	EUR 249	ebay.com
11.		Canon SX700	..	+ +	..	..	4/5	4/5	Feb 2014	EUR 349	ebay.com
12.		Fujifilm X10	..	..	..	76/100	4/5	4.5/5	Sep 2011	EUR 529	ebay.com
13.		Fujifilm X30	4/5	..	..	76/100	4.5/5	4.5/5	Aug 2014	EUR 549	ebay.com
14.		Leica D-LUX 6	..	..	..	..	4/5	4/5	Sep 2012	EUR 699	ebay.com
15.		Leica X2	3/5	..	..	..	3/5	4/5	May 2012	EUR 1 749	ebay.com
16.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	EUR 529	ebay.com
17.		Sony H200	..	..	..	..	3.5/5	3.5/5	Jan 2013	EUR 249	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
