Canon SX510 vs Olympus E-500

The Canon PowerShot SX510 HS and the Olympus Evolt E-500 are two digital cameras that were officially introduced, respectively, in August 2013 and September 2005. The SX510 is a fixed lens compact, while the E-500 is a DSLR. The cameras are based on a 1/2.3-inch (SX510) and a Four Thirds (E-500) sensor. The Canon has a resolution of 15.9 megapixels, whereas the Olympus provides 8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX510		Olympus E-500
Fixed lens compact camera		Digital single lens reflex
24-720mm f/3.4-5.8		Four Thirds lenses
15.9 MP – 1/2.3" sensor		8 MP – Four Thirds sensor
1080/24p Video		no Video
ISO 80-3,200		ISO 100-400 (100 - 1,600)
No viewfinder, LCD framing		Optical viewfinder
3.0" LCD – 461k dots		2.5" LCD – 215k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3.8 shutter flaps per second		2.5 shutter flaps per second
250 shots per battery charge		750 shots per battery charge
104 x 70 x 80 mm, 349 g		130 x 95 x 66 mm, 479 g

Check SX510 offers at
ebay.com
Check E-500 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX510 HS and the Olympus Evolt E-500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

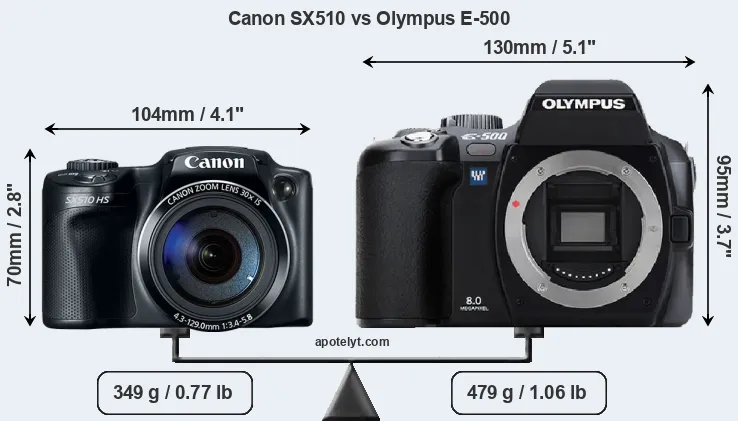

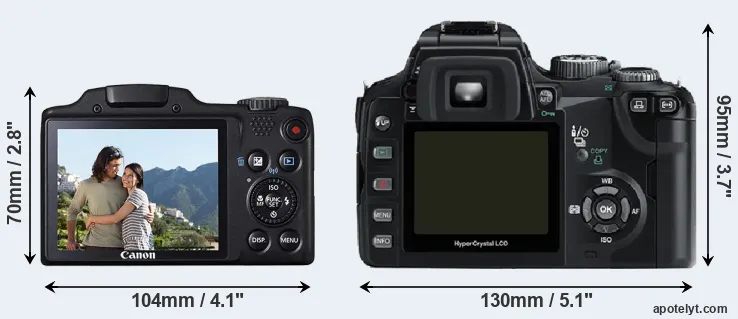

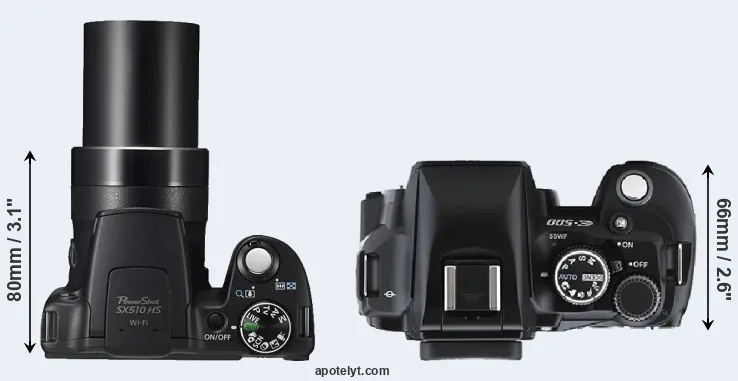

The side-by-side display below illustrates the physical size and weight of the Canon SX510 and the Olympus E-500. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-500 is considerably larger (70 percent) than the Canon SX510. In this context, it is worth noting that neither the SX510 nor the E-500 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX510 has a lens built in, whereas the E-500 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-500 and their specifications in the Four Thirds Lens Catalog.

Concerning battery life, the SX510 gets 250 shots out of its Canon NB-6LH battery, while the E-500 can take 750 images on a single charge of its Olympus BLM-1 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX510	104 mm	70 mm	80 mm	349 g	250	n	Aug 2013	US$ 249	ebay.com
2.		Olympus E-500	130 mm	95 mm	66 mm	479 g	750	n	Sep 2005	US$ 599	ebay.com
3.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	US$ 549	ebay.com
4.		Canon SX400	104 mm	69 mm	80 mm	313 g	190	n	Jul 2014	US$ 249	ebay.com
5.		Canon SX410	104 mm	69 mm	85 mm	325 g	185	n	Feb 2015	US$ 279	ebay.com
6.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	US$ 299	ebay.com
7.		Canon SX430	104 mm	69 mm	85 mm	323 g	195	n	Jan 2017	US$ 299	ebay.com
8.		Canon SX500	104 mm	70 mm	80 mm	341 g	195	n	Aug 2012	US$ 329	ebay.com
9.		Canon SX520	120 mm	82 mm	92 mm	441 g	210	n	Jul 2014	US$ 399	ebay.com
10.		Canon SX600	104 mm	61 mm	26 mm	188 g	290	n	Jan 2014	US$ 249	ebay.com
11.		Canon SX700	113 mm	66 mm	35 mm	269 g	250	n	Feb 2014	US$ 349	ebay.com
12.		Olympus E-300	147 mm	85 mm	64 mm	624 g	750	n	Sep 2004	US$ 799	ebay.com
13.		Olympus E-330	140 mm	87 mm	72 mm	637 g	750	n	Jan 2006	US$ 999	ebay.com
14.		Olympus E-400	130 mm	91 mm	53 mm	435 g	500	n	Sep 2006	US$ 699	ebay.com
15.		Olympus E-410	130 mm	91 mm	53 mm	435 g	500	n	Mar 2007	US$ 699	ebay.com
16.		Olympus E-510	136 mm	92 mm	68 mm	538 g	750	n	Mar 2007	US$ 799	ebay.com
17.		Sony H200	123 mm	83 mm	87 mm	530 g	240	n	Jan 2013	US$ 249	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX510 was launched at a lower price than the E-500, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

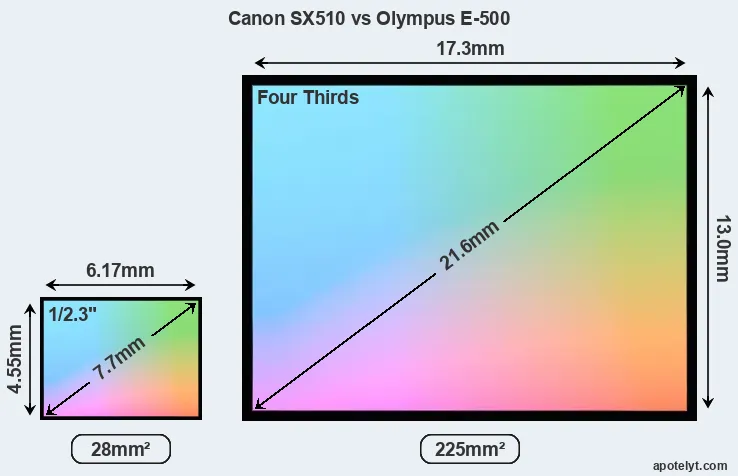

Of the two cameras under consideration, the Canon SX510 features a 1/2.3-inch sensor and the Olympus E-500 a Four Thirds sensor. The sensor area in the E-500 is 704 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

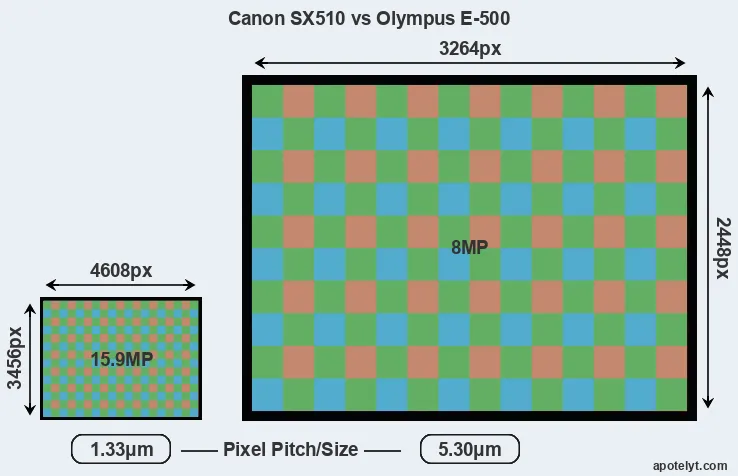

Despite having a smaller sensor, the Canon SX510 offers a higher resolution of 15.9 megapixels, compared with 8 MP of the Olympus E-500. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.33μm versus 5.30μm for the E-500). However, it should be noted that the SX510 is much more recent (by 7 years and 10 months) than the E-500, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the SX510 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon SX510 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX510 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Olympus E-500 are 16.3 x 12.2 inches or 41.5 x 31.1 cm for good quality, 13.1 x 9.8 inches or 33.2 x 24.9 cm for very good quality, and 10.9 x 8.2 inches or 27.6 x 20.7 cm for excellent quality prints.

The Canon PowerShot SX510 HS has a native sensitivity range from ISO 80 to ISO 3200. The corresponding ISO settings for the Olympus Evolt E-500 are ISO 100 to ISO 400, with the possibility to increase the ISO range to 100-1600.

In terms of underlying technology, the SX510 is build around a CMOS sensor, while the E-500 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX510	1/2.3	15.9	4608	3456	1080/24p	20.0	11.3	586	45
2.		Olympus E-500	Four Thirds	8.0	3264	2448	none	20.7	10.3	45	51
3.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
4.		Canon SX400	1/2.3	15.9	4608	3456	720/30p	20.1	11.5	672	46
5.		Canon SX410	1/2.3	19.9	5152	3864	720/30p	20.2	11.6	720	47
6.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
7.		Canon SX430	1/2.3	19.9	5152	3864	720/25p	20.5	11.9	900	49
8.		Canon SX500	1/2.3	15.9	4608	3456	720/30p	19.8	11.1	494	43
9.		Canon SX520	1/2.3	15.9	4608	3456	1080/30p	20.1	11.5	672	46
10.		Canon SX600	1/2.3	15.9	4608	3456	1080/30p	20.0	11.4	620	45
11.		Canon SX700	1/2.3	15.9	4608	3456	1080/60p	20.1	11.4	629	45
12.		Olympus E-300	Four Thirds	8.0	3264	2448	none	20.4	10.1	-40	48
13.		Olympus E-330	Four Thirds	7.4	3136	2352	none	20.8	10.4	73	52
14.		Olympus E-400	Four Thirds	10.0	3648	2736	none	21.0	10.6	127	53
15.		Olympus E-410	Four Thirds	10.0	3648	2736	none	21.1	10.0	494	51
16.		Olympus E-510	Four Thirds	10.0	3648	2736	none	21.2	10.0	442	52
17.		Sony H200	1/2.3	15.2	5184	2930	720/30p	19.9	11.2	529	44
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The SX510 indeed provides movie recording capabilities, while the E-500 does not. The highest resolution format that the SX510 can use is 1080/24p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the E-500 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the SX510 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon SX510 and Olympus E-500 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX510	none	n	3.0 / 461	fixed	n	1/1600s	3.8/s	Y	Y
2.		Olympus E-500	optical	n	2.5 / 215	fixed	n	1/4000s	2.5/s	Y	n
3.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
4.		Canon SX400	none	n	3.0 / 230	fixed	n	1/1600s	0.8/s	Y	Y
5.		Canon SX410	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
6.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
7.		Canon SX430	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
8.		Canon SX500	none	n	3.0 / 461	fixed	n	1/1600s	0.8/s	Y	Y
9.		Canon SX520	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
10.		Canon SX600	none	n	3.0 / 461	fixed	n	1/2000s	3.9/s	Y	Y
11.		Canon SX700	none	n	3.0 / 922	fixed	n	1/3200s	8.5/s	Y	Y
12.		Olympus E-300	optical	n	1.8 / 134	fixed	n	1/4000s	2.5/s	Y	n
13.		Olympus E-330	optical	n	2.5 / 215	tilting	n	1/4000s	3.0/s	Y	n
14.		Olympus E-400	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
15.		Olympus E-410	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
16.		Olympus E-510	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	Y
17.		Sony H200	none	n	3.0 / 460	fixed	n	1/1500s	0.8/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The SX510 writes its imaging data to SDXC cards, while the E-500 uses Compact Flash or xD Picture cards. The E-500 features dual card slots, which can be very useful in case a memory card fails. In contrast, the SX510 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX510 HS and Olympus Evolt E-500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX510	-	stereo / mono	-	-	mini	2.0	Y	-	-
2.		Olympus E-500	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
4.		Canon SX400	-	stereo / mono	-	-	-	2.0	-	-	-
5.		Canon SX410	-	stereo / mono	-	-	-	2.0	-	-	-
6.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
7.		Canon SX430	-	mono / mono	-	-	-	2.0	Y	Y	-
8.		Canon SX500	-	stereo / mono	-	-	-	2.0	-	-	-
9.		Canon SX520	-	stereo / mono	-	-	mini	2.0	-	-	-
10.		Canon SX600	-	mono / mono	-	-	micro	2.0	Y	Y	-
11.		Canon SX700	-	stereo / mono	-	-	micro	2.0	Y	Y	-
12.		Olympus E-300	Y	- / -	-	-	-	2.0	-	-	-
13.		Olympus E-330	Y	- / -	-	-	-	2.0	-	-	-
14.		Olympus E-400	Y	- / -	-	-	-	2.0	-	-	-
15.		Olympus E-410	Y	- / -	-	-	-	2.0	-	-	-
16.		Olympus E-510	Y	- / -	-	-	-	2.0	-	-	-
17.		Sony H200	-	mono / mono	-	-	-	2.0	-	-	-

It is notable that the SX510 offers wifi support, while the E-500 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the SX510 and the E-500 have been discontinued, but can regularly be found used on ebay. The E-500 was replaced by the Olympus E-510, while the SX510 was followed by the Canon SX520. Further information on the features and operation of the SX510 and E-500 can be found, respectively, in the Canon SX510 Manual (free pdf) or the online Olympus E-500 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Canon SX510 and the Olympus E-500? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Canon PowerShot SX510 HS:

• More detail: Offers more megapixels (15.9 vs 8MP) with a 41% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Broader imaging potential: Can record not only still images but also 1080/24p movies.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (461k vs 215k dots).
• Faster burst: Shoots at higher frequency (3.8 vs 2.5 flaps/sec) to capture the decisive moment.
• Ready to shoot: Comes with a built-in lens, while the E-500 requires a separate lens.
• More compact: Is smaller (104x70mm vs 130x95mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the E-500).
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 7 years and 10 months of technical progress since the E-500 launch.

Arguments in favor of the Olympus Evolt E-500:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/1600s) to freeze action.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Longer lasting: Gets more shots (750 versus 250) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been around for much longer (launched in September 2005).

If the count of relative strengths (bullet points above) is taken as a measure, the SX510 comes out slightly ahead of the E-500 (13 : 12 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX510 and the Olympus E-500 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the SX510 or the E-500. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX510	..	+ +	..	..	4.5/5	4/5	Aug 2013	US$ 249	ebay.com
2.		Olympus E-500	..	76/100	..	+ +	..	..	Sep 2005	US$ 599	ebay.com
3.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	US$ 549	ebay.com
4.		Canon SX400	..	+	..	..	..	..	Jul 2014	US$ 249	ebay.com
5.		Canon SX410	..	o	..	..	..	..	Feb 2015	US$ 279	ebay.com
6.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	US$ 299	ebay.com
7.		Canon SX430	..	..	..	..	3.5/5	3.5/5	Jan 2017	US$ 299	ebay.com
8.		Canon SX500	..	+ +	..	..	4/5	4/5	Aug 2012	US$ 329	ebay.com
9.		Canon SX520	..	+	..	..	3.5/5	3.5/5	Jul 2014	US$ 399	ebay.com
10.		Canon SX600	..	+	..	..	4/5	4/5	Jan 2014	US$ 249	ebay.com
11.		Canon SX700	..	+ +	..	..	4/5	4/5	Feb 2014	US$ 349	ebay.com
12.		Olympus E-300	..	..	..	+	o	4.5/5	Sep 2004	US$ 799	ebay.com
13.		Olympus E-330	..	..	..	+	o	..	Jan 2006	US$ 999	ebay.com
14.		Olympus E-400	..	85/100	..	..	4/5	4/5	Sep 2006	US$ 699	ebay.com
15.		Olympus E-410	..	86/100	..	+ +	4/5	4.5/5	Mar 2007	US$ 699	ebay.com
16.		Olympus E-510	..	89/100	..	+ +	3.5/5	4.5/5	Mar 2007	US$ 799	ebay.com
17.		Sony H200	..	..	..	..	3.5/5	3.5/5	Jan 2013	US$ 249	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
