Canon SX510 vs Zeiss ZX1

The Canon PowerShot SX510 HS and the Zeiss ZX1 are two digital cameras that were revealed to the public, respectively, in August 2013 and September 2018. Both the SX510 and the ZX1 are fixed lens compact cameras that are based on a 1/2.3-inch (SX510) and a full frame (ZX1) sensor. The Canon has a resolution of 15.9 megapixels, whereas the Zeiss provides 37.4 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX510		Zeiss ZX1
Fixed lens compact camera		Fixed lens compact camera
24-720mm f/3.4-5.8		35mm f/2.8
15.9 MP – 1/2.3" sensor		37.4 MP – Full Frame sensor
1080/24p Video		4K/30p Video
ISO 80-3,200		ISO 80-51,200
No viewfinder, LCD framing		Electronic viewfinder (6221k dots)
3.0" LCD – 461k dots		4.3" LCD – 2765k dots
Fixed screen (not touch-sensitive)		Fixed touchscreen
3.8 shutter flaps per second		3 shutter flaps per second
250 shots per battery charge		250 shots per battery charge
104 x 70 x 80 mm, 349 g		142 x 93 x 46 mm, 800 g

Check SX510 offers at
ebay.com
Check ZX1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX510 HS and the Zeiss ZX1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

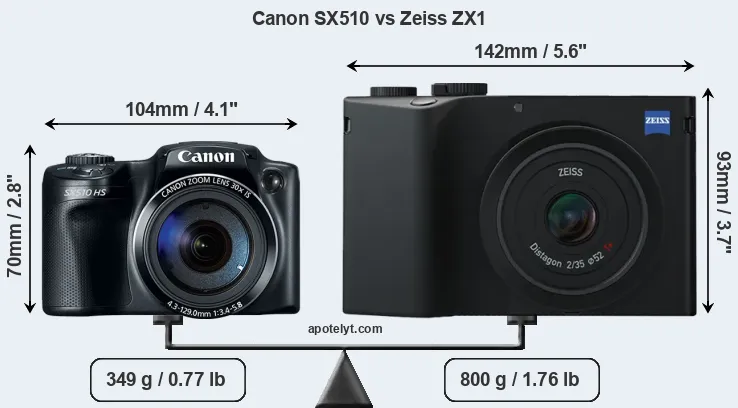

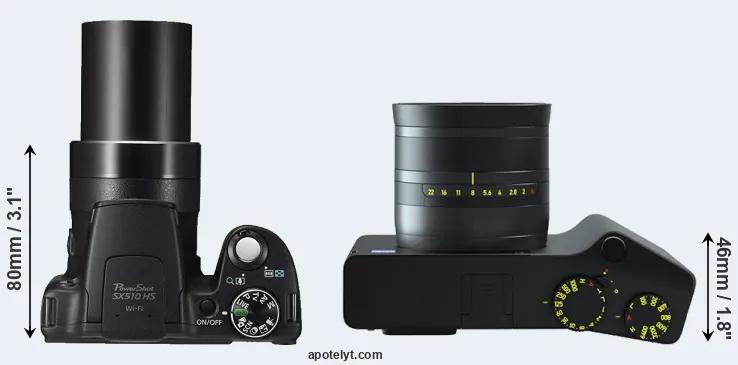

The physical size and weight of the Canon SX510 and the Zeiss ZX1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Zeiss ZX1 is considerably larger (81 percent) than the Canon SX510. Moreover, the ZX1 is substantially heavier (129 percent) than the SX510. In this context, it is worth noting that neither the SX510 nor the ZX1 are weather-sealed.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX510	104 mm	70 mm	80 mm	349 g	250	n	Aug 2013	EUR 329	ebay.com
2.		Zeiss ZX1	142 mm	93 mm	46 mm	800 g	250	n	Sep 2018	EUR 5 999	ebay.com
3.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	EUR 579	ebay.com
4.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	EUR 599	ebay.com
5.		Canon SX400	104 mm	69 mm	80 mm	313 g	190	n	Jul 2014	EUR 179	ebay.com
6.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	EUR 299	ebay.com
7.		Canon SX500	104 mm	70 mm	80 mm	341 g	195	n	Aug 2012	EUR 319	ebay.com
8.		Canon SX520	120 mm	82 mm	92 mm	441 g	210	n	Jul 2014	EUR 299	ebay.com
9.		Canon SX600	104 mm	61 mm	26 mm	188 g	290	n	Jan 2014	EUR 249	ebay.com
10.		Canon SX700	113 mm	66 mm	35 mm	269 g	250	n	Feb 2014	EUR 349	ebay.com
11.		Leica Q2	130 mm	80 mm	92 mm	718 g	370	Y	Mar 2019	EUR 4 799	amazon.com
12.		Leica V-LUX 5	136 mm	97 mm	131 mm	812 g	350	n	Jul 2019	EUR 1 199	amazon.com
13.		Leica X2	124 mm	69 mm	52 mm	345 g	450	n	May 2012	EUR 1 749	ebay.com
14.		Panasonic FZ1000	137 mm	99 mm	131 mm	831 g	360	n	Jun 2014	EUR 899	ebay.com
15.		Panasonic FZ1000 II	136 mm	97 mm	131 mm	810 g	350	n	Feb 2019	EUR 849	amazon.com
16.		Sony H200	123 mm	83 mm	87 mm	530 g	240	n	Jan 2013	EUR 249	ebay.com
17.		Sony RX100 VI	102 mm	58 mm	43 mm	301 g	240	n	Jun 2018	EUR 1 299	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX510 was launched at a markedly lower price (by 96 percent) than the ZX1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

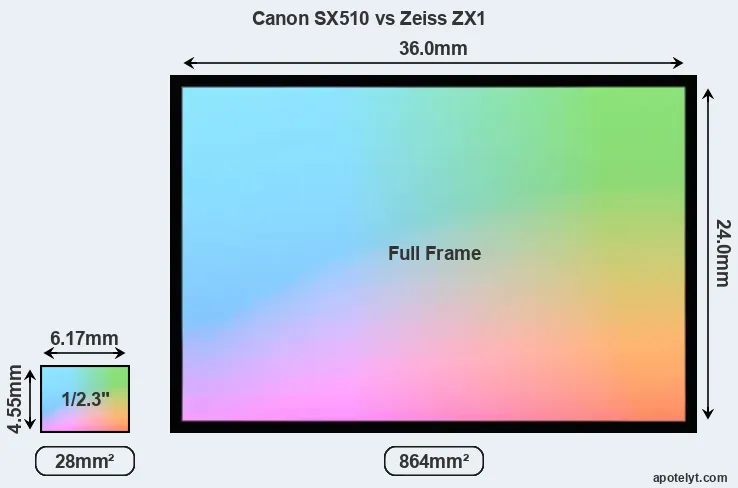

Of the two cameras under consideration, the Canon SX510 features a 1/2.3-inch sensor and the Zeiss ZX1 a full frame sensor. The sensor area in the ZX1 is 2986 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.0. The sensor in the SX510 has a native 4:3 aspect ratio, while the one in the ZX1 offers a 3:2 aspect.

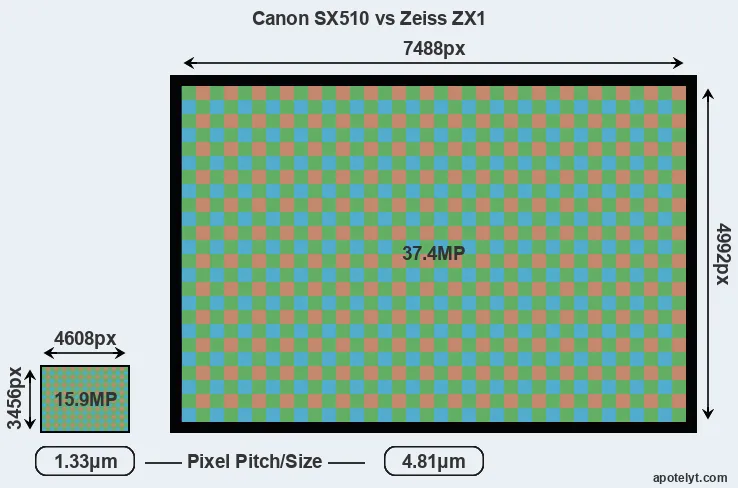

With 37.4MP, the ZX1 offers a higher resolution than the SX510 (15.9MP), but the ZX1 nevertheless has larger individual pixels (pixel pitch of 4.81μm versus 1.33μm for the SX510) due to its larger sensor. Moreover, the ZX1 is a much more recent model (by 5 years and 1 month) than the SX510, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the SX510 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Zeiss ZX1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the ZX1 for good quality output (200 dots per inch) amounts to 37.4 x 25 inches or 95.1 x 63.4 cm, for very good quality (250 dpi) 30 x 20 inches or 76.1 x 50.7 cm, and for excellent quality (300 dpi) 25 x 16.6 inches or 63.4 x 42.3 cm. The corresponding values for the Canon SX510 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The Canon PowerShot SX510 HS has a native sensitivity range from ISO 80 to ISO 3200. The corresponding ISO settings for the Zeiss ZX1 are ISO 80 to ISO 51200 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX510	1/2.3	15.9	4608	3456	1080/24p	20.0	11.3	586	45
2.		Zeiss ZX1	Full Frame	37.4	7488	4992	4K/30p	25.2	14.1	2759	94
3.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
4.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
5.		Canon SX400	1/2.3	15.9	4608	3456	720/30p	20.1	11.5	672	46
6.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
7.		Canon SX500	1/2.3	15.9	4608	3456	720/30p	19.8	11.1	494	43
8.		Canon SX520	1/2.3	15.9	4608	3456	1080/30p	20.1	11.5	672	46
9.		Canon SX600	1/2.3	15.9	4608	3456	1080/30p	20.0	11.4	620	45
10.		Canon SX700	1/2.3	15.9	4608	3456	1080/60p	20.1	11.4	629	45
11.		Leica Q2	Full Frame	46.7	8368	5584	4K/30p	26.4	13.5	2491	96
12.		Leica V-LUX 5	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	584	65
13.		Leica X2	APS-C	16.1	4928	3264	none	23.2	12.4	1275	74
14.		Panasonic FZ1000	1-inch	20.0	5472	3648	4K/30p	22.1	11.7	517	64
15.		Panasonic FZ1000 II	1-inch	20.0	5472	3648	4K/30p	22.1	12.4	546	65
16.		Sony H200	1/2.3	15.2	5184	2930	720/30p	19.9	11.2	529	44
17.		Sony RX100 VI	1-inch	20.0	5472	3648	4K/30p	22.1	12.3	478	64
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the ZX1 provides a better video resolution than the SX510. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/24p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the ZX1 has an electronic viewfinder (6221k dots), which can be very helpful when shooting in bright sunlight. In contrast, the SX510 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon SX510, the Zeiss ZX1, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX510	none	n	3.0 / 461	fixed	n	1/1600s	3.8/s	Y	Y
2.		Zeiss ZX1	6221	n	4.3 / 2765	fixed	Y	1/1000s	3.0/s	n	n
3.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
4.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
5.		Canon SX400	none	n	3.0 / 230	fixed	n	1/1600s	0.8/s	Y	Y
6.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
7.		Canon SX500	none	n	3.0 / 461	fixed	n	1/1600s	0.8/s	Y	Y
8.		Canon SX520	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
9.		Canon SX600	none	n	3.0 / 461	fixed	n	1/2000s	3.9/s	Y	Y
10.		Canon SX700	none	n	3.0 / 922	fixed	n	1/3200s	8.5/s	Y	Y
11.		Leica Q2	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
12.		Leica V-LUX 5	2360	n	3.0 / 1240	swivel	Y	1/4000s	12.0/s	Y	Y
13.		Leica X2	optional	n	2.7 / 230	fixed	n	1/2000s	5.0/s	Y	n
14.		Panasonic FZ1000	2359	n	3.0 / 921	swivel	n	1/4000s	12.0/s	Y	Y
15.		Panasonic FZ1000 II	2360	n	3.0 / 1240	swivel	Y	1/4000s	12.0/s	Y	Y
16.		Sony H200	none	n	3.0 / 460	fixed	n	1/1500s	0.8/s	Y	Y
17.		Sony RX100 VI	2359	n	3.0 / 1229	tilting	Y	1/2000s	24.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

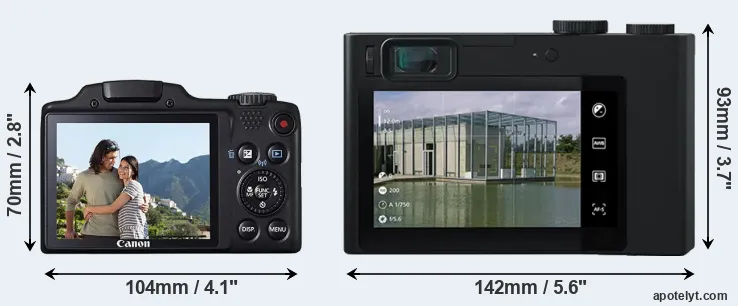

One difference between the cameras concerns the presence of an on-board flash. The SX510 has one, while the ZX1 does not. While the built-in flash of the SX510 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the ZX1 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The SX510 is equipped with a zoom lens, while the ZX1 comes with a built-in prime. The SX510 has a 24-720mm f/3.4-5.8 optic and the ZX1 offers a 35mm f/2.8 (focal lengths in full frame equivalent terms). Hence, the Canon provides a wider angle of view at the short end, as well as more tele-photo reach at the long end than the Zeiss. The ZX1 offers the faster maximum aperture.

The SX510 writes its imaging data to SDXC cards, while the ZX1 uses an internal SSD.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX510 HS and Zeiss ZX1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX510	-	stereo / mono	-	-	mini	2.0	Y	-	-
2.		Zeiss ZX1	Y	stereo / mono	-	-	-	3.1	Y	Y	Y
3.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
5.		Canon SX400	-	stereo / mono	-	-	-	2.0	-	-	-
6.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
7.		Canon SX500	-	stereo / mono	-	-	-	2.0	-	-	-
8.		Canon SX520	-	stereo / mono	-	-	mini	2.0	-	-	-
9.		Canon SX600	-	mono / mono	-	-	micro	2.0	Y	Y	-
10.		Canon SX700	-	stereo / mono	-	-	micro	2.0	Y	Y	-
11.		Leica Q2	Y	stereo / mono	-	-	-	-	Y	-	Y
12.		Leica V-LUX 5	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
13.		Leica X2	Y	- / -	-	-	mini	2.0	-	-	-
14.		Panasonic FZ1000	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
15.		Panasonic FZ1000 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
16.		Sony H200	-	mono / mono	-	-	-	2.0	-	-	-
17.		Sony RX100 VI	-	stereo / mono	-	-	micro	2.0	Y	Y	Y

It is notable that the ZX1 has a hotshoe, which makes it possible to easily attach optional accessories, such as an external flash gun. The SX510 does not feature such an accessory-socket.

Both the SX510 and the ZX1 have been discontinued, but can regularly be found used on ebay. The SX510 was replaced by the Canon SX520, while the ZX1 does not have a direct successor. Further information on the features and operation of the SX510 and ZX1 can be found, respectively, in the Canon SX510 Manual (free pdf) or the online Zeiss ZX1 Manual.

Review summary

So how do things add up? Which of the two cameras – the Canon SX510 or the Zeiss ZX1 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Canon PowerShot SX510 HS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Faster shutter: Has higher mechanical shutter speed (1/1600s vs 1/1000s) to freeze action.
• Faster burst: Shoots at higher frequency (3.8 vs 3 flaps/sec) to capture the decisive moment.
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• More compact: Is smaller (104x70mm vs 142x93mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 451g or 56 percent) and hence easier to carry around.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More affordable: Was introduced into a lower priced category (96 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in August 2013).

Reasons to prefer the Zeiss ZX1:

• More detail: Has more megapixels (37.4 vs 15.9MP), which boosts linear resolution by 56%.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/24p).
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• Larger screen: Has a bigger rear LCD (4.3" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (2765k vs 461k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Better light gathering: Has a lens with a wider maximum aperture (f/2.8 vs f/3.4).
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More prestigious: Has the Zeiss luxury appeal, which ensures a high resale value.
• More modern: Reflects 5 years and 1 month of technical progress since the SX510 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the ZX1 is the clear winner of the contest (19 : 10 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX510 and the Zeiss ZX1 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Prime Lens Compact Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the SX510 or the ZX1. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX510	..	+ +	..	..	4.5/5	4/5	Aug 2013	EUR 329	ebay.com
2.		Zeiss ZX1	3/5	..	..	83/100	4/5	4/5	Sep 2018	EUR 5 999	ebay.com
3.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	EUR 579	ebay.com
4.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	EUR 599	ebay.com
5.		Canon SX400	..	+	..	..	..	..	Jul 2014	EUR 179	ebay.com
6.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	EUR 299	ebay.com
7.		Canon SX500	..	+ +	..	..	4/5	4/5	Aug 2012	EUR 319	ebay.com
8.		Canon SX520	..	+	..	..	3.5/5	3.5/5	Jul 2014	EUR 299	ebay.com
9.		Canon SX600	..	+	..	..	4/5	4/5	Jan 2014	EUR 249	ebay.com
10.		Canon SX700	..	+ +	..	..	4/5	4/5	Feb 2014	EUR 349	ebay.com
11.		Leica Q2	..	..	4.5/5	84/100	4.5/5	4/5	Mar 2019	EUR 4 799	amazon.com
12.		Leica V-LUX 5	..	..	..	..	4/5	4/5	Jul 2019	EUR 1 199	amazon.com
13.		Leica X2	3/5	..	..	..	3/5	4/5	May 2012	EUR 1 749	ebay.com
14.		Panasonic FZ1000	4/5	+ +	..	82/100	4.5/5	4.5/5	Jun 2014	EUR 899	ebay.com
15.		Panasonic FZ1000 II	..	..	..	83/100	4.5/5	4.5/5	Feb 2019	EUR 849	amazon.com
16.		Sony H200	..	..	..	..	3.5/5	3.5/5	Jan 2013	EUR 249	ebay.com
17.		Sony RX100 VI	4.5/5	+ +	..	83/100	4/5	4.5/5	Jun 2018	EUR 1 299	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
