Canon SX520 vs Panasonic G80

The Canon PowerShot SX520 HS and the Panasonic Lumix DMC-G80 (labelled Panasonic G85 in some countries) are two digital cameras that were officially introduced, respectively, in July 2014 and September 2016. The SX520 is a fixed lens compact, while the G80 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (SX520) and a Four Thirds (G80) sensor. The Canon has a resolution of 15.9 megapixels, whereas the Panasonic provides 15.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX520		Panasonic G80
Fixed lens compact camera		Mirrorless system camera
24-1008mm f/3.4-6		Micro Four Thirds lenses
15.9 MP – 1/2.3" sensor		15.8 MP – Four Thirds sensor
1080/30p Video		4K/30p Video
ISO 100-3,200		ISO 200-25,600
No viewfinder, LCD framing		Electronic viewfinder (2360k dots)
3.0" LCD – 461k dots		3.0" LCD – 1040k dots
Fixed screen (not touch-sensitive)		Swivel touchscreen
1.6 shutter flaps per second		9 shutter flaps per second
Lens-based stabilization		In-body stabilization
not weather sealed		Weathersealed body
210 shots per battery charge		330 shots per battery charge
120 x 82 x 92 mm, 441 g		128 x 89 x 74 mm, 505 g

Check SX520 offers at
ebay.com
Check G80 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX520 HS and the Panasonic Lumix DMC-G80? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

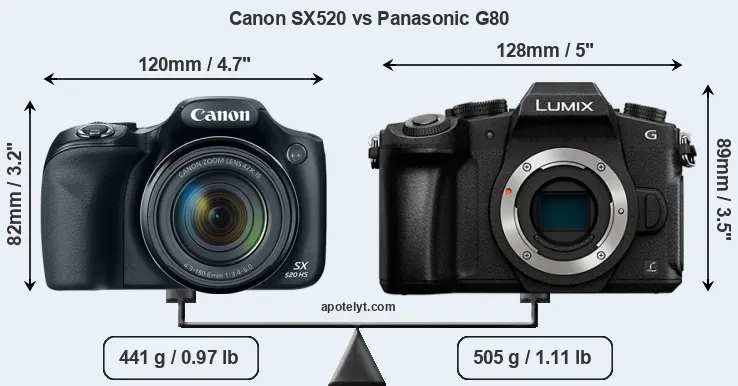

An illustration of the physical size and weight of the Canon SX520 and the Panasonic G80 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic G80 is notably larger (16 percent) than the Canon SX520. It is noteworthy in this context that the G80 is splash and dust-proof, while the SX520 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX520 has a lens built in, whereas the G80 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the G80 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the SX520 gets 210 shots out of its Canon NB-6LH battery, while the G80 can take 330 images on a single charge of its Panasonic DMW-BLC12 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX520	120 mm	82 mm	92 mm	441 g	210	n	Jul 2014	US$ 399	ebay.com
2.		Panasonic G80	128 mm	89 mm	74 mm	505 g	330	Y	Sep 2016	US$ 899	ebay.com
3.		Canon 1200D	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	US$ 449	ebay.com
4.		Canon 1300D	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	US$ 449	ebay.com
5.		Canon 4000D	129 mm	102 mm	77 mm	436 g	500	n	Feb 2018	US$ 399	amazon.com
6.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	US$ 549	ebay.com
7.		Canon SX510	104 mm	70 mm	80 mm	349 g	250	n	Aug 2013	US$ 249	ebay.com
8.		Canon SX530	120 mm	82 mm	92 mm	442 g	210	n	Jan 2015	US$ 429	ebay.com
9.		Canon SX540	120 mm	82 mm	92 mm	442 g	205	n	Jan 2016	US$ 399	ebay.com
10.		Canon SX700	113 mm	66 mm	35 mm	269 g	250	n	Feb 2014	US$ 349	ebay.com
11.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	US$ 349	ebay.com
12.		Nikon B600	122 mm	82 mm	99 mm	500 g	280	n	Jan 2019	US$ 349	ebay.com
13.		Olympus E-M5 II	124 mm	85 mm	45 mm	469 g	310	Y	Feb 2015	US$ 1 099	ebay.com
14.		Panasonic G90	130 mm	94 mm	77 mm	536 g	290	Y	Apr 2019	US$ 999	ebay.com
15.		Panasonic GH5	139 mm	98 mm	87 mm	725 g	410	Y	Jan 2017	US$ 1 999	ebay.com
16.		Panasonic GX8	133 mm	78 mm	63 mm	487 g	330	Y	Jul 2015	US$ 1 199	ebay.com
17.		Panasonic GX80	122 mm	71 mm	44 mm	426 g	290	n	Apr 2016	US$ 799	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX520 was launched at a lower price than the G80, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SX520 features a 1/2.3-inch sensor and the Panasonic G80 a Four Thirds sensor. The sensor area in the G80 is 704 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Despite having a smaller sensor, the Canon SX520 offers a higher resolution of 15.9 megapixels, compared with 15.8 MP of the Panasonic G80. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.33μm versus 3.77μm for the G80). Moreover, it should be noted that the G80 is much more recent (by 2 years and 1 month) than the SX520, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The Canon PowerShot SX520 HS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Panasonic Lumix DMC-G80 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

In terms of underlying technology, the SX520 is build around a BSI-CMOS sensor, while the G80 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX520	1/2.3	15.9	4608	3456	1080/30p	20.1	11.5	672	46
2.		Panasonic G80	Four Thirds	15.8	4592	3448	4K/30p	22.8	12.5	656	71
3.		Canon 1200D	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
4.		Canon 1300D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
5.		Canon 4000D	APS-C	17.9	5184	3456	1080/30p	21.9	11.4	695	63
6.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
7.		Canon SX510	1/2.3	15.9	4608	3456	1080/24p	20.0	11.3	586	45
8.		Canon SX530	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	712	47
9.		Canon SX540	1/2.3	20.2	5184	3888	1080/60p	20.3	11.7	806	48
10.		Canon SX700	1/2.3	15.9	4608	3456	1080/60p	20.1	11.4	629	45
11.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
12.		Nikon B600	1/2.3	15.9	4608	3456	1080/30p	20.7	12.2	1095	52
13.		Olympus E-M5 II	Four Thirds	15.9	4608	3456	1080/60p	23.0	12.5	842	73
14.		Panasonic G90	Four Thirds	20.2	5184	3888	4K/30p	23.2	13.0	1273	75
15.		Panasonic GH5	Four Thirds	20.2	5184	3888	4K/60p	23.9	13.0	807	77
16.		Panasonic GX8	Four Thirds	20.2	5184	3888	4K/30p	23.5	12.6	806	75
17.		Panasonic GX80	Four Thirds	15.8	4592	3448	4K/30p	22.9	12.6	662	71
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the G80 provides a better video resolution than the SX520. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the G80 has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the SX520 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon SX520 and Panasonic G80 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX520	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
2.		Panasonic G80	2360	n	3.0 / 1040	swivel	Y	1/4000s	9.0/s	Y	Y
3.		Canon 1200D	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
4.		Canon 1300D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
5.		Canon 4000D	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
6.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
7.		Canon SX510	none	n	3.0 / 461	fixed	n	1/1600s	3.8/s	Y	Y
8.		Canon SX530	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
9.		Canon SX540	none	n	3.0 / 461	fixed	n	1/2000s	5.9/s	Y	Y
10.		Canon SX700	none	n	3.0 / 922	fixed	n	1/3200s	8.5/s	Y	Y
11.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
12.		Nikon B600	none	n	3.0 / 921	fixed	n	1/4000s	7.4/s	Y	Y
13.		Olympus E-M5 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
14.		Panasonic G90	2360	n	3.0 / 1240	swivel	Y	1/4000s	9.0/s	Y	Y
15.		Panasonic GH5	3680	n	3.2 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
16.		Panasonic GX8	2360	n	3.0 / 1040	swivel	Y	1/8000s	10.0/s	n	Y
17.		Panasonic GX80	2765	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The G80 has a touchscreen, while the SX520 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the G80 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Panasonic G80 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the SX520 and the G80 write their files to SDXC cards. The G80 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the SX520 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX520 HS and Panasonic Lumix DMC-G80 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX520	-	stereo / mono	-	-	mini	2.0	-	-	-
2.		Panasonic G80	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
3.		Canon 1200D	Y	mono / mono	-	-	mini	2.0	-	-	-
4.		Canon 1300D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
5.		Canon 4000D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
6.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
7.		Canon SX510	-	stereo / mono	-	-	mini	2.0	Y	-	-
8.		Canon SX530	-	stereo / mono	-	-	mini	2.0	Y	Y	-
9.		Canon SX540	-	stereo / mono	-	-	mini	2.0	Y	Y	-
10.		Canon SX700	-	stereo / mono	-	-	micro	2.0	Y	Y	-
11.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
12.		Nikon B600	-	stereo / mono	-	-	micro	2.0	Y	-	Y
13.		Olympus E-M5 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
14.		Panasonic G90	Y	stereo / mono	Y	Y	micro	2.0	Y	-	Y
15.		Panasonic GH5	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y
16.		Panasonic GX8	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
17.		Panasonic GX80	Y	stereo / mono	-	-	micro	2.0	Y	-	-

It is notable that the G80 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the SX520 does not provide wifi capability.

Both the SX520 and the G80 have been discontinued, but can regularly be found used on ebay. The SX520 was replaced by the Canon SX530, while the G80 was followed by the Panasonic G90. Further information on the features and operation of the SX520 and G80 can be found, respectively, in the Canon SX520 Manual (free pdf) or the online Panasonic G80 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon SX520 and the Panasonic G80? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Canon PowerShot SX520 HS:

• Ready to shoot: Has a lens built-in, whereas the G80 requires a separate lens.
• More compact: Is smaller (120x82mm vs 128x89mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the G80).
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More heavily discounted: Has been available for much longer (launched in July 2014).

Reasons to prefer the Panasonic Lumix DMC-G80:

• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 461k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (9 vs 1.6 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• Longer lasting: Gets more shots (330 versus 210) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Faster buffer clearing: Has an SD card interface that supports the UHS-II standard.
• More modern: Reflects 2 years and 1 month of technical progress since the SX520 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the G80 is the clear winner of the contest (22 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX520 and the Panasonic G80 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the SX520 or the G80. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX520	..	+	..	..	3.5/5	3.5/5	Jul 2014	US$ 399	ebay.com
2.		Panasonic G80	..	+ +	..	84/100	5/5	4.5/5	Sep 2016	US$ 899	ebay.com
3.		Canon 1200D	3/5	+	..	..	4/5	4.5/5	Feb 2014	US$ 449	ebay.com
4.		Canon 1300D	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	US$ 449	ebay.com
5.		Canon 4000D	2.5/5	o	3/5	..	3.5/5	3.5/5	Feb 2018	US$ 399	amazon.com
6.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	US$ 549	ebay.com
7.		Canon SX510	..	+ +	..	..	4.5/5	4/5	Aug 2013	US$ 249	ebay.com
8.		Canon SX530	..	+ +	..	..	4/5	4/5	Jan 2015	US$ 429	ebay.com
9.		Canon SX540	..	..	..	..	..	..	Jan 2016	US$ 399	ebay.com
10.		Canon SX700	..	+ +	..	..	4/5	4/5	Feb 2014	US$ 349	ebay.com
11.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	US$ 349	ebay.com
12.		Nikon B600	..	+	..	..	3.5/5	3/5	Jan 2019	US$ 349	ebay.com
13.		Olympus E-M5 II	5/5	+ +	4.5/5	81/100	5/5	5/5	Feb 2015	US$ 1 099	ebay.com
14.		Panasonic G90	4.5/5	+	4.5/5	83/100	4.5/5	4.5/5	Apr 2019	US$ 999	ebay.com
15.		Panasonic GH5	4.5/5	+ +	..	85/100	4.5/5	5/5	Jan 2017	US$ 1 999	ebay.com
16.		Panasonic GX8	5/5	+	..	82/100	4.5/5	4.5/5	Jul 2015	US$ 1 199	ebay.com
17.		Panasonic GX80	4.5/5	+ +	..	82/100	5/5	5/5	Apr 2016	US$ 799	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check SX520 offers at
ebay.com
Check G80 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check SX520 offers at
ebay.com
Check G80 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
