Canon SX540 vs T3

The Canon PowerShot SX540 HS and the Canon EOS Rebel T3 (labelled Canon 1100D in some countries) are two digital cameras that were officially introduced, respectively, in January 2016 and February 2011. The SX540 is a fixed lens compact, while the T3 is a DSLR. The cameras are based on a 1/2.3-inch (SX540) and an APS-C (T3) sensor. The SX540 has a resolution of 20.2 megapixels, whereas the T3 provides 12.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX540		Canon T3
Fixed lens compact camera		Digital single lens reflex
24-1200mm f/3.4-6.5		Canon EF mount lenses
20.2 MP – 1/2.3" sensor		12.2 MP – APS-C sensor
1080/60p Video		720/30p Video
ISO 80-3,200		ISO 100-6,400
No viewfinder, LCD framing		Optical viewfinder
3.0" LCD – 461k dots		2.7" LCD – 230k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
5.9 shutter flaps per second		3 shutter flaps per second
205 shots per battery charge		700 shots per battery charge
120 x 82 x 92 mm, 442 g		130 x 100 x 78 mm, 495 g

Check SX540 offers at
ebay.com
Check T3 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX540 HS and the Canon EOS Rebel T3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Canon SX540 and the Canon T3 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon T3 is notably larger (32 percent) than the Canon SX540. In this context, it is worth noting that neither the SX540 nor the T3 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX540 has a lens built in, whereas the T3 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the T3 and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the SX540 gets 205 shots out of its Canon NB-6LH battery, while the T3 can take 700 images on a single charge of its Canon LP-E10 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX540	120 mm	82 mm	92 mm	442 g	205	n	Jan 2016	US$ 399	ebay.com
2.		Canon T3	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	US$ 449	ebay.com
3.		Canon G1 X	117 mm	81 mm	65 mm	534 g	250	n	Jan 2012	US$ 799	ebay.com
4.		Canon SX410	104 mm	69 mm	85 mm	325 g	185	n	Feb 2015	US$ 279	ebay.com
5.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	US$ 299	ebay.com
6.		Canon SX530	120 mm	82 mm	92 mm	442 g	210	n	Jan 2015	US$ 429	ebay.com
7.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	US$ 349	ebay.com
8.		Canon SX720	110 mm	64 mm	36 mm	270 g	250	n	Feb 2016	US$ 379	ebay.com
9.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	US$ 399	ebay.com
10.		Canon SX740	110 mm	64 mm	40 mm	299 g	265	n	Jul 2018	US$ 399	amazon.com
11.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	US$ 449	ebay.com
12.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	US$ 449	ebay.com
13.		Canon T100	129 mm	102 mm	77 mm	436 g	500	n	Feb 2018	US$ 399	amazon.com
14.		Canon XS	126 mm	98 mm	65 mm	502 g	500	n	Jun 2008	US$ 449	ebay.com
15.		Panasonic FZ80	130 mm	94 mm	119 mm	616 g	330	n	Jan 2017	US$ 399	ebay.com
16.		Panasonic ZS70	112 mm	67 mm	41 mm	322 g	380	n	Apr 2017	US$ 449	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX540 was launched at a lower price than the T3, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

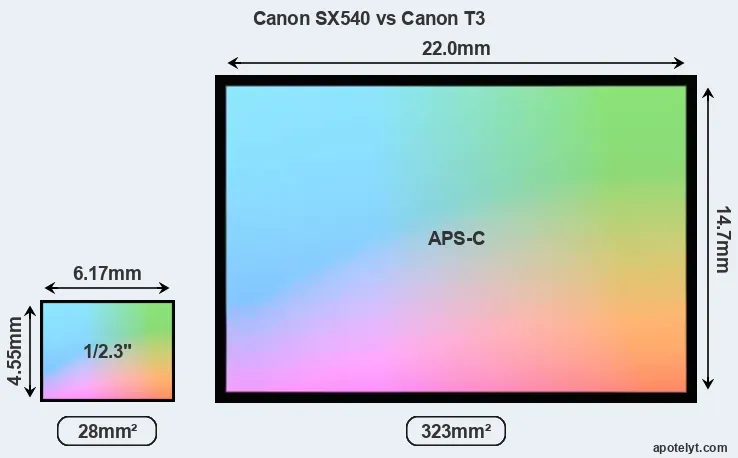

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SX540 features a 1/2.3-inch sensor and the Canon T3 an APS-C sensor. The sensor area in the T3 is 1054 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.6. The sensor in the SX540 has a native 4:3 aspect ratio, while the one in the T3 offers a 3:2 aspect.

In terms of chip-set technology, the SX540 uses a more advanced image processing engine (DIGIC 6) than the T3 (DIGIC 4), with benefits for noise reduction, color accuracy, and processing speed.

Despite having a smaller sensor, the Canon SX540 offers a higher resolution of 20.2 megapixels, compared with 12.2 MP of the Canon T3. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 5.15μm for the T3). However, it should be noted that the SX540 is much more recent (by 4 years and 10 months) than the T3, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the SX540 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon SX540 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX540 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Canon T3 are 21.4 x 14.2 inches or 54.3 x 36.2 cm for good quality, 17.1 x 11.4 inches or 43.4 x 28.9 cm for very good quality, and 14.2 x 9.5 inches or 36.2 x 24.1 cm for excellent quality prints.

The Canon PowerShot SX540 HS has a native sensitivity range from ISO 80 to ISO 3200. The corresponding ISO settings for the Canon EOS Rebel T3 are ISO 100 to ISO 6400 (no boost).

In terms of underlying technology, the SX540 is build around a BSI-CMOS sensor, while the T3 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX540	1/2.3	20.2	5184	3888	1080/60p	20.3	11.7	806	48
2.		Canon T3	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
3.		Canon G1 X	1.5-inch	14.2	4352	3264	1080/24p	21.7	10.8	644	60
4.		Canon SX410	1/2.3	19.9	5152	3864	720/30p	20.2	11.6	720	47
5.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
6.		Canon SX530	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	712	47
7.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
8.		Canon SX720	1/2.3	20.2	5184	3888	1080/60p	20.3	11.8	817	48
9.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
10.		Canon SX740	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1050	51
11.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
12.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
13.		Canon T100	APS-C	17.9	5184	3456	1080/30p	21.9	11.4	695	63
14.		Canon XS	APS-C	10.1	3888	2592	none	22.0	10.9	719	62
15.		Panasonic FZ80	1/2.3	18.0	4896	3672	4K/30p	20.5	11.9	900	49
16.		Panasonic ZS70	1/2.3	20.2	5184	3888	4K/30p	19.1	10.6	106	36
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the SX540 provides a higher video resolution than the T3. It can shoot video footage at 1080/60p, while the T3 is limited to 720/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the T3 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the SX540 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon SX540 and Canon T3 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX540	none	n	3.0 / 461	fixed	n	1/2000s	5.9/s	Y	Y
2.		Canon T3	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
3.		Canon G1 X	optical	n	3.0 / 922	swivel	n	1/4000s	1.9/s	Y	Y
4.		Canon SX410	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
5.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
6.		Canon SX530	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
7.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
8.		Canon SX720	none	n	3.0 / 922	fixed	n	1/3200s	5.9/s	Y	Y
9.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
10.		Canon SX740	none	n	3.0 / 922	tilting	n	1/3200s	10.0/s	Y	Y
11.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
12.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
13.		Canon T100	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
14.		Canon XS	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
15.		Panasonic FZ80	1166	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	Y	Y
16.		Panasonic ZS70	1166	n	3.0 / 1040	tilting	Y	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Concerning the storage of imaging data, both the SX540 and the T3 write their files to SDXC cards. The SX540 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the T3 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX540 HS and Canon EOS Rebel T3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX540	-	stereo / mono	-	-	mini	2.0	Y	Y	-
2.		Canon T3	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon G1 X	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Canon SX410	-	stereo / mono	-	-	-	2.0	-	-	-
5.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
6.		Canon SX530	-	stereo / mono	-	-	mini	2.0	Y	Y	-
7.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
8.		Canon SX720	-	stereo / mono	-	-	micro	2.0	Y	Y	-
9.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
10.		Canon SX740	-	stereo / mono	-	-	micro	2.0	Y	-	Y
11.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
12.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
13.		Canon T100	Y	mono / mono	-	-	mini	2.0	Y	Y	-
14.		Canon XS	Y	- / -	-	-	-	2.0	-	-	-
15.		Panasonic FZ80	Y	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Panasonic ZS70	-	stereo / mono	-	-	micro	2.0	Y	-	-

It is notable that the SX540 offers wifi support, while the T3 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the SX540 and the T3 have been discontinued, but can regularly be found used on ebay. The T3 was replaced by the Canon T5, while the SX540 does not have a direct successor. Further information on the features and operation of the SX540 and T3 can be found, respectively, in the Canon SX540 Manual (free pdf) or the online Canon T3 Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Canon SX540 or the Canon T3 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Canon PowerShot SX540 HS:

• More detail: Offers more megapixels (20.2 vs 12.2MP) with a 26% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better jpgs: Has a more modern image processing engine (DIGIC 6 vs DIGIC 4).
• Better video: Provides higher definition movie capture (1080/60p vs 720/30p).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (461k vs 230k dots).
• Faster burst: Shoots at higher frequency (5.9 vs 3 flaps/sec) to capture the decisive moment.
• Ready to shoot: Comes with a built-in lens, while the T3 requires a separate lens.
• More compact: Is smaller (120x82mm vs 130x100mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the T3).
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 4 years and 10 months of technical progress since the T3 launch.

Advantages of the Canon EOS Rebel T3:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Longer lasting: Gets more shots (700 versus 205) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been around for much longer (launched in February 2011).

If the number of relative strengths (bullet points above) is taken as a guide, the SX540 is the clear winner of the match-up (16 : 11 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX540 and the Canon T3 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the SX540 or the T3 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX540	..	..	..	..	..	..	Jan 2016	US$ 399	ebay.com
2.		Canon T3	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	US$ 449	ebay.com
3.		Canon G1 X	5/5	+	..	76/100	4/5	4.5/5	Jan 2012	US$ 799	ebay.com
4.		Canon SX410	..	o	..	..	..	..	Feb 2015	US$ 279	ebay.com
5.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	US$ 299	ebay.com
6.		Canon SX530	..	+ +	..	..	4/5	4/5	Jan 2015	US$ 429	ebay.com
7.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	US$ 349	ebay.com
8.		Canon SX720	..	+	..	..	4/5	4.5/5	Feb 2016	US$ 379	ebay.com
9.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	US$ 399	ebay.com
10.		Canon SX740	..	+	3.5/5	..	4/5	4/5	Jul 2018	US$ 399	amazon.com
11.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	US$ 449	ebay.com
12.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	US$ 449	ebay.com
13.		Canon T100	..	o	3/5	..	3.5/5	3.5/5	Feb 2018	US$ 399	amazon.com
14.		Canon XS	..	82/100	..	+ +	3.5/5	4.5/5	Jun 2008	US$ 449	ebay.com
15.		Panasonic FZ80	..	+ +	..	..	4.5/5	4.5/5	Jan 2017	US$ 399	ebay.com
16.		Panasonic ZS70	..	+ +	..	..	4/5	4/5	Apr 2017	US$ 449	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
