Canon SX620 vs Panasonic LX5

The Canon PowerShot SX620 HS and the Panasonic Lumix DMC-LX5 are two digital cameras that were announced, respectively, in May 2016 and July 2010. Both the SX620 and the LX5 are fixed lens compact cameras that are based on a 1/2.3-inch (SX620) and a 1/1.7-inch (LX5) sensor. The Canon has a resolution of 20.2 megapixels, whereas the Panasonic provides 10 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX620		Panasonic LX5
Fixed lens compact camera		Fixed lens compact camera
25-625mm f/3.2-6.6		24-90mm f/2.0-3.3
20.2 MP – 1/2.3" sensor		10 MP – 1/1.7" sensor
1080/30p Video		720/60p Video
ISO 80-3,200		ISO 80-3,200 (80 - 12,800)
No viewfinder, LCD framing		Viewfinder optional
3.0" LCD – 922k dots		3.0" LCD – 460k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
2.5 shutter flaps per second		2.5 shutter flaps per second
295 shots per battery charge		400 shots per battery charge
97 x 57 x 28 mm, 182 g		110 x 65 x 43 mm, 271 g

Check SX620 offers at
ebay.com
Check LX5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX620 HS and the Panasonic Lumix DMC-LX5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

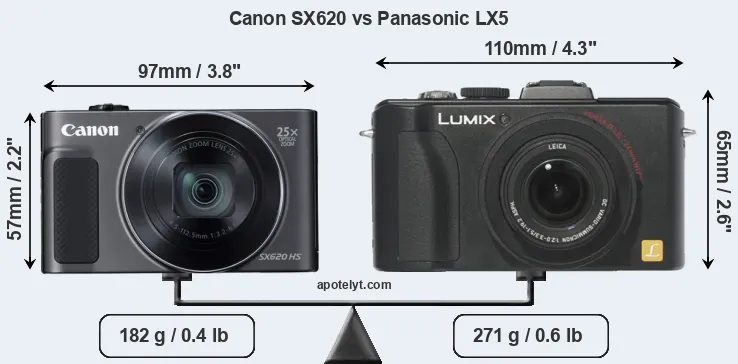

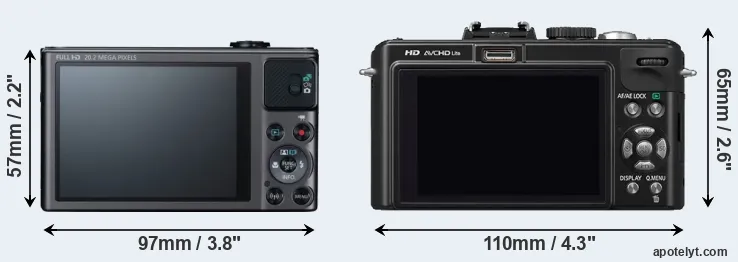

Body comparison

The physical size and weight of the Canon SX620 and the Panasonic LX5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The SX620 can be obtained in three different colors (black, silver, red), while the LX5 is available in two color-versions (black, white).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic LX5 is notably larger (29 percent) than the Canon SX620. Moreover, the LX5 is substantially heavier (49 percent) than the SX620. In this context, it is worth noting that neither the SX620 nor the LX5 are weather-sealed.

Concerning battery life, the SX620 gets 295 shots out of its Canon NB-13L battery, while the LX5 can take 400 images on a single charge of its Panasonic DMW-BCJ13 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX620	97 mm	57 mm	28 mm	182 g	295	n	May 2016	US$ 279	ebay.com
2.		Panasonic LX5	110 mm	65 mm	43 mm	271 g	400	n	Jul 2010	US$ 499	ebay.com
3.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	US$ 799	ebay.com
4.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	US$ 699	ebay.com
5.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	US$ 529	ebay.com
6.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	US$ 529	ebay.com
7.		Canon SX410	104 mm	69 mm	85 mm	325 g	185	n	Feb 2015	US$ 279	ebay.com
8.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	US$ 299	ebay.com
9.		Canon SX430	104 mm	69 mm	85 mm	323 g	195	n	Jan 2017	US$ 299	ebay.com
10.		Canon SX540	120 mm	82 mm	92 mm	442 g	205	n	Jan 2016	US$ 399	ebay.com
11.		Canon SX610	105 mm	61 mm	27 mm	191 g	270	n	Jan 2015	US$ 249	ebay.com
12.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	US$ 399	ebay.com
13.		Fujifilm X10	117 mm	70 mm	57 mm	350 g	270	n	Sep 2011	US$ 599	ebay.com
14.		Panasonic FZ150	124 mm	82 mm	92 mm	528 g	410	n	Aug 2011	US$ 499	ebay.com
15.		Panasonic FZ200	125 mm	87 mm	110 mm	588 g	540	n	Jul 2012	US$ 599	ebay.com
16.		Panasonic GF3	108 mm	67 mm	32 mm	264 g	300	n	Jun 2011	US$ 549	ebay.com
17.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX620 was launched at a markedly lower price (by 44 percent) than the LX5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

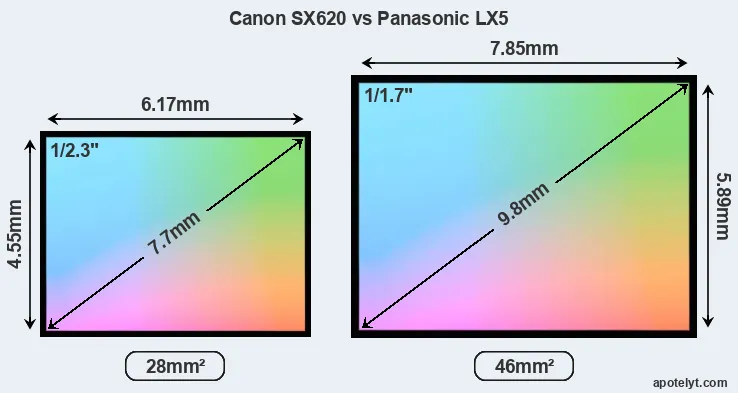

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SX620 features a 1/2.3-inch sensor and the Panasonic LX5 a 1/1.7-inch sensor. The sensor area in the LX5 is 64 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 4.4. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3. The LX5 has the particularity of featuring a switch that allows to toggle between multiple aspect ratios, while maintaining the same field of view and full image resolution.

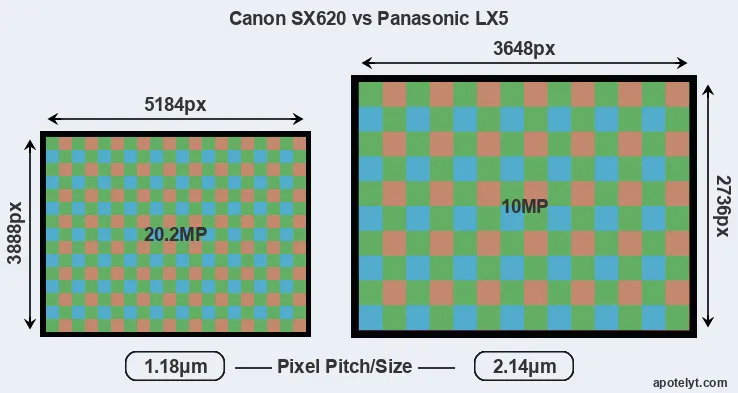

Despite having a smaller sensor, the Canon SX620 offers a higher resolution of 20.2 megapixels, compared with 10 MP of the Panasonic LX5. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 2.14μm for the LX5). However, it should be noted that the SX620 is much more recent (by 5 years and 9 months) than the LX5, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the SX620 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon SX620 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX620 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Panasonic LX5 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.

The Canon PowerShot SX620 HS has a native sensitivity range from ISO 80 to ISO 3200. The corresponding ISO settings for the Panasonic Lumix DMC-LX5 are ISO 80 to ISO 3200, with the possibility to increase the ISO range to 80-12800.

In terms of underlying technology, the SX620 is build around a BSI-CMOS sensor, while the LX5 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX620	1/2.3	20.2	5184	3888	1080/30p	20.4	11.8	838	49
2.		Panasonic LX5	1/1.7	10.0	3648	2736	720/60p	19.6	10.8	132	41
3.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
4.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
5.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
6.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
7.		Canon SX410	1/2.3	19.9	5152	3864	720/30p	20.2	11.6	720	47
8.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
9.		Canon SX430	1/2.3	19.9	5152	3864	720/25p	20.5	11.9	900	49
10.		Canon SX540	1/2.3	20.2	5184	3888	1080/60p	20.3	11.7	806	48
11.		Canon SX610	1/2.3	20.2	5184	3888	1080/30p	20.2	11.6	712	47
12.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
13.		Fujifilm X10	2/3	12.0	4000	3000	1080/30p	20.5	11.3	245	50
14.		Panasonic FZ150	1/2.3	12.0	4000	3000	1080/60p	19.4	10.9	132	40
15.		Panasonic FZ200	1/2.3	12.0	4000	3000	1080/60p	19.1	10.8	114	37
16.		Panasonic GF3	Four Thirds	12.0	4000	3000	1080/60i	20.6	10.1	459	50
17.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the SX620 provides a higher video resolution than the LX5. It can shoot video footage at 1080/30p, while the Panasonic is limited to 720/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The SX620 and the LX5 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the LX5 can be equipped with an optional viewfinder – the DMW-LVF1. The adjacent table lists some of the other core features of the Canon SX620 and Panasonic LX5 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX620	none	n	3.0 / 922	fixed	n	1/2000s	2.5/s	Y	Y
2.		Panasonic LX5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
3.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
4.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
5.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
6.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
7.		Canon SX410	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
8.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
9.		Canon SX430	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
10.		Canon SX540	none	n	3.0 / 461	fixed	n	1/2000s	5.9/s	Y	Y
11.		Canon SX610	none	n	3.0 / 922	fixed	n	1/2000s	2.5/s	Y	Y
12.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
13.		Fujifilm X10	optical	n	2.8 / 460	fixed	n	1/4000s	10.0/s	Y	Y
14.		Panasonic FZ150	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
15.		Panasonic FZ200	1312	n	3.0 / 460	swivel	n	1/4000s	12.0/s	Y	Y
16.		Panasonic GF3	none	n	3.0 / 460	fixed	Y	1/4000s	3.2/s	Y	n
17.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Both the SX620 and the LX5 have zoom lenses built in. The SX620 has a 25-625mm f/3.2-6.6 optic and the LX5 offers a 24-90mm f/2.0-3.3 (focal lengths in full frame equivalent terms). Hence, the Panasonic provides a wider angle of view at the short end than the Canon, but less tele-photo reach at the long end. The LX5 offers the faster maximum aperture.

Concerning the storage of imaging data, both the SX620 and the LX5 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX620 HS and Panasonic Lumix DMC-LX5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX620	-	mono / mono	-	-	micro	2.0	Y	Y	-
2.		Panasonic LX5	Y	mono / mono	-	-	mini	2.0	-	-	-
3.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
4.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
5.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
7.		Canon SX410	-	stereo / mono	-	-	-	2.0	-	-	-
8.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
9.		Canon SX430	-	mono / mono	-	-	-	2.0	Y	Y	-
10.		Canon SX540	-	stereo / mono	-	-	mini	2.0	Y	Y	-
11.		Canon SX610	-	- / -	-	-	micro	2.0	Y	Y	-
12.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
13.		Fujifilm X10	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Panasonic FZ150	Y	stereo / -	-	-	mini	2.0	-	-	-
15.		Panasonic FZ200	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Panasonic GF3	-	stereo / mono	-	-	mini	2.0	-	-	-
17.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the SX620 offers wifi support, while the LX5 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the SX620 and the LX5 have been discontinued, but can regularly be found used on ebay. The LX5 was replaced by the Panasonic LX7, while the SX620 does not have a direct successor. Further information on the features and operation of the SX620 and LX5 can be found, respectively, in the Canon SX620 Manual (free pdf) or the online Panasonic LX5 Manual.

Review summary

So what conclusions can be drawn? Is the Canon SX620 better than the Panasonic LX5 or vice versa? The listing below highlights the relative strengths of the two models.

Advantages of the Canon PowerShot SX620 HS:

• More detail: Offers more megapixels (20.2 vs 10MP) with a 42% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better video: Provides higher definition movie capture (1080/30p vs 720/60p).
• More detailed LCD: Has a higher resolution rear screen (922k vs 460k dots).
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• More compact: Is smaller (97x57mm vs 110x65mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 89g or 33 percent) and hence easier to carry around.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced into a lower priced category (44 percent cheaper at launch).
• More modern: Reflects 5 years and 9 months of technical progress since the LX5 launch.

Arguments in favor of the Panasonic Lumix DMC-LX5:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Better light gathering: Has a lens with a wider maximum aperture (f/2.0 vs f/3.2).
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• Longer lasting: Gets more shots (400 versus 295) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been around for much longer (launched in July 2010).

If the number of relative strengths (bullet points above) is taken as a guide, the SX620 emerges as the winner of the contest (11 : 9 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX620 and the Panasonic LX5 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the SX620 and the LX5 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX620	..	..	..	..	..	4/5	May 2016	US$ 279	ebay.com
2.		Panasonic LX5	4/5	+	..	73/100	4.5/5	4.5/5	Jul 2010	US$ 499	ebay.com
3.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	US$ 799	ebay.com
4.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	US$ 699	ebay.com
5.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	US$ 529	ebay.com
6.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	US$ 529	ebay.com
7.		Canon SX410	..	o	..	..	..	..	Feb 2015	US$ 279	ebay.com
8.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	US$ 299	ebay.com
9.		Canon SX430	..	..	..	..	3.5/5	3.5/5	Jan 2017	US$ 299	ebay.com
10.		Canon SX540	..	..	..	..	..	..	Jan 2016	US$ 399	ebay.com
11.		Canon SX610	..	..	..	..	4/5	4/5	Jan 2015	US$ 249	ebay.com
12.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	US$ 399	ebay.com
13.		Fujifilm X10	..	..	..	76/100	4/5	4.5/5	Sep 2011	US$ 599	ebay.com
14.		Panasonic FZ150	3/5	+ +	..	76/100	4/5	4.5/5	Aug 2011	US$ 499	ebay.com
15.		Panasonic FZ200	3/5	+ +	..	80/100	4.5/5	4.5/5	Jul 2012	US$ 599	ebay.com
16.		Panasonic GF3	3/5	82/100	..	71/100	4.5/5	4/5	Jun 2011	US$ 549	ebay.com
17.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check SX620 offers at
ebay.com
Check LX5 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check SX620 offers at
ebay.com
Check LX5 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
