Canon SX740 vs Panasonic GM1

The Canon PowerShot SX740 HS and the Panasonic Lumix DMC-GM1 are two digital cameras that were officially introduced, respectively, in July 2018 and October 2013. The SX740 is a fixed lens compact, while the GM1 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (SX740) and a Four Thirds (GM1) sensor. The Canon has a resolution of 20.2 megapixels, whereas the Panasonic provides 15.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX740		Panasonic GM1
Fixed lens compact camera		Mirrorless system camera
24-960mm f/3.3-6.9		Micro Four Thirds lenses
20.2 MP – 1/2.3" sensor		15.8 MP – Four Thirds sensor
4K/30p Video		1080/60i Video
ISO 100-3,200		ISO 200-25,600
No viewfinder, LCD framing		No viewfinder, LCD framing
3.0" LCD – 922k dots		3.0" LCD – 1036k dots
Tilting screen (no touchscreen)		Fixed touchscreen
10 shutter flaps per second		5 shutter flaps per second
265 shots per battery charge		230 shots per battery charge
110 x 64 x 40 mm, 299 g		99 x 55 x 30 mm, 204 g

Check SX740 price at
amazon.com
Check GM1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX740 HS and the Panasonic Lumix DMC-GM1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Canon SX740 and the Panasonic GM1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The SX740 can be obtained in two different colors (black, silver), while the GM1 is available in three color-versions (black, silver, red).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GM1 is notably smaller (23 percent) than the Canon SX740. In this context, it is worth noting that neither the SX740 nor the GM1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX740 has a lens built in, whereas the GM1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the GM1 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the SX740 gets 265 shots out of its Canon NB-13L battery, while the GM1 can take 230 images on a single charge of its Panasonic DMW-BLH7 power pack. The power pack in the SX740 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX740	110 mm	64 mm	40 mm	299 g	265	n	Jul 2018	US$ 399	amazon.com
2.		Panasonic GM1	99 mm	55 mm	30 mm	204 g	230	n	Oct 2013	US$ 749	ebay.com
3.		Canon G5 X Mark II	111 mm	61 mm	46 mm	340 g	230	n	Jul 2019	US$ 899	ebay.com
4.		Canon G7 X Mark III	105 mm	61 mm	41 mm	304 g	235	n	Jul 2019	US$ 749	amazon.com
5.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	US$ 529	ebay.com
6.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	US$ 499	ebay.com
7.		Canon SX430	104 mm	69 mm	85 mm	323 g	195	n	Jan 2017	US$ 299	ebay.com
8.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	US$ 349	ebay.com
9.		Canon SX720	110 mm	64 mm	36 mm	270 g	250	n	Feb 2016	US$ 379	ebay.com
10.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	US$ 399	ebay.com
11.		Panasonic G5	120 mm	83 mm	71 mm	396 g	320	n	Jul 2012	US$ 599	ebay.com
12.		Panasonic G6	122 mm	85 mm	71 mm	390 g	340	n	Apr 2013	US$ 599	ebay.com
13.		Panasonic GH2	124 mm	90 mm	76 mm	442 g	330	n	Sep 2010	US$ 899	ebay.com
14.		Panasonic GM5	99 mm	60 mm	36 mm	211 g	220	n	Sep 2014	US$ 749	ebay.com
15.		Panasonic GX1	116 mm	68 mm	39 mm	318 g	320	n	Nov 2011	US$ 699	ebay.com
16.		Panasonic TZ90	112 mm	67 mm	41 mm	322 g	380	n	Apr 2017	US$ 449	ebay.com
17.		Panasonic TZ95	112 mm	69 mm	42 mm	327 g	380	n	Feb 2019	US$ 449	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX740 was launched at a lower price than the GM1, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

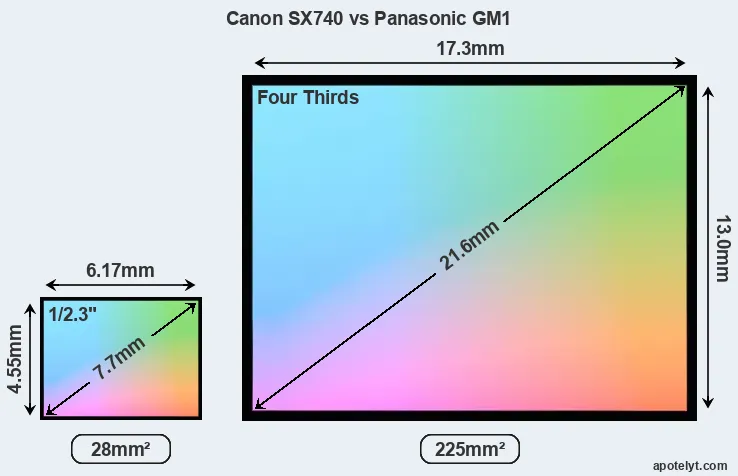

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SX740 features a 1/2.3-inch sensor and the Panasonic GM1 a Four Thirds sensor. The sensor area in the GM1 is 704 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Despite having a smaller sensor, the Canon SX740 offers a higher resolution of 20.2 megapixels, compared with 15.8 MP of the Panasonic GM1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 3.77μm for the GM1). However, it should be noted that the SX740 is much more recent (by 4 years and 9 months) than the GM1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the SX740 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon SX740 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX740 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Panasonic GM1 are 23 x 17.2 inches or 58.3 x 43.8 cm for good quality, 18.4 x 13.8 inches or 46.7 x 35 cm for very good quality, and 15.3 x 11.5 inches or 38.9 x 29.2 cm for excellent quality prints.

The Canon PowerShot SX740 HS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Panasonic Lumix DMC-GM1 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 125-25600.

In terms of underlying technology, the SX740 is build around a BSI-CMOS sensor, while the GM1 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX740	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1050	51
2.		Panasonic GM1	Four Thirds	15.8	4592	3448	1080/60i	22.3	11.7	660	66
3.		Canon G5 X Mark II	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	583	65
4.		Canon G7 X Mark III	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	583	65
5.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
6.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
7.		Canon SX430	1/2.3	19.9	5152	3864	720/25p	20.5	11.9	900	49
8.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
9.		Canon SX720	1/2.3	20.2	5184	3888	1080/60p	20.3	11.8	817	48
10.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
11.		Panasonic G5	Four Thirds	15.9	4608	3456	1080/60p	21.4	11.6	618	61
12.		Panasonic G6	Four Thirds	15.9	4608	3456	1080/60p	21.3	11.5	639	61
13.		Panasonic GH2	Four Thirds	15.9	4608	3456	1080/60i	21.2	11.3	655	60
14.		Panasonic GM5	Four Thirds	15.8	4592	3448	1080/60p	22.1	11.7	721	66
15.		Panasonic GX1	Four Thirds	15.8	4592	3448	1080/60p	20.8	10.6	703	55
16.		Panasonic TZ90	1/2.3	20.2	5184	3888	4K/30p	19.1	10.6	106	36
17.		Panasonic TZ95	1/2.3	20.2	5184	3888	4K/30p	20.7	12.2	1103	52
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the SX740 provides a higher video resolution than the GM1. It can shoot video footage at 4K/30p, while the Panasonic is limited to 1080/60i.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The SX740 and the GM1 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The adjacent table lists some of the other core features of the Canon SX740 and Panasonic GM1 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX740	none	n	3.0 / 922	tilting	n	1/3200s	10.0/s	Y	Y
2.		Panasonic GM1	none	n	3.0 / 1036	fixed	Y	1/500s	5.0/s	Y	n
3.		Canon G5 X Mark II	2360	n	3.0 / 1040	tilting	Y	1/2000s	30/s	Y	Y
4.		Canon G7 X Mark III	none	n	3.0 / 1040	tilting	Y	1/2000s	30/s	Y	Y
5.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
6.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
7.		Canon SX430	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
8.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
9.		Canon SX720	none	n	3.0 / 922	fixed	n	1/3200s	5.9/s	Y	Y
10.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
11.		Panasonic G5	1440	n	3.0 / 920	swivel	Y	1/4000s	6.0/s	Y	n
12.		Panasonic G6	1440	n	3.0 / 1036	swivel	Y	1/4000s	7.0/s	Y	n
13.		Panasonic GH2	1534	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
14.		Panasonic GM5	1166	n	3.0 / 921	fixed	Y	1/500s	5.8/s	n	n
15.		Panasonic GX1	optional	n	3.0 / 460	fixed	Y	1/4000s	4.2/s	Y	n
16.		Panasonic TZ90	1166	n	3.0 / 1040	tilting	Y	1/2000s	10.0/s	Y	Y
17.		Panasonic TZ95	2330	n	3.0 / 1040	tilting	Y	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The GM1 has a touchscreen, while the SX740 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GM1 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon SX740 and the Panasonic GM1 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the SX740 and the GM1 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX740 HS and Panasonic Lumix DMC-GM1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX740	-	stereo / mono	-	-	micro	2.0	Y	-	Y
2.		Panasonic GM1	-	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon G5 X Mark II	-	stereo / mono	-	-	micro	3.1	Y	-	Y
4.		Canon G7 X Mark III	-	stereo / mono	Y	-	micro	3.1	Y	-	Y
5.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
6.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
7.		Canon SX430	-	mono / mono	-	-	-	2.0	Y	Y	-
8.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
9.		Canon SX720	-	stereo / mono	-	-	micro	2.0	Y	Y	-
10.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
11.		Panasonic G5	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Panasonic G6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
13.		Panasonic GH2	Y	stereo / mono	Y	-	mini	2.0	-	-	-
14.		Panasonic GM5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Panasonic GX1	Y	stereo / mono	-	-	mini	2.0	-	-	-
16.		Panasonic TZ90	-	stereo / mono	-	-	micro	2.0	Y	-	-
17.		Panasonic TZ95	-	stereo / mono	-	-	micro	2.0	Y	-	Y

The SX740 is a recent model that features in the current product line-up of Canon. In contrast, the GM1 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the GM1 was succeeded by the Panasonic GM5. Further information on the features and operation of the SX740 and GM1 can be found, respectively, in the Canon SX740 Manual (free pdf) or the online Panasonic GM1 Manual.

Review summary

So what is the bottom line? Is the Canon SX740 better than the Panasonic GM1 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Canon PowerShot SX740 HS:

• More detail: Offers more megapixels (20.2 vs 15.8MP) with a 13% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/60i).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/3200s vs 1/500s) to freeze action.
• Faster burst: Shoots at higher frequency (10 vs 5 flaps/sec) to capture the decisive moment.
• Ready to shoot: Has a lens built-in, whereas the GM1 requires a separate lens.
• Longer lasting: Can take more shots (265 versus 230) on a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 4 years and 9 months of technical progress since the GM1 launch.

Arguments in favor of the Panasonic Lumix DMC-GM1:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• More detailed LCD: Has a higher resolution rear screen (1036k vs 922k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• More compact: Is smaller (99x55mm vs 110x64mm) and will fit more readily into a bag.
• More heavily discounted: Has been around for much longer (launched in October 2013).

If the count of individual advantages (bullet points above) is taken as a guide, the SX740 emerges as the winner of the contest (14 : 11 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX740 and the Panasonic GM1 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the SX740 and the GM1 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX740	..	+	3.5/5	..	4/5	4/5	Jul 2018	US$ 399	amazon.com
2.		Panasonic GM1	3/5	+	..	78/100	5/5	4.5/5	Oct 2013	US$ 749	ebay.com
3.		Canon G5 X Mark II	4/5	+	4/5	82/100	..	4/5	Jul 2019	US$ 899	ebay.com
4.		Canon G7 X Mark III	..	+ +	4/5	81/100	4/5	..	Jul 2019	US$ 749	amazon.com
5.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	US$ 529	ebay.com
6.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	US$ 499	ebay.com
7.		Canon SX430	..	..	..	..	3.5/5	3.5/5	Jan 2017	US$ 299	ebay.com
8.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	US$ 349	ebay.com
9.		Canon SX720	..	+	..	..	4/5	4.5/5	Feb 2016	US$ 379	ebay.com
10.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	US$ 399	ebay.com
11.		Panasonic G5	3/5	+ +	..	..	4.5/5	4.5/5	Jul 2012	US$ 599	ebay.com
12.		Panasonic G6	4/5	+ +	..	..	5/5	4.5/5	Apr 2013	US$ 599	ebay.com
13.		Panasonic GH2	5/5	+ +	..	79/100	4.5/5	5/5	Sep 2010	US$ 899	ebay.com
14.		Panasonic GM5	3.5/5	+	..	77/100	5/5	4.5/5	Sep 2014	US$ 749	ebay.com
15.		Panasonic GX1	3/5	+	..	77/100	4.5/5	4.5/5	Nov 2011	US$ 699	ebay.com
16.		Panasonic TZ90	..	+ +	4/5	..	4/5	4/5	Apr 2017	US$ 449	ebay.com
17.		Panasonic TZ95	..	+ +	..	..	4.5/5	..	Feb 2019	US$ 449	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
