Canon XC10 vs Olympus E-M5 II
The Canon XC10 and the Olympus OM-D E-M5 Mark II are two enthusiast cameras that were revealed to the public, respectively, in April 2015 and February 2015. The XC10 is a fixed lens compact, while the E-M5 II is a mirrorless interchangeable lens camera. The cameras are based on an one-inch (XC10) and a Four Thirds (E-M5 II) sensor. The Canon has a resolution of 12 megapixels, whereas the Olympus provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Check XC10 offers at
ebay.com

Check E-M5 II offers at
ebay.com
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon XC10 and the Olympus OM-D E-M5 Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison

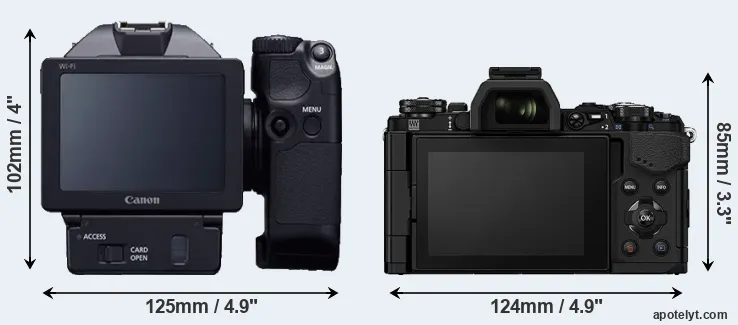

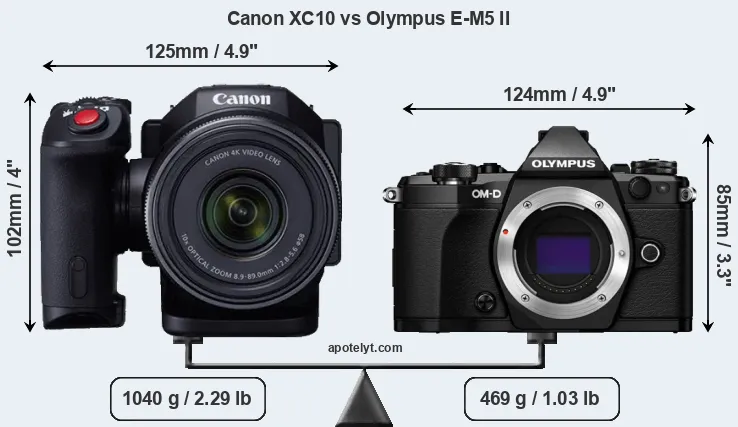

The side-by-side display below illustrates the physical size and weight of the Canon XC10 and the Olympus E-M5 II. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
The E-M5 II can be obtained in two different colors (black, silver), while the XC10 is only available in black.



If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M5 II is notably smaller (17 percent) than the Canon XC10. It is noteworthy in this context that the E-M5 II is splash and dust-proof, while the XC10 does not feature any corresponding weather-sealing.

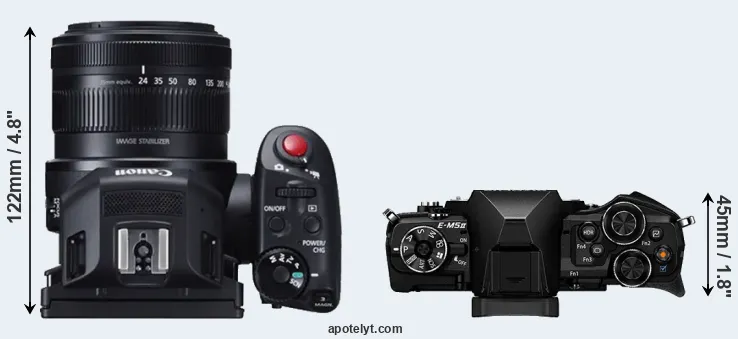

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the XC10 has a lens built in, whereas the E-M5 II is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-M5 II and their specifications in the Micro Four Thirds Lens Catalog.
Concerning battery life, the XC10 gets 370 shots out of its Canon LP-E6N battery, while the E-M5 II can take 310 images on a single charge of its Olympus BLN-1 power pack. The power pack in the XC10 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

| Camera Model |
Camera Width |
Camera Height |
Camera Depth |
Camera Weight |
Battery Life |
Weather Sealing |
Camera Launch |
Launch Price |
Street Price |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1. | Canon XC10 | 125 mm | 102 mm | 122 mm | 1040 g | 370 | n | Apr 2015 | US$ 2 499 | ebay.com | |
| 2. | Olympus E-M5 II | 124 mm | 85 mm | 45 mm | 469 g | 310 | Y | Feb 2015 | US$ 1 099 | ebay.com | |
| 3. | Canon G1 X Mark II | 116 mm | 74 mm | 66 mm | 553 g | 240 | n | Feb 2014 | US$ 799 | ebay.com | |
| 4. | Canon G5 X | 112 mm | 76 mm | 44 mm | 353 g | 210 | n | Oct 2015 | US$ 799 | ebay.com | |
| 5. | Canon G7 X | 103 mm | 60 mm | 40 mm | 304 g | 210 | n | Sep 2014 | US$ 699 | ebay.com | |
| 6. | Canon G7 X Mark II | 106 mm | 61 mm | 42 mm | 319 g | 265 | n | Feb 2016 | US$ 699 | ebay.com | |
| 7. | Canon G9 X | 98 mm | 58 mm | 31 mm | 209 g | 220 | n | Oct 2015 | US$ 529 | ebay.com | |
| 8. | Canon SX60 | 128 mm | 93 mm | 114 mm | 650 g | 340 | n | Sep 2014 | US$ 549 | ebay.com | |
| 9. | Fujifilm X30 | 119 mm | 72 mm | 60 mm | 423 g | 470 | n | Aug 2014 | US$ 599 | ebay.com | |
| 10. | Nikon P900 | 140 mm | 103 mm | 137 mm | 899 g | 360 | n | Mar 2015 | US$ 599 | ebay.com | |
| 11. | Olympus E-M1 | 130 mm | 94 mm | 63 mm | 497 g | 350 | Y | Sep 2013 | US$ 1 399 | ebay.com | |
| 12. | Olympus E-M5 | 122 mm | 89 mm | 43 mm | 425 g | 360 | Y | Feb 2012 | US$ 1 299 | ebay.com | |
| 13. | Olympus E-M5 III | 125 mm | 85 mm | 50 mm | 414 g | 310 | Y | Oct 2019 | US$ 1 199 | ebay.com | |
| 14. | Olympus E-M10 | 119 mm | 82 mm | 46 mm | 396 g | 320 | n | Jan 2014 | US$ 699 | ebay.com | |
| 15. | Olympus E-M10 II | 120 mm | 83 mm | 47 mm | 390 g | 320 | n | Aug 2015 | US$ 649 | ebay.com | |
| 16. | Panasonic FZ2000 | 138 mm | 102 mm | 135 mm | 915 g | 350 | n | Sep 2016 | US$ 1 199 | amazon.com | |
| 17. | Panasonic LX100 | 115 mm | 66 mm | 55 mm | 393 g | 300 | n | Sep 2014 | US$ 899 | ebay.com | |
| Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders. | |||||||||||
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
Sensor comparison
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

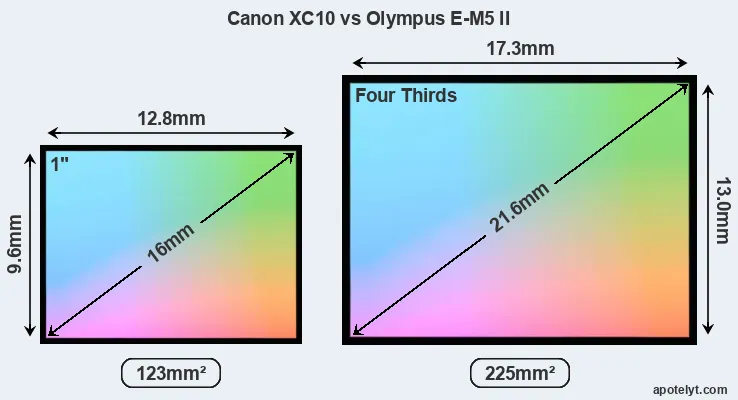

Of the two cameras under consideration, the Canon XC10 features an one-inch sensor and the Olympus E-M5 II a Four Thirds sensor. The sensor area in the E-M5 II is 83 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.75 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

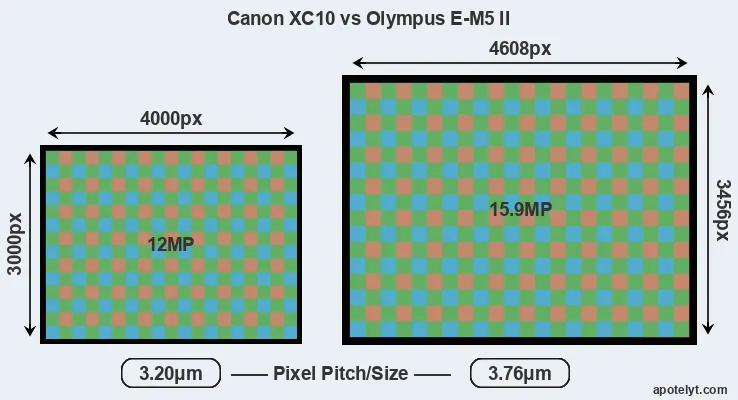

With 15.9MP, the E-M5 II offers a higher resolution than the XC10 (12MP), but the E-M5 II nevertheless has larger individual pixels (pixel pitch of 3.76μm versus 3.20μm for the XC10) due to its larger sensor. It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation.
The resolution advantage of the Olympus E-M5 II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-M5 II for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Canon XC10 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.
Unlike the XC10, the E-M5 II has the capacity to capture high quality composite images (40MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Canon XC10 has a native sensitivity range from ISO 160 to ISO 20000. The corresponding ISO settings for the Olympus OM-D E-M5 Mark II are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

| Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1. | Canon XC10 | 1-inch | 12.0 | 4000 | 3000 | 4K/30p | 21.7 | 11.8 | 197 | 61 | |
| 2. | Olympus E-M5 II | Four Thirds | 15.9 | 4608 | 3456 | 1080/60p | 23.0 | 12.5 | 842 | 73 | |
| 3. | Canon G1 X Mark II | 1.5-inch | 13.0 | 4160 | 3120 | 1080/30p | 21.5 | 10.8 | 581 | 58 | |
| 4. | Canon G5 X | 1-inch | 20.0 | 5472 | 3648 | 1080/60p | 21.4 | 12.3 | 471 | 62 | |
| 5. | Canon G7 X | 1-inch | 20.0 | 5472 | 3648 | 1080/60p | 23.0 | 12.7 | 556 | 71 | |
| 6. | Canon G7 X Mark II | 1-inch | 20.0 | 5472 | 3648 | 1080/60p | 21.8 | 11.9 | 260 | 62 | |
| 7. | Canon G9 X | 1-inch | 20.0 | 5472 | 3648 | 1080/60p | 21.5 | 12.3 | 495 | 63 | |
| 8. | Canon SX60 | 1/2.3 | 14.2 | 4608 | 3072 | 1080/60p | 19.2 | 10.8 | 127 | 39 | |
| 9. | Fujifilm X30 | 2/3 | 12.0 | 4000 | 3000 | 1080/60p | 20.4 | 11.2 | -312 | 49 | |
| 10. | Nikon P900 | 1/2.3 | 15.9 | 4608 | 3456 | 1080/60p | 20.2 | 11.6 | 727 | 47 | |
| 11. | Olympus E-M1 | Four Thirds | 15.9 | 4608 | 3456 | 1080/30p | 23.0 | 12.7 | 757 | 73 | |
| 12. | Olympus E-M5 | Four Thirds | 15.9 | 4608 | 3456 | 1080/60i | 22.8 | 12.3 | 826 | 71 | |
| 13. | Olympus E-M5 III | Four Thirds | 20.2 | 5184 | 3888 | 4K/30p | 23.3 | 13.1 | 1324 | 76 | |
| 14. | Olympus E-M10 | Four Thirds | 15.9 | 4608 | 3456 | 1080/30p | 22.8 | 12.3 | 884 | 72 | |
| 15. | Olympus E-M10 II | Four Thirds | 15.9 | 4608 | 3456 | 1080/60p | 23.1 | 12.5 | 842 | 73 | |
| 16. | Panasonic FZ2000 | 1-inch | 20.0 | 5472 | 3648 | 4K/30p | 23.0 | 12.6 | 538 | 70 | |
| 17. | Panasonic LX100 | Four Thirds | 12.7 | 4112 | 3088 | 4K/30p | 22.3 | 12.5 | 553 | 67 | |
| Note: DXO values in italics represent estimates based on sensor size and age. | |||||||||||
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the XC10 provides a higher video resolution than the E-M5 II. It can shoot video footage at 4K/30p, while the Olympus is limited to 1080/60p.
Feature comparison
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the E-M5 II has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the XC10 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon XC10 and Olympus E-M5 II along with similar information for a selection of comparators.

| Camera Model |
Viewfinder (Type or 000 dots) |
Control Panel (yes/no) |
LCD Specifications (inch/000 dots) |
LCD Attach- ment |
Touch Screen (yes/no) |
Max Shutter Speed * |
Max Shutter Flaps * |
Built-in Flash (yes/no) |
Built-in Image Stab |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1. | Canon XC10 | none | n | 3.0 / 1030 | tilting | Y | 1/2000s | 3.8/s | n | Y | |
| 2. | Olympus E-M5 II | 2360 | n | 3.0 / 1037 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
| 3. | Canon G1 X Mark II | optional | n | 3.0 / 1040 | tilting | Y | 1/4000s | 5.2/s | Y | Y | |
| 4. | Canon G5 X | 2360 | n | 3.0 / 1040 | swivel | Y | 1/2000s | 5.9/s | Y | Y | |
| 5. | Canon G7 X | none | n | 3.0 / 1040 | tilting | Y | 1/2000s | 6.5/s | Y | Y | |
| 6. | Canon G7 X Mark II | none | n | 3.0 / 1040 | tilting | Y | 1/2000s | 8.0/s | Y | Y | |
| 7. | Canon G9 X | none | n | 3.0 / 1040 | fixed | Y | 1/2000s | 6.0/s | Y | Y | |
| 8. | Canon SX60 | 922 | n | 3.0 / 922 | swivel | n | 1/2000s | 6.4/s | Y | Y | |
| 9. | Fujifilm X30 | 2360 | n | 3.0 / 920 | tilting | n | 1/4000s | 12.0/s | Y | Y | |
| 10. | Nikon P900 | 921 | n | 3.0 / 921 | swivel | n | 1/4000s | 7.0/s | Y | Y | |
| 11. | Olympus E-M1 | 2360 | n | 3.0 / 1037 | tilting | Y | 1/8000s | 10.0/s | n | Y | |
| 12. | Olympus E-M5 | 1440 | n | 3.0 / 610 | tilting | Y | 1/4000s | 9.0/s | n | Y | |
| 13. | Olympus E-M5 III | 2360 | n | 3.0 / 1040 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
| 14. | Olympus E-M10 | 1440 | n | 3.0 / 1037 | tilting | Y | 1/4000s | 8.0/s | Y | Y | |
| 15. | Olympus E-M10 II | 2360 | n | 3.0 / 1040 | tilting | Y | 1/4000s | 8.0/s | Y | Y | |
| 16. | Panasonic FZ2000 | 2360 | n | 3.0 / 1040 | swivel | Y | 1/4000s | 12.0/s | Y | Y | |
| 17. | Panasonic LX100 | 2764 | n | 3.0 / 921 | fixed | n | 1/4000s | 11.0/s | n | Y | |
| Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one. | |||||||||||
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M5 II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Canon XC10 and the Olympus E-M5 II both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The XC10 writes its imaging data to CFast or SDXC cards, while the E-M5 II uses SDXC cards. The XC10 features dual card slots, which can be very useful in case a memory card fails. In contrast, the E-M5 II only has one slot. The E-M5 II supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the XC10 can use UHS-I cards (up to 104 MB/s).
Connectivity comparison
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon XC10 and Olympus OM-D E-M5 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

| Camera Model |
Hotshoe Port |
Internal Mic / Speaker |
Microphone Port |
Headphone Port |
HDMI Port |
USB Port |
WiFi Support |
NFC Support |
Bluetooth Support |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1. | Canon XC10 | Y | stereo / mono | Y | Y | mini | 2.0 | Y | Y | - | |
| 2. | Olympus E-M5 II | Y | stereo / mono | Y | - | micro | 2.0 | Y | - | - | |
| 3. | Canon G1 X Mark II | Y | stereo / mono | - | - | mini | 2.0 | Y | Y | - | |
| 4. | Canon G5 X | Y | stereo / mono | - | - | mini | 2.0 | Y | Y | - | |
| 5. | Canon G7 X | - | stereo / mono | - | - | micro | 2.0 | Y | Y | - | |
| 6. | Canon G7 X Mark II | - | stereo / mono | - | - | micro | 2.0 | Y | Y | - | |
| 7. | Canon G9 X | - | stereo / mono | - | - | micro | 2.0 | Y | Y | - | |
| 8. | Canon SX60 | Y | stereo / mono | Y | - | mini | 2.0 | Y | Y | - | |
| 9. | Fujifilm X30 | Y | stereo / mono | - | - | micro | 2.0 | Y | - | - | |
| 10. | Nikon P900 | - | stereo / mono | - | - | micro | 2.0 | Y | Y | - | |
| 11. | Olympus E-M1 | Y | stereo / mono | Y | - | micro | 2.0 | Y | - | - | |
| 12. | Olympus E-M5 | Y | stereo / mono | - | - | mini | 2.0 | - | - | - | |
| 13. | Olympus E-M5 III | Y | stereo / mono | Y | - | micro | 2.0 | Y | - | Y | |
| 14. | Olympus E-M10 | Y | stereo / mono | - | - | micro | 2.0 | Y | - | - | |
| 15. | Olympus E-M10 II | Y | stereo / mono | - | - | micro | 2.0 | Y | - | - | |
| 16. | Panasonic FZ2000 | Y | stereo / mono | Y | Y | micro | 2.0 | Y | - | - | |
| 17. | Panasonic LX100 | Y | stereo / mono | - | - | micro | 2.0 | Y | Y | - |
Studio photographers will appreciate that the Olympus E-M5 II (unlike the XC10) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the XC10 and the E-M5 II have been discontinued, but can regularly be found used on ebay. The E-M5 II was replaced by the Olympus E-M5 III, while the XC10 was followed by the Canon XC15. Further information on the features and operation of the XC10 and E-M5 II can be found, respectively, in the Canon XC10 Manual (free pdf) or the online Olympus E-M5 II Manual.
Review summary
So what is the bottom line? Is the Canon XC10 better than the Olympus E-M5 II or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Canon XC10:
- Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Ready to shoot: Has a lens built-in, whereas the E-M5 II requires a separate lens.
- Longer lasting: Can take more shots (370 versus 310) on a single battery charge.
- Easier travel charging: Can be conveniently charged via its USB port.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.

Advantages of the Olympus OM-D E-M5 Mark II:
- More detail: Has more megapixels (15.9 vs 12MP), which boosts linear resolution by 15%.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
- Faster burst: Shoots at higher frequency (10 vs 3.8 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
- More compact: Is smaller (124x85mm vs 125x102mm) and will fit more readily into a bag.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
If the count of relative strengths (bullet points above) is taken as a measure, the E-M5 II is the clear winner of the contest (17 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon XC10 and the Olympus E-M5 II place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the XC10 or the E-M5 II perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
Expert reviews
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

| Camera Model |
AP score |
CL score |
DCW score |
DPR score |
EPZ score |
PB score |
Camera Launch |
Launch Price |
Street Price |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1. | Canon XC10 | .. | .. | .. | 80/100 | .. | .. | Apr 2015 | US$ 2 499 | ebay.com | |
| 2. | Olympus E-M5 II | 5/5 | + + | 4.5/5 | 81/100 | 5/5 | 5/5 | Feb 2015 | US$ 1 099 | ebay.com | |
| 3. | Canon G1 X Mark II | 3/5 | + | .. | 77/100 | 4/5 | 4.5/5 | Feb 2014 | US$ 799 | ebay.com | |
| 4. | Canon G5 X | 5/5 | + + | .. | 78/100 | 4.5/5 | 4.5/5 | Oct 2015 | US$ 799 | ebay.com | |
| 5. | Canon G7 X | 4/5 | + + | .. | 77/100 | 4.5/5 | 4.5/5 | Sep 2014 | US$ 699 | ebay.com | |
| 6. | Canon G7 X Mark II | 4.5/5 | + + | .. | 81/100 | 4.5/5 | 4.5/5 | Feb 2016 | US$ 699 | ebay.com | |
| 7. | Canon G9 X | 3.5/5 | + + | .. | .. | 4.5/5 | 4.5/5 | Oct 2015 | US$ 529 | ebay.com | |
| 8. | Canon SX60 | 3/5 | + + | .. | 75/100 | 4/5 | 4.5/5 | Sep 2014 | US$ 549 | ebay.com | |
| 9. | Fujifilm X30 | 4/5 | .. | .. | 76/100 | 4.5/5 | 4.5/5 | Aug 2014 | US$ 599 | ebay.com | |
| 10. | Nikon P900 | .. | .. | .. | 77/100 | 4/5 | 4/5 | Mar 2015 | US$ 599 | ebay.com | |
| 11. | Olympus E-M1 | 5/5 | + + | .. | 84/100 | 4.5/5 | 4.5/5 | Sep 2013 | US$ 1 399 | ebay.com | |
| 12. | Olympus E-M5 | 4/5 | + + | .. | 80/100 | 4.5/5 | 5/5 | Feb 2012 | US$ 1 299 | ebay.com | |
| 13. | Olympus E-M5 III | 5/5 | + | 5/5 | 82/100 | 4.5/5 | 4.5/5 | Oct 2019 | US$ 1 199 | ebay.com | |
| 14. | Olympus E-M10 | 4/5 | .. | .. | 80/100 | 5/5 | 5/5 | Jan 2014 | US$ 699 | ebay.com | |
| 15. | Olympus E-M10 II | 4.5/5 | + + | .. | 80/100 | 5/5 | 5/5 | Aug 2015 | US$ 649 | ebay.com | |
| 16. | Panasonic FZ2000 | .. | + | .. | 82/100 | 4.5/5 | 5/5 | Sep 2016 | US$ 1 199 | amazon.com | |
| 17. | Panasonic LX100 | 5/5 | + + | .. | 85/100 | 5/5 | 5/5 | Sep 2014 | US$ 899 | ebay.com | |
| Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available. | |||||||||||
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check XC10 offers at
ebay.com

Check E-M5 II offers at
ebay.com
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon SX50 vs Olympus E-M5 II
- Canon SX530 vs Olympus E-M5 II
- Canon T4i vs Canon XC10
- Canon T4i vs Olympus E-M5 II
- Canon XC10 vs Nikon D3500
- Canon XC10 vs Nikon Z6 II
- Canon XC10 vs Olympus E-500
- Canon XC10 vs Olympus E-P3
- Canon XC10 vs Pentax 645D
- Leica S Typ 006 vs Olympus E-M5 II
- Nikon B500 vs Olympus E-M5 II
- Olympus E-M5 II vs Panasonic GF2
Specifications: Canon XC10 vs Olympus E-M5 II
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
| Camera Model | Canon XC10 | Olympus E-M5 II |
|---|---|---|
| Camera Type | Fixed lens compact camera | Mirrorless system camera |
| Camera Lens | 24-240mm f/2.8-5.6 | Micro Four Thirds lenses |
| Launch Date | April 2015 | February 2015 |
| Launch Price | USD 2,499 | USD 1,099 |
| Sensor Specs | Canon XC10 | Olympus E-M5 II |
| Sensor Technology | CMOS | CMOS |
| Sensor Format | 1" Sensor | Four Thirds Sensor |
| Sensor Size | 12.8 x 9.6 mm | 17.3 x 13.0 mm |
| Sensor Area | 122.88 mm2 | 224.9 mm2 |
| Sensor Diagonal | 16 mm | 21.6 mm |
| Crop Factor | 2.75x | 2.0x |
| Sensor Resolution | 12 Megapixels | 15.9 Megapixels |
| Image Resolution | 4000 x 3000 pixels | 4608 x 3456 pixels |
| Pixel Pitch | 3.20 μm | 3.76 μm |
| Pixel Density | 9.77 MP/cm2 | 7.08 MP/cm2 |
| Moiré control | Anti-Alias filter | Anti-Alias filter |
| Movie Capability | 4K/30p Video | 1080/60p Video |
| ISO Setting | 160 - 20,000 ISO | 200 - 25,600 ISO |
| ISO Boost | no Enhancement | 100 - 25,600 ISO |
| Image Processor | DIGIC DV5 | TruePic VII |
| DXO Sensor Quality (score) | .. | 73 |
| DXO Color Depth (bits) | .. | 23.0 |
| DXO Dynamic Range (EV) | .. | 12.5 |
| DXO Low Light (ISO) | .. | 842 |
| Screen Specs | Canon XC10 | Olympus E-M5 II |
| Viewfinder Type | no viewfinder | Electronic viewfinder |
| Viewfinder Field of View | 100% | |
| Viewfinder Magnification | 0.74x | |
| Viewfinder Resolution | 2360k dots | |
| LCD Framing | Live View | Live View |
| Rear LCD Size | 3.0inch | 3.0inch |
| LCD Resolution | 1030k dots | 1037k dots |
| LCD Attachment | Tilting screen | Swivel screen |
| Touch Input | Touchscreen | Touchscreen |
| Shooting Specs | Canon XC10 | Olympus E-M5 II |
| Focus System | Contrast-detect AF | Contrast-detect AF |
| Manual Focusing Aid | Focus Peaking | Focus Peaking |
| Max Shutter Speed (mechanical) | 1/2000s | 1/8000s |
| Continuous Shooting | 3.8 shutter flaps/s | 10 shutter flaps/s |
| Electronic Shutter | no E-Shutter | up to 1/16000s |
| Time-Lapse Photography | Intervalometer built-in | Intervalometer built-in |
| Image Stabilization | Lens-based stabilization | In-body stabilization |
| Fill Flash | no On-Board Flash | no On-Board Flash |
| Storage Medium | CFAST or SDXC cards | SDXC cards |
| Single or Dual Card Slots | Dual card slots | Single card slot |
| UHS card support | UHS-I | UHS-II |
| Connectivity Specs | Canon XC10 | Olympus E-M5 II |
| External Flash | Hotshoe | Hotshoe |
| Studio Flash | no PC Sync | PC Sync socket |
| USB Connector | USB 2.0 | USB 2.0 |
| HDMI Port | mini HDMI | micro HDMI |
| Microphone Port | External MIC port | External MIC port |
| Headphone Socket | Headphone port | no Headphone port |
| Wifi Support | Wifi built-in | Wifi built-in |
| Near-Field Communication | NFC built-in | no NFC |
| Body Specs | Canon XC10 | Olympus E-M5 II |
| Environmental Sealing | not weather sealed | Weathersealed body |
| Battery Type | Canon LP-E6N | Olympus BLN-1 |
| Battery Life (CIPA) | 370 shots per charge | 310 shots per charge |
| In-Camera Charging | USB charging | no USB charging |
| Body Dimensions |
125 x 102 x 122 mm (4.9 x 4.0 x 4.8 in) |
124 x 85 x 45 mm (4.9 x 3.3 x 1.8 in) |
| Camera Weight | 1040 g (36.7 oz) | 469 g (16.5 oz) |

Check XC10 offers at
ebay.com

Check E-M5 II offers at
ebay.com
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
