Epson R-D1 vs Panasonic LX5

The Epson R-D1 and the Panasonic Lumix DMC-LX5 are two digital cameras that were announced, respectively, in March 2004 and July 2010. The R-D1 is a rangefinder-focusing mirrorless camera, while the LX5 is a fixed lens compact. The cameras are based on an APS-C (R-D1) and a 1/1.7-inch (LX5) sensor. The Epson has a resolution of 6 megapixels, whereas the Panasonic provides 10 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Epson R-D1		Panasonic LX5
Rangefinder camera		Fixed lens compact camera
Leica M mount lenses		24-90mm f/2.0-3.3
6 MP – APS-C sensor		10 MP – 1/1.7" sensor
no Video		720/60p Video
ISO 200-1,600		ISO 80-3,200 (80 - 12,800)
Optical viewfinder		Viewfinder optional
2.0" LCD – 235k dots		3.0" LCD – 460k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
1 shutter flaps per second		2.5 shutter flaps per second
142 x 89 x 40 mm, 620 g		110 x 65 x 43 mm, 271 g

Check R-D1 offers at
ebay.com
Check LX5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Epson R-D1 and the Panasonic Lumix DMC-LX5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

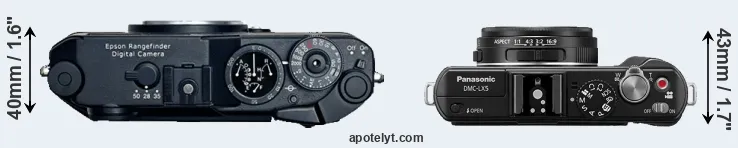

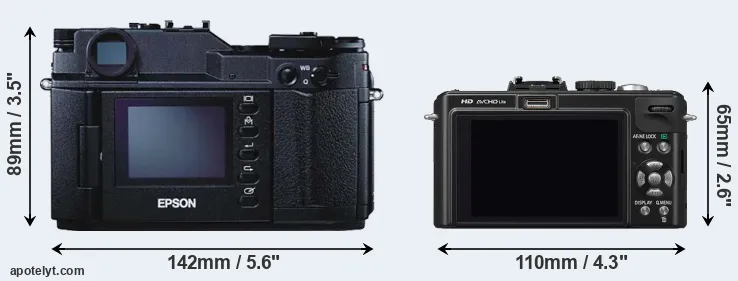

Body comparison

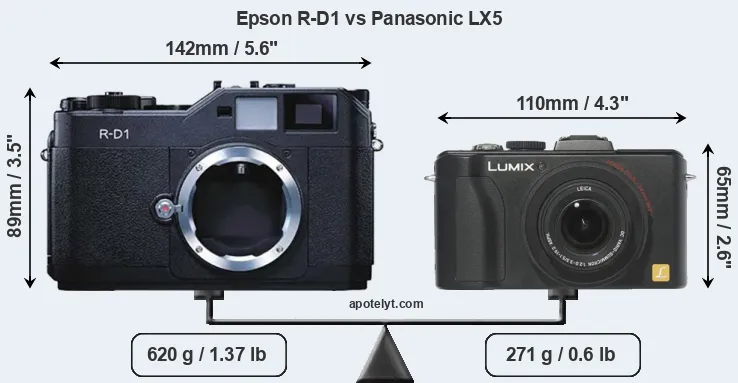

The physical size and weight of the Epson R-D1 and the Panasonic LX5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The LX5 can be obtained in two different colors (black, white), while the R-D1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic LX5 is considerably smaller (43 percent) than the Epson R-D1. In this context, it is worth noting that neither the R-D1 nor the LX5 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the LX5 has a lens built in, whereas the R-D1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the R-D1 and their specifications in the Leica M Lens Catalog.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Epson R-D1	142 mm	89 mm	40 mm	620 g	..	n	Mar 2004	US$ 2 999	ebay.com
2.		Panasonic LX5	110 mm	65 mm	43 mm	271 g	400	n	Jul 2010	US$ 499	ebay.com
3.		Canon 300D	142 mm	99 mm	72 mm	649 g	400	n	Aug 2003	US$ 899	ebay.com
4.		Canon 350D	127 mm	94 mm	64 mm	540 g	400	n	Feb 2005	US$ 899	ebay.com
5.		Fujifilm X10	117 mm	70 mm	57 mm	350 g	270	n	Sep 2011	US$ 599	ebay.com
6.		Leica M8	139 mm	80 mm	37 mm	591 g	550	n	Sep 2006	US$ 5 499	ebay.com
7.		Leica M9	139 mm	80 mm	37 mm	585 g	550	n	Sep 2009	US$ 7 999	ebay.com
8.		Leica M10	139 mm	80 mm	39 mm	660 g	210	Y	Jan 2017	US$ 6 599	ebay.com
9.		Leica X Vario	133 mm	73 mm	95 mm	680 g	450	n	Jun 2013	US$ 2 849	ebay.com
10.		Nikon D50	133 mm	102 mm	76 mm	620 g	400	n	Apr 2005	US$ 749	ebay.com
11.		Nikon D70	140 mm	111 mm	78 mm	679 g	400	n	Jan 2004	US$ 999	ebay.com
12.		Nikon D70s	140 mm	111 mm	78 mm	679 g	500	n	Apr 2005	US$ 899	ebay.com
13.		Olympus E-300	147 mm	85 mm	64 mm	624 g	750	n	Sep 2004	US$ 799	ebay.com
14.		Panasonic FZ150	124 mm	82 mm	92 mm	528 g	410	n	Aug 2011	US$ 499	ebay.com
15.		Panasonic FZ200	125 mm	87 mm	110 mm	588 g	540	n	Jul 2012	US$ 599	ebay.com
16.		Panasonic GF3	108 mm	67 mm	32 mm	264 g	300	n	Jun 2011	US$ 549	ebay.com
17.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The LX5 was launched at a lower price than the R-D1, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

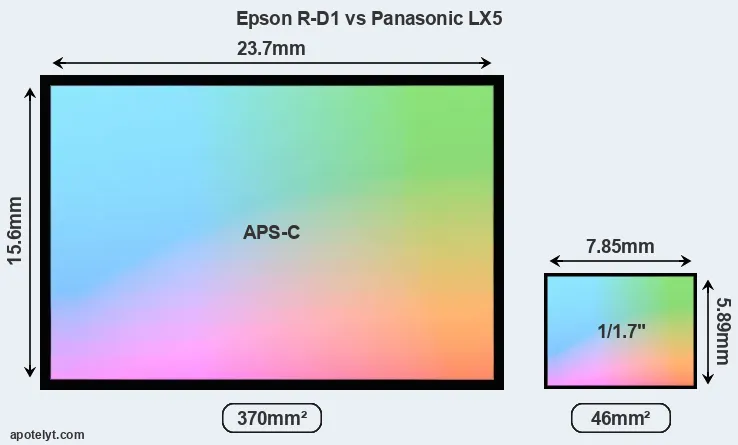

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Epson R-D1 features an APS-C sensor and the Panasonic LX5 a 1/1.7-inch sensor. The sensor area in the LX5 is 88 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 4.4. The sensor in the R-D1 has a native 3:2 aspect ratio, while the one in the LX5 offers a 4:3 aspect. The LX5 has the particularity of featuring a switch that allows to toggle between multiple aspect ratios, while maintaining the same field of view and full image resolution.

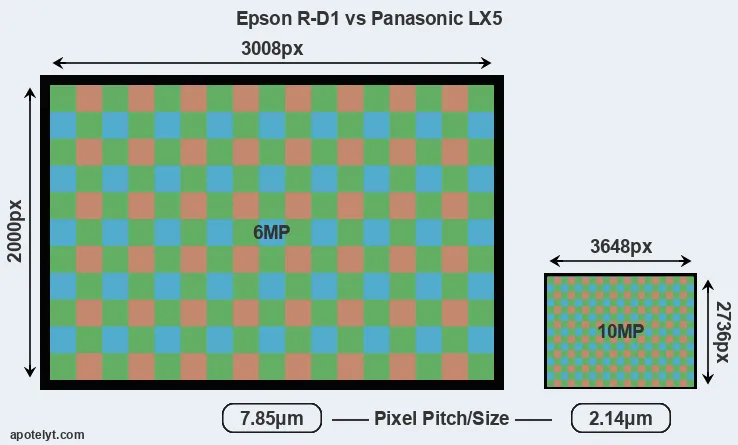

Despite having a smaller sensor, the LX5 offers a higher resolution of 10 megapixels, compared with 6 MP of the R-D1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.14μm versus 7.85μm for the R-D1). However, it should be noted that the LX5 is much more recent (by 6 years and 4 months) than the R-D1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Panasonic LX5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the LX5 for good quality output (200 dots per inch) amounts to 18.2 x 13.7 inches or 46.3 x 34.7 cm, for very good quality (250 dpi) 14.6 x 10.9 inches or 37.1 x 27.8 cm, and for excellent quality (300 dpi) 12.2 x 9.1 inches or 30.9 x 23.2 cm. The corresponding values for the Epson R-D1 are 15 x 10 inches or 38.2 x 25.4 cm for good quality, 12 x 8 inches or 30.6 x 20.3 cm for very good quality, and 10 x 6.7 inches or 25.5 x 16.9 cm for excellent quality prints.

The Epson R-D1 has a native sensitivity range from ISO 200 to ISO 1600. The corresponding ISO settings for the Panasonic Lumix DMC-LX5 are ISO 80 to ISO 3200, with the possibility to increase the ISO range to 80-12800.

Technology-wise, both cameras are equipped with CCD (Charged Coupled Device) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Epson R-D1	APS-C	6.0	3008	2000	none	21.1	10.4	564	55
2.		Panasonic LX5	1/1.7	10.0	3648	2736	720/60p	19.6	10.8	132	41
3.		Canon 300D	APS-C	6.3	3072	2048	none	21.0	10.8	544	55
4.		Canon 350D	APS-C	8.0	3456	2304	none	21.8	10.8	637	60
5.		Fujifilm X10	2/3	12.0	4000	3000	1080/30p	20.5	11.3	245	50
6.		Leica M8	APS-H	10.4	3936	2630	none	21.1	11.3	663	59
7.		Leica M9	Full Frame	18.1	5212	3472	none	22.5	11.7	884	69
8.		Leica M10	Full Frame	23.8	5952	3992	none	24.4	13.2	2133	86
9.		Leica X Vario	APS-C	16.1	4928	3272	1080/30p	23.4	12.7	1320	78
10.		Nikon D50	APS-C	6.0	3008	2000	none	20.9	10.8	560	55
11.		Nikon D70	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
12.		Nikon D70s	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
13.		Olympus E-300	Four Thirds	8.0	3264	2448	none	20.4	10.1	-40	48
14.		Panasonic FZ150	1/2.3	12.0	4000	3000	1080/60p	19.4	10.9	132	40
15.		Panasonic FZ200	1/2.3	12.0	4000	3000	1080/60p	19.1	10.8	114	37
16.		Panasonic GF3	Four Thirds	12.0	4000	3000	1080/60i	20.6	10.1	459	50
17.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The LX5 indeed provides for movie recording, while the R-D1 does not. The highest resolution format that the LX5 can use is 720/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the R-D1 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the LX5 relies on live view and the rear LCD for framing. That said, the LX5 can be equipped with an optional viewfinder – the DMW-LVF1. The table below summarizes some of the other core capabilities of the Epson R-D1 and Panasonic LX5 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Epson R-D1	optical	n	2.0 / 235	fixed	n	1/2000s	1.0/s	n	n
2.		Panasonic LX5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
3.		Canon 300D	optical	n	1.8 / 118	fixed	n	1/4000s	2.5/s	Y	n
4.		Canon 350D	optical	n	1.8 / 115	fixed	n	1/4000s	3.0/s	Y	n
5.		Fujifilm X10	optical	n	2.8 / 460	fixed	n	1/4000s	10.0/s	Y	Y
6.		Leica M8	optical	n	2.5 / 230	fixed	n	1/8000s	2.0/s	n	n
7.		Leica M9	optical	n	2.5 / 230	fixed	n	1/4000s	2.0/s	n	n
8.		Leica M10	optical	n	3.0 / 1037	fixed	n	1/4000s	5.0/s	n	n
9.		Leica X Vario	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
10.		Nikon D50	optical	n	2.0 / 130	fixed	n	1/4000s	2.5/s	Y	n
11.		Nikon D70	optical	n	1.8 / 130	fixed	n	1/8000s	3.0/s	Y	n
12.		Nikon D70s	optical	n	2.0 / 130	fixed	n	1/8000s	3.0/s	Y	n
13.		Olympus E-300	optical	n	1.8 / 134	fixed	n	1/4000s	2.5/s	Y	n
14.		Panasonic FZ150	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
15.		Panasonic FZ200	1312	n	3.0 / 460	swivel	n	1/4000s	12.0/s	Y	Y
16.		Panasonic GF3	none	n	3.0 / 460	fixed	Y	1/4000s	3.2/s	Y	n
17.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The LX5 has one, while the R-D1 does not. While the built-in flash of the LX5 is not very powerful, it can at times be useful as a fill-in light.

The R-D1 writes its imaging data to SDHC cards, while the LX5 uses SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Epson R-D1 and Panasonic Lumix DMC-LX5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Epson R-D1	Y	- / -	-	-	-	-	-	-	-
2.		Panasonic LX5	Y	mono / mono	-	-	mini	2.0	-	-	-
3.		Canon 300D	Y	- / -	-	-	-	1.1	-	-	-
4.		Canon 350D	Y	- / -	-	-	-	2.0	-	-	-
5.		Fujifilm X10	Y	stereo / mono	-	-	mini	2.0	-	-	-
6.		Leica M8	Y	- / -	-	-	-	2.0	-	-	-
7.		Leica M9	Y	- / -	-	-	-	2.0	-	-	-
8.		Leica M10	Y	- / -	-	-	-	-	Y	-	-
9.		Leica X Vario	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Nikon D50	Y	- / -	-	-	-	2.0	-	-	-
11.		Nikon D70	Y	- / -	-	-	-	1.0	-	-	-
12.		Nikon D70s	Y	- / -	-	-	-	2.0	-	-	-
13.		Olympus E-300	Y	- / -	-	-	-	2.0	-	-	-
14.		Panasonic FZ150	Y	stereo / -	-	-	mini	2.0	-	-	-
15.		Panasonic FZ200	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Panasonic GF3	-	stereo / mono	-	-	mini	2.0	-	-	-
17.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-

Studio photographers will appreciate that the Epson R-D1 (unlike the LX5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the R-D1 and the LX5 have been discontinued, but can regularly be found used on ebay. The LX5 was replaced by the Panasonic LX7, while the R-D1 does not have a direct successor. Further information on the features and operation of the R-D1 and LX5 can be found, respectively, in the Epson R-D1 Manual (free pdf) or the online Panasonic LX5 Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Epson R-D1 or the Panasonic LX5 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Epson R-D1:

• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in March 2004).

Advantages of the Panasonic Lumix DMC-LX5:

• More detail: Has more megapixels (10 vs 6MP), which boosts linear resolution by 26%.
• Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
• Broader imaging potential: Can capture not only stills but also 720/60p video.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (460k vs 235k dots).
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (2.5 vs 1 flaps/sec) to capture the decisive moment.
• Ready to shoot: Has an integrated lens, whereas the R-D1 necessitates an extra lens.
• More compact: Is smaller (110x65mm vs 142x89mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the R-D1).
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 6 years and 4 months of technical progress since the R-D1 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the LX5 is the clear winner of the contest (14 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the R-D1 or the LX5. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Epson R-D1	..	..	..	..	..	..	Mar 2004	US$ 2 999	ebay.com
2.		Panasonic LX5	4/5	+	..	73/100	4.5/5	4.5/5	Jul 2010	US$ 499	ebay.com
3.		Canon 300D	..	..	..	+ +	..	..	Aug 2003	US$ 899	ebay.com
4.		Canon 350D	..	80/100	..	+ +	o	..	Feb 2005	US$ 899	ebay.com
5.		Fujifilm X10	..	..	..	76/100	4/5	4.5/5	Sep 2011	US$ 599	ebay.com
6.		Leica M8	..	..	..	+ +	..	..	Sep 2006	US$ 5 499	ebay.com
7.		Leica M9	..	..	..	..	4.5/5	..	Sep 2009	US$ 7 999	ebay.com
8.		Leica M10	4.5/5	..	..	..	4/5	4.5/5	Jan 2017	US$ 6 599	ebay.com
9.		Leica X Vario	3/5	..	..	..	4/5	4/5	Jun 2013	US$ 2 849	ebay.com
10.		Nikon D50	..	78/100	..	+ +	4/5	4.5/5	Apr 2005	US$ 749	ebay.com
11.		Nikon D70	..	..	..	+ +	..	..	Jan 2004	US$ 999	ebay.com
12.		Nikon D70s	..	..	..	..	..	5/5	Apr 2005	US$ 899	ebay.com
13.		Olympus E-300	..	..	..	+	o	4.5/5	Sep 2004	US$ 799	ebay.com
14.		Panasonic FZ150	3/5	+ +	..	76/100	4/5	4.5/5	Aug 2011	US$ 499	ebay.com
15.		Panasonic FZ200	3/5	+ +	..	80/100	4.5/5	4.5/5	Jul 2012	US$ 599	ebay.com
16.		Panasonic GF3	3/5	82/100	..	71/100	4.5/5	4/5	Jun 2011	US$ 549	ebay.com
17.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
