Epson R-D1 vs Sony RX1R II

The Epson R-D1 and the Sony Cyber-shot DSC-RX1R II are two enthusiast cameras that were officially introduced, respectively, in March 2004 and October 2015. The R-D1 is a rangefinder-focusing mirrorless camera, while the RX1R II is a fixed lens compact. The cameras are based on an APS-C (R-D1) and a full frame (RX1R II) sensor. The Epson has a resolution of 6 megapixels, whereas the Sony provides 42.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Epson R-D1		Sony RX1R II
Rangefinder camera		Fixed lens compact camera
Leica M mount lenses		35mm f/2.0
6 MP – APS-C sensor		42.2 MP – Full Frame sensor
no Video		1080/60p Video
ISO 200-1,600		ISO 100-25,600 (50 - 102,400)
Optical viewfinder		Electronic viewfinder (2360k dots)
2.0" LCD – 235k dots		3.0" LCD – 1229k dots
Fixed screen (not touch-sensitive)		Tilting screen (no touchscreen)
1 shutter flaps per second		5 shutter flaps per second
142 x 89 x 40 mm, 620 g		113 x 65 x 72 mm, 507 g

Check R-D1 offers at
ebay.com
Check RX1R II offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Epson R-D1 and the Sony Cyber-shot DSC-RX1R II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

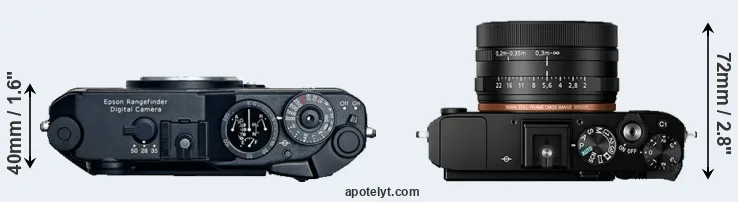

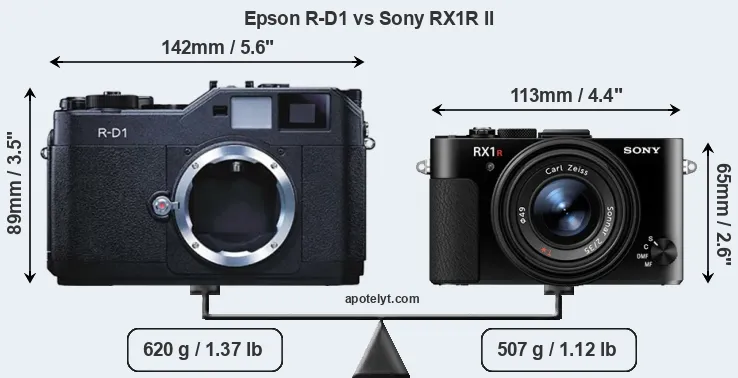

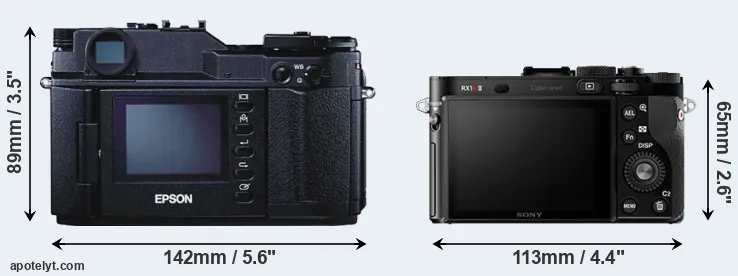

The side-by-side display below illustrates the physical size and weight of the Epson R-D1 and the Sony RX1R II. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony RX1R II is considerably smaller (42 percent) than the Epson R-D1. In this context, it is worth noting that neither the R-D1 nor the RX1R II are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the RX1R II has a lens built in, whereas the R-D1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the R-D1 and their specifications in the Leica M Lens Catalog.

The power pack in the RX1R II can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Epson R-D1	142 mm	89 mm	40 mm	620 g	..	n	Mar 2004	US$ 2 999	ebay.com
2.		Sony RX1R II	113 mm	65 mm	72 mm	507 g	220	n	Oct 2015	US$ 3 299	ebay.com
3.		Canon 5DS	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	US$ 3 699	ebay.com
4.		Canon 300D	142 mm	99 mm	72 mm	649 g	400	n	Aug 2003	US$ 899	ebay.com
5.		Canon 350D	127 mm	94 mm	64 mm	540 g	400	n	Feb 2005	US$ 899	ebay.com
6.		Leica M8	139 mm	80 mm	37 mm	591 g	550	n	Sep 2006	US$ 5 499	ebay.com
7.		Leica M9	139 mm	80 mm	37 mm	585 g	550	n	Sep 2009	US$ 7 999	ebay.com
8.		Leica M10	139 mm	80 mm	39 mm	660 g	210	Y	Jan 2017	US$ 6 599	ebay.com
9.		Leica X Vario	133 mm	73 mm	95 mm	680 g	450	n	Jun 2013	US$ 2 849	ebay.com
10.		Nikon D50	133 mm	102 mm	76 mm	620 g	400	n	Apr 2005	US$ 749	ebay.com
11.		Nikon D70	140 mm	111 mm	78 mm	679 g	400	n	Jan 2004	US$ 999	ebay.com
12.		Nikon D70s	140 mm	111 mm	78 mm	679 g	500	n	Apr 2005	US$ 899	ebay.com
13.		Olympus E-300	147 mm	85 mm	64 mm	624 g	750	n	Sep 2004	US$ 799	ebay.com
14.		Sony H300	128 mm	89 mm	92 mm	590 g	350	n	Feb 2014	US$ 219	ebay.com
15.		Sony RX1	113 mm	65 mm	70 mm	482 g	270	n	Sep 2012	US$ 2 799	ebay.com
16.		Sony RX1R	113 mm	65 mm	70 mm	482 g	270	n	Jun 2013	US$ 2 799	ebay.com
17.		Sony RX100 IV	102 mm	58 mm	41 mm	298 g	280	n	Jun 2015	US$ 999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

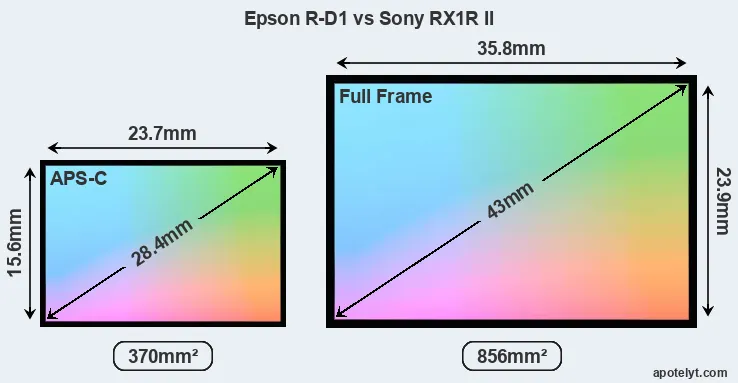

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Epson R-D1 features an APS-C sensor and the Sony RX1R II a full frame sensor. The sensor area in the RX1R II is 131 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

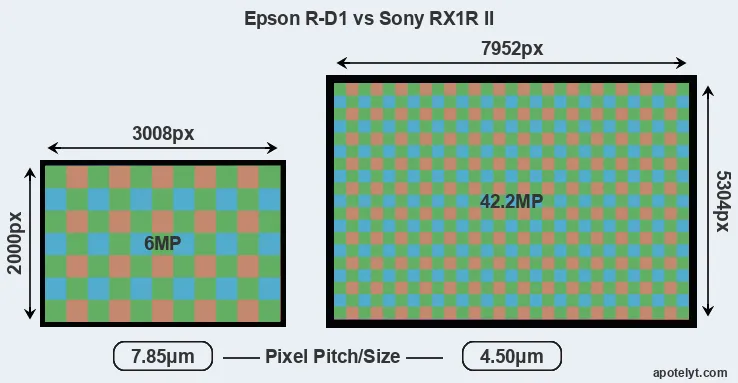

With 42.2MP, the RX1R II offers a higher resolution than the R-D1 (6MP), but the RX1R II has smaller individual pixels (pixel pitch of 4.50μm versus 7.85μm for the R-D1). Yet, the RX1R II is a much more recent model (by 11 years and 7 months) than the R-D1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the RX1R II has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Sony RX1R II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the RX1R II for good quality output (200 dots per inch) amounts to 39.8 x 26.5 inches or 101 x 67.4 cm, for very good quality (250 dpi) 31.8 x 21.2 inches or 80.8 x 53.9 cm, and for excellent quality (300 dpi) 26.5 x 17.7 inches or 67.3 x 44.9 cm. The corresponding values for the Epson R-D1 are 15 x 10 inches or 38.2 x 25.4 cm for good quality, 12 x 8 inches or 30.6 x 20.3 cm for very good quality, and 10 x 6.7 inches or 25.5 x 16.9 cm for excellent quality prints.

The Epson R-D1 has a native sensitivity range from ISO 200 to ISO 1600. The corresponding ISO settings for the Sony Cyber-shot DSC-RX1R II are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 50-102400.

In terms of underlying technology, the R-D1 is build around a CCD sensor, while the RX1R II uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Epson R-D1	APS-C	6.0	3008	2000	none	21.1	10.4	564	55
2.		Sony RX1R II	Full Frame	42.2	7952	5304	1080/60p	25.8	13.9	3204	97
3.		Canon 5DS	Full Frame	50.3	8688	5792	1080/30p	24.7	12.4	2381	87
4.		Canon 300D	APS-C	6.3	3072	2048	none	21.0	10.8	544	55
5.		Canon 350D	APS-C	8.0	3456	2304	none	21.8	10.8	637	60
6.		Leica M8	APS-H	10.4	3936	2630	none	21.1	11.3	663	59
7.		Leica M9	Full Frame	18.1	5212	3472	none	22.5	11.7	884	69
8.		Leica M10	Full Frame	23.8	5952	3992	none	24.4	13.2	2133	86
9.		Leica X Vario	APS-C	16.1	4928	3272	1080/30p	23.4	12.7	1320	78
10.		Nikon D50	APS-C	6.0	3008	2000	none	20.9	10.8	560	55
11.		Nikon D70	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
12.		Nikon D70s	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
13.		Olympus E-300	Four Thirds	8.0	3264	2448	none	20.4	10.1	-40	48
14.		Sony H300	1/2.3	19.9	5152	3864	720/30p	20.1	11.4	630	45
15.		Sony RX1	Full Frame	24.0	6000	4000	1080/60p	25.1	14.3	2534	93
16.		Sony RX1R	Full Frame	24.0	6000	4000	1080/60p	25.0	13.6	2537	91
17.		Sony RX100 IV	1-inch	20.0	5472	3648	4K/30p	22.8	12.6	591	70
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The RX1R II indeed provides for movie recording, while the R-D1 does not. The highest resolution format that the RX1R II can use is 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the RX1R II has an electronic viewfinder (2360k dots), while the R-D1 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The adjacent table lists some of the other core features of the Epson R-D1 and Sony RX1R II along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Epson R-D1	optical	n	2.0 / 235	fixed	n	1/2000s	1.0/s	n	n
2.		Sony RX1R II	2360	n	3.0 / 1229	tilting	n	1/4000s	5.0/s	n	n
3.		Canon 5DS	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
4.		Canon 300D	optical	n	1.8 / 118	fixed	n	1/4000s	2.5/s	Y	n
5.		Canon 350D	optical	n	1.8 / 115	fixed	n	1/4000s	3.0/s	Y	n
6.		Leica M8	optical	n	2.5 / 230	fixed	n	1/8000s	2.0/s	n	n
7.		Leica M9	optical	n	2.5 / 230	fixed	n	1/4000s	2.0/s	n	n
8.		Leica M10	optical	n	3.0 / 1037	fixed	n	1/4000s	5.0/s	n	n
9.		Leica X Vario	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
10.		Nikon D50	optical	n	2.0 / 130	fixed	n	1/4000s	2.5/s	Y	n
11.		Nikon D70	optical	n	1.8 / 130	fixed	n	1/8000s	3.0/s	Y	n
12.		Nikon D70s	optical	n	2.0 / 130	fixed	n	1/8000s	3.0/s	Y	n
13.		Olympus E-300	optical	n	1.8 / 134	fixed	n	1/4000s	2.5/s	Y	n
14.		Sony H300	none	n	3.0 / 460	fixed	n	1/1500s	0.8/s	Y	Y
15.		Sony RX1	optional	n	3.0 / 1229	fixed	n	1/4000s	5.0/s	Y	n
16.		Sony RX1R	optional	n	3.0 / 1229	fixed	n	1/4000s	5.0/s	Y	n
17.		Sony RX100 IV	2359	n	3.0 / 1228	tilting	n	1/2000s	16.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The R-D1 writes its imaging data to SDHC cards, while the RX1R II uses SDXC or Memory Stick PRO Duo cards. The RX1R II supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the R-D1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Epson R-D1 and Sony Cyber-shot DSC-RX1R II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Epson R-D1	Y	- / -	-	-	-	-	-	-	-
2.		Sony RX1R II	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
3.		Canon 5DS	Y	mono / mono	Y	-	mini	3.0	-	-	-
4.		Canon 300D	Y	- / -	-	-	-	1.1	-	-	-
5.		Canon 350D	Y	- / -	-	-	-	2.0	-	-	-
6.		Leica M8	Y	- / -	-	-	-	2.0	-	-	-
7.		Leica M9	Y	- / -	-	-	-	2.0	-	-	-
8.		Leica M10	Y	- / -	-	-	-	-	Y	-	-
9.		Leica X Vario	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Nikon D50	Y	- / -	-	-	-	2.0	-	-	-
11.		Nikon D70	Y	- / -	-	-	-	1.0	-	-	-
12.		Nikon D70s	Y	- / -	-	-	-	2.0	-	-	-
13.		Olympus E-300	Y	- / -	-	-	-	2.0	-	-	-
14.		Sony H300	-	mono / mono	-	-	micro	2.0	Y	-	-
15.		Sony RX1	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Sony RX1R	Y	stereo / mono	Y	-	mini	2.0	-	-	-
17.		Sony RX100 IV	-	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the RX1R II offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the R-D1 does not provide wifi capability.

Studio photographers will appreciate that the Epson R-D1 (unlike the RX1R II) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the R-D1 and the RX1R II have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Epson and Sony. Further information on the features and operation of the R-D1 and RX1R II can be found, respectively, in the Epson R-D1 Manual (free pdf) or the online Sony RX1R II Manual.

Review summary

So how do things add up? Is there a clear favorite between the Epson R-D1 and the Sony RX1R II? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Epson R-D1:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in March 2004).

Arguments in favor of the Sony Cyber-shot DSC-RX1R II:

• More detail: Has more megapixels (42.2 vs 6MP), which boosts linear resolution by 165%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Broader imaging potential: Can capture not only stills but also 1080/60p video.
• More framing info: Has an electronic viewfinder that displays shooting data.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1229k vs 235k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (5 vs 1 flaps/sec) to capture the decisive moment.
• Ready to shoot: Has an integrated lens, whereas the R-D1 necessitates an extra lens.
• More compact: Is smaller (113x65mm vs 142x89mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the R-D1).
• Easier travel charging: Can be conveniently charged via its USB port.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 11 years and 7 months of technical progress since the R-D1 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the RX1R II is the clear winner of the contest (21 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the R-D1 and the RX1R II in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Epson R-D1	..	..	..	..	..	..	Mar 2004	US$ 2 999	ebay.com
2.		Sony RX1R II	5/5	..	..	82/100	..	4.5/5	Oct 2015	US$ 3 299	ebay.com
3.		Canon 5DS	..	+	..	83/100	4.5/5	4.5/5	Feb 2015	US$ 3 699	ebay.com
4.		Canon 300D	..	..	..	+ +	..	..	Aug 2003	US$ 899	ebay.com
5.		Canon 350D	..	80/100	..	+ +	o	..	Feb 2005	US$ 899	ebay.com
6.		Leica M8	..	..	..	+ +	..	..	Sep 2006	US$ 5 499	ebay.com
7.		Leica M9	..	..	..	..	4.5/5	..	Sep 2009	US$ 7 999	ebay.com
8.		Leica M10	4.5/5	..	..	..	4/5	4.5/5	Jan 2017	US$ 6 599	ebay.com
9.		Leica X Vario	3/5	..	..	..	4/5	4/5	Jun 2013	US$ 2 849	ebay.com
10.		Nikon D50	..	78/100	..	+ +	4/5	4.5/5	Apr 2005	US$ 749	ebay.com
11.		Nikon D70	..	..	..	+ +	..	..	Jan 2004	US$ 999	ebay.com
12.		Nikon D70s	..	..	..	..	..	5/5	Apr 2005	US$ 899	ebay.com
13.		Olympus E-300	..	..	..	+	o	4.5/5	Sep 2004	US$ 799	ebay.com
14.		Sony H300	..	+	..	..	4.5/5	4/5	Feb 2014	US$ 219	ebay.com
15.		Sony RX1	5/5	..	..	79/100	4/5	4.5/5	Sep 2012	US$ 2 799	ebay.com
16.		Sony RX1R	5/5	..	..	..	4/5	4.5/5	Jun 2013	US$ 2 799	ebay.com
17.		Sony RX100 IV	4.5/5	+ +	..	85/100	4/5	4.5/5	Jun 2015	US$ 999	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
