Fujifilm X-A2 vs Olympus E-P5

The Fujifilm X-A2 and the Olympus PEN E-P5 are two digital cameras that were revealed to the public, respectively, in January 2015 and May 2013. Both the X-A2 and the E-P5 are mirrorless interchangeable lens cameras that are based on an APS-C (X-A2) and a Four Thirds (E-P5) sensor. The Fujifilm has a resolution of 16 megapixels, whereas the Olympus provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Fujifilm X-A2		Olympus E-P5
Mirrorless system camera		Mirrorless system camera
Fujifilm X mount lenses		Micro Four Thirds lenses
16 MP – APS-C sensor		15.9 MP – Four Thirds sensor
1080/30p Video		1080/30p Video
ISO 200-6,400 (100 - 25,600)		ISO 200-25,600
No viewfinder, LCD framing		Viewfinder optional
3.0" LCD – 920k dots		3.0" LCD – 1037k dots
Tilting screen (no touchscreen)		Tilting touchscreen
5.6 shutter flaps per second		9 shutter flaps per second
Lens stabilization only		In-body stabilization
410 shots per battery charge		330 shots per battery charge
117 x 67 x 40 mm, 350 g		122 x 69 x 37 mm, 420 g

Check X-A2 offers at
ebay.com
Check E-P5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm X-A2 and the Olympus PEN E-P5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

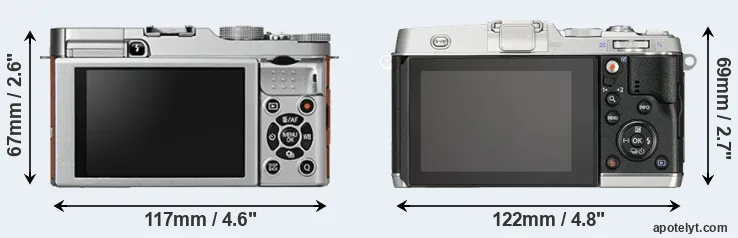

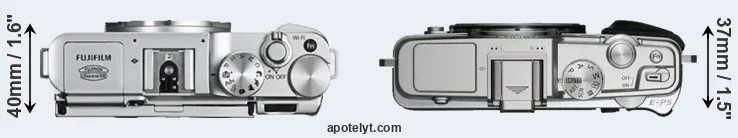

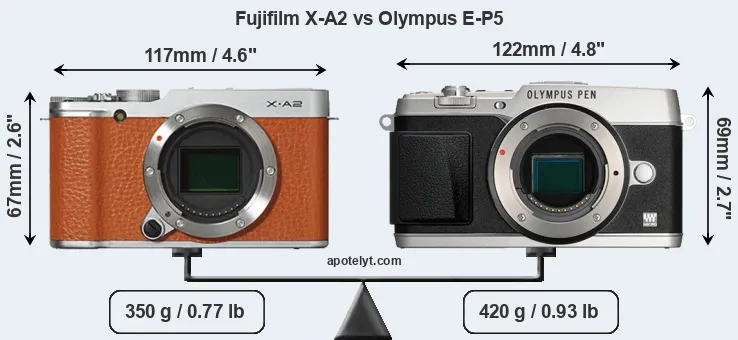

The physical size and weight of the Fujifilm X-A2 and the Olympus E-P5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The X-A2 can be obtained in three different colors (black, brown, white), while the E-P5 is also available in three color-versions, but different ones (black, silver, white).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-P5 is notably larger (7 percent) than the Fujifilm X-A2. Moreover, the E-P5 is markedly heavier (20 percent) than the X-A2. In this context, it is worth noting that neither the X-A2 nor the E-P5 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Fujinon X Lens Catalog (X-A2) and the Micro Four Thirds Lens Catalog (E-P5). Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

Concerning battery life, the X-A2 gets 410 shots out of its Fujifilm NP-W126 battery, while the E-P5 can take 330 images on a single charge of its Olympus BLN-1 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Fujifilm X-A2	117 mm	67 mm	40 mm	350 g	410	n	Jan 2015	US$ 399	ebay.com
2.		Olympus E-P5	122 mm	69 mm	37 mm	420 g	330	n	May 2013	US$ 999	ebay.com
3.		Fujifilm X-A1	117 mm	67 mm	39 mm	330 g	350	n	Sep 2013	US$ 399	ebay.com
4.		Fujifilm X-A3	117 mm	67 mm	40 mm	339 g	410	n	Aug 2016	US$ 399	ebay.com
5.		Fujifilm X-A5	117 mm	68 mm	40 mm	361 g	450	n	Jan 2018	US$ 399	ebay.com
6.		Fujifilm X-A10	117 mm	67 mm	40 mm	331 g	410	n	Dec 2016	US$ 399	ebay.com
7.		Fujifilm X-E1	129 mm	75 mm	38 mm	350 g	350	n	Sep 2012	US$ 999	ebay.com
8.		Fujifilm X-E2	129 mm	75 mm	37 mm	350 g	350	n	Oct 2013	US$ 999	ebay.com
9.		Fujifilm X-E2S	129 mm	75 mm	37 mm	350 g	350	n	Jan 2016	US$ 699	ebay.com
10.		Fujifilm X-M1	117 mm	67 mm	39 mm	330 g	350	n	Jun 2013	US$ 699	ebay.com
11.		Fujifilm X-T10	118 mm	83 mm	41 mm	381 g	350	n	May 2015	US$ 799	ebay.com
12.		Fujifilm X70	113 mm	64 mm	44 mm	340 g	330	n	Jan 2016	US$ 799	ebay.com
13.		Olympus E-M1	130 mm	94 mm	63 mm	497 g	350	Y	Sep 2013	US$ 1 399	ebay.com
14.		Olympus E-M5 II	124 mm	85 mm	45 mm	469 g	310	Y	Feb 2015	US$ 1 099	ebay.com
15.		Olympus E-M10	119 mm	82 mm	46 mm	396 g	320	n	Jan 2014	US$ 699	ebay.com
16.		Olympus E-PL7	115 mm	67 mm	38 mm	357 g	350	n	Aug 2014	US$ 599	ebay.com
17.		Panasonic GX7	123 mm	71 mm	55 mm	402 g	350	n	Aug 2013	US$ 999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The X-A2 was launched at a markedly lower price (by 60 percent) than the E-P5, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

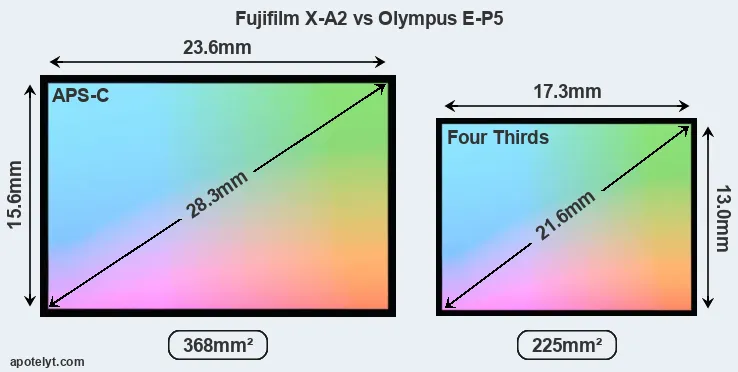

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Fujifilm X-A2 features an APS-C sensor and the Olympus E-P5 a Four Thirds sensor. The sensor area in the E-P5 is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the X-A2 has a native 3:2 aspect ratio, while the one in the E-P5 offers a 4:3 aspect.

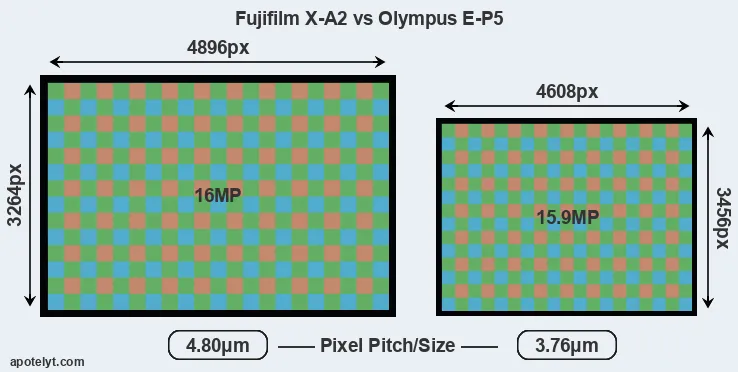

With 16MP, the X-A2 offers a slightly higher resolution than the E-P5 (15.9MP), but the X-A2 nevertheless has larger individual pixels (pixel pitch of 4.80μm versus 3.76μm for the E-P5) due to its larger sensor. Moreover, the X-A2 is a somewhat more recent model (by 1 year and 8 months) than the E-P5, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The Fujifilm X-A2 has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus PEN E-P5 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Fujifilm X-A2	APS-C	16.0	4896	3264	1080/30p	23.6	12.8	1515	79
2.		Olympus E-P5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.4	895	72
3.		Fujifilm X-A1	APS-C	16.0	4896	3264	1080/30p	23.4	12.6	1390	76
4.		Fujifilm X-A3	APS-C	24.0	6000	4000	1080/60p	23.8	13.1	1663	81
5.		Fujifilm X-A5	APS-C	24.0	6000	4000	4K/15p	24.0	13.3	1800	82
6.		Fujifilm X-A10	APS-C	16.0	4896	3264	1080/30p	23.9	13.2	1691	81
7.		Fujifilm X-E1	APS-C	16.0	4896	3264	1080/24p	23.2	12.4	1298	75
8.		Fujifilm X-E2	APS-C	16.0	4896	3264	1080/60p	23.4	12.6	1400	77
9.		Fujifilm X-E2S	APS-C	16.0	4896	3264	1080/60p	23.7	13.0	1608	80
10.		Fujifilm X-M1	APS-C	16.0	4896	3264	1080/30p	23.4	12.6	1371	76
11.		Fujifilm X-T10	APS-C	16.0	4896	3264	1080/60p	23.7	12.9	1546	79
12.		Fujifilm X70	APS-C	16.0	4896	3264	1080/60p	23.7	13.0	1608	80
13.		Olympus E-M1	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.7	757	73
14.		Olympus E-M5 II	Four Thirds	15.9	4608	3456	1080/60p	23.0	12.5	842	73
15.		Olympus E-M10	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	884	72
16.		Olympus E-PL7	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.4	873	72
17.		Panasonic GX7	Four Thirds	15.8	4592	3448	1080/60p	22.6	12.2	718	70
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (1080/30p).

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The X-A2 and the E-P5 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the E-P5 can be equipped with an optional viewfinder – the VF-4. The table below summarizes some of the other core capabilities of the Fujifilm X-A2 and Olympus E-P5 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Fujifilm X-A2	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
2.		Olympus E-P5	optional	n	3.0 / 1037	tilting	Y	1/8000s	9.0/s	Y	Y
3.		Fujifilm X-A1	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
4.		Fujifilm X-A3	none	n	3.0 / 1040	tilting	Y	1/4000s	6.0/s	Y	n
5.		Fujifilm X-A5	none	n	3.0 / 1040	tilting	Y	1/4000s	6.0/s	Y	n
6.		Fujifilm X-A10	none	n	3.0 / 1040	tilting	n	1/4000s	6.0/s	Y	n
7.		Fujifilm X-E1	2360	n	2.8 / 460	fixed	n	1/4000s	6.0/s	Y	n
8.		Fujifilm X-E2	2360	n	3.0 / 1040	fixed	n	1/4000s	7.0/s	Y	n
9.		Fujifilm X-E2S	2360	n	3.0 / 1040	fixed	n	1/4000s	7.0/s	Y	n
10.		Fujifilm X-M1	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
11.		Fujifilm X-T10	2360	n	3.0 / 920	tilting	n	1/4000s	8.0/s	Y	n
12.		Fujifilm X70	optional	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
13.		Olympus E-M1	2360	n	3.0 / 1037	tilting	Y	1/8000s	10.0/s	n	Y
14.		Olympus E-M5 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
15.		Olympus E-M10	1440	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	Y	Y
16.		Olympus E-PL7	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
17.		Panasonic GX7	2760	n	3.0 / 1040	tilting	Y	1/8000s	5.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The E-P5 has a touchscreen, while the X-A2 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Olympus E-P5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the X-A2 and the E-P5 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X-A2 and Olympus PEN E-P5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Fujifilm X-A2	Y	stereo / mono	-	-	mini	2.0	Y	-	-
2.		Olympus E-P5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Fujifilm X-A1	Y	stereo / mono	-	-	mini	2.0	Y	-	-
4.		Fujifilm X-A3	Y	stereo / mono	-	-	micro	2.0	Y	-	-
5.		Fujifilm X-A5	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
6.		Fujifilm X-A10	-	stereo / mono	-	-	micro	2.0	Y	-	-
7.		Fujifilm X-E1	Y	stereo / mono	Y	-	mini	2.0	-	-	-
8.		Fujifilm X-E2	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
9.		Fujifilm X-E2S	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
10.		Fujifilm X-M1	Y	stereo / mono	-	-	mini	2.0	Y	-	Y
11.		Fujifilm X-T10	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
12.		Fujifilm X70	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
13.		Olympus E-M1	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
14.		Olympus E-M5 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
15.		Olympus E-M10	Y	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Olympus E-PL7	Y	stereo / mono	-	-	micro	2.0	Y	-	-
17.		Panasonic GX7	Y	stereo / mono	-	-	mini	2.0	Y	Y	-

Both the X-A2 and the E-P5 have been discontinued, but can regularly be found used on ebay. The E-P5 was replaced by the Olympus E-P7, while the X-A2 was followed by the Fujifilm X-A3. Further information on the features and operation of the X-A2 and E-P5 can be found, respectively, in the Fujifilm X-A2 Manual (free pdf) or the online Olympus E-P5 Manual.

Review summary

So how do things add up? Is the Fujifilm X-A2 better than the Olympus E-P5 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Fujifilm X-A2:

• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Less heavy: Is lighter (by 70g or 17 percent) and hence easier to carry around.
• Longer lasting: Can take more shots (410 versus 330) on a single battery charge.
• More affordable: Was introduced into a lower priced category (60 percent cheaper at launch).
• More modern: Is somewhat more recent (announced 1 year and 8 months after the E-P5).

Advantages of the Olympus PEN E-P5:

• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• More detailed LCD: Has a higher resolution rear screen (1037k vs 920k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (9 vs 5.6 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More heavily discounted: Has been on the market for longer (launched in May 2013).

If the count of individual advantages (bullet points above) is taken as a guide, the X-A2 comes out slightly ahead of the E-P5 (9 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Fujifilm X-A2 and the Olympus E-P5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the X-A2 or the E-P5 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Fujifilm X-A2	4/5	..	..	..	4.5/5	4.5/5	Jan 2015	US$ 399	ebay.com
2.		Olympus E-P5	5/5	+ +	..	78/100	4.5/5	5/5	May 2013	US$ 999	ebay.com
3.		Fujifilm X-A1	..	..	..	..	4.5/5	4.5/5	Sep 2013	US$ 399	ebay.com
4.		Fujifilm X-A3	..	..	..	74/100	4.5/5	4/5	Aug 2016	US$ 399	ebay.com
5.		Fujifilm X-A5	..	+	4.1/5	..	4/5	3.5/5	Jan 2018	US$ 399	ebay.com
6.		Fujifilm X-A10	..	..	..	..	4/5	4/5	Dec 2016	US$ 399	ebay.com
7.		Fujifilm X-E1	4/5	+ +	..	79/100	4.5/5	4.5/5	Sep 2012	US$ 999	ebay.com
8.		Fujifilm X-E2	4/5	..	..	80/100	4.5/5	5/5	Oct 2013	US$ 999	ebay.com
9.		Fujifilm X-E2S	4.5/5	..	..	77/100	4.5/5	4.5/5	Jan 2016	US$ 699	ebay.com
10.		Fujifilm X-M1	3/5	+	..	77/100	4.5/5	4.5/5	Jun 2013	US$ 699	ebay.com
11.		Fujifilm X-T10	4.5/5	+ +	..	80/100	5/5	5/5	May 2015	US$ 799	ebay.com
12.		Fujifilm X70	4.5/5	..	..	76/100	4.5/5	4.5/5	Jan 2016	US$ 799	ebay.com
13.		Olympus E-M1	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2013	US$ 1 399	ebay.com
14.		Olympus E-M5 II	5/5	+ +	4.5/5	81/100	5/5	5/5	Feb 2015	US$ 1 099	ebay.com
15.		Olympus E-M10	4/5	..	..	80/100	5/5	5/5	Jan 2014	US$ 699	ebay.com
16.		Olympus E-PL7	4/5	+	..	..	5/5	4/5	Aug 2014	US$ 599	ebay.com
17.		Panasonic GX7	4/5	+	..	79/100	5/5	5/5	Aug 2013	US$ 999	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
