Fujifilm X-M5 vs X-Pro3

The Fujifilm X-M5 and the Fujifilm X-Pro3 are two digital cameras that were revealed to the public, respectively, in October 2025 and October 2019. Both the X-M5 and the X-Pro3 are mirrorless interchangeable lens cameras that are equipped with an APS-C sensor. Both cameras offer a resolution of 26 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Fujifilm X-M5		Fujifilm X-Pro3
Mirrorless system camera		Mirrorless system camera
Fujifilm X mount lenses		Fujifilm X mount lenses
26 MP – APS-C sensor		26 MP – APS-C sensor
4K/60p Video		4K/30p Video
ISO 160-12,800 (80 - 51,200)		ISO 160-12,800 (80 - 51,200)
No viewfinder, LCD framing		Electronic viewfinder (3690k dots)
3.0" LCD – 1040k dots		3.0" LCD – 1620k dots
Swivel touchscreen		Tilting touchscreen
8 shutter flaps per second		8 shutter flaps per second
not weather sealed		Weathersealed body
330 shots per battery charge		440 shots per battery charge
112 x 67 x 38 mm, 355 g		141 x 83 x 46 mm, 497 g

Check X-M5 price at
amazon.com
Check X-Pro3 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm X-M5 and the Fujifilm X-Pro3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

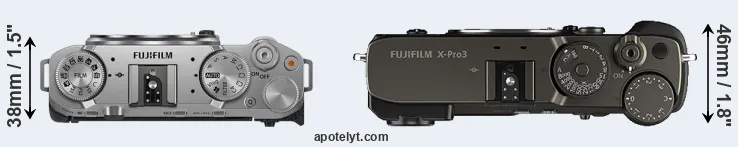

Body comparison

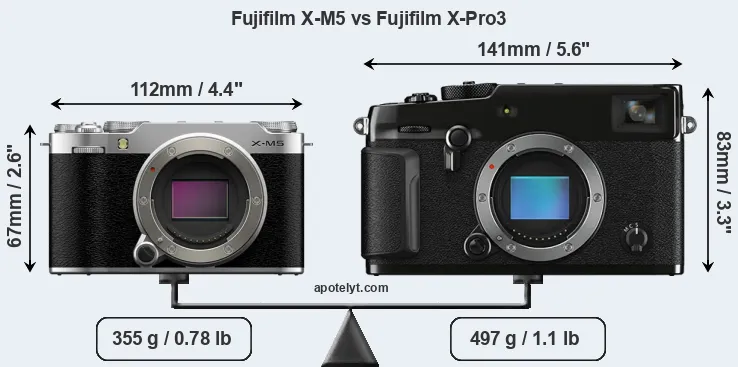

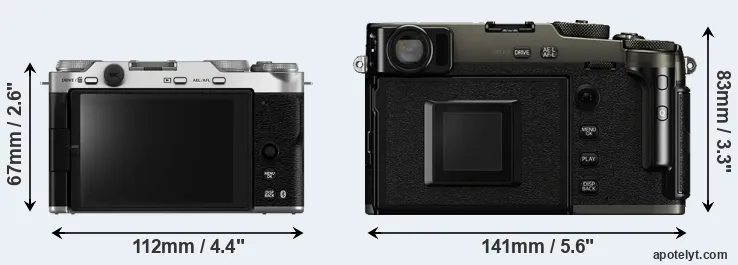

The side-by-side display below illustrates the physical size and weight of the Fujifilm X-M5 and the Fujifilm X-Pro3. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

Both cameras are available in two different colors (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X-Pro3 is considerably larger (56 percent) than the Fujifilm X-M5. Moreover, the X-Pro3 is substantially heavier (40 percent) than the X-M5. It is noteworthy in this context that the X-Pro3 is splash and dust-proof, while the X-M5 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Fujinon X Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Fujifilm X-M5	112 mm	67 mm	38 mm	355 g	330	n	Oct 2025	EUR 899	amazon.com
2.		Fujifilm X-Pro3	141 mm	83 mm	46 mm	497 g	440	Y	Oct 2019	EUR 1 899	amazon.com
3.		Fujifilm X-A3	117 mm	67 mm	40 mm	339 g	410	n	Aug 2016	EUR 449	ebay.com
4.		Fujifilm X-A5	117 mm	68 mm	40 mm	361 g	450	n	Jan 2018	EUR 449	ebay.com
5.		Fujifilm X-E2S	129 mm	75 mm	37 mm	350 g	350	n	Jan 2016	EUR 699	ebay.com
6.		Fujifilm X-E3	121 mm	74 mm	43 mm	337 g	350	n	Sep 2017	EUR 899	ebay.com
7.		Fujifilm X-E4	121 mm	73 mm	33 mm	364 g	380	n	Jan 2021	EUR 899	ebay.com
8.		Fujifilm X-H1	140 mm	97 mm	86 mm	673 g	310	Y	Feb 2018	EUR 1 899	ebay.com
9.		Fujifilm X-M1	117 mm	67 mm	39 mm	330 g	350	n	Jun 2013	EUR 679	ebay.com
10.		Fujifilm X-Pro2	141 mm	83 mm	46 mm	495 g	350	Y	Jan 2016	EUR 1 799	ebay.com
11.		Fujifilm X-T2	133 mm	92 mm	49 mm	507 g	340	Y	Jul 2016	EUR 1 699	ebay.com
12.		Fujifilm X-T3	133 mm	93 mm	59 mm	539 g	390	Y	Sep 2018	EUR 1 499	ebay.com
13.		Fujifilm X-T4	135 mm	93 mm	64 mm	607 g	500	Y	Feb 2020	EUR 1 799	ebay.com
14.		Fujifilm X-T20	118 mm	83 mm	41 mm	383 g	350	n	Jan 2017	EUR 799	ebay.com
15.		Fujifilm X-T30	118 mm	83 mm	47 mm	383 g	380	n	Feb 2019	EUR 999	ebay.com
16.		Fujifilm X-T30 II	118 mm	83 mm	47 mm	383 g	380	n	Sep 2021	EUR 899	ebay.com
17.		Fujifilm X-T200	121 mm	84 mm	55 mm	370 g	270	n	Jan 2020	EUR 749	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The X-M5 was launched at a markedly lower price (by 56 percent) than the X-Pro3, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

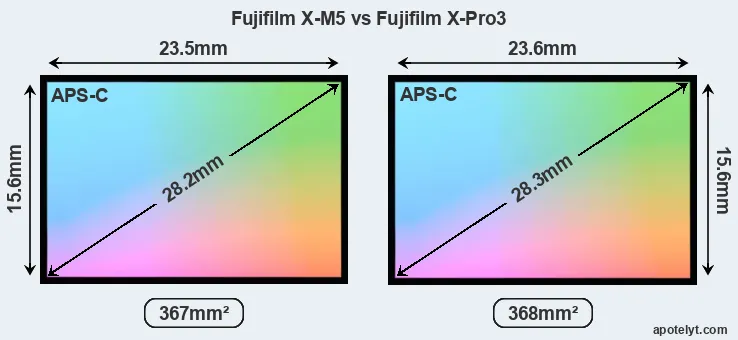

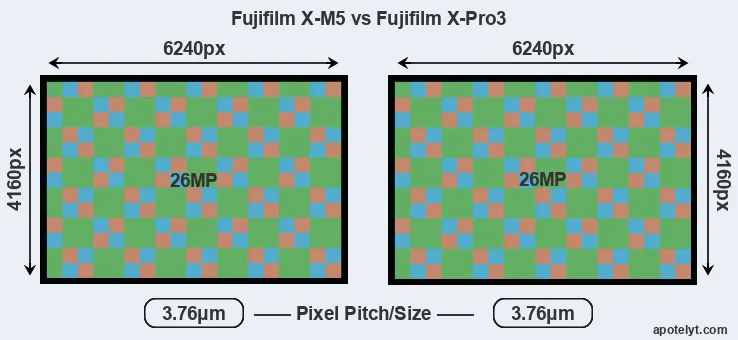

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Even though the X-Pro3 has a slightly larger sensor, both cameras offer the same resolution of 26 megapixels. This implies that the X-Pro3 has a lower pixel density and marginally larger individual pixels (with a pixel pitch of 3.76μm versus 3.76μm for the X-M5), which gives it a potential advantage in terms of light gathering capacity. It should, however, be noted that the X-M5 is much more recent (by 5 years and 11 months) than the X-Pro3, and its sensor will have benefitted from technological advances during this time that at least partly compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The Fujifilm X-M5 has a native sensitivity range from ISO 160 to ISO 12800, which can be extended to ISO 80-51200. The Fujifilm X-Pro3 offers exactly the same ISO settings.

Technology-wise, both cameras are equipped with BSI-CMOS (Backside Illuminated Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use the X-Trans layout of photosites, which according to Fujifilm helps to minimize moiré.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Fujifilm X-M5	APS-C	26.0	6240	4160	4K/60p	24.3	14.2	2558	86
2.		Fujifilm X-Pro3	APS-C	26.0	6240	4160	4K/30p	24.1	13.6	1968	84
3.		Fujifilm X-A3	APS-C	24.0	6000	4000	1080/60p	23.8	13.1	1663	81
4.		Fujifilm X-A5	APS-C	24.0	6000	4000	4K/15p	24.0	13.3	1800	82
5.		Fujifilm X-E2S	APS-C	16.0	4896	3264	1080/60p	23.7	13.0	1608	80
6.		Fujifilm X-E3	APS-C	24.0	6000	4000	4K/30p	23.9	13.3	1764	82
7.		Fujifilm X-E4	APS-C	26.0	6240	4160	4K/30p	24.2	13.7	2085	85
8.		Fujifilm X-H1	APS-C	24.0	6000	4000	4K/30p	24.0	13.3	1806	82
9.		Fujifilm X-M1	APS-C	16.0	4896	3264	1080/30p	23.4	12.6	1371	76
10.		Fujifilm X-Pro2	APS-C	24.0	6000	4000	1080/60p	23.7	13.0	1608	80
11.		Fujifilm X-T2	APS-C	24.0	6000	4000	4K/30p	23.8	13.1	1653	81
12.		Fujifilm X-T3	APS-C	26.0	6240	4160	4K/60p	24.0	13.4	1853	83
13.		Fujifilm X-T4	APS-C	26.0	6240	4160	4K/60p	24.1	13.6	1995	84
14.		Fujifilm X-T20	APS-C	24.0	6000	4000	4K/30p	23.9	13.2	1704	81
15.		Fujifilm X-T30	APS-C	26.0	6240	4160	4K/30p	24.1	13.5	1895	83
16.		Fujifilm X-T30 II	APS-C	26.0	6240	4160	4K/30p	24.2	13.8	2144	85
17.		Fujifilm X-T200	APS-C	24.0	6000	4000	4K/30p	24.1	13.6	1991	84
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the X-M5 provides a higher frame rate than the X-Pro3. It can shoot video footage at 4K/60p, while the X-Pro3 is limited to 4K/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the X-Pro3 has an electronic viewfinder (3690k dots), which can be very helpful when shooting in bright sunlight. In contrast, the X-M5 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Fujifilm X-M5, the Fujifilm X-Pro3, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Fujifilm X-M5	none	n	3.0 / 1040	swivel	Y	1/4000s	8.0/s	Y	n
2.		Fujifilm X-Pro3	3690	n	3.0 / 1620	tilting	Y	1/8000s	8.0/s	n	n
3.		Fujifilm X-A3	none	n	3.0 / 1040	tilting	Y	1/4000s	6.0/s	Y	n
4.		Fujifilm X-A5	none	n	3.0 / 1040	tilting	Y	1/4000s	6.0/s	Y	n
5.		Fujifilm X-E2S	2360	n	3.0 / 1040	fixed	n	1/4000s	7.0/s	Y	n
6.		Fujifilm X-E3	2360	n	3.0 / 1040	fixed	Y	1/4000s	8.0/s	n	n
7.		Fujifilm X-E4	2360	n	3.0 / 1620	tilting	Y	1/4000s	8.0/s	n	n
8.		Fujifilm X-H1	3690	Y	3.0 / 1040	full-flex	Y	1/8000s	14.0/s	n	Y
9.		Fujifilm X-M1	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
10.		Fujifilm X-Pro2	2360	n	3.0 / 1620	fixed	n	1/8000s	8.0/s	n	n
11.		Fujifilm X-T2	2360	n	3.0 / 1040	full-flex	n	1/8000s	8.0/s	n	n
12.		Fujifilm X-T3	3690	n	3.0 / 1040	full-flex	Y	1/8000s	11.0/s	n	n
13.		Fujifilm X-T4	3690	n	3.0 / 1620	swivel	Y	1/8000s	15.0/s	n	Y
14.		Fujifilm X-T20	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
15.		Fujifilm X-T30	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
16.		Fujifilm X-T30 II	2360	n	3.0 / 1620	tilting	Y	1/4000s	8.0/s	Y	n
17.		Fujifilm X-T200	2360	n	3.5 / 2780	swivel	Y	1/4000s	8.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The X-M5 has one, while the X-Pro3 does not. While the built-in flash of the X-M5 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Fujifilm X-Pro3 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the X-M5 and the X-Pro3 write their files to SDXC cards. The X-Pro3 features dual card slots, which can be very useful in case a memory card fails. In contrast, the X-M5 only has one slot. The X-Pro3 supports UHS-II cards (on both slots), while the X-M5 can use UHS-I cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X-M5 and Fujifilm X-Pro3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Fujifilm X-M5	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
2.		Fujifilm X-Pro3	Y	stereo / mono	Y	-	-	3.1	Y	-	Y
3.		Fujifilm X-A3	Y	stereo / mono	-	-	micro	2.0	Y	-	-
4.		Fujifilm X-A5	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
5.		Fujifilm X-E2S	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
6.		Fujifilm X-E3	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
7.		Fujifilm X-E4	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
8.		Fujifilm X-H1	Y	stereo / mono	Y	-	micro	3.0	Y	-	-
9.		Fujifilm X-M1	Y	stereo / mono	-	-	mini	2.0	Y	-	Y
10.		Fujifilm X-Pro2	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
11.		Fujifilm X-T2	Y	stereo / mono	Y	-	micro	3.0	Y	-	-
12.		Fujifilm X-T3	Y	stereo / mono	Y	Y	micro	3.1	Y	-	Y
13.		Fujifilm X-T4	Y	stereo / mono	Y	-	micro	3.1	Y	-	Y
14.		Fujifilm X-T20	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
15.		Fujifilm X-T30	Y	stereo / mono	Y	-	micro	3.1	Y	-	Y
16.		Fujifilm X-T30 II	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
17.		Fujifilm X-T200	Y	stereo / mono	Y	Y	micro	3.1	Y	-	Y

It is notable that the X-M5 has a headphone jack, which is not present on the X-Pro3 This port makes it possible to attach external headphones and monitor the quality of sound during the recording process.

Studio photographers will appreciate that the Fujifilm X-Pro3 (unlike the X-M5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the X-M5 and the X-Pro3 are recent models that are part of the current product line-up. The X-Pro3 replaced the earlier Fujifilm X-Pro2, while the X-M5 followed on from the Fujifilm X-M1. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Fujifilm website.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Fujifilm X-M5 and the Fujifilm X-Pro3? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Fujifilm X-M5:

• Better video: Provides higher movie framerates (4K/60p versus 4K/30p).
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• More compact: Is smaller (112x67mm vs 141x83mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 142g or 29 percent) and hence easier to carry around.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Faster data transfer: Supports a more advanced USB protocol (3.2 vs 3.1).
• More affordable: Was introduced into a lower priced category (56 percent cheaper at launch).
• More modern: Reflects 5 years and 11 months of technical progress since the X-Pro3 launch.

Reasons to prefer the Fujifilm X-Pro3:

• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (1620k vs 1040k dots).
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Longer lasting: Gets more shots (440 versus 330) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More heavily discounted: Has been around for much longer (launched in October 2019).

If the number of relative strengths (bullet points above) is taken as a guide, the match-up finishes in a tie (10 points each). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Fujifilm X-M5 and the Fujifilm X-Pro3 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the X-M5 or the X-Pro3. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Fujifilm X-M5	..	..	..	84/100	..	..	Oct 2025	EUR 899	amazon.com
2.		Fujifilm X-Pro3	4/5	+	4/5	85/100	4/5	..	Oct 2019	EUR 1 899	amazon.com
3.		Fujifilm X-A3	..	..	..	74/100	4.5/5	4/5	Aug 2016	EUR 449	ebay.com
4.		Fujifilm X-A5	..	+	4.1/5	..	4/5	3.5/5	Jan 2018	EUR 449	ebay.com
5.		Fujifilm X-E2S	4.5/5	..	..	77/100	4.5/5	4.5/5	Jan 2016	EUR 699	ebay.com
6.		Fujifilm X-E3	4.5/5	+	4.5/5	84/100	4.5/5	4.5/5	Sep 2017	EUR 899	ebay.com
7.		Fujifilm X-E4	4/5	..	4/5	..	4.5/5	4/5	Jan 2021	EUR 899	ebay.com
8.		Fujifilm X-H1	..	+	5/5	86/100	4.5/5	4.5/5	Feb 2018	EUR 1 899	ebay.com
9.		Fujifilm X-M1	3/5	+	..	77/100	4.5/5	4.5/5	Jun 2013	EUR 679	ebay.com
10.		Fujifilm X-Pro2	..	+	..	83/100	4.5/5	4.5/5	Jan 2016	EUR 1 799	ebay.com
11.		Fujifilm X-T2	5/5	+ +	..	86/100	4.5/5	5/5	Jul 2016	EUR 1 699	ebay.com
12.		Fujifilm X-T3	5/5	+ +	4.5/5	88/100	5/5	5/5	Sep 2018	EUR 1 499	ebay.com
13.		Fujifilm X-T4	5/5	+ +	5/5	88/100	5/5	5/5	Feb 2020	EUR 1 799	ebay.com
14.		Fujifilm X-T20	5/5	+ +	5/5	82/100	5/5	4.5/5	Jan 2017	EUR 799	ebay.com
15.		Fujifilm X-T30	5/5	+ +	5/5	84/100	4.5/5	4.5/5	Feb 2019	EUR 999	ebay.com
16.		Fujifilm X-T30 II	5/5	..	4/5	..	4.5/5	4.5/5	Sep 2021	EUR 899	ebay.com
17.		Fujifilm X-T200	3.5/5	..	4/5	82/100	4/5	4.5/5	Jan 2020	EUR 749	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
