Fujifilm X-S20 vs Nikon Z5 II

The Fujifilm X-S20 and the Nikon Z5 II are two digital cameras that were announced, respectively, in May 2023 and April 2025. Both the X-S20 and the Z5 II are mirrorless interchangeable lens cameras that are based on an APS-C (X-S20) and a full frame (Z5 II) sensor. The Fujifilm has a resolution of 26 megapixels, whereas the Nikon provides 24.4 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Fujifilm X-S20		Nikon Z5 II
Mirrorless system camera		Mirrorless system camera
Fujifilm X mount lenses		Nikon Z mount lenses
26 MP – APS-C sensor		24.4 MP – Full Frame sensor
4K/60p Video		4K/60p Video
ISO 160-12,800 (80 - 51,200)		ISO 100-51,200 (50 - 204,800)
Electronic viewfinder (2360k dots)		Electronic viewfinder (3690k dots)
3.0" LCD – 1840k dots		3.2" LCD – 2100k dots
Swivel touchscreen		Swivel touchscreen
8 shutter flaps per second		14 shutter flaps per second
In-body stabilization		In-body stabilization
not weather sealed		Weathersealed body
750 shots per battery charge		330 shots per battery charge
128 x 85 x 65 mm, 491 g		134 x 101 x 72 mm, 700 g

Check X-S20 price at
amazon.com
Check Z5 II price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm X-S20 and the Nikon Z5 II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

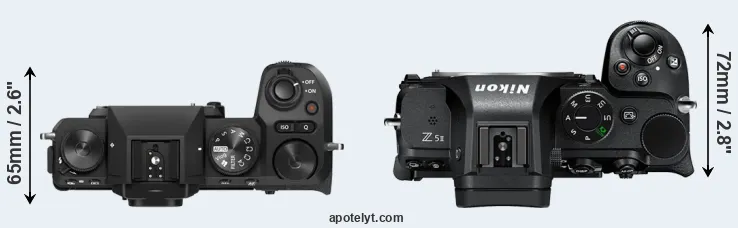

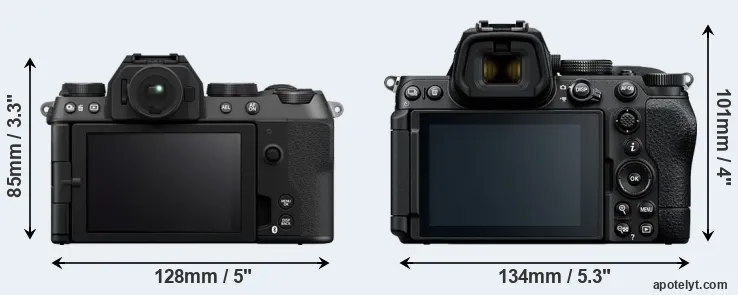

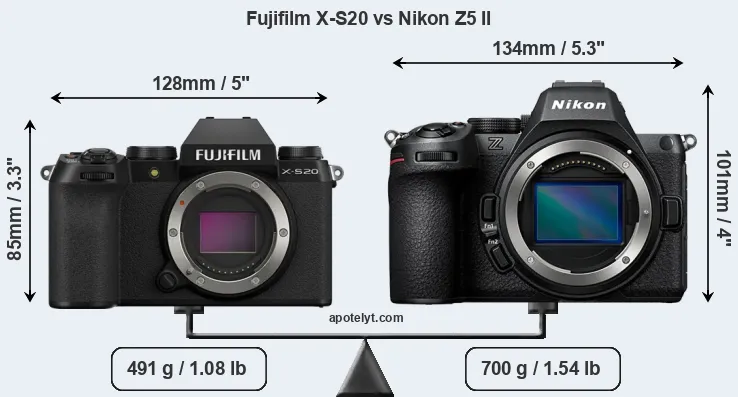

An illustration of the physical size and weight of the Fujifilm X-S20 and the Nikon Z5 II is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon Z5 II is notably larger (24 percent) than the Fujifilm X-S20. Moreover, the Z5 II is substantially heavier (43 percent) than the X-S20. It is noteworthy in this context that the Z5 II is splash and dust-proof, while the X-S20 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the X-S20 gets 750 shots out of its Fujifilm NP-W235 battery, while the Z5 II can take 330 images on a single charge of its Nikon EN-EL15c power pack. The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Fujifilm X-S20	128 mm	85 mm	65 mm	491 g	750	n	May 2023	US$ 1 299	amazon.com
2.		Nikon Z5 II	134 mm	101 mm	72 mm	700 g	330	Y	Apr 2025	US$ 1 699	amazon.com
3.		Canon R8	133 mm	86 mm	70 mm	461 g	220	n	Feb 2023	US$ 1 499	amazon.com
4.		Fujifilm X-H2S	136 mm	93 mm	85 mm	660 g	580	Y	May 2022	US$ 2 499	amazon.com
5.		Fujifilm X-S10	126 mm	85 mm	65 mm	465 g	325	n	Oct 2020	US$ 999	amazon.com
6.		Fujifilm X-T3	133 mm	93 mm	59 mm	539 g	390	Y	Sep 2018	US$ 1 499	ebay.com
7.		Fujifilm X-T5	130 mm	91 mm	64 mm	557 g	580	Y	Nov 2022	US$ 1 699	amazon.com
8.		Fujifilm X-T50	124 mm	84 mm	49 mm	438 g	305	n	May 2024	US$ 1 399	amazon.com
9.		Fujifilm X-T100	121 mm	83 mm	47 mm	448 g	430	n	May 2018	US$ 599	ebay.com
10.		Fujifilm X100F	127 mm	75 mm	52 mm	469 g	390	n	Jan 2017	US$ 1 299	ebay.com
11.		Nikon Z5	134 mm	101 mm	67 mm	675 g	470	Y	Jul 2020	US$ 1 399	ebay.com
12.		Nikon Z6	134 mm	101 mm	67 mm	675 g	310	Y	Aug 2018	US$ 1 999	ebay.com
13.		Nikon Z6 II	134 mm	101 mm	70 mm	705 g	410	Y	Oct 2020	US$ 1 999	amazon.com
14.		Nikon Z6 III	139 mm	102 mm	74 mm	670 g	380	Y	Jun 2024	US$ 2 499	amazon.com
15.		Nikon Zf	144 mm	103 mm	49 mm	710 g	380	Y	Sep 2023	US$ 1 999	amazon.com
16.		Panasonic S9	126 mm	74 mm	47 mm	486 g	470	n	May 2024	US$ 1 499	amazon.com
17.		Sony A6700	122 mm	69 mm	64 mm	493 g	570	Y	Jul 2023	US$ 1 399	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The X-S20 was launched at a somewhat lower price (by 24 percent) than the Z5 II, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

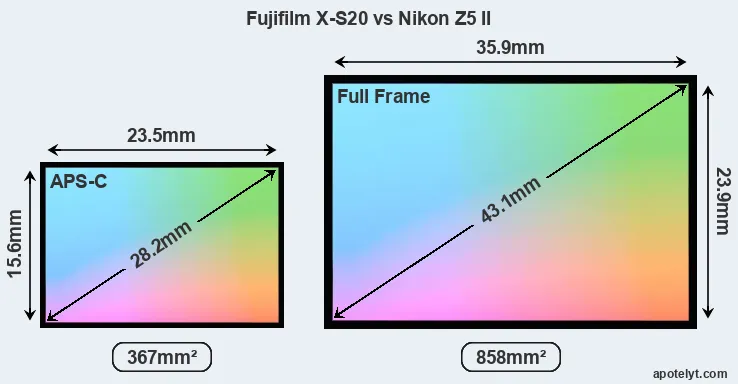

Of the two cameras under consideration, the Fujifilm X-S20 features an APS-C sensor and the Nikon Z5 II a full frame sensor. The sensor area in the Z5 II is 134 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

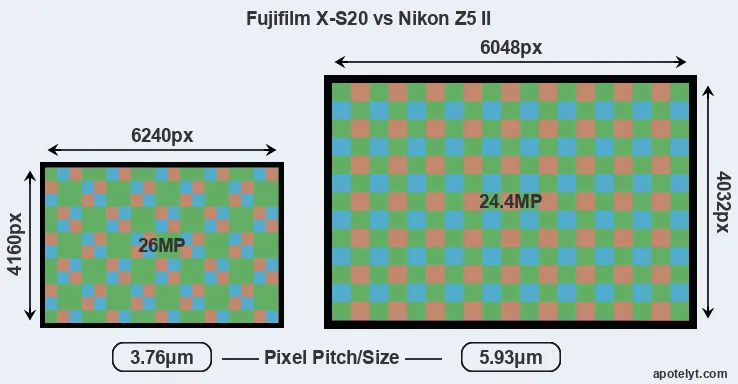

Despite having a smaller sensor, the Fujifilm X-S20 offers a higher resolution of 26 megapixels, compared with 24.4 MP of the Nikon Z5 II. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 5.93μm for the Z5 II). Moreover, it should be noted that the Z5 II is a somewhat more recent model (by 1 year and 10 months) than the X-S20, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the X-S20 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Fujifilm X-S20 has a native sensitivity range from ISO 160 to ISO 12800, which can be extended to ISO 80-51200. The corresponding ISO settings for the Nikon Z5 II are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-204800.

Technology-wise, both cameras are equipped with BSI-CMOS (Backside Illuminated Complementary Metal–Oxide–Semiconductor) sensors. The X-S20 uses Fujifilm's X-Trans layout of photosites, while the Z5 II employs the more common Bayer array.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Fujifilm X-S20	APS-C	26.0	6240	4160	4K/60p	24.3	14.0	2315	86
2.		Nikon Z5 II	Full Frame	24.4	6048	4032	4K/60p	25.4	14.8	3398	97
3.		Canon R8	Full Frame	24.0	6000	4000	4k/60p	24.5	14.7	3295	93
4.		Fujifilm X-H2S	APS-C	26.0	6240	4160	6.2k/30p	24.3	13.9	2224	86
5.		Fujifilm X-S10	APS-C	26.0	6240	4160	4K/30p	24.2	13.7	2057	85
6.		Fujifilm X-T3	APS-C	26.0	6240	4160	4K/60p	24.0	13.4	1853	83
7.		Fujifilm X-T5	APS-C	39.8	7728	5152	6.2k/30p	24.3	13.9	2264	86
8.		Fujifilm X-T50	APS-C	39.8	7728	5152	6.2k/30p	24.3	14.1	2418	86
9.		Fujifilm X-T100	APS-C	24.0	6000	4000	4K/15p	24.0	13.4	1829	83
10.		Fujifilm X100F	APS-C	24.0	6000	4000	1080/60p	23.9	13.2	1704	81
11.		Nikon Z5	Full Frame	24.2	6016	4016	4K/30p	25.3	14.3	2929	95
12.		Nikon Z6	Full Frame	24.3	6048	4024	4K/30p	25.3	14.3	3299	95
13.		Nikon Z6 II	Full Frame	24.3	6048	4024	4K/60p	25.0	14.4	3303	94
14.		Nikon Z6 III	Full Frame	24.3	6048	4024	6K/60p	25.4	14.8	3318	97
15.		Nikon Zf	Full Frame	24.3	6048	4024	4K/60p	25.4	14.7	3243	96
16.		Panasonic S9	Full Frame	24.0	6000	4000	6K/30p	25.4	14.8	3297	96
17.		Sony A6700	APS-C	25.6	6192	4128	4K/120p	24.3	14.0	2329	86
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (4K/60p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The two cameras under review are similar with respect to both having an electronic viewfinder. However, the one in the Z5 II offers a substantially higher resolution than the one in the X-S20 (3690k vs 2360k dots). The adjacent table lists some of the other core features of the Fujifilm X-S20 and Nikon Z5 II along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Fujifilm X-S20	2360	n	3.0 / 1840	swivel	Y	1/4000s	8.0/s	Y	Y
2.		Nikon Z5 II	3690	n	3.2 / 2100	swivel	Y	1/8000s	14.0/s	n	Y
3.		Canon R8	2360	n	3.0 / 1620	swivel	Y	1/4000s	6.0/s	n	n
4.		Fujifilm X-H2S	5760	Y	3.0 / 1620	swivel	Y	1/8000s	15.0/s	n	Y
5.		Fujifilm X-S10	2360	n	3.0 / 1040	swivel	Y	1/4000s	8.0/s	Y	Y
6.		Fujifilm X-T3	3690	n	3.0 / 1040	full-flex	Y	1/8000s	11.0/s	n	n
7.		Fujifilm X-T5	3690	n	3.0 / 1840	tilting	Y	1/8000s	15.0/s	n	Y
8.		Fujifilm X-T50	2360	n	3.0 / 1840	tilting	Y	1/4000s	8.0/s	Y	Y
9.		Fujifilm X-T100	2360	n	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
10.		Fujifilm X100F	2360	n	3.0 / 1040	fixed	n	1/4000s	8.0/s	Y	n
11.		Nikon Z5	3690	n	3.2 / 1040	tilting	Y	1/8000s	4.5/s	n	Y
12.		Nikon Z6	3690	Y	3.2 / 2100	tilting	Y	1/8000s	12.0/s	n	Y
13.		Nikon Z6 II	3690	Y	3.2 / 2100	tilting	Y	1/8000s	14.0/s	n	Y
14.		Nikon Z6 III	5760	Y	3.2 / 2100	swivel	Y	1/8000s	14.0/s	n	Y
15.		Nikon Zf	3690	n	3.2 / 2100	swivel	Y	1/8000s	14.0/s	n	Y
16.		Panasonic S9	none	n	3.0 / 1840	swivel	Y	1/8000s	30.0/s	n	Y
17.		Sony A6700	2360	n	3.0 / 1037	swivel	Y	1/4000s	11.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The X-S20 has one, while the Z5 II does not. While the built-in flash of the X-S20 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Fujifilm X-S20 and the Nikon Z5 II both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the X-S20 and the Z5 II write their files to SDXC cards. The Z5 II features dual card slots, which can be very useful in case a memory card fails. In contrast, the X-S20 only has one slot. Moreover, both cameras support UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X-S20 and Nikon Z5 II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Fujifilm X-S20	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
2.		Nikon Z5 II	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
3.		Canon R8	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
4.		Fujifilm X-H2S	Y	stereo / mono	Y	Y	full	3.0	Y	-	Y
5.		Fujifilm X-S10	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
6.		Fujifilm X-T3	Y	stereo / mono	Y	Y	micro	3.1	Y	-	Y
7.		Fujifilm X-T5	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
8.		Fujifilm X-T50	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
9.		Fujifilm X-T100	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
10.		Fujifilm X100F	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
11.		Nikon Z5	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
12.		Nikon Z6	Y	stereo / mono	Y	Y	micro	3.1	Y	-	Y
13.		Nikon Z6 II	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
14.		Nikon Z6 III	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
15.		Nikon Zf	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
16.		Panasonic S9	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
17.		Sony A6700	Y	stereo / mono	Y	Y	YES	3.2	Y	Y	Y

Both the X-S20 and the Z5 II are recent models that are part of the current product line-up. The X-S20 replaced the earlier Fujifilm X-S10, while the Z5 II followed on from the Nikon Z5. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Fujifilm and Nikon websites.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Fujifilm X-S20 and the Nikon Z5 II? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Fujifilm X-S20:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• More compact: Is smaller (128x85mm vs 134x101mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 209g or 30 percent) and hence easier to carry around.
• Longer lasting: Can take more shots (750 versus 330) on a single battery charge.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More affordable: Was introduced into a lower priced segment (24 percent cheaper at launch).
• More heavily discounted: Has been on the market for longer (launched in May 2023).

Arguments in favor of the Nikon Z5 II:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• More detailed viewfinder: Has higher resolution electronic viewfinder (3690k vs 2360k dots).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.80x vs 0.62x).
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (2100k vs 1840k dots).
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (14 vs 8 flaps/sec) to capture the decisive moment.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More modern: Was introduced somewhat (1 year and 10 months) more recently.

If the count of individual advantages (bullet points above) is taken as a guide, the Z5 II is the clear winner of the contest (14 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Fujifilm X-S20 and the Nikon Z5 II place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the X-S20 or the Z5 II. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Fujifilm X-S20	5/5	+ +	5/5	86/100	..	4.5/5	May 2023	US$ 1 299	amazon.com
2.		Nikon Z5 II	..	..	..	..	..	..	Apr 2025	US$ 1 699	amazon.com
3.		Canon R8	4.5/5	+ +	4.5/5	87/100	4/5	4.5/5	Feb 2023	US$ 1 499	amazon.com
4.		Fujifilm X-H2S	5/5	+	5/5	90/100	5/5	5/5	May 2022	US$ 2 499	amazon.com
5.		Fujifilm X-S10	5/5	..	4.5/5	86/100	4.5/5	4.5/5	Oct 2020	US$ 999	amazon.com
6.		Fujifilm X-T3	5/5	+ +	4.5/5	88/100	5/5	5/5	Sep 2018	US$ 1 499	ebay.com
7.		Fujifilm X-T5	5/5	+ +	4.5/5	90/100	4.5/5	..	Nov 2022	US$ 1 699	amazon.com
8.		Fujifilm X-T50	..	..	..	85/100	..	..	May 2024	US$ 1 399	amazon.com
9.		Fujifilm X-T100	4/5	+	4.5/5	79/100	4/5	4.5/5	May 2018	US$ 599	ebay.com
10.		Fujifilm X100F	5/5	+	3.9/5	83/100	4.5/5	4.5/5	Jan 2017	US$ 1 299	ebay.com
11.		Nikon Z5	4/5	..	4/5	89/100	4.5/5	4/5	Jul 2020	US$ 1 399	ebay.com
12.		Nikon Z6	5/5	..	5/5	89/100	4.5/5	5/5	Aug 2018	US$ 1 999	ebay.com
13.		Nikon Z6 II	4.5/5	..	4/5	89/100	4.5/5	4.5/5	Oct 2020	US$ 1 999	amazon.com
14.		Nikon Z6 III	..	..	..	..	..	..	Jun 2024	US$ 2 499	amazon.com
15.		Nikon Zf	4.5/5	..	4.5/5	90/100	4.5/5	5/5	Sep 2023	US$ 1 999	amazon.com
16.		Panasonic S9	..	..	..	..	..	..	May 2024	US$ 1 499	amazon.com
17.		Sony A6700	4.5/5	+	4.5/5	88/100	4.5/5	4.5/5	Jul 2023	US$ 1 399	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
