Kodak AZ901 vs Olympus Stylus 1

The Kodak PixPro AZ901 and the Olympus Stylus 1 are two digital cameras that were revealed to the public, respectively, in January 2016 and October 2013. Both the AZ901 and the Stylus 1 are fixed lens compact cameras that are based on a 1/2.3-inch (AZ901) and a 1/1.7-inch (Stylus 1) sensor. The Kodak has a resolution of 20.2 megapixels, whereas the Olympus provides 11.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Kodak AZ901		Olympus Stylus 1
Fixed lens compact camera		Fixed lens compact camera
22-1980mm f/3.1-6.8		28-300mm f/2.8
20.2 MP – 1/2.3" sensor		11.8 MP – 1/1.7" sensor
1080/30p Video		1080/30p Video
ISO 100-3,200		ISO 100-12,800
Electronic viewfinder (202k dots)		Electronic viewfinder (1440k dots)
3.0" LCD – 920k dots		3.0" LCD – 1040k dots
Swivel screen (not touch-sensitive)		Tilting touchscreen
5 shutter flaps per second		7 shutter flaps per second
400 shots per battery charge		410 shots per battery charge
139 x 104 x 119 mm, 777 g		116 x 87 x 57 mm, 402 g

Check AZ901 price at
amazon.com
Check Stylus 1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Kodak PixPro AZ901 and the Olympus Stylus 1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

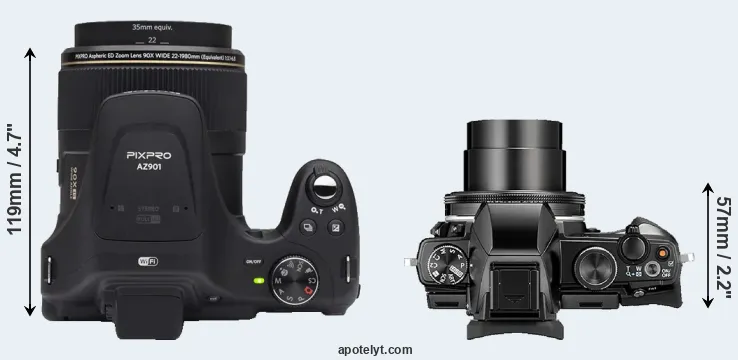

Body comparison

The physical size and weight of the Kodak AZ901 and the Olympus Stylus 1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus Stylus 1 is considerably smaller (30 percent) than the Kodak AZ901. Moreover, the Stylus 1 is substantially lighter (48 percent) than the AZ901. In this context, it is worth noting that neither the AZ901 nor the Stylus 1 are weather-sealed.

Concerning battery life, the AZ901 gets 400 shots out of its Kodak LB-070 battery, while the Stylus 1 can take 410 images on a single charge of its Olympus BLS-5 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Kodak AZ901	139 mm	104 mm	119 mm	777 g	400	n	Jan 2016	US$ 499	amazon.com
2.		Olympus Stylus 1	116 mm	87 mm	57 mm	402 g	410	n	Oct 2013	US$ 699	ebay.com
3.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	US$ 799	ebay.com
4.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	US$ 529	ebay.com
5.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	US$ 529	ebay.com
6.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
7.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	US$ 599	ebay.com
8.		Leica Q Typ 116	130 mm	80 mm	93 mm	640 g	300	n	Jun 2015	US$ 4 249	ebay.com
9.		Nikon B700	125 mm	85 mm	107 mm	565 g	350	n	Feb 2016	US$ 499	ebay.com
10.		Nikon P900	140 mm	103 mm	137 mm	899 g	360	n	Mar 2015	US$ 599	ebay.com
11.		Olympus Stylus 1s	116 mm	87 mm	57 mm	402 g	450	n	Apr 2015	US$ 699	ebay.com
12.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	US$ 599	ebay.com
13.		Panasonic FZ2000	138 mm	102 mm	135 mm	915 g	350	n	Sep 2016	US$ 1 199	amazon.com
14.		Panasonic TZ90	112 mm	67 mm	41 mm	322 g	380	n	Apr 2017	US$ 449	ebay.com
15.		Sony HX90V	102 mm	58 mm	36 mm	245 g	360	n	Apr 2015	US$ 429	ebay.com
16.		Sony HX350	130 mm	93 mm	103 mm	652 g	300	n	Dec 2016	US$ 449	ebay.com
17.		Sony HX400V	130 mm	93 mm	103 mm	660 g	300	n	Feb 2014	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The AZ901 was launched at a markedly lower price (by 29 percent) than the Stylus 1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

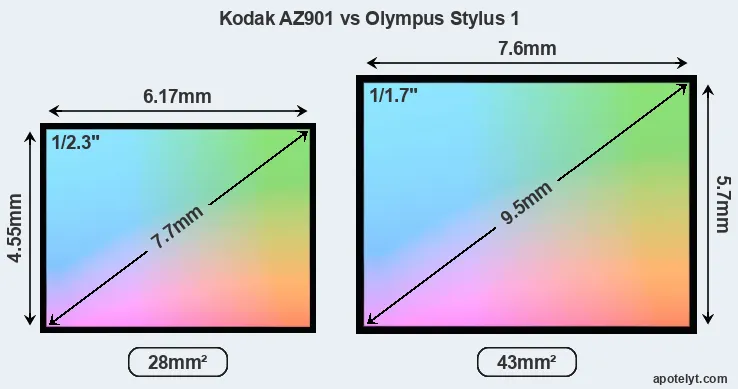

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Kodak AZ901 features a 1/2.3-inch sensor and the Olympus Stylus 1 a 1/1.7-inch sensor. The sensor area in the Stylus 1 is 54 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 4.5. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Despite having a smaller sensor, the Kodak AZ901 offers a higher resolution of 20.2 megapixels, compared with 11.8 MP of the Olympus Stylus 1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 1.91μm for the Stylus 1). However, it should be noted that the AZ901 is much more recent (by 2 years and 2 months) than the Stylus 1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the Stylus 1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Kodak AZ901 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the AZ901 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Olympus Stylus 1 are 19.8 x 14.9 inches or 50.4 x 37.8 cm for good quality, 15.9 x 11.9 inches or 40.3 x 30.2 cm for very good quality, and 13.2 x 9.9 inches or 33.6 x 25.2 cm for excellent quality prints.

The Kodak PixPro AZ901 has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Olympus Stylus 1 are ISO 100 to ISO 12800 (no boost).

Technology-wise, both cameras are equipped with BSI-CMOS (Backside Illuminated Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Kodak AZ901	1/2.3	20.2	5184	3888	1080/30p	20.3	11.7	806	48
2.		Olympus Stylus 1	1/1.7	11.8	3968	2976	1080/30p	20.7	11.6	179	51
3.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
4.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
5.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
6.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
7.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
8.		Leica Q Typ 116	Full Frame	24.0	6000	4000	1080/60p	24.3	12.7	2221	85
9.		Nikon B700	1/2.3	20.2	5184	3888	4K/30p	20.4	11.8	818	48
10.		Nikon P900	1/2.3	15.9	4608	3456	1080/60p	20.2	11.6	727	47
11.		Olympus Stylus 1s	1/1.7	11.8	3968	2976	1080/30p	20.2	11.3	-111	47
12.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
13.		Panasonic FZ2000	1-inch	20.0	5472	3648	4K/30p	23.0	12.6	538	70
14.		Panasonic TZ90	1/2.3	20.2	5184	3888	4K/30p	19.1	10.6	106	36
15.		Sony HX90V	1/2.3	18.0	4896	3672	1080/60p	20.2	11.6	738	47
16.		Sony HX350	1/2.3	19.9	5152	3864	1080/60p	20.5	11.9	896	49
17.		Sony HX400V	1/2.3	20.2	5184	3888	1080/60p	20.1	11.4	629	45
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (1080/30p).

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The two cameras under review are similar with respect to both having an electronic viewfinder. However, the one in the Stylus 1 offers a substantially higher resolution than the one in the AZ901 (1440k vs 202k dots). The following table reports on some other key feature differences and similarities of the Kodak AZ901, the Olympus Stylus 1, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Kodak AZ901	202	n	3.0 / 920	swivel	n	1/2000s	5.0/s	Y	Y
2.		Olympus Stylus 1	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
3.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
4.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
5.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
6.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
7.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
8.		Leica Q Typ 116	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
9.		Nikon B700	921	n	3.0 / 921	swivel	n	1/4000s	5.0/s	Y	Y
10.		Nikon P900	921	n	3.0 / 921	swivel	n	1/4000s	7.0/s	Y	Y
11.		Olympus Stylus 1s	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
12.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
13.		Panasonic FZ2000	2360	n	3.0 / 1040	swivel	Y	1/4000s	12.0/s	Y	Y
14.		Panasonic TZ90	1166	n	3.0 / 1040	tilting	Y	1/2000s	10.0/s	Y	Y
15.		Sony HX90V	638	n	3.0 / 921	tilting	n	1/2000s	10.0/s	Y	Y
16.		Sony HX350	202	n	3.0 / 922	tilting	n	1/4000s	10.0/s	Y	Y
17.		Sony HX400V	210	n	3.0 / 921	tilting	n	1/4000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The Stylus 1 has a touchscreen, while the AZ901 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Olympus Stylus 1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Both the AZ901 and the Stylus 1 have zoom lenses built in. The AZ901 has a 22-1980mm f/3.1-6.8 optic and the Stylus 1 offers a 28-300mm f/2.8-2.8 (focal lengths in full frame equivalent terms). Hence, the Kodak provides a wider angle of view at the short end, as well as more tele-photo reach at the long end than the Olympus. The Stylus 1 offers the faster maximum aperture.

Concerning the storage of imaging data, both the AZ901 and the Stylus 1 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Kodak PixPro AZ901 and Olympus Stylus 1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Kodak AZ901	-	stereo / mono	-	-	micro	2.0	Y	-	-
2.		Olympus Stylus 1	Y	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
4.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
5.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
6.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
7.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
8.		Leica Q Typ 116	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
9.		Nikon B700	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
10.		Nikon P900	-	stereo / mono	-	-	micro	2.0	Y	Y	-
11.		Olympus Stylus 1s	Y	stereo / mono	-	-	micro	2.0	Y	-	-
12.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Panasonic FZ2000	Y	stereo / mono	Y	Y	micro	2.0	Y	-	-
14.		Panasonic TZ90	-	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Sony HX90V	-	stereo / mono	-	-	micro	2.0	Y	Y	-
16.		Sony HX350	-	stereo / mono	-	-	micro	2.0	-	-	-
17.		Sony HX400V	Y	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the Stylus 1 has a hotshoe, which makes it possible to easily attach optional accessories, such as an external flash gun. The AZ901 does not feature such an accessory-socket.

The AZ901 is a recent model that features in the current product line-up of Kodak. In contrast, the Stylus 1 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the Stylus 1 was succeeded by the Olympus Stylus 1s. Further information on the features and operation of the AZ901 and Stylus 1 can be found, respectively, in the Kodak AZ901 Manual (free pdf) or the online Olympus Stylus 1 Manual.

Review summary

So how do things add up? Which of the two cameras – the Kodak AZ901 or the Olympus Stylus 1 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Kodak PixPro AZ901:

• More detail: Offers more megapixels (20.2 vs 11.8MP) with a 31% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• More affordable: Was introduced into a lower priced category (29 percent cheaper at launch).
• More modern: Reflects 2 years and 2 months of technical progress since the Stylus 1 launch.

Reasons to prefer the Olympus Stylus 1:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• More detailed viewfinder: Has higher resolution electronic viewfinder (1440k vs 202k dots).
• More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster burst: Shoots at higher frequency (7 vs 5 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Better light gathering: Has a lens with a wider maximum aperture (f/2.8 vs f/3.1).
• More compact: Is smaller (116x87mm vs 139x104mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 375g or 48 percent) and is thus easier to take along.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been around for much longer (launched in October 2013).

If the count of individual advantages (bullet points above) is taken as a guide, the Stylus 1 is the clear winner of the contest (15 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Kodak AZ901 and the Olympus Stylus 1 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the AZ901 or the Stylus 1. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Kodak AZ901	..	..	..	..	3.5/5	3/5	Jan 2016	US$ 499	amazon.com
2.		Olympus Stylus 1	..	+ +	..	..	4.5/5	4.5/5	Oct 2013	US$ 699	ebay.com
3.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	US$ 799	ebay.com
4.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	US$ 529	ebay.com
5.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	US$ 529	ebay.com
6.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
7.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	US$ 599	ebay.com
8.		Leica Q Typ 116	5/5	..	..	80/100	4.5/5	4.5/5	Jun 2015	US$ 4 249	ebay.com
9.		Nikon B700	..	+	..	..	4/5	4/5	Feb 2016	US$ 499	ebay.com
10.		Nikon P900	..	..	..	77/100	4/5	4/5	Mar 2015	US$ 599	ebay.com
11.		Olympus Stylus 1s	..	..	..	..	..	..	Apr 2015	US$ 699	ebay.com
12.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
13.		Panasonic FZ2000	..	+	..	82/100	4.5/5	5/5	Sep 2016	US$ 1 199	amazon.com
14.		Panasonic TZ90	..	+ +	4/5	..	4/5	4/5	Apr 2017	US$ 449	ebay.com
15.		Sony HX90V	4/5	+ +	..	..	4/5	4.5/5	Apr 2015	US$ 429	ebay.com
16.		Sony HX350	..	..	..	..	..	4/5	Dec 2016	US$ 449	ebay.com
17.		Sony HX400V	4/5	+ +	..	..	4/5	4/5	Feb 2014	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check AZ901 price at
amazon.com
Check Stylus 1 offers at
ebay.com
