Leica M-E Typ 240 vs S1

The Leica M-E (Typ 240) and the Leica S1 Pro are two digital cameras that were revealed to the public, respectively, in June 2019 and August 1996. The M-E Typ 240 is a rangefinder-focusing mirrorless, while the S1 is a mirrorless interchangeable lens camera. The cameras are based on a full frame (M-E Typ 240) and a medium format (S1) sensor. The M-E Typ 240 has a resolution of 23.7 megapixels, whereas the S1 provides 26.4 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica M-E Typ 240		Leica S1
Rangefinder camera		Mirrorless system camera
Leica M mount lenses		Leica R mount lenses
23.7 MP – Full Frame sensor		26.4 MP – Medium Format sensor
1080/25p Video		no Video
ISO 200-6,400		ISO 50-1,600
Optical viewfinder		Optical viewfinder
3.0" LCD – 920k dots		no LCD
Fixed screen (not touch-sensitive)		no rear screen
3 shutter flaps per second		0.01 shutter flaps per second
Weathersealed body		not weather sealed
139 x 80 x 42 mm, 680 g		339 x 214 x 119 mm, 2500 g

Check M-E Typ 240 offers at
ebay.com
Check S1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica M-E (Typ 240) and the Leica S1 Pro? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

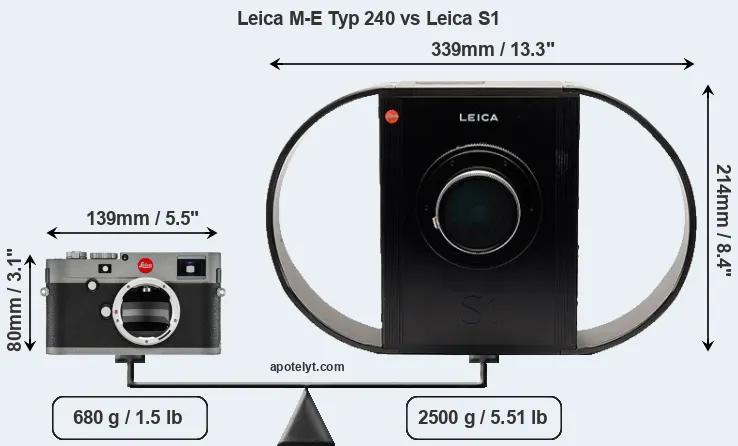

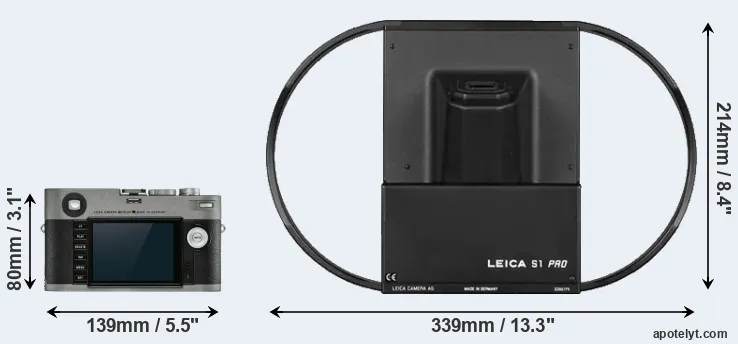

The side-by-side display below illustrates the physical size and weight of the Leica M-E Typ 240 and the Leica S1. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica S1 is considerably larger (552 percent) than the Leica M-E Typ 240. Moreover, the S1 is substantially heavier (268 percent) than the M-E Typ 240. It is worth mentioning in this context that the M-E Typ 240 is splash and dust resistant, while the S1 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Leica M Lens Catalog (M-E Typ 240) and the Leica R Lens Catalog (S1).

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Leica M-E Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Jun 2019	US$ 3 999	ebay.com
2.		Leica S1	339 mm	214 mm	119 mm	2500 g	..	n	Aug 1996	US$ 21 499	ebay.com
3.		Leica CL	131 mm	78 mm	45 mm	403 g	220	n	Nov 2017	US$ 2 795	ebay.com
4.		Leica M Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Sep 2012	US$ 6 949	ebay.com
5.		Leica M Typ 262	139 mm	80 mm	42 mm	680 g	400	Y	Nov 2015	US$ 5 195	ebay.com
6.		Leica M10	139 mm	80 mm	39 mm	660 g	210	Y	Jan 2017	US$ 6 599	ebay.com
7.		Leica M10-P	139 mm	80 mm	39 mm	660 g	210	Y	Aug 2018	US$ 7 999	ebay.com
8.		Leica M10-R	139 mm	80 mm	39 mm	660 g	210	Y	Jul 2020	US$ 8 299	ebay.com
9.		Leica M11	139 mm	80 mm	39 mm	640 g	700	Y	Jan 2022	US$ 8 999	amazon.com
10.		Leica Q Typ 116	130 mm	80 mm	93 mm	640 g	300	n	Jun 2015	US$ 4 249	ebay.com
11.		Leica Q2	130 mm	80 mm	92 mm	718 g	370	Y	Mar 2019	US$ 4 999	amazon.com
12.		Leica S2	160 mm	120 mm	80 mm	1410 g	..	Y	Sep 2008	US$ 22 999	ebay.com
13.		Leica TL2	134 mm	69 mm	33 mm	399 g	250	n	Jul 2017	US$ 1 949	ebay.com
14.		Sony A7 III	127 mm	96 mm	74 mm	650 g	610	Y	Feb 2018	US$ 1 999	amazon.com
15.		Sony A9 II	129 mm	96 mm	76 mm	678 g	690	Y	Oct 2019	US$ 4 499	amazon.com
16.		Sony A6400	120 mm	67 mm	50 mm	403 g	410	Y	Jan 2019	US$ 899	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The M-E Typ 240 was launched at a markedly lower price (by 81 percent) than the S1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

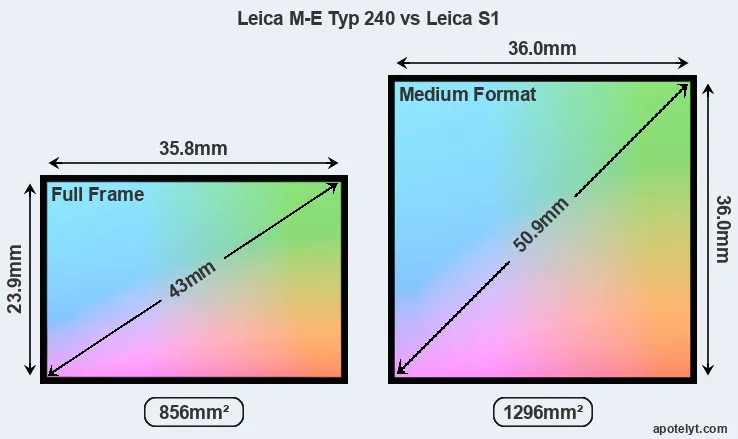

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Leica M-E Typ 240 features a full frame sensor and the Leica S1 a medium format sensor. The sensor area in the S1 is 51 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 0.85. The sensor in the M-E Typ 240 has a native 3:2 aspect ratio, while the one in the S1 offers a 1:1 aspect.

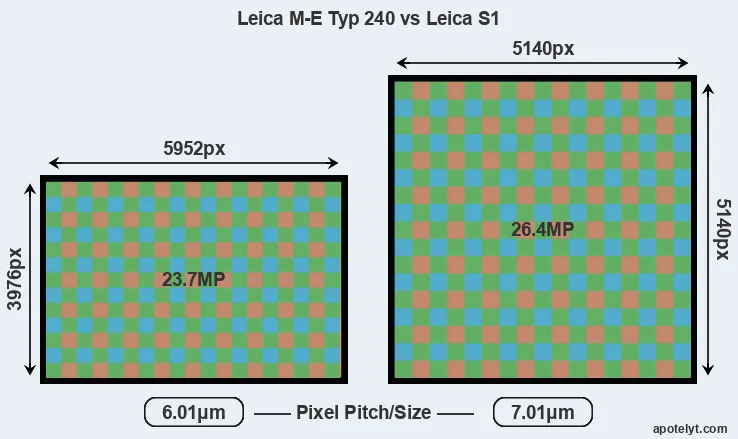

With 26.4MP, the S1 offers a higher resolution than the M-E Typ 240 (23.7MP), but the S1 nevertheless has larger individual pixels (pixel pitch of 7.01μm versus 6.01μm for the M-E Typ 240) due to its larger sensor. However, the M-E Typ 240 is a much more recent model (by 22 years and 9 months) than the S1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the S1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Leica M-E (Typ 240) has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-6400. The corresponding ISO settings for the Leica S1 Pro are ISO 50 to ISO 1600 (no boost).

In terms of underlying technology, the M-E Typ 240 is build around a CMOS sensor, while the S1 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica M-E Typ 240	Full Frame	23.7	5952	3976	1080/25p	25.2	14.2	2821	94
2.		Leica S1	Medium Format	26.4	5140	5140	none	..	..	..	..
3.		Leica CL	APS-C	24.1	6014	4014	4K/30p	24.0	13.3	1788	82
4.		Leica M Typ 240	Full Frame	23.7	5952	3976	1080/25p	24.0	13.3	1860	84
5.		Leica M Typ 262	Full Frame	23.7	5952	3976	none	24.8	13.7	2478	90
6.		Leica M10	Full Frame	23.8	5952	3992	none	24.4	13.2	2133	86
7.		Leica M10-P	Full Frame	23.8	5952	3992	none	25.1	14.1	2739	93
8.		Leica M10-R	Full Frame	40.9	7864	5200	none	25.3	14.3	2924	95
9.		Leica M11	Full Frame	60.3	9528	6328	none	26.3	14.8	3376	100
10.		Leica Q Typ 116	Full Frame	24.0	6000	4000	1080/60p	24.3	12.7	2221	85
11.		Leica Q2	Full Frame	46.7	8368	5584	4K/30p	26.4	13.5	2491	96
12.		Leica S2	Medium Format	37.5	7500	5000	none	23.9	12.5	2224	82
13.		Leica TL2	APS-C	24.1	6014	4014	4K/30p	23.9	13.3	1753	82
14.		Sony A7 III	Full Frame	24.0	6000	4000	4K/30p	25.0	14.7	3730	96
15.		Sony A9 II	Full Frame	24.0	6000	4000	4K/30p	25.0	14.0	3434	93
16.		Sony A6400	APS-C	24.0	6000	4000	4K/30p	24.0	13.6	1431	83
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The M-E Typ 240 indeed provides movie recording capabilities, while the S1 does not. The highest resolution format that the M-E Typ 240 can use is 1080/25p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The M-E Typ 240 and the S1 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The following table reports on some other key feature differences and similarities of the Leica M-E Typ 240, the Leica S1, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica M-E Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
2.		Leica S1	optical	n	none / none	none	n	..	0.01/s	n	n
3.		Leica CL	2360	Y	3.0 / 1040	fixed	Y	1/8000s	10.0/s	n	n
4.		Leica M Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
5.		Leica M Typ 262	optical	n	3.0 / 921	fixed	n	1/4000s	3.0/s	n	n
6.		Leica M10	optical	n	3.0 / 1037	fixed	n	1/4000s	5.0/s	n	n
7.		Leica M10-P	optical	n	3.0 / 1037	fixed	Y	1/4000s	5.0/s	n	n
8.		Leica M10-R	optical	n	3.0 / 1037	fixed	Y	1/4000s	4.5/s	n	n
9.		Leica M11	optical	n	3.0 / 2333	fixed	Y	1/4000s	4.5/s	n	n
10.		Leica Q Typ 116	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
11.		Leica Q2	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
12.		Leica S2	optical	Y	3.0 / 460	fixed	n	1/4000s	1.5/s	n	n
13.		Leica TL2	optional	n	3.7 / 1230	fixed	Y	1/4000s	7.0/s	n	n
14.		Sony A7 III	2359	n	3.0 / 922	tilting	Y	1/8000s	10.0/s	n	Y
15.		Sony A9 II	3686	n	3.0 / 1440	tilting	Y	1/8000s	20.0/s	n	Y
16.		Sony A6400	2359	n	3.0 / 922	tilting	Y	1/4000s	11.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The M-E Typ 240 writes its imaging data to SDXC cards, while the S1 uses external storage.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica M-E (Typ 240) and Leica S1 Pro and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica M-E Typ 240	Y	mono / -	-	-	-	2.0	-	-	-
2.		Leica S1	-	- / -	-	-	-	-	-	-	-
3.		Leica CL	Y	stereo / mono	-	-	-	-	Y	-	-
4.		Leica M Typ 240	Y	stereo / mono	-	-	-	2.0	-	-	-
5.		Leica M Typ 262	Y	- / -	-	-	-	2.0	-	-	-
6.		Leica M10	Y	- / -	-	-	-	-	Y	-	-
7.		Leica M10-P	Y	- / -	-	-	-	-	Y	-	-
8.		Leica M10-R	Y	- / -	-	-	-	-	Y	-	-
9.		Leica M11	Y	- / -	-	-	-	3.2	Y	-	Y
10.		Leica Q Typ 116	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
11.		Leica Q2	Y	stereo / mono	-	-	-	-	Y	-	Y
12.		Leica S2	Y	- / -	-	-	mini	2.0	-	-	-
13.		Leica TL2	Y	stereo / mono	-	-	micro	3.0	Y	-	-
14.		Sony A7 III	Y	stereo / mono	Y	Y	micro	3.1	Y	Y	Y
15.		Sony A9 II	Y	stereo / mono	Y	Y	micro	3.1	Y	Y	Y
16.		Sony A6400	Y	stereo / mono	Y	-	micro	2.0	Y	Y	Y

It is notable that the M-E Typ 240 has a hotshoe, while the S1 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Both the M-E Typ 240 and the S1 have been discontinued, but can regularly be found used on ebay. The S1 was replaced by the Leica S2, while the M-E Typ 240 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Leica website.

Review summary

So what is the bottom line? Is there a clear favorite between the Leica M-E Typ 240 and the Leica S1? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Leica M-E (Typ 240):

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Broader imaging potential: Can record not only still images but also 1080/25p movies.
• Rear screen: Has a backside LCD (3.0") for image review and settings control.
• Faster burst: Shoots at higher frequency (3 vs 0.01 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (139x80mm vs 339x214mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 1820g or 73 percent) and hence easier to carry around.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More affordable: Was introduced into a lower priced category (81 percent cheaper at launch).
• More modern: Reflects 22 years and 9 months of technical progress since the S1 launch.

Reasons to prefer the Leica S1 Pro:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• More heavily discounted: Has been around for much longer (launched in August 1996).

If the number of relative strengths (bullet points above) is taken as a guide, the M-E Typ 240 is the clear winner of the match-up (10 : 2 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the M-E Typ 240 or the S1. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Leica M-E Typ 240	..	..	..	..	..	..	Jun 2019	US$ 3 999	ebay.com
2.		Leica S1	..	..	..	..	..	..	Aug 1996	US$ 21 499	ebay.com
3.		Leica CL	..	..	4.2/5	..	..	4/5	Nov 2017	US$ 2 795	ebay.com
4.		Leica M Typ 240	4/5	..	..	..	4/5	..	Sep 2012	US$ 6 949	ebay.com
5.		Leica M Typ 262	..	..	..	..	..	..	Nov 2015	US$ 5 195	ebay.com
6.		Leica M10	4.5/5	..	..	..	4/5	4.5/5	Jan 2017	US$ 6 599	ebay.com
7.		Leica M10-P	..	..	3/5	..	..	4/5	Aug 2018	US$ 7 999	ebay.com
8.		Leica M10-R	4.5/5	..	4/5	..	..	4/5	Jul 2020	US$ 8 299	ebay.com
9.		Leica M11	4.5/5	..	4.5/5	..	4.5/5	4.5/5	Jan 2022	US$ 8 999	amazon.com
10.		Leica Q Typ 116	5/5	..	..	80/100	4.5/5	4.5/5	Jun 2015	US$ 4 249	ebay.com
11.		Leica Q2	..	..	4.5/5	84/100	4.5/5	4/5	Mar 2019	US$ 4 999	amazon.com
12.		Leica S2	..	..	..	..	..	..	Sep 2008	US$ 22 999	ebay.com
13.		Leica TL2	3.5/5	..	3/5	..	4/5	4/5	Jul 2017	US$ 1 949	ebay.com
14.		Sony A7 III	..	+ +	4.5/5	89/100	5/5	5/5	Feb 2018	US$ 1 999	amazon.com
15.		Sony A9 II	..	..	5/5	90/100	5/5	5/5	Oct 2019	US$ 4 499	amazon.com
16.		Sony A6400	4/5	+	4/5	85/100	4.5/5	4/5	Jan 2019	US$ 899	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
