Leica M Typ 240 vs Nikon D780

The Leica M (Typ 240) and the Nikon D780 are two enthusiast cameras that were revealed to the public, respectively, in September 2012 and January 2020. The M Typ 240 is a rangefinder-focusing mirrorless camera, while the D780 is a DSLR. Both cameras are equipped with a full frame sensor. The Leica has a resolution of 23.7 megapixels, whereas the Nikon provides 24.3 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica M Typ 240		Nikon D780
Rangefinder camera		Digital single lens reflex
Leica M mount lenses		Nikon F mount lenses
23.7 MP – Full Frame sensor		24.3 MP – Full Frame sensor
1080/25p Video		4K/30p Video
ISO 200-6,400		ISO 100-51,200 (50 - 204,800)
Optical viewfinder		Optical viewfinder
3.0" LCD – 920k dots		3.2" LCD – 2359k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
3 shutter flaps per second		12 shutter flaps per second
Weathersealed body		Weathersealed body
500 shots per battery charge		2260 shots per battery charge
139 x 80 x 42 mm, 680 g		144 x 116 x 76 mm, 840 g

Check M Typ 240 offers at
ebay.com
Check D780 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica M (Typ 240) and the Nikon D780? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

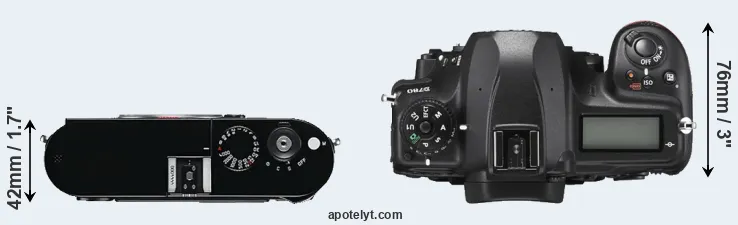

Body comparison

The physical size and weight of the Leica M Typ 240 and the Nikon D780 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

The M Typ 240 can be obtained in two different colors (black, silver), while the D780 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D780 is considerably larger (50 percent) than the Leica M Typ 240. Moreover, the D780 is markedly heavier (24 percent) than the M Typ 240. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Leica M Lens Catalog (M Typ 240) and the Nikon Lens Catalog (D780).

Concerning battery life, the M Typ 240 gets 500 shots out of its Leica BP-SCL2 battery, while the D780 can take 2260 images on a single charge of its Nikon EN-EL15b power pack. The power pack in the D780 can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Leica M Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Sep 2012	US$ 6 949	ebay.com
2.		Nikon D780	144 mm	116 mm	76 mm	840 g	2260	Y	Jan 2020	US$ 2 299	amazon.com
3.		Canon 6D	145 mm	111 mm	71 mm	770 g	1090	Y	Sep 2012	US$ 2 099	ebay.com
4.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	US$ 1 999	amazon.com
5.		Leica M-E Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Jun 2019	US$ 3 999	ebay.com
6.		Leica M Typ 262	139 mm	80 mm	42 mm	680 g	400	Y	Nov 2015	US$ 5 195	ebay.com
7.		Leica M9	139 mm	80 mm	37 mm	585 g	550	n	Sep 2009	US$ 7 999	ebay.com
8.		Leica M10	139 mm	80 mm	39 mm	660 g	210	Y	Jan 2017	US$ 6 599	ebay.com
9.		Leica M10-P	139 mm	80 mm	39 mm	660 g	210	Y	Aug 2018	US$ 7 999	ebay.com
10.		Leica M10-R	139 mm	80 mm	39 mm	660 g	210	Y	Jul 2020	US$ 8 299	ebay.com
11.		Leica M11	139 mm	80 mm	39 mm	640 g	700	Y	Jan 2022	US$ 8 999	amazon.com
12.		Leica SL	147 mm	104 mm	39 mm	847 g	400	Y	Oct 2015	US$ 7 449	ebay.com
13.		Nikon D5	160 mm	159 mm	92 mm	1415 g	3780	Y	Jan 2016	US$ 6 499	ebay.com
14.		Nikon D6	160 mm	163 mm	92 mm	1270 g	3580	Y	Feb 2020	US$ 6 499	amazon.com
15.		Nikon D750	141 mm	113 mm	78 mm	750 g	1230	Y	Sep 2014	US$ 2 299	ebay.com
16.		Nikon Z6 II	134 mm	101 mm	70 mm	705 g	410	Y	Oct 2020	US$ 1 999	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The D780 was launched at a markedly lower price (by 67 percent) than the M Typ 240, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature a full frame sensor, but their sensors differ slightly in size. They nevertheless have the same format factor of 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 24.3MP, the D780 offers a higher resolution than the M Typ 240 (23.7MP), but the D780 has marginally smaller individual pixels (pixel pitch of 5.94μm versus 6.01μm for the M Typ 240). Yet, the D780 is a much more recent model (by 7 years and 3 months) than the M Typ 240, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.

The D780 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Leica M (Typ 240) has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-6400. The corresponding ISO settings for the Nikon D780 are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-204800.

In terms of underlying technology, the M Typ 240 is build around a CMOS sensor, while the D780 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica M Typ 240	Full Frame	23.7	5952	3976	1080/25p	24.0	13.3	1860	84
2.		Nikon D780	Full Frame	24.3	6048	4024	4K/30p	25.3	14.3	2877	95
3.		Canon 6D	Full Frame	20.0	5472	3648	1080/30p	23.8	12.1	2340	82
4.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
5.		Leica M-E Typ 240	Full Frame	23.7	5952	3976	1080/25p	25.2	14.2	2821	94
6.		Leica M Typ 262	Full Frame	23.7	5952	3976	none	24.8	13.7	2478	90
7.		Leica M9	Full Frame	18.1	5212	3472	none	22.5	11.7	884	69
8.		Leica M10	Full Frame	23.8	5952	3992	none	24.4	13.2	2133	86
9.		Leica M10-P	Full Frame	23.8	5952	3992	none	25.1	14.1	2739	93
10.		Leica M10-R	Full Frame	40.9	7864	5200	none	25.3	14.3	2924	95
11.		Leica M11	Full Frame	60.3	9528	6328	none	26.3	14.8	3376	100
12.		Leica SL	Full Frame	24.0	6000	4000	4K/30p	25.0	13.4	1821	88
13.		Nikon D5	Full Frame	20.7	5588	3712	4K/30p	25.1	12.3	2343	88
14.		Nikon D6	Full Frame	20.7	5568	3712	4K/30p	25.3	14.3	2886	95
15.		Nikon D750	Full Frame	24.2	6016	4016	1080/60p	24.8	14.5	2956	93
16.		Nikon Z6 II	Full Frame	24.3	6048	4024	4K/60p	25.0	14.4	3303	94
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the D780 provides a better video resolution than the M Typ 240. It can shoot movie footage at 4K/30p, while the Leica is limited to 1080/25p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The M Typ 240 and the D780 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the D780 has a higher magnification than the one of the M Typ 240 (0.70x vs 0.68x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Leica M Typ 240 and Nikon D780 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica M Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
2.		Nikon D780	optical	Y	3.2 / 2359	tilting	Y	1/8000s	12.0/s	n	n
3.		Canon 6D	optical	Y	3.0 / 1040	fixed	n	1/4000s	4.5/s	n	n
4.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
5.		Leica M-E Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
6.		Leica M Typ 262	optical	n	3.0 / 921	fixed	n	1/4000s	3.0/s	n	n
7.		Leica M9	optical	n	2.5 / 230	fixed	n	1/4000s	2.0/s	n	n
8.		Leica M10	optical	n	3.0 / 1037	fixed	n	1/4000s	5.0/s	n	n
9.		Leica M10-P	optical	n	3.0 / 1037	fixed	Y	1/4000s	5.0/s	n	n
10.		Leica M10-R	optical	n	3.0 / 1037	fixed	Y	1/4000s	4.5/s	n	n
11.		Leica M11	optical	n	3.0 / 2333	fixed	Y	1/4000s	4.5/s	n	n
12.		Leica SL	4400	Y	3.0 / 1040	fixed	Y	1/8000s	11.0/s	n	n
13.		Nikon D5	optical	Y	3.2 / 2359	fixed	Y	1/8000s	14.0/s	n	n
14.		Nikon D6	optical	Y	3.2 / 2359	fixed	Y	1/8000s	14.0/s	n	n
15.		Nikon D750	optical	Y	3.2 / 1229	tilting	n	1/4000s	6.0/s	Y	n
16.		Nikon Z6 II	3690	Y	3.2 / 2100	tilting	Y	1/8000s	14.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The D780 has a touchscreen, while the M Typ 240 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Nikon D780 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the M Typ 240 and the D780 write their files to SDXC cards. The D780 features dual card slots, which can be very useful in case a memory card fails. In contrast, the M Typ 240 only has one slot. The D780 supports UHS-II cards (on both slots), while the M Typ 240 can use UHS-I cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica M (Typ 240) and Nikon D780 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica M Typ 240	Y	stereo / mono	-	-	-	2.0	-	-	-
2.		Nikon D780	Y	stereo / mono	Y	Y	mini	3.1	Y	-	Y
3.		Canon 6D	Y	mono / mono	Y	-	mini	2.0	Y	-	-
4.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Leica M-E Typ 240	Y	mono / -	-	-	-	2.0	-	-	-
6.		Leica M Typ 262	Y	- / -	-	-	-	2.0	-	-	-
7.		Leica M9	Y	- / -	-	-	-	2.0	-	-	-
8.		Leica M10	Y	- / -	-	-	-	-	Y	-	-
9.		Leica M10-P	Y	- / -	-	-	-	-	Y	-	-
10.		Leica M10-R	Y	- / -	-	-	-	-	Y	-	-
11.		Leica M11	Y	- / -	-	-	-	3.2	Y	-	Y
12.		Leica SL	Y	stereo / mono	Y	Y	full	3.0	Y	-	-
13.		Nikon D5	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
14.		Nikon D6	Y	stereo / mono	Y	Y	mini	3.1	Y	-	Y
15.		Nikon D750	Y	stereo / mono	Y	Y	mini	2.0	Y	-	-
16.		Nikon Z6 II	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y

It is notable that the D780 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the M Typ 240 does not provide wifi capability.

Studio photographers will appreciate that the Nikon D780 (unlike the M Typ 240) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The D780 is a recent model that features in the current product line-up of Nikon. In contrast, the M Typ 240 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the M Typ 240 was succeeded by the Leica M Typ 262. Further information on the features and operation of the M Typ 240 and D780 can be found, respectively, in the Leica M Typ 240 Manual (free pdf) or the online Nikon D780 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Leica M Typ 240 and the Nikon D780? Which camera is better? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Leica M (Typ 240):

• More compact: Is smaller (139x80mm vs 144x116mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 160g or 19 percent) and hence easier to carry around.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More heavily discounted: Has been available for much longer (launched in September 2012).

Advantages of the Nikon D780:

• Better video: Provides higher definition movie capture (4K/30p vs 1080/25p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.68x).
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (2359k vs 920k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (12 vs 3 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Longer lasting: Gets more shots (2260 versus 500) out of a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More affordable: Was introduced into a lower priced category (67 percent cheaper at launch).
• More modern: Reflects 7 years and 3 months of technical progress since the M Typ 240 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the D780 is the clear winner of the contest (23 : 4 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the M Typ 240 or the D780 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Leica M Typ 240	4/5	..	..	..	4/5	..	Sep 2012	US$ 6 949	ebay.com
2.		Nikon D780	5/5	..	5/5	87/100	4.5/5	4.5/5	Jan 2020	US$ 2 299	amazon.com
3.		Canon 6D	5/5	+ +	..	83/100	4.5/5	4.5/5	Sep 2012	US$ 2 099	ebay.com
4.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	US$ 1 999	amazon.com
5.		Leica M-E Typ 240	..	..	..	..	..	..	Jun 2019	US$ 3 999	ebay.com
6.		Leica M Typ 262	..	..	..	..	..	..	Nov 2015	US$ 5 195	ebay.com
7.		Leica M9	..	..	..	..	4.5/5	..	Sep 2009	US$ 7 999	ebay.com
8.		Leica M10	4.5/5	..	..	..	4/5	4.5/5	Jan 2017	US$ 6 599	ebay.com
9.		Leica M10-P	..	..	3/5	..	..	4/5	Aug 2018	US$ 7 999	ebay.com
10.		Leica M10-R	4.5/5	..	4/5	..	..	4/5	Jul 2020	US$ 8 299	ebay.com
11.		Leica M11	4.5/5	..	4.5/5	..	4.5/5	4.5/5	Jan 2022	US$ 8 999	amazon.com
12.		Leica SL	4/5	..	4/5	84/100	4.5/5	4/5	Oct 2015	US$ 7 449	ebay.com
13.		Nikon D5	..	..	4/5	89/100	4.5/5	5/5	Jan 2016	US$ 6 499	ebay.com
14.		Nikon D6	..	..	4/5	..	4.5/5	4.5/5	Feb 2020	US$ 6 499	amazon.com
15.		Nikon D750	5/5	+ +	4/5	90/100	4.5/5	4.5/5	Sep 2014	US$ 2 299	ebay.com
16.		Nikon Z6 II	4.5/5	..	4/5	89/100	4.5/5	4.5/5	Oct 2020	US$ 1 999	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
