Nikon 1 J5 vs OM System OM-5

The Nikon 1 J5 and the OM System OM-5 are two digital cameras that were revealed to the public, respectively, in April 2015 and October 2022. Both the J5 and the OM-5 are mirrorless interchangeable lens cameras that are based on an one-inch (J5) and a Four Thirds (OM-5) sensor. The Nikon has a resolution of 20.7 megapixels, whereas the OM System provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Nikon 1 J5		OM System OM-5
Mirrorless system camera		Mirrorless system camera
Nikon 1 mount lenses		Micro Four Thirds lenses
20.7 MP – 1" sensor		20.2 MP – Four Thirds sensor
4K/15p Video		4K/30p Video
ISO 160-12,800		ISO 200-25,600
No viewfinder, LCD framing		Electronic viewfinder (2360k dots)
3.0" LCD – 1037k dots		3.0" LCD – 1040k dots
Tilting touchscreen		Swivel touchscreen
60 shutter flaps per second		10 shutter flaps per second
Lens stabilization only		In-body stabilization
not weather sealed		Weathersealed body
250 shots per battery charge		310 shots per battery charge
98 x 60 x 32 mm, 231 g		125 x 85 x 50 mm, 414 g

Check J5 offers at
ebay.com
Check OM-5 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon 1 J5 and the OM System OM-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

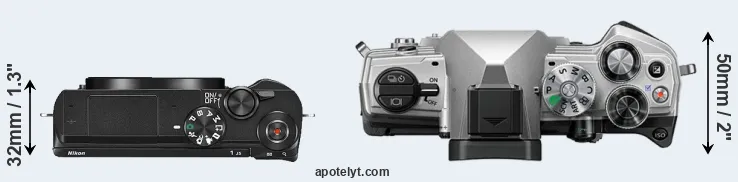

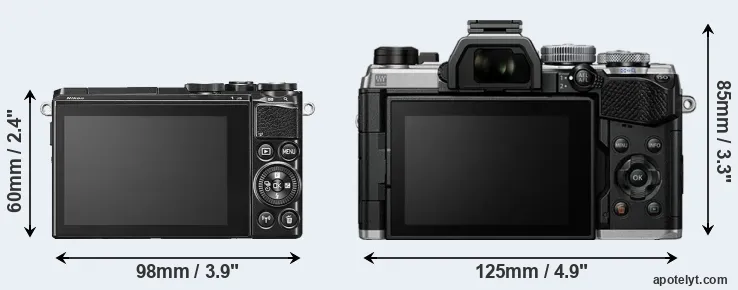

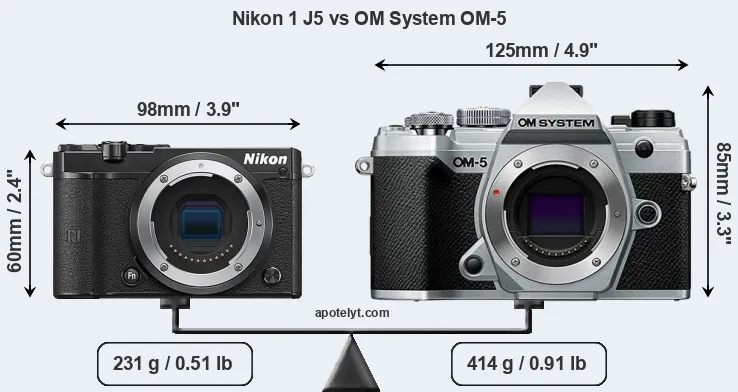

An illustration of the physical size and weight of the Nikon 1 J5 and the OM System OM-5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

The J5 can be obtained in three different colors (black, silver, white), while the OM-5 is available in two color-versions (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the OM System OM-5 is considerably larger (81 percent) than the Nikon 1 J5. Moreover, the OM-5 is substantially heavier (79 percent) than the J5. It is noteworthy in this context that the OM-5 is splash and dust-proof, while the J5 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The power pack in the OM-5 can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Nikon 1 J5	98 mm	60 mm	32 mm	231 g	250	n	Apr 2015	US$ 399	ebay.com
2.		OM System OM-5	125 mm	85 mm	50 mm	414 g	310	Y	Oct 2022	US$ 1 199	amazon.com
3.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
4.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	US$ 529	ebay.com
5.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	US$ 529	ebay.com
6.		Nikon 1 J4	100 mm	60 mm	29 mm	232 g	300	n	Apr 2014	US$ 549	ebay.com
7.		Nikon 1 V3	111 mm	65 mm	33 mm	381 g	310	n	Mar 2014	US$ 799	ebay.com
8.		Olympus E-M5 III	125 mm	85 mm	50 mm	414 g	310	Y	Oct 2019	US$ 1 199	ebay.com
9.		OM System OM-1	135 mm	92 mm	73 mm	599 g	520	Y	Feb 2022	US$ 2 199	ebay.com
10.		OM System OM-3	139 mm	89 mm	46 mm	496 g	590	Y	Feb 2025	US$ 1 999	amazon.com
11.		OM System OM-5 II	125 mm	85 mm	50 mm	414 g	310	Y	Jun 2025	US$ 1 199	amazon.com
12.		Panasonic FZ1000	137 mm	99 mm	131 mm	831 g	360	n	Jun 2014	US$ 899	ebay.com
13.		Panasonic GX8	133 mm	78 mm	63 mm	487 g	330	Y	Jul 2015	US$ 1 199	ebay.com
14.		Sony A5000	110 mm	63 mm	36 mm	269 g	420	n	Jan 2014	US$ 449	ebay.com
15.		Sony RX100 III	102 mm	58 mm	41 mm	290 g	320	n	May 2014	US$ 799	ebay.com
16.		Sony RX100 IV	102 mm	58 mm	41 mm	298 g	280	n	Jun 2015	US$ 999	ebay.com
17.		Sony RX100 V	102 mm	58 mm	41 mm	299 g	220	n	Oct 2016	US$ 999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The J5 was launched at a markedly lower price (by 67 percent) than the OM-5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

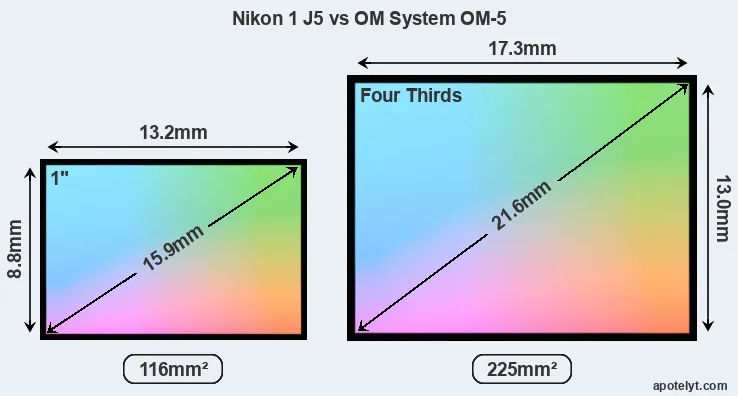

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Nikon 1 J5 features an one-inch sensor and the OM System OM-5 a Four Thirds sensor. The sensor area in the OM-5 is 94 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 2.0. The sensor in the J5 has a native 3:2 aspect ratio, while the one in the OM-5 offers a 4:3 aspect.

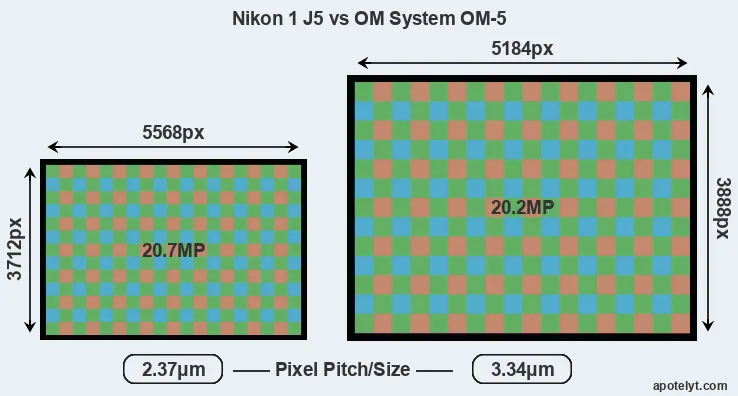

Despite having a smaller sensor, the Nikon 1 J5 offers a higher resolution of 20.7 megapixels, compared with 20.2 MP of the OM System OM-5. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.37μm versus 3.34μm for the OM-5). Moreover, it should be noted that the OM-5 is much more recent (by 7 years and 6 months) than the J5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

Unlike the J5, the OM-5 has the capacity to capture high quality composite images (80MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Nikon 1 J5 has a native sensitivity range from ISO 160 to ISO 12800. The corresponding ISO settings for the OM System OM-5 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 64-25600.

In terms of underlying technology, the J5 is build around a BSI-CMOS sensor, while the OM-5 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Nikon 1 J5	1-inch	20.7	5568	3712	4K/15p	21.1	12.0	479	65
2.		OM System OM-5	Four Thirds	20.2	5184	3888	4K/30p	23.4	13.4	1622	78
3.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
4.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
5.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
6.		Nikon 1 J4	1-inch	18.2	5232	3488	1080/60p	20.8	10.7	426	53
7.		Nikon 1 V3	1-inch	18.2	5232	3488	1080/60p	20.8	10.7	384	52
8.		Olympus E-M5 III	Four Thirds	20.2	5184	3888	4K/30p	23.3	13.1	1324	76
9.		OM System OM-1	Four Thirds	20.2	5184	3888	4K/60p	23.4	13.4	1553	77
10.		OM System OM-3	Four Thirds	20.2	5184	3888	4K/60p	23.4	13.7	1852	78
11.		OM System OM-5 II	Four Thirds	20.2	5184	3888	4K/30p	23.4	13.7	1889	78
12.		Panasonic FZ1000	1-inch	20.0	5472	3648	4K/30p	22.1	11.7	517	64
13.		Panasonic GX8	Four Thirds	20.2	5184	3888	4K/30p	23.5	12.6	806	75
14.		Sony A5000	APS-C	19.8	5456	3632	1080/60i	23.8	13.0	1089	79
15.		Sony RX100 III	1-inch	20.0	5472	3648	1080/60p	22.4	12.3	495	67
16.		Sony RX100 IV	1-inch	20.0	5472	3648	4K/30p	22.8	12.6	591	70
17.		Sony RX100 V	1-inch	20.0	5472	3648	4K/30p	22.8	12.4	586	70
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the OM-5 provides a faster frame rate than the J5. It can shoot movie footage at 4K/30p, while the Nikon is limited to 4K/15p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the OM-5 has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the J5 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Nikon 1 J5, the OM System OM-5, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Nikon 1 J5	none	n	3.0 / 1037	tilting	Y	1/4000s	60.0/s	Y	n
2.		OM System OM-5	2360	n	3.0 / 1040	swivel	Y	1/8000s	10.0/s	n	Y
3.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
4.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
5.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
6.		Nikon 1 J4	none	n	3.0 / 1037	Fixed	Y	1/4000s	60.0/s	Y	n
7.		Nikon 1 V3	optional	n	3.0 / 1037	tilting	Y	1/4000s	60.0/s	Y	n
8.		Olympus E-M5 III	2360	n	3.0 / 1040	swivel	Y	1/8000s	10.0/s	n	Y
9.		OM System OM-1	5760	n	3.0 / 1640	swivel	Y	1/8000s	10.0/s	n	Y
10.		OM System OM-3	2360	n	3.0 / 1640	swivel	Y	1/8000s	6.0/s	n	Y
11.		OM System OM-5 II	2360	n	3.0 / 1040	swivel	Y	1/8000s	10.0/s	n	Y
12.		Panasonic FZ1000	2359	n	3.0 / 921	swivel	n	1/4000s	12.0/s	Y	Y
13.		Panasonic GX8	2360	n	3.0 / 1040	swivel	Y	1/8000s	10.0/s	n	Y
14.		Sony A5000	none	n	3.0 / 461	tilting	n	1/4000s	3.5/s	Y	n
15.		Sony RX100 III	1440	n	3.0 / 1229	tilting	n	1/2000s	10.0/s	Y	Y
16.		Sony RX100 IV	2359	n	3.0 / 1228	tilting	n	1/2000s	16.0/s	Y	Y
17.		Sony RX100 V	2359	n	3.0 / 1229	tilting	n	1/2000s	24.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The J5 has one, while the OM-5 does not. While the built-in flash of the J5 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Nikon 1 J5 and the OM System OM-5 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the J5 and the OM-5 write their files to SDXC cards. The OM-5 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the J5 can use UHS-I cards (up to 104 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon 1 J5 and OM System OM-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Nikon 1 J5	-	stereo / mono	-	-	micro	2.0	Y	Y	-
2.		OM System OM-5	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
3.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
4.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
5.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
6.		Nikon 1 J4	-	stereo / mono	-	-	mini	2.0	Y	-	-
7.		Nikon 1 V3	-	stereo / mono	Y	-	mini	2.0	Y	-	-
8.		Olympus E-M5 III	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
9.		OM System OM-1	Y	stereo / mono	Y	Y	micro	3.0	Y	-	Y
10.		OM System OM-3	Y	stereo / mono	Y	Y	micro	3.0	Y	-	Y
11.		OM System OM-5 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
12.		Panasonic FZ1000	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
13.		Panasonic GX8	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
14.		Sony A5000	-	stereo / mono	-	-	micro	2.0	Y	Y	-
15.		Sony RX100 III	-	stereo / mono	-	-	micro	2.0	Y	Y	-
16.		Sony RX100 IV	-	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		Sony RX100 V	-	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the OM-5 has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The J5 does not feature such a mic input.

The OM-5 is a recent model that features in the current product line-up of OM System. In contrast, the J5 has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the J5 from Nikon. Further information on the features and operation of the J5 and OM-5 can be found, respectively, in the Nikon 1 J5 Manual (free pdf) or the online OM System OM-5 Manual.

Review summary

So how do things add up? Is the Nikon 1 J5 better than the OM System OM-5 or vice versa? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Nikon 1 J5:

• Faster burst: Shoots at higher frequency (60 vs 10 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (98x60mm vs 125x85mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 183g or 44 percent) and hence easier to carry around.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced into a lower priced category (67 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in April 2015).

Arguments in favor of the OM System OM-5:

• High quality composites: Can combine several shots after pixel-shifting its sensor.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher movie framerates (4K/30p versus 4K/15p).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Longer lasting: Gets more shots (310 versus 250) out of a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More modern: Reflects 7 years and 6 months of technical progress since the J5 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the OM-5 is the clear winner of the contest (18 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Nikon 1 J5 and the OM System OM-5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the J5 or the OM-5 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Nikon 1 J5	..	..	..	..	4.5/5	4.5/5	Apr 2015	US$ 399	ebay.com
2.		OM System OM-5	5/5	..	4.5/5	83/100	5/5	4.5/5	Oct 2022	US$ 1 199	amazon.com
3.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
4.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	US$ 529	ebay.com
5.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	US$ 529	ebay.com
6.		Nikon 1 J4	3/5	..	..	..	4.5/5	4/5	Apr 2014	US$ 549	ebay.com
7.		Nikon 1 V3	3/5	..	..	76/100	4.5/5	4/5	Mar 2014	US$ 799	ebay.com
8.		Olympus E-M5 III	5/5	+	5/5	82/100	4.5/5	4.5/5	Oct 2019	US$ 1 199	ebay.com
9.		OM System OM-1	5/5	..	..	87/100	5/5	4.5/5	Feb 2022	US$ 2 199	ebay.com
10.		OM System OM-3	..	..	..	86/100	..	..	Feb 2025	US$ 1 999	amazon.com
11.		OM System OM-5 II	..	..	..	..	..	..	Jun 2025	US$ 1 199	amazon.com
12.		Panasonic FZ1000	4/5	+ +	..	82/100	4.5/5	4.5/5	Jun 2014	US$ 899	ebay.com
13.		Panasonic GX8	5/5	+	..	82/100	4.5/5	4.5/5	Jul 2015	US$ 1 199	ebay.com
14.		Sony A5000	3/5	+	..	..	4.5/5	4.5/5	Jan 2014	US$ 449	ebay.com
15.		Sony RX100 III	5/5	+ +	..	82/100	4.5/5	5/5	May 2014	US$ 799	ebay.com
16.		Sony RX100 IV	4.5/5	+ +	..	85/100	4/5	4.5/5	Jun 2015	US$ 999	ebay.com
17.		Sony RX100 V	4.5/5	+ +	..	83/100	4/5	4.5/5	Oct 2016	US$ 999	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check J5 offers at
ebay.com
Check OM-5 price at
amazon.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

Check J5 offers at
ebay.com
Check OM-5 price at
amazon.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
