Nikon D1 vs D5100

The Nikon D1 and the Nikon D5100 are two digital cameras that were officially introduced, respectively, in June 1999 and April 2011. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The D1 has a resolution of 2.6 megapixels, whereas the D5100 provides 16.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Nikon D1		Nikon D5100
Digital single lens reflex		Digital single lens reflex
Nikon F mount lenses		Nikon F mount lenses
2.6 MP – APS-C sensor		16.1 MP – APS-C sensor
no Video		1080/30p Video
ISO 200-1,600 (200 - 6,400)		ISO 100-6,400 (100 - 25,600)
Optical viewfinder		Optical viewfinder
2.0" LCD – 120k dots		3.0" LCD – 921k dots
Fixed screen (not touch-sensitive)		Swivel screen (not touch-sensitive)
4.5 shutter flaps per second		4 shutter flaps per second
Weathersealed body		not weather sealed
157 x 153 x 85 mm, 1100 g		128 x 97 x 79 mm, 560 g

Check D1 offers at
ebay.com
Check D5100 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D1 and the Nikon D5100? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

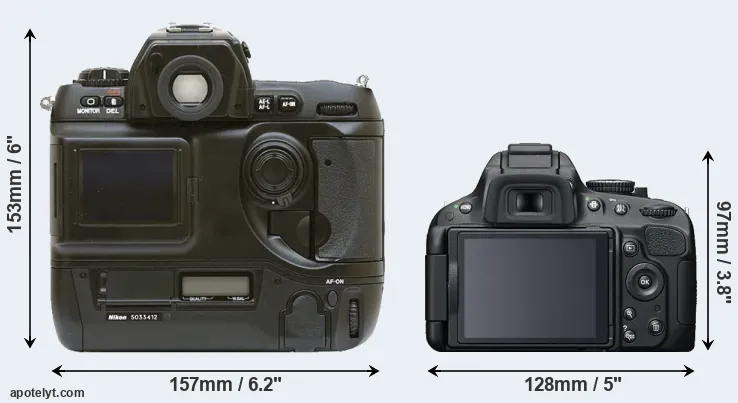

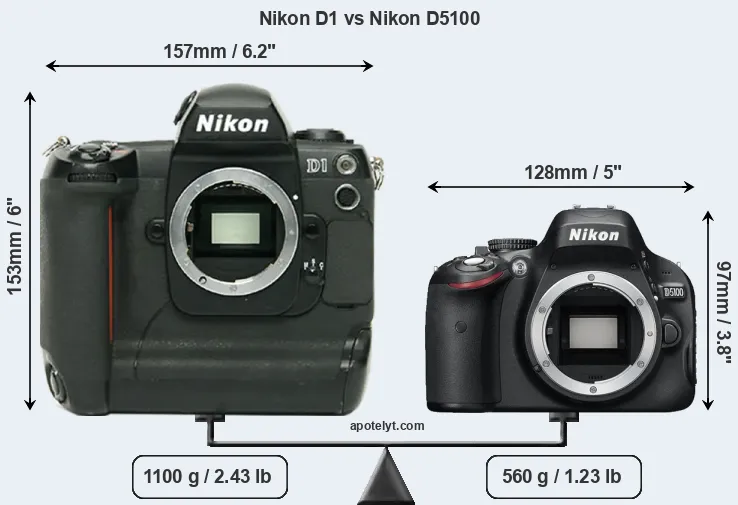

The physical size and weight of the Nikon D1 and the Nikon D5100 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5100 is considerably smaller (48 percent) than the Nikon D1. Moreover, the D5100 is substantially lighter (49 percent) than the D1. It is worth mentioning in this context that the D1 is splash and dust resistant, while the D5100 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Nikon Lens Catalog.

Concerning battery life, the D1 gets .. shots out of its Nikon EN-4 battery, while the D5100 can take 660 images on a single charge of its Nikon EN-EL14 power pack. As can be seen in the images above, the D1 has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the D5100, there are third party battery grips available as optional accessories (see here on ebay).

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Nikon D1	157 mm	153 mm	85 mm	1100 g	..	Y	Jun 1999	US$ 5 499	ebay.com
2.		Nikon D5100	128 mm	97 mm	79 mm	560 g	660	n	Apr 2011	US$ 749	ebay.com
3.		Nikon D1H	157 mm	153 mm	85 mm	1100 g	1200	Y	Feb 2001	US$ 4 499	ebay.com
4.		Nikon D1X	157 mm	153 mm	85 mm	1100 g	1200	Y	Feb 2001	US$ 5 999	ebay.com
5.		Nikon D2X	158 mm	150 mm	86 mm	1252 g	3800	Y	Sep 2004	US$ 4 999	ebay.com
6.		Nikon D2Xs	158 mm	150 mm	86 mm	1252 g	3800	Y	Jun 2006	US$ 4 699	ebay.com
7.		Nikon D3	160 mm	157 mm	88 mm	1300 g	4300	Y	Aug 2007	US$ 4 999	ebay.com
8.		Nikon D3S	160 mm	157 mm	88 mm	1240 g	4200	Y	Oct 2009	US$ 5 199	ebay.com
9.		Nikon D4	160 mm	157 mm	91 mm	1340 g	2600	Y	Jan 2012	US$ 5 999	ebay.com
10.		Nikon D200	147 mm	113 mm	74 mm	920 g	400	Y	Nov 2005	US$ 1 699	ebay.com
11.		Nikon D300	147 mm	114 mm	74 mm	925 g	1000	Y	Aug 2007	US$ 1 799	ebay.com
12.		Nikon D300S	147 mm	115 mm	81 mm	938 g	950	Y	Jul 2009	US$ 1 799	ebay.com
13.		Nikon D3100	124 mm	96 mm	75 mm	505 g	550	n	Aug 2010	US$ 599	ebay.com
14.		Nikon D5000	127 mm	104 mm	80 mm	590 g	510	n	Apr 2009	US$ 749	ebay.com
15.		Nikon D5200	129 mm	98 mm	78 mm	555 g	500	n	Nov 2012	US$ 749	ebay.com
16.		Nikon D5300	125 mm	98 mm	76 mm	480 g	600	n	Oct 2013	US$ 799	ebay.com
17.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	US$ 699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The D5100 was launched at a markedly lower price (by 86 percent) than the D1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

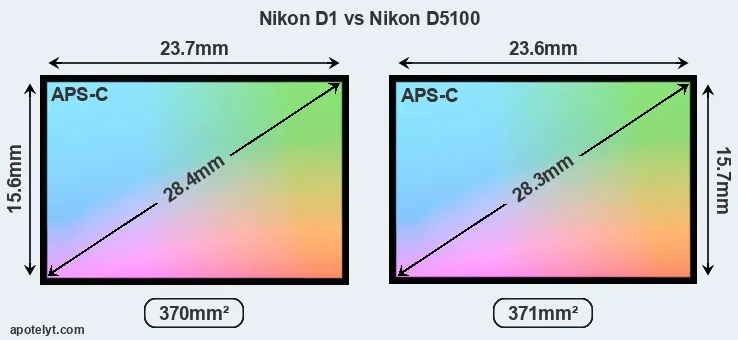

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

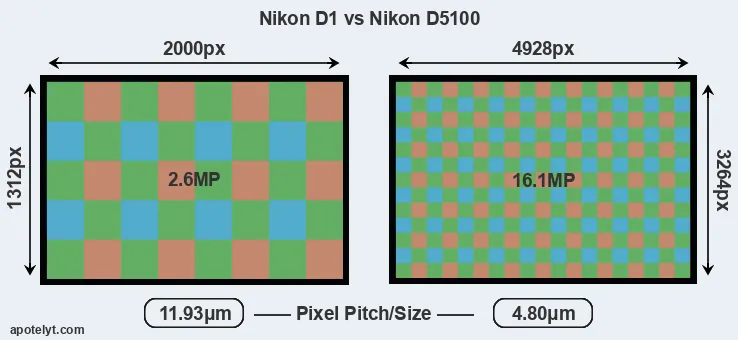

With 16.1MP, the D5100 offers a higher resolution than the D1 (2.6MP), but the D5100 has smaller individual pixels (pixel pitch of 4.80μm versus 11.93μm for the D1). Yet, the D5100 is a much more recent model (by 11 years and 9 months) than the D1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Nikon D5100 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5100 for good quality output (200 dots per inch) amounts to 24.6 x 16.3 inches or 62.6 x 41.5 cm, for very good quality (250 dpi) 19.7 x 13.1 inches or 50.1 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inches or 41.7 x 27.6 cm. The corresponding values for the Nikon D1 are 10 x 6.6 inches or 25.4 x 16.7 cm for good quality, 8 x 5.2 inches or 20.3 x 13.3 cm for very good quality, and 6.7 x 4.4 inches or 16.9 x 11.1 cm for excellent quality prints.

The Nikon D1 has a native sensitivity range from ISO 200 to ISO 1600, which can be extended to ISO 200-6400. The corresponding ISO settings for the Nikon D5100 are ISO 100 to ISO 6400, with the possibility to increase the ISO range to 100-25600.

In terms of underlying technology, the D1 is build around a CCD sensor, while the D5100 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Nikon D1	APS-C	2.6	2000	1312	none	..	..	..	..
2.		Nikon D5100	APS-C	16.1	4928	3264	1080/30p	23.5	13.6	1183	80
3.		Nikon D1H	APS-C	2.6	2000	1312	none	..	..	..	..
4.		Nikon D1X	APS-C	5.9	3008	1960	none	..	..	..	..
5.		Nikon D2X	APS-C	12.2	4288	2848	none	22.1	10.9	476	59
6.		Nikon D2Xs	APS-C	12.2	4288	2848	none	22.2	10.9	489	59
7.		Nikon D3	Full Frame	12.1	4256	2832	none	23.5	12.2	2290	81
8.		Nikon D3S	Full Frame	12.1	4256	2832	720/24p	23.5	12.0	3253	82
9.		Nikon D4	Full Frame	16.2	4928	3280	1080/30p	24.7	13.1	2965	89
10.		Nikon D200	APS-C	10.0	3872	2592	none	22.3	11.5	583	64
11.		Nikon D300	APS-C	12.2	4288	2848	none	22.1	12.0	679	67
12.		Nikon D300S	APS-C	12.2	4288	2848	720/24p	22.5	12.2	787	70
13.		Nikon D3100	APS-C	14.2	4608	3072	1080/24p	22.5	11.3	919	67
14.		Nikon D5000	APS-C	12.2	4288	2848	720/24p	22.7	12.5	868	72
15.		Nikon D5200	APS-C	24.0	6000	4000	1080/60i	24.2	13.9	1284	84
16.		Nikon D5300	APS-C	24.0	6000	4000	1080/60p	24.0	13.9	1338	83
17.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84

Many modern cameras are not only capable of taking still images, but can also record movies. The D5100 indeed provides for movie recording, while the D1 does not. The highest resolution format that the D5100 can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The D1 and the D5100 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the D1 offers a wider field of view (96%) than the one in the D5100 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the D1 has a higher magnification (0.53x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Nikon D1, the Nikon D5100, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Nikon D1	optical	Y	2.0 / 120	fixed	n	1/16000s	4.5/s	n	n
2.		Nikon D5100	optical	n	3.0 / 921	swivel	n	1/4000s	4.0/s	Y	n
3.		Nikon D1H	optical	Y	2.0 / 120	fixed	n	1/16000s	5.0/s	n	n
4.		Nikon D1X	optical	Y	2.0 / 120	fixed	n	1/16000s	3.0/s	n	n
5.		Nikon D2X	optical	Y	2.5 / 235	fixed	n	1/8000s	5.0/s	n	n
6.		Nikon D2Xs	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	n	n
7.		Nikon D3	optical	Y	3.0 / 922	fixed	n	1/8000s	11.0/s	n	n
8.		Nikon D3S	optical	Y	3.0 / 921	fixed	n	1/8000s	11.0/s	n	n
9.		Nikon D4	optical	Y	3.2 / 921	fixed	n	1/8000s	11.0/s	n	n
10.		Nikon D200	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
11.		Nikon D300	optical	Y	3.0 / 922	fixed	n	1/8000s	6.0/s	Y	n
12.		Nikon D300S	optical	Y	3.0 / 920	fixed	n	1/8000s	7.0/s	Y	n
13.		Nikon D3100	optical	n	3.0 / 230	fixed	n	1/4000s	3.0/s	Y	n
14.		Nikon D5000	optical	n	2.7 / 230	full-flex	n	1/4000s	4.0/s	Y	n
15.		Nikon D5200	optical	n	3.0 / 921	swivel	n	1/4000s	5.0/s	Y	n
16.		Nikon D5300	optical	n	3.2 / 1037	swivel	n	1/4000s	5.0/s	Y	n
17.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the D1, but is missing on the D5100 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Nikon D5100 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The D1 writes its imaging data to Compact Flash cards, while the D5100 uses SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D1 and Nikon D5100 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Nikon D1	Y	- / -	-	-	-	FW	-	-	-
2.		Nikon D5100	Y	mono / mono	Y	-	mini	2.0	-	-	-
3.		Nikon D1H	Y	- / -	-	-	-	FW	-	-	-
4.		Nikon D1X	Y	- / -	-	-	-	FW	-	-	-
5.		Nikon D2X	Y	- / -	-	-	-	2.0	-	-	-
6.		Nikon D2Xs	Y	- / -	-	-	-	2.0	-	-	-
7.		Nikon D3	Y	- / -	-	-	mini	2.0	-	-	-
8.		Nikon D3S	Y	stereo / -	-	-	mini	2.0	-	-	-
9.		Nikon D4	Y	mono / mono	Y	Y	micro	2.0	-	-	-
10.		Nikon D200	Y	- / -	-	-	-	2.0	-	-	-
11.		Nikon D300	Y	- / -	-	-	mini	2.0	-	-	-
12.		Nikon D300S	Y	stereo / mono	Y	-	mini	2.0	-	-	-
13.		Nikon D3100	Y	mono / mono	-	-	mini	2.0	-	-	-
14.		Nikon D5000	Y	mono / mono	-	-	mini	2.0	-	-	-
15.		Nikon D5200	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Nikon D5300	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
17.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y

Studio photographers will appreciate that the Nikon D1 (unlike the D5100) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the D1 and the D5100 have been discontinued, but can regularly be found used on ebay. The D1 was replaced by the Nikon D1X, while the D5100 was followed by the Nikon D5200. Further information on the features and operation of the D1 and D5100 can be found, respectively, in the Nikon D1 Manual (free pdf) or the online Nikon D5100 Manual.

Review summary

So how do things add up? Is the Nikon D1 better than the Nikon D5100 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Nikon D1:

• More complete view: Has a viewfinder with a larger field of view (96% vs 95%).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.53x vs 0.51x).
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/16000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (4.5 vs 4 flaps/sec) to capture the decisive moment.
• More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in June 1999).

Reasons to prefer the Nikon D5100:

• More detail: Has more megapixels (16.1 vs 2.6MP), which boosts linear resolution by 147%.
• Broader imaging potential: Can capture not only stills but also 1080/30p video.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (921k vs 120k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (128x97mm vs 157x153mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 540g or 49 percent) and is thus easier to take along.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced into a lower priced category (86 percent cheaper at launch).
• More modern: Reflects 11 years and 9 months of technical progress since the D1 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the D5100 emerges as the winner of the match-up (12 : 9 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Nikon D1 and the Nikon D5100 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the D1 or the D5100. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Nikon D1	..	..	..	+ +	..	..	Jun 1999	US$ 5 499	ebay.com
2.		Nikon D5100	5/5	+ +	..	76/100	4.5/5	4.5/5	Apr 2011	US$ 749	ebay.com
3.		Nikon D1H	..	..	..	+ +	..	..	Feb 2001	US$ 4 499	ebay.com
4.		Nikon D1X	..	..	..	+ +	..	..	Feb 2001	US$ 5 999	ebay.com
5.		Nikon D2X	..	..	..	+ +	..	..	Sep 2004	US$ 4 999	ebay.com
6.		Nikon D2Xs	..	..	..	..	..	..	Jun 2006	US$ 4 699	ebay.com
7.		Nikon D3	..	..	..	+ +	5/5	4.5/5	Aug 2007	US$ 4 999	ebay.com
8.		Nikon D3S	5/5	..	..	89/100	4.5/5	5/5	Oct 2009	US$ 5 199	ebay.com
9.		Nikon D4	..	..	..	..	4.5/5	4.5/5	Jan 2012	US$ 5 999	ebay.com
10.		Nikon D200	..	+ +	..	+ +	o	..	Nov 2005	US$ 1 699	ebay.com
11.		Nikon D300	..	+ +	..	+ +	5/5	4.5/5	Aug 2007	US$ 1 799	ebay.com
12.		Nikon D300S	5/5	+ +	..	82/100	4/5	4.5/5	Jul 2009	US$ 1 799	ebay.com
13.		Nikon D3100	5/5	+ +	..	72/100	4.5/5	4.5/5	Aug 2010	US$ 599	ebay.com
14.		Nikon D5000	..	+ +	..	75/100	4/5	4.5/5	Apr 2009	US$ 749	ebay.com
15.		Nikon D5200	4/5	+ +	..	79/100	4.5/5	4.5/5	Nov 2012	US$ 749	ebay.com
16.		Nikon D5300	4/5	+ +	..	79/100	4.5/5	4.5/5	Oct 2013	US$ 799	ebay.com
17.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	US$ 699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
