Nikon D3 vs D5100

The Nikon D3 and the Nikon D5100 are two digital cameras that were announced, respectively, in August 2007 and April 2011. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (D3) and an APS-C (D5100) sensor. The D3 has a resolution of 12.1 megapixels, whereas the D5100 provides 16.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Nikon D3		Nikon D5100
Digital single lens reflex		Digital single lens reflex
Nikon F mount lenses		Nikon F mount lenses
12.1 MP – Full Frame sensor		16.1 MP – APS-C sensor
no Video		1080/30p Video
ISO 200-6,400 (100 - 25,600)		ISO 100-6,400 (100 - 25,600)
Optical viewfinder		Optical viewfinder
3.0" LCD – 922k dots		3.0" LCD – 921k dots
Fixed screen (not touch-sensitive)		Swivel screen (not touch-sensitive)
11 shutter flaps per second		4 shutter flaps per second
Weathersealed body		not weather sealed
4300 shots per battery charge		660 shots per battery charge
160 x 157 x 88 mm, 1300 g		128 x 97 x 79 mm, 560 g

Check D3 offers at
ebay.com
Check D5100 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D3 and the Nikon D5100? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Nikon D3 and the Nikon D5100 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5100 is considerably smaller (51 percent) than the Nikon D3. Moreover, the D5100 is substantially lighter (57 percent) than the D3. It is worth mentioning in this context that the D3 is splash and dust resistant, while the D5100 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the D3) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (D5100). You can compare the optics available in the Nikon Lens Catalog.

Concerning battery life, the D3 gets 4300 shots out of its Nikon EN-EL4a battery, while the D5100 can take 660 images on a single charge of its Nikon EN-EL14 power pack. As can be seen in the images above, the D3 has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the D5100, there are third party battery grips available as optional accessories (see here on ebay).

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Nikon D3	160 mm	157 mm	88 mm	1300 g	4300	Y	Aug 2007	US$ 4 999	ebay.com
2.		Nikon D5100	128 mm	97 mm	79 mm	560 g	660	n	Apr 2011	US$ 749	ebay.com
3.		Canon 1D Mark III	156 mm	157 mm	80 mm	1155 g	2200	Y	Feb 2007	US$ 4 499	ebay.com
4.		Nikon D2X	158 mm	150 mm	86 mm	1252 g	3800	Y	Sep 2004	US$ 4 999	ebay.com
5.		Nikon D2Xs	158 mm	150 mm	86 mm	1252 g	3800	Y	Jun 2006	US$ 4 699	ebay.com
6.		Nikon D3S	160 mm	157 mm	88 mm	1240 g	4200	Y	Oct 2009	US$ 5 199	ebay.com
7.		Nikon D3X	160 mm	157 mm	88 mm	1260 g	4400	Y	Dec 2008	US$ 7 999	ebay.com
8.		Nikon D4	160 mm	157 mm	91 mm	1340 g	2600	Y	Jan 2012	US$ 5 999	ebay.com
9.		Nikon D4S	160 mm	157 mm	91 mm	1350 g	3020	Y	Feb 2014	US$ 6 499	ebay.com
10.		Nikon D5	160 mm	159 mm	92 mm	1415 g	3780	Y	Jan 2016	US$ 6 499	ebay.com
11.		Nikon D300	147 mm	114 mm	74 mm	925 g	1000	Y	Aug 2007	US$ 1 799	ebay.com
12.		Nikon D700	147 mm	123 mm	77 mm	1074 g	1000	Y	Jul 2008	US$ 2 999	ebay.com
13.		Nikon D3100	124 mm	96 mm	75 mm	505 g	550	n	Aug 2010	US$ 599	ebay.com
14.		Nikon D5000	127 mm	104 mm	80 mm	590 g	510	n	Apr 2009	US$ 749	ebay.com
15.		Nikon D5200	129 mm	98 mm	78 mm	555 g	500	n	Nov 2012	US$ 749	ebay.com
16.		Nikon D5300	125 mm	98 mm	76 mm	480 g	600	n	Oct 2013	US$ 799	ebay.com
17.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	US$ 899	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The D5100 was launched at a markedly lower price (by 85 percent) than the D3, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Nikon D3 features a full frame sensor and the Nikon D5100 an APS-C sensor. The sensor area in the D5100 is 57 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the D5100 uses a more advanced image processing engine (EXPEED 2) than the D3 (EXPEED), with benefits for noise reduction, color accuracy, and processing speed.

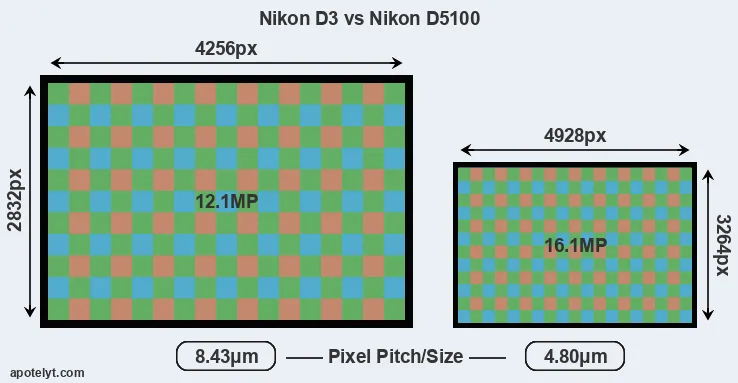

Despite having a smaller sensor, the D5100 offers a higher resolution of 16.1 megapixels, compared with 12.1 MP of the D3. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.80μm versus 8.43μm for the D3). However, it should be noted that the D5100 is much more recent (by 3 years and 7 months) than the D3, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Nikon D5100 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5100 for good quality output (200 dots per inch) amounts to 24.6 x 16.3 inches or 62.6 x 41.5 cm, for very good quality (250 dpi) 19.7 x 13.1 inches or 50.1 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inches or 41.7 x 27.6 cm. The corresponding values for the Nikon D3 are 21.3 x 14.2 inches or 54.1 x 36 cm for good quality, 17 x 11.3 inches or 43.2 x 28.8 cm for very good quality, and 14.2 x 9.4 inches or 36 x 24 cm for excellent quality prints.

The Nikon D3 has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-25600. The corresponding ISO settings for the Nikon D5100 are ISO 100 to ISO 6400, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Nikon D3	Full Frame	12.1	4256	2832	none	23.5	12.2	2290	81
2.		Nikon D5100	APS-C	16.1	4928	3264	1080/30p	23.5	13.6	1183	80
3.		Canon 1D Mark III	APS-H	10.1	3888	2592	none	22.7	11.7	1078	71
4.		Nikon D2X	APS-C	12.2	4288	2848	none	22.1	10.9	476	59
5.		Nikon D2Xs	APS-C	12.2	4288	2848	none	22.2	10.9	489	59
6.		Nikon D3S	Full Frame	12.1	4256	2832	720/24p	23.5	12.0	3253	82
7.		Nikon D3X	Full Frame	24.4	6048	4032	none	24.7	13.7	1992	88
8.		Nikon D4	Full Frame	16.2	4928	3280	1080/30p	24.7	13.1	2965	89
9.		Nikon D4S	Full Frame	16.2	4928	3280	1080/60p	24.4	13.3	3074	89
10.		Nikon D5	Full Frame	20.7	5588	3712	4K/30p	25.1	12.3	2343	88
11.		Nikon D300	APS-C	12.2	4288	2848	none	22.1	12.0	679	67
12.		Nikon D700	Full Frame	12.1	4256	2832	none	23.5	12.2	2303	80
13.		Nikon D3100	APS-C	14.2	4608	3072	1080/24p	22.5	11.3	919	67
14.		Nikon D5000	APS-C	12.2	4288	2848	720/24p	22.7	12.5	868	72
15.		Nikon D5200	APS-C	24.0	6000	4000	1080/60i	24.2	13.9	1284	84
16.		Nikon D5300	APS-C	24.0	6000	4000	1080/60p	24.0	13.9	1338	83
17.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The D5100 indeed provides for movie recording, while the D3 does not. The highest resolution format that the D5100 can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The D3 and the D5100 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the D3 offers a wider field of view (100%) than the one in the D5100 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the D3 has a higher magnification (0.70x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Nikon D3 and Nikon D5100 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Nikon D3	optical	Y	3.0 / 922	fixed	n	1/8000s	11.0/s	n	n
2.		Nikon D5100	optical	n	3.0 / 921	swivel	n	1/4000s	4.0/s	Y	n
3.		Canon 1D Mark III	optical	Y	3.0 / 230	fixed	n	1/8000s	10.0/s	n	n
4.		Nikon D2X	optical	Y	2.5 / 235	fixed	n	1/8000s	5.0/s	n	n
5.		Nikon D2Xs	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	n	n
6.		Nikon D3S	optical	Y	3.0 / 921	fixed	n	1/8000s	11.0/s	n	n
7.		Nikon D3X	optical	Y	3.0 / 922	fixed	n	1/8000s	5.0/s	n	n
8.		Nikon D4	optical	Y	3.2 / 921	fixed	n	1/8000s	11.0/s	n	n
9.		Nikon D4S	optical	Y	3.2 / 921	fixed	n	1/8000s	11.0/s	n	n
10.		Nikon D5	optical	Y	3.2 / 2359	fixed	Y	1/8000s	14.0/s	n	n
11.		Nikon D300	optical	Y	3.0 / 922	fixed	n	1/8000s	6.0/s	Y	n
12.		Nikon D700	optical	Y	3.0 / 922	fixed	n	1/8000s	8.0/s	Y	n
13.		Nikon D3100	optical	n	3.0 / 230	fixed	n	1/4000s	3.0/s	Y	n
14.		Nikon D5000	optical	n	2.7 / 230	full-flex	n	1/4000s	4.0/s	Y	n
15.		Nikon D5200	optical	n	3.0 / 921	swivel	n	1/4000s	5.0/s	Y	n
16.		Nikon D5300	optical	n	3.2 / 1037	swivel	n	1/4000s	5.0/s	Y	n
17.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the D3, but is missing on the D5100 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Nikon D3 and the Nikon D5100 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The D3 writes its imaging data to Compact Flash cards, while the D5100 uses SDXC cards. The D3 features dual card slots, which can be very useful in case a memory card fails. In contrast, the D5100 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D3 and Nikon D5100 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Nikon D3	Y	- / -	-	-	mini	2.0	-	-	-
2.		Nikon D5100	Y	mono / mono	Y	-	mini	2.0	-	-	-
3.		Canon 1D Mark III	Y	- / -	-	-	-	2.0	-	-	-
4.		Nikon D2X	Y	- / -	-	-	-	2.0	-	-	-
5.		Nikon D2Xs	Y	- / -	-	-	-	2.0	-	-	-
6.		Nikon D3S	Y	stereo / -	-	-	mini	2.0	-	-	-
7.		Nikon D3X	Y	- / -	-	-	mini	2.0	-	-	-
8.		Nikon D4	Y	mono / mono	Y	Y	micro	2.0	-	-	-
9.		Nikon D4S	Y	mono / mono	Y	Y	mini	2.0	-	-	-
10.		Nikon D5	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
11.		Nikon D300	Y	- / -	-	-	mini	2.0	-	-	-
12.		Nikon D700	Y	- / -	-	-	mini	2.0	-	-	-
13.		Nikon D3100	Y	mono / mono	-	-	mini	2.0	-	-	-
14.		Nikon D5000	Y	mono / mono	-	-	mini	2.0	-	-	-
15.		Nikon D5200	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Nikon D5300	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
17.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-

Studio photographers will appreciate that the Nikon D3 (unlike the D5100) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the D3 and the D5100 have been discontinued, but can regularly be found used on ebay. The D3 was replaced by the Nikon D4, while the D5100 was followed by the Nikon D5200. Further information on the features and operation of the D3 and D5100 can be found, respectively, in the Nikon D3 Manual (free pdf) or the online Nikon D5100 Manual.

Review summary

So what conclusions can be drawn? Is the Nikon D3 better than the Nikon D5100 or vice versa? The listing below highlights the relative strengths of the two models.

Advantages of the Nikon D3:

• Better low-light sensitivity: Requires less light for good images (1 stops ISO advantage).
• More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.51x).
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (11 vs 4 flaps/sec) to capture the decisive moment.
• More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
• Longer lasting: Can take more shots (4300 versus 660) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been available for much longer (launched in August 2007).

Arguments in favor of the Nikon D5100:

• More detail: Has more megapixels (16.1 vs 12.1MP), which boosts linear resolution by 16%.
• More dynamic range: Captures a broader range of light and dark details (1.4 EV of extra DR).
• Better jpgs: Has a more modern image processing engine (EXPEED 2 vs EXPEED).
• Broader imaging potential: Can capture not only stills but also 1080/30p video.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• More compact: Is smaller (128x97mm vs 160x157mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 740g or 57 percent) and is thus easier to take along.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced into a lower priced category (85 percent cheaper at launch).
• More modern: Reflects 3 years and 7 months of technical progress since the D3 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the D3 comes out slightly ahead of the D5100 (12 : 11 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Nikon D3 and the Nikon D5100 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the D3 and the D5100 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Nikon D3	..	..	..	+ +	5/5	4.5/5	Aug 2007	US$ 4 999	ebay.com
2.		Nikon D5100	5/5	+ +	..	76/100	4.5/5	4.5/5	Apr 2011	US$ 749	ebay.com
3.		Canon 1D Mark III	..	..	..	..	..	..	Feb 2007	US$ 4 499	ebay.com
4.		Nikon D2X	..	..	..	+ +	..	..	Sep 2004	US$ 4 999	ebay.com
5.		Nikon D2Xs	..	..	..	..	..	..	Jun 2006	US$ 4 699	ebay.com
6.		Nikon D3S	5/5	..	..	89/100	4.5/5	5/5	Oct 2009	US$ 5 199	ebay.com
7.		Nikon D3X	..	..	..	86/100	4/5	5/5	Dec 2008	US$ 7 999	ebay.com
8.		Nikon D4	..	..	..	..	4.5/5	4.5/5	Jan 2012	US$ 5 999	ebay.com
9.		Nikon D4S	5/5	..	..	..	4.5/5	4.5/5	Feb 2014	US$ 6 499	ebay.com
10.		Nikon D5	..	..	4/5	89/100	4.5/5	5/5	Jan 2016	US$ 6 499	ebay.com
11.		Nikon D300	..	+ +	..	+ +	5/5	4.5/5	Aug 2007	US$ 1 799	ebay.com
12.		Nikon D700	..	89/100	..	+ +	4.5/5	4.5/5	Jul 2008	US$ 2 999	ebay.com
13.		Nikon D3100	5/5	+ +	..	72/100	4.5/5	4.5/5	Aug 2010	US$ 599	ebay.com
14.		Nikon D5000	..	+ +	..	75/100	4/5	4.5/5	Apr 2009	US$ 749	ebay.com
15.		Nikon D5200	4/5	+ +	..	79/100	4.5/5	4.5/5	Nov 2012	US$ 749	ebay.com
16.		Nikon D5300	4/5	+ +	..	79/100	4.5/5	4.5/5	Oct 2013	US$ 799	ebay.com
17.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	US$ 899	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
