Nikon D5 vs D810

The Nikon D5 and the Nikon D810 are two professional cameras that were officially introduced, respectively, in January 2016 and June 2014. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with a full frame sensor. The D5 has a resolution of 20.7 megapixels, whereas the D810 provides 36.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Nikon D5		Nikon D810
Digital single lens reflex		Digital single lens reflex
Nikon F mount lenses		Nikon F mount lenses
20.7 MP – Full Frame sensor		36.2 MP – Full Frame sensor
4K/30p Video		1080/60p Video
ISO 100-102,400 (50 - 3,280,000)		ISO 64-12,800 (32 - 51,200)
Optical viewfinder		Optical viewfinder
3.2" LCD – 2359k dots		3.2" LCD – 1229k dots
Fixed touchscreen		Fixed screen (not touch-sensitive)
14 shutter flaps per second		5 shutter flaps per second
Weathersealed body		Weathersealed body
3780 shots per battery charge		1200 shots per battery charge
160 x 159 x 92 mm, 1415 g		146 x 123 x 82 mm, 980 g

Check D5 offers at
ebay.com
Check D810 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D5 and the Nikon D810? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

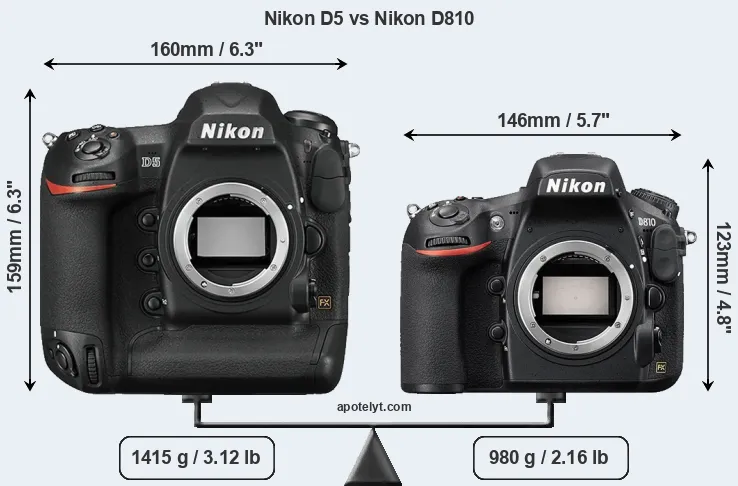

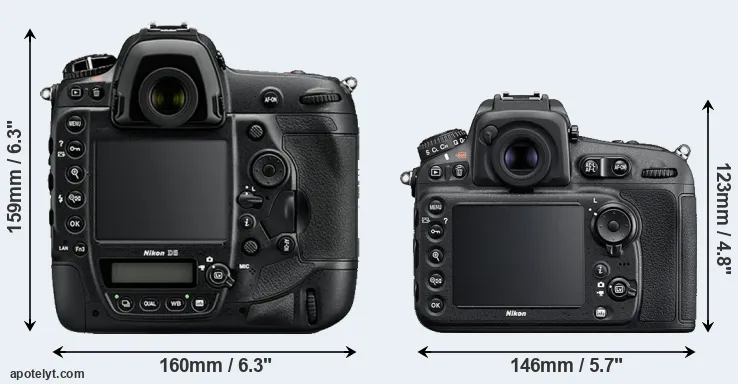

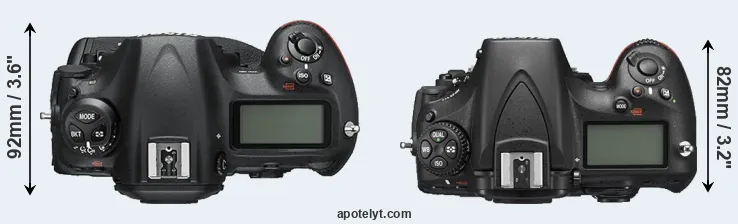

The physical size and weight of the Nikon D5 and the Nikon D810 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D810 is notably smaller (29 percent) than the Nikon D5. Moreover, the D810 is markedly lighter (31 percent) than the D5. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Nikon Lens Catalog.

Concerning battery life, the D5 gets 3780 shots out of its Nikon EN-EL18a battery, while the D810 can take 1200 images on a single charge of its Nikon EN-EL15 power pack. As can be seen in the images above, the D5 has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the D810, Nikon provides the MB-D12 vertical grip as an optional accessory (see here on ebay).

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Nikon D5	160 mm	159 mm	92 mm	1415 g	3780	Y	Jan 2016	US$ 6 499	ebay.com
2.		Nikon D810	146 mm	123 mm	82 mm	980 g	1200	Y	Jun 2014	US$ 3 299	ebay.com
3.		Canon 1D X Mark II	158 mm	168 mm	83 mm	1530 g	1210	Y	Feb 2016	US$ 5 999	ebay.com
4.		Canon 5DS	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	US$ 3 699	ebay.com
5.		Nikon D3S	160 mm	157 mm	88 mm	1240 g	4200	Y	Oct 2009	US$ 5 199	ebay.com
6.		Nikon D3X	160 mm	157 mm	88 mm	1260 g	4400	Y	Dec 2008	US$ 7 999	ebay.com
7.		Nikon D4	160 mm	157 mm	91 mm	1340 g	2600	Y	Jan 2012	US$ 5 999	ebay.com
8.		Nikon D4S	160 mm	157 mm	91 mm	1350 g	3020	Y	Feb 2014	US$ 6 499	ebay.com
9.		Nikon D6	160 mm	163 mm	92 mm	1270 g	3580	Y	Feb 2020	US$ 6 499	amazon.com
10.		Nikon D600	141 mm	113 mm	82 mm	850 g	900	Y	Sep 2012	US$ 2 099	ebay.com
11.		Nikon D610	141 mm	113 mm	82 mm	850 g	900	Y	Oct 2013	US$ 1 999	ebay.com
12.		Nikon D750	141 mm	113 mm	78 mm	750 g	1230	Y	Sep 2014	US$ 2 299	ebay.com
13.		Nikon D800	146 mm	123 mm	82 mm	1000 g	900	Y	Feb 2012	US$ 2 999	ebay.com
14.		Nikon D800E	146 mm	123 mm	82 mm	1000 g	900	Y	Feb 2012	US$ 3 299	ebay.com
15.		Nikon D850	146 mm	124 mm	79 mm	1005 g	1840	Y	Jul 2017	US$ 3 299	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The D810 was launched at a markedly lower price (by 49 percent) than the D5, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

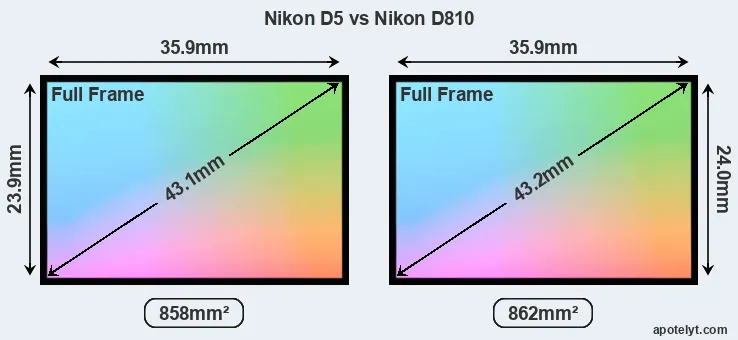

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature a full frame sensor, but their sensors differ slightly in size. They nevertheless have the same format factor of 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

In terms of chip-set technology, the D5 uses a more advanced image processing engine (EXPEED 5) than the D810 (EXPEED 4), with benefits for noise reduction, color accuracy, and processing speed.

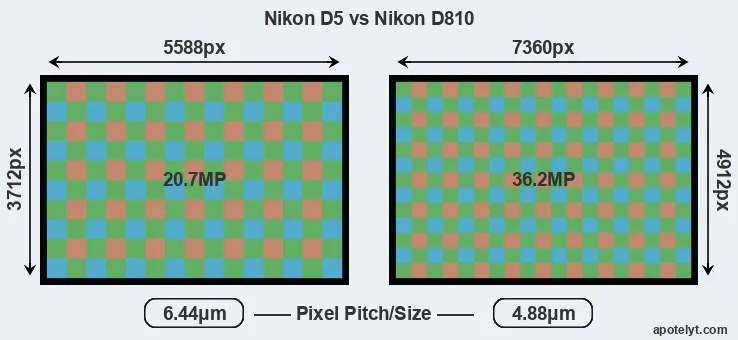

With 36.2MP, the D810 offers a higher resolution than the D5 (20.7MP), but the D810 has smaller individual pixels (pixel pitch of 4.88μm versus 6.44μm for the D5). It is noteworthy in this context that the D5 is a somewhat more recent model (by 1 year and 6 months) than the D810, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the D810 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Nikon D810 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D810 for good quality output (200 dots per inch) amounts to 36.8 x 24.6 inches or 93.5 x 62.4 cm, for very good quality (250 dpi) 29.4 x 19.6 inches or 74.8 x 49.9 cm, and for excellent quality (300 dpi) 24.5 x 16.4 inches or 62.3 x 41.6 cm. The corresponding values for the Nikon D5 are 27.9 x 18.6 inches or 71 x 47.1 cm for good quality, 22.4 x 14.8 inches or 56.8 x 37.7 cm for very good quality, and 18.6 x 12.4 inches or 47.3 x 31.4 cm for excellent quality prints.

The Nikon D5 has a native sensitivity range from ISO 100 to ISO 102400, which can be extended to ISO 50-3280000. The corresponding ISO settings for the Nikon D810 are ISO 64 to ISO 12800, with the possibility to increase the ISO range to 32-51200.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the D810 has a markedly higher DXO score than the D5 (overall score 9 points higher), which will translate into better image quality. The advantage is based on 0.6 bits higher color depth, 2.5 EV in additional dynamic range, and 0.3 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Nikon D5	Full Frame	20.7	5588	3712	4K/30p	25.1	12.3	2343	88
2.		Nikon D810	Full Frame	36.2	7360	4912	1080/60p	25.7	14.8	2853	97
3.		Canon 1D X Mark II	Full Frame	20.0	5472	3648	4K/60p	24.1	13.5	3207	88
4.		Canon 5DS	Full Frame	50.3	8688	5792	1080/30p	24.7	12.4	2381	87
5.		Nikon D3S	Full Frame	12.1	4256	2832	720/24p	23.5	12.0	3253	82
6.		Nikon D3X	Full Frame	24.4	6048	4032	none	24.7	13.7	1992	88
7.		Nikon D4	Full Frame	16.2	4928	3280	1080/30p	24.7	13.1	2965	89
8.		Nikon D4S	Full Frame	16.2	4928	3280	1080/60p	24.4	13.3	3074	89
9.		Nikon D6	Full Frame	20.7	5568	3712	4K/30p	25.3	14.3	2886	95
10.		Nikon D600	Full Frame	24.2	6016	4016	1080/30p	25.1	14.2	2980	94
11.		Nikon D610	Full Frame	24.2	6016	4016	1080/30p	25.1	14.4	2925	94
12.		Nikon D750	Full Frame	24.2	6016	4016	1080/60p	24.8	14.5	2956	93
13.		Nikon D800	Full Frame	36.2	7360	4912	1080/30p	25.3	14.4	2853	95
14.		Nikon D800E	Full Frame	36.2	7360	4912	1080/30p	25.6	14.3	2979	96
15.		Nikon D850	Full Frame	45.4	8256	5504	4K/30p	26.4	14.8	2660	100
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the D5 provides a higher video resolution than the D810. It can shoot video footage at 4K/30p, while the D810 is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The D5 and the D810 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the D5 has a higher magnification than the one of the D810 (0.72x vs 0.70x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Nikon D5, the Nikon D810, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Nikon D5	optical	Y	3.2 / 2359	fixed	Y	1/8000s	14.0/s	n	n
2.		Nikon D810	optical	Y	3.2 / 1229	fixed	n	1/8000s	5.0/s	Y	n
3.		Canon 1D X Mark II	optical	Y	3.2 / 1620	fixed	Y	1/8000s	16.0/s	n	n
4.		Canon 5DS	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
5.		Nikon D3S	optical	Y	3.0 / 921	fixed	n	1/8000s	11.0/s	n	n
6.		Nikon D3X	optical	Y	3.0 / 922	fixed	n	1/8000s	5.0/s	n	n
7.		Nikon D4	optical	Y	3.2 / 921	fixed	n	1/8000s	11.0/s	n	n
8.		Nikon D4S	optical	Y	3.2 / 921	fixed	n	1/8000s	11.0/s	n	n
9.		Nikon D6	optical	Y	3.2 / 2359	fixed	Y	1/8000s	14.0/s	n	n
10.		Nikon D600	optical	Y	3.0 / 921	fixed	n	1/4000s	5.5/s	Y	n
11.		Nikon D610	optical	Y	3.2 / 921	fixed	n	1/4000s	6.0/s	Y	n
12.		Nikon D750	optical	Y	3.2 / 1229	tilting	n	1/4000s	6.0/s	Y	n
13.		Nikon D800	optical	Y	3.2 / 921	fixed	n	1/8000s	4.0/s	Y	n
14.		Nikon D800E	optical	Y	3.2 / 921	fixed	n	1/8000s	4.0/s	Y	n
15.		Nikon D850	optical	Y	3.2 / 2359	tilting	Y	1/8000s	9.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The D5 has a touchscreen, while the D810 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Nikon D5 and the Nikon D810 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The D5 writes its imaging data to Compact Flash or XQD cards, while the D810 uses Compact Flash or SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D5 and Nikon D810 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Nikon D5	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
2.		Nikon D810	Y	stereo / mono	Y	Y	mini	3.0	Y	-	-
3.		Canon 1D X Mark II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
4.		Canon 5DS	Y	mono / mono	Y	-	mini	3.0	-	-	-
5.		Nikon D3S	Y	stereo / -	-	-	mini	2.0	-	-	-
6.		Nikon D3X	Y	- / -	-	-	mini	2.0	-	-	-
7.		Nikon D4	Y	mono / mono	Y	Y	micro	2.0	-	-	-
8.		Nikon D4S	Y	mono / mono	Y	Y	mini	2.0	-	-	-
9.		Nikon D6	Y	stereo / mono	Y	Y	mini	3.1	Y	-	Y
10.		Nikon D600	Y	mono / mono	Y	Y	mini	2.0	-	-	-
11.		Nikon D610	Y	mono / mono	Y	Y	mini	2.0	-	-	-
12.		Nikon D750	Y	stereo / mono	Y	Y	mini	2.0	Y	-	-
13.		Nikon D800	Y	mono / mono	Y	Y	mini	3.0	-	-	-
14.		Nikon D800E	Y	mono / mono	Y	Y	mini	3.0	-	-	-
15.		Nikon D850	Y	stereo / mono	Y	Y	mini	3.0	Y	Y	Y

It is notable that the D810 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the D5 does not provide wifi capability.

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

Both the D5 and the D810 have been discontinued, but can regularly be found used on ebay. The D810 was replaced by the Nikon D850, while the D5 was followed by the Nikon D6. Further information on the features and operation of the D5 and D810 can be found, respectively, in the Nikon D5 Manual (free pdf) or the online Nikon D810 Manual.

Review summary

So how do things add up? Which of the two cameras – the Nikon D5 or the Nikon D810 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Nikon D5:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better jpgs: Has a more modern image processing engine (EXPEED 5 vs EXPEED 4).
• Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.72x vs 0.70x).
• More detailed LCD: Has a higher resolution rear screen (2359k vs 1229k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Faster burst: Shoots at higher frequency (14 vs 5 flaps/sec) to capture the decisive moment.
• More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
• Longer lasting: Can take more shots (3780 versus 1200) on a single battery charge.
• More modern: Is somewhat more recent (announced 1 year and 6 months after the D810).

Arguments in favor of the Nikon D810:

• More detail: Has more megapixels (36.2 vs 20.7MP), which boosts linear resolution by 32%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Scores markedly higher (9 points) in the DXO overall evaluation.
• More dynamic range: Captures a broader range of light and dark details (2.5 EV of extra DR).
• More compact: Is smaller (146x123mm vs 160x159mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 435g or 31 percent) and is thus easier to take along.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More affordable: Was introduced into a lower priced category (49 percent cheaper at launch).
• More heavily discounted: Has been on the market for longer (launched in June 2014).

If the count of relative strengths (bullet points above) is taken as a measure, the match-up finishes in a tie (10 points each). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Nikon D5 and the Nikon D810 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the D5 and the D810 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Nikon D5	..	..	4/5	89/100	4.5/5	5/5	Jan 2016	US$ 6 499	ebay.com
2.		Nikon D810	5/5	..	5/5	86/100	5/5	4.5/5	Jun 2014	US$ 3 299	ebay.com
3.		Canon 1D X Mark II	..	..	4.5/5	89/100	4.5/5	4.5/5	Feb 2016	US$ 5 999	ebay.com
4.		Canon 5DS	..	+	..	83/100	4.5/5	4.5/5	Feb 2015	US$ 3 699	ebay.com
5.		Nikon D3S	5/5	..	..	89/100	4.5/5	5/5	Oct 2009	US$ 5 199	ebay.com
6.		Nikon D3X	..	..	..	86/100	4/5	5/5	Dec 2008	US$ 7 999	ebay.com
7.		Nikon D4	..	..	..	..	4.5/5	4.5/5	Jan 2012	US$ 5 999	ebay.com
8.		Nikon D4S	5/5	..	..	..	4.5/5	4.5/5	Feb 2014	US$ 6 499	ebay.com
9.		Nikon D6	..	..	4/5	..	4.5/5	4.5/5	Feb 2020	US$ 6 499	amazon.com
10.		Nikon D600	4/5	+ +	..	87/100	5/5	4.5/5	Sep 2012	US$ 2 099	ebay.com
11.		Nikon D610	4/5	+ +	..	87/100	4.5/5	4.5/5	Oct 2013	US$ 1 999	ebay.com
12.		Nikon D750	5/5	+ +	4/5	90/100	4.5/5	4.5/5	Sep 2014	US$ 2 299	ebay.com
13.		Nikon D800	5/5	+ +	..	82/100	5/5	5/5	Feb 2012	US$ 2 999	ebay.com
14.		Nikon D800E	..	..	..	84/100	5/5	5/5	Feb 2012	US$ 3 299	ebay.com
15.		Nikon D850	4.5/5	+ +	5/5	89/100	4.5/5	5/5	Jul 2017	US$ 3 299	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
