Nikon D500 vs Z30

The Nikon D500 and the Nikon Z30 are two digital cameras that were revealed to the public, respectively, in January 2016 and June 2022. The D500 is a DSLR, while the Z30 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. Both cameras offer a resolution of 20.7 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Nikon D500		Nikon Z30
Digital single lens reflex		Mirrorless system camera
Nikon F mount lenses		Nikon Z mount lenses
20.7 MP – APS-C sensor		20.7 MP – APS-C sensor
4K/30p Video		4K/30p Video
ISO 100-51,200 (50 - 1,640,000)		ISO 100-51,200 (100 - 204,800)
Optical viewfinder		No viewfinder, LCD framing
3.2" LCD – 2359k dots		3.0" LCD – 1040k dots
Tilting touchscreen		Swivel touchscreen
10 shutter flaps per second		11 shutter flaps per second
Weathersealed body		Weathersealed body
1240 shots per battery charge		330 shots per battery charge
147 x 115 x 81 mm, 860 g		128 x 74 x 60 mm, 405 g

Check D500 offers at
ebay.com
Check Z30 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D500 and the Nikon Z30? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

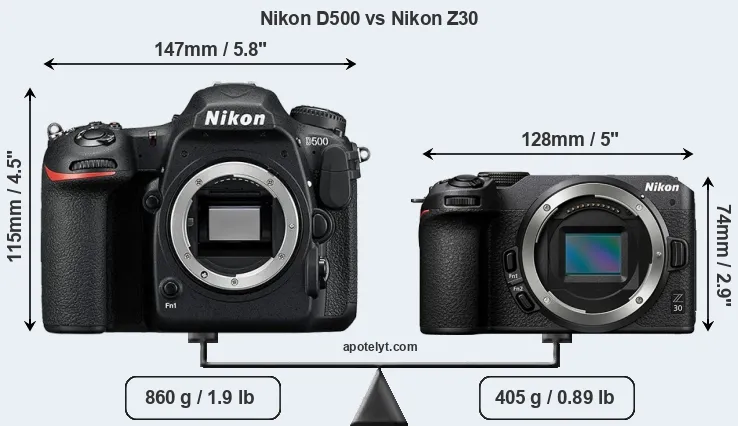

The side-by-side display below illustrates the physical size and weight of the Nikon D500 and the Nikon Z30. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon Z30 is considerably smaller (44 percent) than the Nikon D500. Moreover, the Z30 is substantially lighter (53 percent) than the D500. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the D500 gets 1240 shots out of its Nikon EN-EL15 battery, while the Z30 can take 330 images on a single charge of its Nikon EN-EL25 power pack. The power pack in the Z30 can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Nikon D500	147 mm	115 mm	81 mm	860 g	1240	Y	Jan 2016	US$ 1 999	ebay.com
2.		Nikon Z30	128 mm	74 mm	60 mm	405 g	330	Y	Jun 2022	US$ 709	amazon.com
3.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	US$ 1 999	amazon.com
4.		Canon 80D	139 mm	105 mm	79 mm	730 g	960	Y	Feb 2016	US$ 1 199	ebay.com
5.		Nikon 1 V3	111 mm	65 mm	33 mm	381 g	310	n	Mar 2014	US$ 799	ebay.com
6.		Nikon D300S	147 mm	115 mm	81 mm	938 g	950	Y	Jul 2009	US$ 1 799	ebay.com
7.		Nikon D600	141 mm	113 mm	82 mm	850 g	900	Y	Sep 2012	US$ 2 099	ebay.com
8.		Nikon D610	141 mm	113 mm	82 mm	850 g	900	Y	Oct 2013	US$ 1 999	ebay.com
9.		Nikon D750	141 mm	113 mm	78 mm	750 g	1230	Y	Sep 2014	US$ 2 299	ebay.com
10.		Nikon D5300	125 mm	98 mm	76 mm	480 g	600	n	Oct 2013	US$ 799	ebay.com
11.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	US$ 699	ebay.com
12.		Nikon D7100	136 mm	107 mm	76 mm	765 g	950	Y	Feb 2013	US$ 1 199	ebay.com
13.		Nikon D7200	136 mm	107 mm	76 mm	765 g	1110	Y	Mar 2015	US$ 1 199	ebay.com
14.		Nikon D7500	136 mm	104 mm	73 mm	720 g	950	Y	Apr 2017	US$ 1 299	amazon.com
15.		Nikon Z50	127 mm	94 mm	60 mm	450 g	320	Y	Oct 2019	US$ 859	amazon.com
16.		Nikon Z fc	135 mm	94 mm	44 mm	445 g	300	n	Jun 2021	US$ 959	amazon.com
17.		Panasonic GH5	139 mm	98 mm	87 mm	725 g	410	Y	Jan 2017	US$ 1 999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The Z30 was launched at a markedly lower price (by 65 percent) than the D500, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor and have a format factor (sometimes also referred to as "crop factor") of 1.5. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the Z30 uses a more advanced image processing engine (EXPEED 6) than the D500 (EXPEED 5), with benefits for noise reduction, color accuracy, and processing speed.

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 20.7 megapixels. This similarity in sensor specs implies that both the D500 and the Z30 have the same pixel density, as well as the same pixel size. It should, however, be noted that the Z30 is much more recent (by 6 years and 5 months) than the D500, and its sensor will have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The Z30 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Nikon D500 has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-1640000. The corresponding ISO settings for the Nikon Z30 are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 100-204800.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Nikon D500	APS-C	20.7	5568	3712	4K/30p	24.0	14.0	1324	83
2.		Nikon Z30	APS-C	20.7	5568	3712	4K/30p	24.3	13.9	2230	86
3.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
4.		Canon 80D	APS-C	24.0	6000	4000	1080/60p	23.6	13.2	1135	79
5.		Nikon 1 V3	1-inch	18.2	5232	3488	1080/60p	20.8	10.7	384	52
6.		Nikon D300S	APS-C	12.2	4288	2848	720/24p	22.5	12.2	787	70
7.		Nikon D600	Full Frame	24.2	6016	4016	1080/30p	25.1	14.2	2980	94
8.		Nikon D610	Full Frame	24.2	6016	4016	1080/30p	25.1	14.4	2925	94
9.		Nikon D750	Full Frame	24.2	6016	4016	1080/60p	24.8	14.5	2956	93
10.		Nikon D5300	APS-C	24.0	6000	4000	1080/60p	24.0	13.9	1338	83
11.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
12.		Nikon D7100	APS-C	24.0	6000	4000	1080/60p	24.2	13.7	1256	83
13.		Nikon D7200	APS-C	24.0	6000	4000	1080/60p	24.5	14.6	1333	87
14.		Nikon D7500	APS-C	20.7	5568	3712	4K/30p	24.3	14.0	1483	86
15.		Nikon Z50	APS-C	20.7	5568	3712	4K/30p	24.1	13.6	1963	84
16.		Nikon Z fc	APS-C	20.7	5568	3712	4K/30p	24.2	13.8	2131	85
17.		Panasonic GH5	Four Thirds	20.2	5184	3888	4K/60p	23.9	13.0	807	77
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (4K/30p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the D500 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the Z30 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Nikon D500 and Nikon Z30 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Nikon D500	optical	Y	3.2 / 2359	tilting	Y	1/8000s	10.0/s	n	n
2.		Nikon Z30	none	n	3.0 / 1040	swivel	Y	1/4000s	11.0/s	Y	n
3.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
4.		Canon 80D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
5.		Nikon 1 V3	optional	n	3.0 / 1037	tilting	Y	1/4000s	60.0/s	Y	n
6.		Nikon D300S	optical	Y	3.0 / 920	fixed	n	1/8000s	7.0/s	Y	n
7.		Nikon D600	optical	Y	3.0 / 921	fixed	n	1/4000s	5.5/s	Y	n
8.		Nikon D610	optical	Y	3.2 / 921	fixed	n	1/4000s	6.0/s	Y	n
9.		Nikon D750	optical	Y	3.2 / 1229	tilting	n	1/4000s	6.0/s	Y	n
10.		Nikon D5300	optical	n	3.2 / 1037	swivel	n	1/4000s	5.0/s	Y	n
11.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
12.		Nikon D7100	optical	Y	3.2 / 1229	fixed	n	1/8000s	6.0/s	Y	n
13.		Nikon D7200	optical	Y	3.2 / 1229	fixed	n	1/8000s	6.0/s	Y	n
14.		Nikon D7500	optical	Y	3.2 / 922	tilting	Y	1/8000s	8.0/s	Y	n
15.		Nikon Z50	2360	n	3.2 / 1040	tilting	Y	1/4000s	11.0/s	Y	n
16.		Nikon Z fc	2360	Y	3.0 / 1040	swivel	Y	1/4000s	11.0/s	n	n
17.		Panasonic GH5	3680	n	3.2 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the D500, but is missing on the Z30 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the Z30 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Nikon D500 and the Nikon Z30 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The D500 writes its imaging data to SDXC or XQD cards, while the Z30 uses SDXC cards. The D500 features dual card slots, which can be very useful in case a memory card fails. In contrast, the Z30 only has one slot. The D500 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the Z30 can use UHS-I cards (up to 104 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D500 and Nikon Z30 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Nikon D500	Y	stereo / mono	Y	Y	mini	3.0	Y	Y	Y
2.		Nikon Z30	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
3.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon 80D	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
5.		Nikon 1 V3	-	stereo / mono	Y	-	mini	2.0	Y	-	-
6.		Nikon D300S	Y	stereo / mono	Y	-	mini	2.0	-	-	-
7.		Nikon D600	Y	mono / mono	Y	Y	mini	2.0	-	-	-
8.		Nikon D610	Y	mono / mono	Y	Y	mini	2.0	-	-	-
9.		Nikon D750	Y	stereo / mono	Y	Y	mini	2.0	Y	-	-
10.		Nikon D5300	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
11.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
12.		Nikon D7100	Y	stereo / mono	Y	Y	mini	2.0	-	-	-
13.		Nikon D7200	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
14.		Nikon D7500	Y	stereo / mono	Y	Y	mini	2.0	Y	-	Y
15.		Nikon Z50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
16.		Nikon Z fc	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
17.		Panasonic GH5	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y

It is notable that the D500 has a headphone jack, which is not present on the Z30 This port makes it possible to attach external headphones and monitor the quality of sound during the recording process.

Studio photographers will appreciate that the Nikon D500 (unlike the Z30) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The Z30 is a recent model that features in the current product line-up of Nikon. In contrast, the D500 has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the D500 from Nikon. Further information on the features and operation of the D500 and Z30 can be found, respectively, in the Nikon D500 Manual (free pdf) or the online Nikon Z30 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Nikon D500 and the Nikon Z30? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Nikon D500:

• Better sound control: Has a headphone port that enables audio monitoring while recording.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (2359k vs 1040k dots).
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Longer lasting: Can take more shots (1240 versus 330) on a single battery charge.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More heavily discounted: Has been available for much longer (launched in January 2016).

Arguments in favor of the Nikon Z30:

• Better jpgs: Has a more modern image processing engine (EXPEED 6 vs EXPEED 5).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• More compact: Is smaller (128x74mm vs 147x115mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 455g or 53 percent) and is thus easier to take along.
• Easier travel charging: Can be conveniently charged via its USB port.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced into a lower priced category (65 percent cheaper at launch).
• More modern: Reflects 6 years and 5 months of technical progress since the D500 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the match-up finishes in a tie (12 points each). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Nikon D500 and the Nikon Z30 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the D500 or the Z30 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Nikon D500	5/5	+ +	4.7/5	91/100	4.5/5	5/5	Jan 2016	US$ 1 999	ebay.com
2.		Nikon Z30	4/5	..	4/5	86/100	4.5/5	4/5	Jun 2022	US$ 709	amazon.com
3.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	US$ 1 999	amazon.com
4.		Canon 80D	4/5	+ +	4.5/5	84/100	4.5/5	4.5/5	Feb 2016	US$ 1 199	ebay.com
5.		Nikon 1 V3	3/5	..	..	76/100	4.5/5	4/5	Mar 2014	US$ 799	ebay.com
6.		Nikon D300S	5/5	+ +	..	82/100	4/5	4.5/5	Jul 2009	US$ 1 799	ebay.com
7.		Nikon D600	4/5	+ +	..	87/100	5/5	4.5/5	Sep 2012	US$ 2 099	ebay.com
8.		Nikon D610	4/5	+ +	..	87/100	4.5/5	4.5/5	Oct 2013	US$ 1 999	ebay.com
9.		Nikon D750	5/5	+ +	4/5	90/100	4.5/5	4.5/5	Sep 2014	US$ 2 299	ebay.com
10.		Nikon D5300	4/5	+ +	..	79/100	4.5/5	4.5/5	Oct 2013	US$ 799	ebay.com
11.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	US$ 699	ebay.com
12.		Nikon D7100	5/5	+ +	..	85/100	4.5/5	4.5/5	Feb 2013	US$ 1 199	ebay.com
13.		Nikon D7200	4/5	+ +	..	84/100	4.5/5	4.5/5	Mar 2015	US$ 1 199	ebay.com
14.		Nikon D7500	4.5/5	+ +	4.5/5	86/100	5/5	4.5/5	Apr 2017	US$ 1 299	amazon.com
15.		Nikon Z50	5/5	..	5/5	85/100	4.5/5	4.5/5	Oct 2019	US$ 859	amazon.com
16.		Nikon Z fc	4/5	..	4.5/5	86/100	5/5	4.5/5	Jun 2021	US$ 959	amazon.com
17.		Panasonic GH5	4.5/5	+ +	..	85/100	4.5/5	5/5	Jan 2017	US$ 1 999	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check D500 offers at
ebay.com
Check Z30 price at
amazon.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check D500 offers at
ebay.com
Check Z30 price at
amazon.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
