Olympus E-30 vs Pentax K-30

The Olympus E-30 and the Pentax K-30 are two digital cameras that were revealed to the public, respectively, in November 2008 and May 2012. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a Four Thirds (E-30) and an APS-C (K-30) sensor. The Olympus has a resolution of 12.2 megapixels, whereas the Pentax provides 16.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-30		Pentax K-30
Digital single lens reflex		Digital single lens reflex
Four Thirds lenses		Pentax K mount lenses
12.2 MP – Four Thirds sensor		16.1 MP – APS-C sensor
no Video		1080/30p Video
ISO 100-3,200		ISO 100-12,800 (100 - 25,600)
Optical viewfinder		Optical viewfinder
2.7" LCD – 230k dots		3.0" LCD – 921k dots
Swivel screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
5 shutter flaps per second		6 shutter flaps per second
In-body stabilization		In-body stabilization
not weather sealed		Weathersealed body
750 shots per battery charge		410 shots per battery charge
142 x 108 x 75 mm, 701 g		130 x 97 x 71 mm, 650 g

Check E-30 offers at
ebay.com
Check K-30 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus E-30 and the Pentax K-30? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

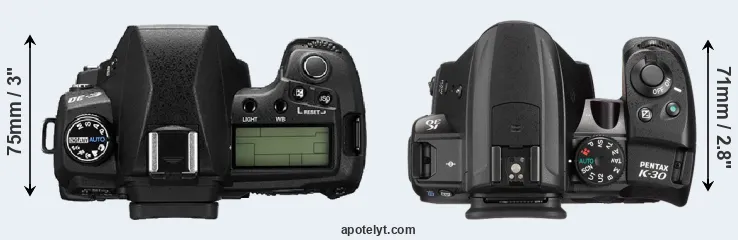

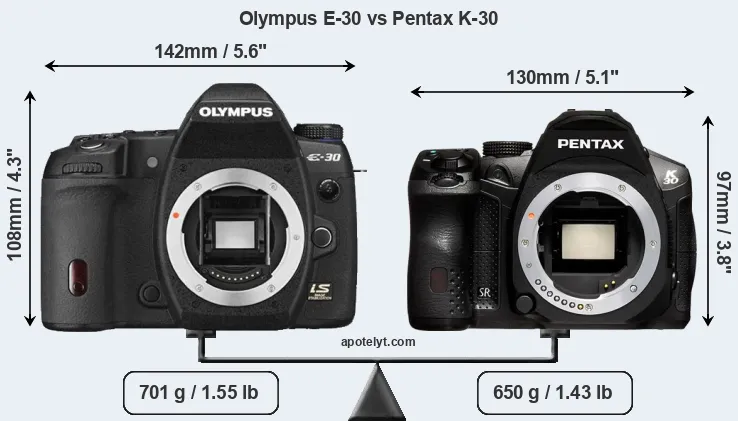

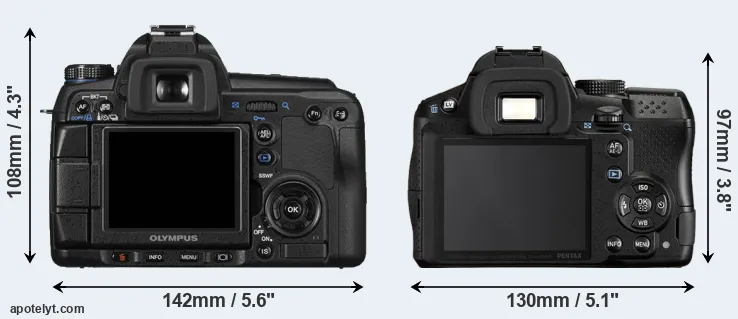

The physical size and weight of the Olympus E-30 and the Pentax K-30 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The K-30 can be obtained in seven different colors (black, silver, blue, red, yellow, green, white), while the E-30 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax K-30 is notably smaller (18 percent) than the Olympus E-30. Moreover, the K-30 is markedly lighter (7 percent) than the E-30. It is noteworthy in this context that the K-30 is splash and dust-proof, while the E-30 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the E-30 gets 750 shots out of its Olympus BLM-1 battery, while the K-30 can take 410 images on a single charge of its Pentax D-LI109 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus E-30	142 mm	108 mm	75 mm	701 g	750	n	Nov 2008	US$ 1 299	ebay.com
2.		Pentax K-30	130 mm	97 mm	71 mm	650 g	410	Y	May 2012	US$ 849	ebay.com
3.		Olympus E-3	142 mm	116 mm	75 mm	876 g	750	Y	Oct 2007	US$ 1 699	ebay.com
4.		Olympus E-410	130 mm	91 mm	53 mm	435 g	500	n	Mar 2007	US$ 699	ebay.com
5.		Olympus E-420	130 mm	91 mm	53 mm	440 g	500	n	Mar 2008	US$ 599	ebay.com
6.		Olympus E-450	130 mm	91 mm	53 mm	440 g	500	n	Mar 2009	US$ 499	ebay.com
7.		Olympus E-510	136 mm	92 mm	68 mm	538 g	750	n	Mar 2007	US$ 799	ebay.com
8.		Olympus E-520	136 mm	92 mm	68 mm	535 g	750	n	May 2008	US$ 699	ebay.com
9.		Olympus E-600	130 mm	94 mm	60 mm	535 g	500	n	Aug 2009	US$ 449	ebay.com
10.		Olympus E-620	130 mm	94 mm	60 mm	521 g	500	n	Feb 2009	US$ 699	ebay.com
11.		Olympus E-P1	121 mm	70 mm	36 mm	355 g	300	n	Jun 2009	US$ 799	ebay.com
12.		Olympus E-P2	121 mm	70 mm	36 mm	355 g	300	n	Nov 2009	US$ 799	ebay.com
13.		Pentax K-3	131 mm	100 mm	77 mm	800 g	560	Y	Oct 2013	US$ 1 299	ebay.com
14.		Pentax K-5	131 mm	97 mm	73 mm	760 g	740	Y	Sep 2010	US$ 1 099	ebay.com
15.		Pentax K-5 II	131 mm	97 mm	73 mm	760 g	740	Y	Sep 2012	US$ 1 099	ebay.com
16.		Pentax K-50	130 mm	97 mm	71 mm	650 g	410	Y	Jun 2013	US$ 599	ebay.com
17.		Pentax K-500	130 mm	97 mm	71 mm	646 g	710	n	Jun 2013	US$ 549	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The K-30 was launched at a markedly lower price (by 35 percent) than the E-30, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

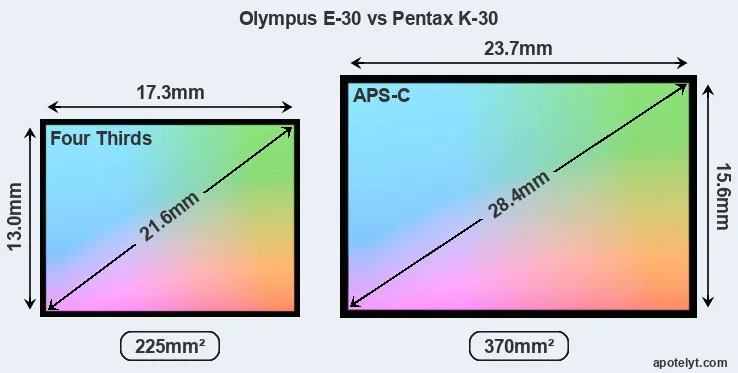

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Olympus E-30 features a Four Thirds sensor and the Pentax K-30 an APS-C sensor. The sensor area in the K-30 is 64 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.5. The sensor in the E-30 has a native 4:3 aspect ratio, while the one in the K-30 offers a 3:2 aspect.

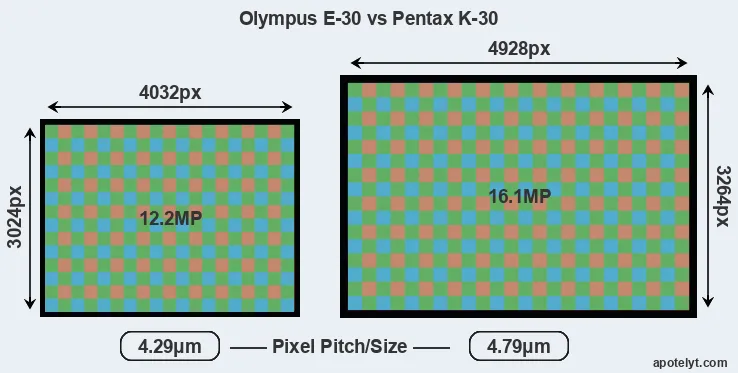

With 16.1MP, the K-30 offers a higher resolution than the E-30 (12.2MP), but the K-30 nevertheless has larger individual pixels (pixel pitch of 4.79μm versus 4.29μm for the E-30) due to its larger sensor. Moreover, the K-30 is a much more recent model (by 3 years and 6 months) than the E-30, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Pentax K-30 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the K-30 for good quality output (200 dots per inch) amounts to 24.6 x 16.3 inches or 62.6 x 41.5 cm, for very good quality (250 dpi) 19.7 x 13.1 inches or 50.1 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inches or 41.7 x 27.6 cm. The corresponding values for the Olympus E-30 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.

The Olympus E-30 has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Pentax K-30 are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the K-30 offers substantially better image quality than the E-30 (overall score 24 points higher). The advantage is based on 2.4 bits higher color depth, 2.6 EV in additional dynamic range, and 1.1 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-30	Four Thirds	12.2	4032	3024	none	21.3	10.4	530	55
2.		Pentax K-30	APS-C	16.1	4928	3264	1080/30p	23.7	13.0	1129	79
3.		Olympus E-3	Four Thirds	10.0	3648	2736	none	21.6	10.5	571	56
4.		Olympus E-410	Four Thirds	10.0	3648	2736	none	21.1	10.0	494	51
5.		Olympus E-420	Four Thirds	10.0	3648	2736	none	21.5	10.4	527	56
6.		Olympus E-450	Four Thirds	10.0	3648	2736	none	21.5	10.5	512	56
7.		Olympus E-510	Four Thirds	10.0	3648	2736	none	21.2	10.0	442	52
8.		Olympus E-520	Four Thirds	10.0	3648	2736	none	21.4	10.4	548	55
9.		Olympus E-600	Four Thirds	12.2	4032	3024	none	21.5	10.3	541	55
10.		Olympus E-620	Four Thirds	12.2	4032	3024	none	21.3	10.3	536	55
11.		Olympus E-P1	Four Thirds	12.2	4032	3024	720/30p	21.4	10.4	536	55
12.		Olympus E-P2	Four Thirds	12.2	4032	3024	720/30p	21.5	10.4	505	56
13.		Pentax K-3	APS-C	24.1	6016	4000	1080/60i	23.7	13.4	1216	80
14.		Pentax K-5	APS-C	16.1	4928	3264	1080/25p	23.7	14.1	1162	82
15.		Pentax K-5 II	APS-C	16.1	4928	3264	1080/25p	23.8	14.1	1235	82
16.		Pentax K-50	APS-C	16.1	4928	3264	1080/30p	23.7	13.0	1120	79
17.		Pentax K-500	APS-C	16.1	4928	3264	1080/30p	23.7	13.1	1087	79

Many modern cameras cannot only take still pictures, but also record videos. The K-30 indeed provides for movie recording, while the E-30 does not. The highest resolution format that the K-30 can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The E-30 and the K-30 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the K-30 offers a wider field of view (100%) than the one in the E-30 (98%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the K-30 has a higher magnification (0.61x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Olympus E-30, the Pentax K-30, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-30	optical	Y	2.7 / 230	swivel	n	1/8000s	5.0/s	Y	Y
2.		Pentax K-30	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
3.		Olympus E-3	optical	Y	2.5 / 230	swivel	n	1/8000s	5.0/s	Y	Y
4.		Olympus E-410	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
5.		Olympus E-420	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	n
6.		Olympus E-450	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	n
7.		Olympus E-510	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	Y
8.		Olympus E-520	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	Y
9.		Olympus E-600	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
10.		Olympus E-620	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
11.		Olympus E-P1	none	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
12.		Olympus E-P2	optional	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
13.		Pentax K-3	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	Y	Y
14.		Pentax K-5	optical	Y	3.0 / 921	fixed	n	1/8000s	7.0/s	Y	Y
15.		Pentax K-5 II	optical	Y	3.0 / 921	fixed	n	1/8000s	7.0/s	Y	Y
16.		Pentax K-50	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
17.		Pentax K-500	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the E-30, but is missing on the K-30 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The E-30 writes its imaging data to Compact Flash or xD Picture cards, while the K-30 uses SDXC cards. The E-30 features dual card slots, which can be very useful in case a memory card fails. In contrast, the K-30 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus E-30 and Pentax K-30 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-30	Y	- / -	-	-	-	2.0	-	-	-
2.		Pentax K-30	Y	mono / mono	-	-	-	2.0	-	-	-
3.		Olympus E-3	Y	- / -	-	-	-	2.0	-	-	-
4.		Olympus E-410	Y	- / -	-	-	-	2.0	-	-	-
5.		Olympus E-420	Y	- / -	-	-	-	2.0	-	-	-
6.		Olympus E-450	Y	- / -	-	-	-	2.0	-	-	-
7.		Olympus E-510	Y	- / -	-	-	-	2.0	-	-	-
8.		Olympus E-520	Y	- / -	-	-	-	2.0	-	-	-
9.		Olympus E-600	Y	- / -	-	-	-	2.0	-	-	-
10.		Olympus E-620	Y	- / -	-	-	-	2.0	-	-	-
11.		Olympus E-P1	Y	stereo / -	-	-	mini	2.0	-	-	-
12.		Olympus E-P2	Y	stereo / -	-	-	mini	2.0	-	-	-
13.		Pentax K-3	Y	mono / mono	Y	Y	mini	3.0	-	-	-
14.		Pentax K-5	Y	stereo / mono	Y	-	mini	2.0	-	-	-
15.		Pentax K-5 II	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Pentax K-50	Y	mono / mono	-	-	micro	2.0	-	-	-
17.		Pentax K-500	Y	mono / mono	-	-	-	2.0	-	-	-

Both the E-30 and the K-30 have been discontinued, but can regularly be found used on ebay. The K-30 was replaced by the Pentax K-50, while the E-30 does not have a direct successor. Further information on the features and operation of the E-30 and K-30 can be found, respectively, in the Olympus E-30 Manual (free pdf) or the online Pentax K-30 Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Olympus E-30 or the Pentax K-30 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Olympus E-30:

• Easier setting verification: Features an LCD display on top to control shooting parameters.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/6000s) to freeze action.
• Longer lasting: Can take more shots (750 versus 410) on a single battery charge.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been available for much longer (launched in November 2008).

Reasons to prefer the Pentax K-30:

• More detail: Has more megapixels (16.1 vs 12.2MP), which boosts linear resolution by 17%.
• Better image quality: Scores substantially higher (24 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (2.4 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (2.6 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (1.1 stops ISO advantage).
• Broader imaging potential: Can capture not only stills but also 1080/30p video.
• More complete view: Has a viewfinder with a larger field of view (100% vs 98%).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.61x vs 0.51x).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (921k vs 230k dots).
• Faster burst: Shoots at higher frequency (6 vs 5 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (130x97mm vs 142x108mm) and will fit more readily into a bag.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• More affordable: Was introduced into a lower priced category (35 percent cheaper at launch).
• More modern: Reflects 3 years and 6 months of technical progress since the E-30 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the K-30 is the clear winner of the contest (15 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-30 and the Pentax K-30 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the E-30 or the K-30 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus E-30	..	..	..	71/100	4.5/5	4/5	Nov 2008	US$ 1 299	ebay.com
2.		Pentax K-30	4/5	..	..	78/100	4.5/5	4.5/5	May 2012	US$ 849	ebay.com
3.		Olympus E-3	..	88/100	..	+ +	o	4/5	Oct 2007	US$ 1 699	ebay.com
4.		Olympus E-410	..	86/100	..	+ +	4/5	4.5/5	Mar 2007	US$ 699	ebay.com
5.		Olympus E-420	..	85/100	..	+ +	4/5	4.5/5	Mar 2008	US$ 599	ebay.com
6.		Olympus E-450	..	..	..	..	4/5	4/5	Mar 2009	US$ 499	ebay.com
7.		Olympus E-510	..	89/100	..	+ +	3.5/5	4.5/5	Mar 2007	US$ 799	ebay.com
8.		Olympus E-520	..	87/100	..	+ +	4.5/5	4.5/5	May 2008	US$ 699	ebay.com
9.		Olympus E-600	..	..	..	..	..	4.5/5	Aug 2009	US$ 449	ebay.com
10.		Olympus E-620	3/5	88/100	..	72/100	4.5/5	5/5	Feb 2009	US$ 699	ebay.com
11.		Olympus E-P1	..	+	..	66/100	4/5	4.5/5	Jun 2009	US$ 799	ebay.com
12.		Olympus E-P2	3/5	+	..	69/100	4/5	4.5/5	Nov 2009	US$ 799	ebay.com
13.		Pentax K-3	4/5	..	..	83/100	5/5	5/5	Oct 2013	US$ 1 299	ebay.com
14.		Pentax K-5	4/5	..	..	83/100	5/5	4.5/5	Sep 2010	US$ 1 099	ebay.com
15.		Pentax K-5 II	5/5	..	..	80/100	5/5	4.5/5	Sep 2012	US$ 1 099	ebay.com
16.		Pentax K-50	5/5	..	..	..	5/5	4.5/5	Jun 2013	US$ 599	ebay.com
17.		Pentax K-500	..	..	..	..	4.5/5	4.5/5	Jun 2013	US$ 549	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
