Olympus E-420 vs E-P7

The Olympus E-420 and the Olympus PEN E-P7 are two digital cameras that were announced, respectively, in March 2008 and June 2021. The E-420 is a DSLR, while the E-P7 is a mirrorless interchangeable lens camera. Both cameras are equipped with a Four Thirds sensor. The E-420 has a resolution of 10 megapixels, whereas the E-P7 provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-420		Olympus E-P7
Digital single lens reflex		Mirrorless system camera
Four Thirds lenses		Micro Four Thirds lenses
10 MP – Four Thirds sensor		20.2 MP – Four Thirds sensor
no Video		4K/30p Video
ISO 100-1,600		ISO 200-25,600
Optical viewfinder		No viewfinder, LCD framing
2.7" LCD – 215k dots		3.0" LCD – 1040k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
3.5 shutter flaps per second		8.7 shutter flaps per second
Lens stabilization only		In-body stabilization
500 shots per battery charge		360 shots per battery charge
130 x 91 x 53 mm, 440 g		118 x 69 x 38 mm, 337 g

Check E-420 offers at
ebay.com
Check E-P7 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus E-420 and the Olympus PEN E-P7? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Olympus E-420 and the Olympus E-P7 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The E-P7 can be obtained in three different colors (black, silver, white), while the E-420 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-P7 is considerably smaller (31 percent) than the Olympus E-420. Moreover, the E-P7 is markedly lighter (23 percent) than the E-420. In this context, it is worth noting that neither the E-420 nor the E-P7 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Four Thirds Lens Catalog (E-420) and the Micro Four Thirds Lens Catalog (E-P7). Mirrorless cameras, such as the E-P7, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the E-420 gets 500 shots out of its Olympus BLS-1 battery, while the E-P7 can take 360 images on a single charge of its Olympus BLS-50 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus E-420	130 mm	91 mm	53 mm	440 g	500	n	Mar 2008	EUR 499	ebay.com
2.		Olympus E-P7	118 mm	69 mm	38 mm	337 g	360	n	Jun 2021	EUR 799	amazon.com
3.		Nikon D40X	124 mm	94 mm	64 mm	522 g	520	n	Mar 2007	EUR 699	ebay.com
4.		Nikon D60	126 mm	94 mm	64 mm	522 g	500	n	Jan 2008	EUR 499	ebay.com
5.		Nikon D3000	126 mm	97 mm	64 mm	536 g	500	n	Jul 2009	EUR 539	ebay.com
6.		Olympus E-400	130 mm	91 mm	53 mm	435 g	500	n	Sep 2006	EUR 699	ebay.com
7.		Olympus E-410	130 mm	91 mm	53 mm	435 g	500	n	Mar 2007	EUR 699	ebay.com
8.		Olympus E-450	130 mm	91 mm	53 mm	440 g	500	n	Mar 2009	EUR 449	ebay.com
9.		Olympus E-520	136 mm	92 mm	68 mm	535 g	750	n	May 2008	EUR 599	ebay.com
10.		Olympus E-600	130 mm	94 mm	60 mm	535 g	500	n	Aug 2009	EUR 399	ebay.com
11.		Olympus E-620	130 mm	94 mm	60 mm	521 g	500	n	Feb 2009	EUR 599	ebay.com
12.		Olympus E-M10	119 mm	82 mm	46 mm	396 g	320	n	Jan 2014	EUR 599	ebay.com
13.		Olympus E-M10 IV	122 mm	84 mm	49 mm	383 g	360	n	Aug 2020	EUR 699	amazon.com
14.		Olympus E-P2	121 mm	70 mm	36 mm	355 g	300	n	Nov 2009	EUR 699	ebay.com
15.		Olympus E-P3	122 mm	69 mm	34 mm	369 g	330	n	Jun 2011	EUR 699	ebay.com
16.		Olympus E-P5	122 mm	69 mm	37 mm	420 g	330	n	May 2013	EUR 999	ebay.com
17.		Panasonic L10	135 mm	96 mm	78 mm	556 g	450	n	Aug 2007	EUR 599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-420 was launched at a somewhat lower price (by 25 percent) than the E-P7, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

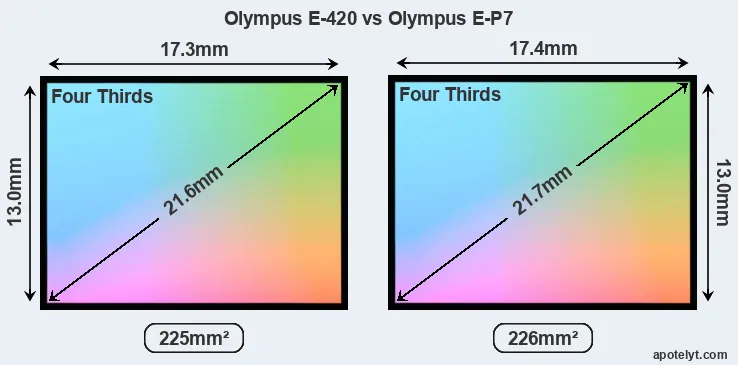

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a Four Thirds sensor, but their sensors differ slightly in size. They nevertheless have the same format factor of 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Technology-wise, the E-P7 uses a more advanced image processing engine (TruePic VIII) than the E-420 (TruePic III), with benefits for noise reduction, color accuracy, and processing speed.

With 20.2MP, the E-P7 offers a higher resolution than the E-420 (10MP), but the E-P7 has smaller individual pixels (pixel pitch of 3.34μm versus 4.74μm for the E-420). Yet, the E-P7 is a much more recent model (by 13 years and 3 months) than the E-420, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Olympus E-P7 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-P7 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Olympus E-420 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.

The Olympus E-420 has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Olympus PEN E-P7 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-420	Four Thirds	10.0	3648	2736	none	21.5	10.4	527	56
2.		Olympus E-P7	Four Thirds	20.2	5184	3888	4K/30p	23.4	13.3	1494	77
3.		Nikon D40X	APS-C	10.0	3872	2592	none	22.4	11.4	516	63
4.		Nikon D60	APS-C	10.0	3872	2592	none	22.5	11.4	562	65
5.		Nikon D3000	APS-C	10.0	3872	2592	none	22.3	11.1	563	62
6.		Olympus E-400	Four Thirds	10.0	3648	2736	none	21.0	10.6	127	53
7.		Olympus E-410	Four Thirds	10.0	3648	2736	none	21.1	10.0	494	51
8.		Olympus E-450	Four Thirds	10.0	3648	2736	none	21.5	10.5	512	56
9.		Olympus E-520	Four Thirds	10.0	3648	2736	none	21.4	10.4	548	55
10.		Olympus E-600	Four Thirds	12.2	4032	3024	none	21.5	10.3	541	55
11.		Olympus E-620	Four Thirds	12.2	4032	3024	none	21.3	10.3	536	55
12.		Olympus E-M10	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	884	72
13.		Olympus E-M10 IV	Four Thirds	20.2	5184	3888	4K/30p	23.3	13.2	1402	76
14.		Olympus E-P2	Four Thirds	12.2	4032	3024	720/30p	21.5	10.4	505	56
15.		Olympus E-P3	Four Thirds	12.2	4032	3024	1080/60i	20.8	10.1	536	51
16.		Olympus E-P5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.4	895	72
17.		Panasonic L10	Four Thirds	10.0	3648	2736	none	21.3	10.8	429	55
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The E-P7 indeed provides for movie recording, while the E-420 does not. The highest resolution format that the E-P7 can use is 4K/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the E-420 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-P7 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Olympus E-420, the Olympus E-P7, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-420	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	n
2.		Olympus E-P7	none	n	3.0 / 1040	tilting	Y	1/4000s	8.7/s	Y	Y
3.		Nikon D40X	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
4.		Nikon D60	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
5.		Nikon D3000	optical	n	3.0 / 230	fixed	n	1/4000s	3.0/s	Y	n
6.		Olympus E-400	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
7.		Olympus E-410	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
8.		Olympus E-450	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	n
9.		Olympus E-520	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	Y
10.		Olympus E-600	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
11.		Olympus E-620	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
12.		Olympus E-M10	1440	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	Y	Y
13.		Olympus E-M10 IV	2360	n	3.0 / 1040	tilting	Y	1/4000s	15.0/s	Y	Y
14.		Olympus E-P2	optional	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
15.		Olympus E-P3	optional	n	3.0 / 614	fixed	Y	1/4000s	3.0/s	Y	Y
16.		Olympus E-P5	optional	n	3.0 / 1037	tilting	Y	1/8000s	9.0/s	Y	Y
17.		Panasonic L10	optical	n	2.5 / 207	swivel	n	1/4000s	3.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The E-P7 has a touchscreen, while the E-420 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-P7 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Olympus E-P7 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The E-420 writes its imaging data to Compact Flash or xD Picture cards, while the E-P7 uses SDXC cards. The E-420 features dual card slots, which can be very useful in case a memory card fails. In contrast, the E-P7 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus E-420 and Olympus PEN E-P7 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-420	Y	- / -	-	-	-	2.0	-	-	-
2.		Olympus E-P7	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
3.		Nikon D40X	Y	- / -	-	-	-	2.0	-	-	-
4.		Nikon D60	Y	- / -	-	-	-	2.0	-	-	-
5.		Nikon D3000	Y	- / -	-	-	-	2.0	-	-	-
6.		Olympus E-400	Y	- / -	-	-	-	2.0	-	-	-
7.		Olympus E-410	Y	- / -	-	-	-	2.0	-	-	-
8.		Olympus E-450	Y	- / -	-	-	-	2.0	-	-	-
9.		Olympus E-520	Y	- / -	-	-	-	2.0	-	-	-
10.		Olympus E-600	Y	- / -	-	-	-	2.0	-	-	-
11.		Olympus E-620	Y	- / -	-	-	-	2.0	-	-	-
12.		Olympus E-M10	Y	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Olympus E-M10 IV	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
14.		Olympus E-P2	Y	stereo / -	-	-	mini	2.0	-	-	-
15.		Olympus E-P3	Y	stereo / -	-	-	mini	2.0	-	-	-
16.		Olympus E-P5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
17.		Panasonic L10	Y	- / -	-	-	-	2.0	-	-	-

It is notable that the E-P7 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the E-420 does not provide wifi capability.

The E-P7 is a recent model that features in the current product line-up of Olympus. In contrast, the E-420 has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the E-420 from Olympus. Further information on the features and operation of the E-420 and E-P7 can be found, respectively, in the Olympus E-420 Manual (free pdf) or the online Olympus E-P7 Manual.

Review summary

So what is the bottom line? Is the Olympus E-420 better than the Olympus E-P7 or vice versa? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Olympus E-420:

• Easier framing: Has an optical viewfinder for image composition and settings control.
• Longer lasting: Can take more shots (500 versus 360) on a single battery charge.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More affordable: Was introduced into a lower priced segment (25 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in March 2008).

Advantages of the Olympus PEN E-P7:

• More detail: Has more megapixels (20.2 vs 10MP), which boosts linear resolution by 42%.
• Better jpgs: Has a more modern image processing engine (TruePic VIII vs TruePic III).
• Broader imaging potential: Can capture not only stills but also 4K/30p video.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 215k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (8.7 vs 3.5 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (118x69mm vs 130x91mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 103g or 23 percent) and is thus easier to take along.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More modern: Reflects 13 years and 3 months of technical progress since the E-420 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the E-P7 is the clear winner of the contest (18 : 5 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-420 and the Olympus E-P7 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-420 or the E-P7. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus E-420	..	85/100	..	+ +	4/5	4.5/5	Mar 2008	EUR 499	ebay.com
2.		Olympus E-P7	4/5	..	4.5/5	..	..	4.5/5	Jun 2021	EUR 799	amazon.com
3.		Nikon D40X	..	79/100	..	+ +	4/5	4/5	Mar 2007	EUR 699	ebay.com
4.		Nikon D60	..	80/100	..	+ +	4/5	4.5/5	Jan 2008	EUR 499	ebay.com
5.		Nikon D3000	..	+	..	72/100	4/5	4.5/5	Jul 2009	EUR 539	ebay.com
6.		Olympus E-400	..	85/100	..	..	4/5	4/5	Sep 2006	EUR 699	ebay.com
7.		Olympus E-410	..	86/100	..	+ +	4/5	4.5/5	Mar 2007	EUR 699	ebay.com
8.		Olympus E-450	..	..	..	..	4/5	4/5	Mar 2009	EUR 449	ebay.com
9.		Olympus E-520	..	87/100	..	+ +	4.5/5	4.5/5	May 2008	EUR 599	ebay.com
10.		Olympus E-600	..	..	..	..	..	4.5/5	Aug 2009	EUR 399	ebay.com
11.		Olympus E-620	3/5	88/100	..	72/100	4.5/5	5/5	Feb 2009	EUR 599	ebay.com
12.		Olympus E-M10	4/5	..	..	80/100	5/5	5/5	Jan 2014	EUR 599	ebay.com
13.		Olympus E-M10 IV	4.5/5	..	5/5	81/100	4.5/5	4.5/5	Aug 2020	EUR 699	amazon.com
14.		Olympus E-P2	3/5	+	..	69/100	4/5	4.5/5	Nov 2009	EUR 699	ebay.com
15.		Olympus E-P3	..	83/100	..	74/100	4.5/5	4.5/5	Jun 2011	EUR 699	ebay.com
16.		Olympus E-P5	5/5	+ +	..	78/100	4.5/5	5/5	May 2013	EUR 999	ebay.com
17.		Panasonic L10	..	85/100	..	+	3.5/5	4/5	Aug 2007	EUR 599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
