Olympus E-520 vs Samsung NX1
The Olympus E-520 and the Samsung NX1 are two digital cameras that were revealed to the public, respectively, in May 2008 and September 2014. The E-520 is a DSLR, while the NX1 is a mirrorless interchangeable lens camera. The cameras are based on a Four Thirds (E-520) and an APS-C (NX1) sensor. The Olympus has a resolution of 10 megapixels, whereas the Samsung provides 28 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Check E-520 offers at
ebay.com

Check NX1 offers at
ebay.com
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus E-520 and the Samsung NX1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison

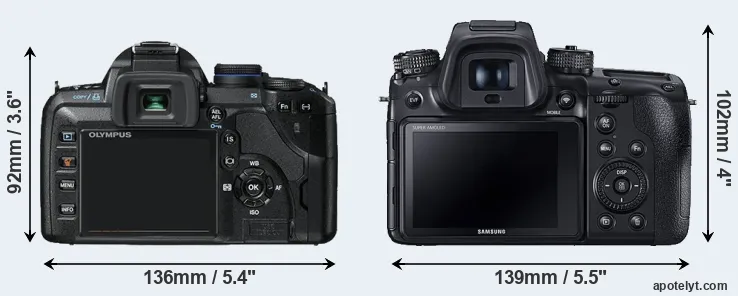

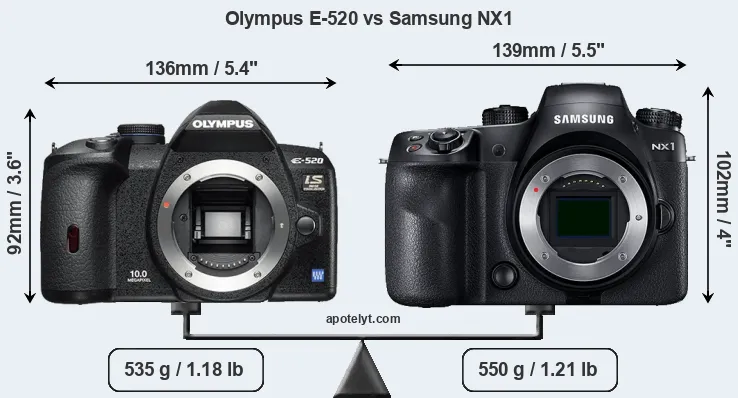

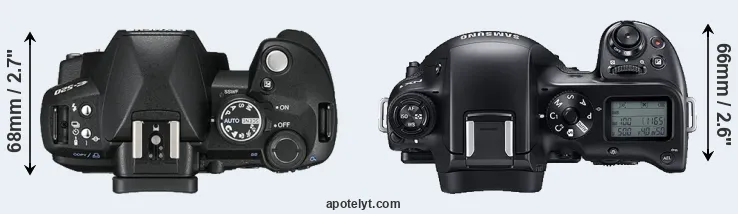

The physical size and weight of the Olympus E-520 and the Samsung NX1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.



If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Samsung NX1 is notably larger (13 percent) than the Olympus E-520. Moreover, the NX1 is slightly heavier (3 percent) than the E-520. It is noteworthy in this context that the NX1 is splash and dust-proof, while the E-520 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The power pack in the NX1 can be charged via the USB port, which can be very convenient when travelling.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

| Camera Model |
Camera Width |
Camera Height |
Camera Depth |
Camera Weight |
Battery Life |
Weather Sealing |
Camera Launch |
Launch Price |
Street Price |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1. | Olympus E-520 | 136 mm | 92 mm | 68 mm | 535 g | 750 | n | May 2008 | US$ 699 | ebay.com | |
| 2. | Samsung NX1 | 139 mm | 102 mm | 66 mm | 550 g | 500 | Y | Sep 2014 | US$ 1 499 | ebay.com | |
| 3. | Fujifilm X-Pro2 | 141 mm | 83 mm | 46 mm | 495 g | 350 | Y | Jan 2016 | US$ 1 699 | ebay.com | |
| 4. | Fujifilm X-T2 | 133 mm | 92 mm | 49 mm | 507 g | 340 | Y | Jul 2016 | US$ 1 599 | ebay.com | |
| 5. | Nikon D5300 | 125 mm | 98 mm | 76 mm | 480 g | 600 | n | Oct 2013 | US$ 799 | ebay.com | |
| 6. | Olympus E-30 | 142 mm | 108 mm | 75 mm | 701 g | 750 | n | Nov 2008 | US$ 1 299 | ebay.com | |
| 7. | Olympus E-410 | 130 mm | 91 mm | 53 mm | 435 g | 500 | n | Mar 2007 | US$ 699 | ebay.com | |
| 8. | Olympus E-420 | 130 mm | 91 mm | 53 mm | 440 g | 500 | n | Mar 2008 | US$ 599 | ebay.com | |
| 9. | Olympus E-450 | 130 mm | 91 mm | 53 mm | 440 g | 500 | n | Mar 2009 | US$ 499 | ebay.com | |
| 10. | Olympus E-510 | 136 mm | 92 mm | 68 mm | 538 g | 750 | n | Mar 2007 | US$ 799 | ebay.com | |
| 11. | Olympus E-600 | 130 mm | 94 mm | 60 mm | 535 g | 500 | n | Aug 2009 | US$ 449 | ebay.com | |
| 12. | Olympus E-620 | 130 mm | 94 mm | 60 mm | 521 g | 500 | n | Feb 2009 | US$ 699 | ebay.com | |
| 13. | Olympus E-P1 | 121 mm | 70 mm | 36 mm | 355 g | 300 | n | Jun 2009 | US$ 799 | ebay.com | |
| 14. | Olympus E-P2 | 121 mm | 70 mm | 36 mm | 355 g | 300 | n | Nov 2009 | US$ 799 | ebay.com | |
| 15. | Panasonic L10 | 135 mm | 96 mm | 78 mm | 556 g | 450 | n | Aug 2007 | US$ 599 | ebay.com | |
| 16. | Samsung NX500 | 120 mm | 64 mm | 43 mm | 287 g | 370 | n | Feb 2015 | US$ 799 | ebay.com | |
| 17. | Sony A7 | 127 mm | 94 mm | 48 mm | 474 g | 340 | Y | Oct 2013 | US$ 1 699 | ebay.com | |
| Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders. | |||||||||||
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-520 was launched at a markedly lower price (by 53 percent) than the NX1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
Sensor comparison
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

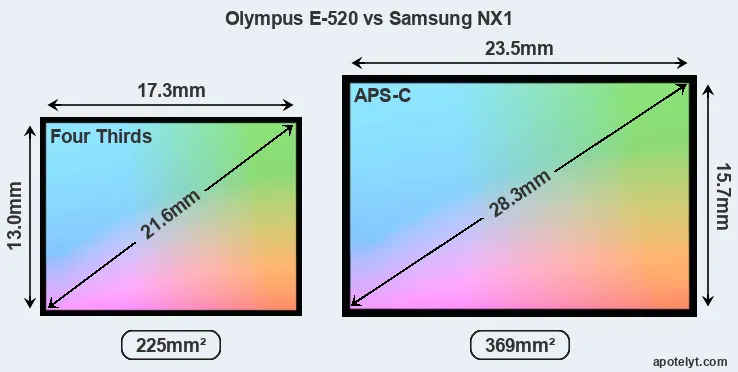

Of the two cameras under consideration, the Olympus E-520 features a Four Thirds sensor and the Samsung NX1 an APS-C sensor. The sensor area in the NX1 is 64 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.5. The sensor in the E-520 has a native 4:3 aspect ratio, while the one in the NX1 offers a 3:2 aspect.

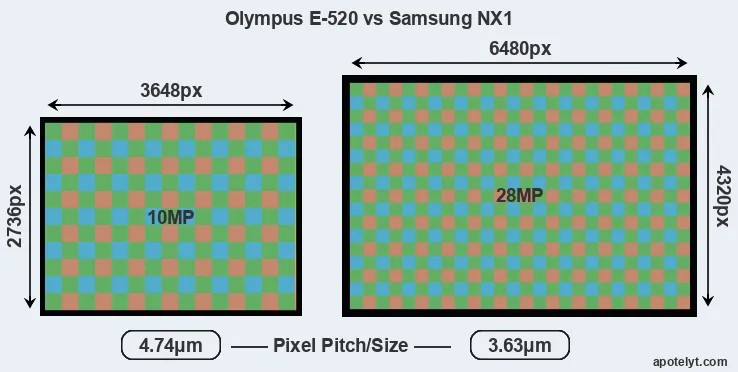

With 28MP, the NX1 offers a higher resolution than the E-520 (10MP), but the NX1 has smaller individual pixels (pixel pitch of 3.63μm versus 4.74μm for the E-520). Yet, the NX1 is a much more recent model (by 6 years and 4 months) than the E-520, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the NX1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Samsung NX1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NX1 for good quality output (200 dots per inch) amounts to 32.4 x 21.6 inches or 82.3 x 54.9 cm, for very good quality (250 dpi) 25.9 x 17.3 inches or 65.8 x 43.9 cm, and for excellent quality (300 dpi) 21.6 x 14.4 inches or 54.9 x 36.6 cm. The corresponding values for the Olympus E-520 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.
The NX1 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Olympus E-520 has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Samsung NX1 are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.
In terms of underlying technology, the E-520 is build around a CMOS sensor, while the NX1 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the NX1 offers substantially better image quality than the E-520 (overall score 28 points higher). The advantage is based on 2.8 bits higher color depth, 2.8 EV in additional dynamic range, and 1.3 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

| Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1. | Olympus E-520 | Four Thirds | 10.0 | 3648 | 2736 | none | 21.4 | 10.4 | 548 | 55 | |
| 2. | Samsung NX1 | APS-C | 28.0 | 6480 | 4320 | 4K/30p | 24.2 | 13.2 | 1363 | 83 | |
| 3. | Fujifilm X-Pro2 | APS-C | 24.0 | 6000 | 4000 | 1080/60p | 23.7 | 13.0 | 1608 | 80 | |
| 4. | Fujifilm X-T2 | APS-C | 24.0 | 6000 | 4000 | 4K/30p | 23.8 | 13.1 | 1653 | 81 | |
| 5. | Nikon D5300 | APS-C | 24.0 | 6000 | 4000 | 1080/60p | 24.0 | 13.9 | 1338 | 83 | |
| 6. | Olympus E-30 | Four Thirds | 12.2 | 4032 | 3024 | none | 21.3 | 10.4 | 530 | 55 | |
| 7. | Olympus E-410 | Four Thirds | 10.0 | 3648 | 2736 | none | 21.1 | 10.0 | 494 | 51 | |
| 8. | Olympus E-420 | Four Thirds | 10.0 | 3648 | 2736 | none | 21.5 | 10.4 | 527 | 56 | |
| 9. | Olympus E-450 | Four Thirds | 10.0 | 3648 | 2736 | none | 21.5 | 10.5 | 512 | 56 | |
| 10. | Olympus E-510 | Four Thirds | 10.0 | 3648 | 2736 | none | 21.2 | 10.0 | 442 | 52 | |
| 11. | Olympus E-600 | Four Thirds | 12.2 | 4032 | 3024 | none | 21.5 | 10.3 | 541 | 55 | |
| 12. | Olympus E-620 | Four Thirds | 12.2 | 4032 | 3024 | none | 21.3 | 10.3 | 536 | 55 | |
| 13. | Olympus E-P1 | Four Thirds | 12.2 | 4032 | 3024 | 720/30p | 21.4 | 10.4 | 536 | 55 | |
| 14. | Olympus E-P2 | Four Thirds | 12.2 | 4032 | 3024 | 720/30p | 21.5 | 10.4 | 505 | 56 | |
| 15. | Panasonic L10 | Four Thirds | 10.0 | 3648 | 2736 | none | 21.3 | 10.8 | 429 | 55 | |
| 16. | Samsung NX500 | APS-C | 28.0 | 6480 | 4320 | 4K/30p | 24.8 | 13.9 | 1379 | 87 | |
| 17. | Sony A7 | Full Frame | 24.0 | 6000 | 4000 | 1080/60p | 24.8 | 14.2 | 2248 | 90 | |
| Note: DXO values in italics represent estimates based on sensor size and age. | |||||||||||
Many modern cameras are not only capable of taking still images, but can also record movies. The NX1 indeed provides for movie recording, while the E-520 does not. The highest resolution format that the NX1 can use is 4K/30p.
Feature comparison
Beyond body and sensor, cameras can and do differ across a range of features. For example, the NX1 has an electronic viewfinder (2360k dots), while the E-520 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the NX1 offers a wider field of view (100%) than the one in the E-520 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the NX1 has a higher magnification (0.69x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Olympus E-520 and Samsung NX1 in connection with corresponding information for a sample of similar cameras.

| Camera Model |
Viewfinder (Type or 000 dots) |
Control Panel (yes/no) |
LCD Specifications (inch/000 dots) |
LCD Attach- ment |
Touch Screen (yes/no) |
Max Shutter Speed * |
Max Shutter Flaps * |
Built-in Flash (yes/no) |
Built-in Image Stab |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1. | Olympus E-520 | optical | n | 2.7 / 215 | fixed | n | 1/4000s | 3.5/s | Y | Y | |
| 2. | Samsung NX1 | 2360 | Y | 3.0 / 1036 | tilting | Y | 1/8000s | 15.0/s | Y | n | |
| 3. | Fujifilm X-Pro2 | 2360 | n | 3.0 / 1620 | fixed | n | 1/8000s | 8.0/s | n | n | |
| 4. | Fujifilm X-T2 | 2360 | n | 3.0 / 1040 | full-flex | n | 1/8000s | 8.0/s | n | n | |
| 5. | Nikon D5300 | optical | n | 3.2 / 1037 | swivel | n | 1/4000s | 5.0/s | Y | n | |
| 6. | Olympus E-30 | optical | Y | 2.7 / 230 | swivel | n | 1/8000s | 5.0/s | Y | Y | |
| 7. | Olympus E-410 | optical | n | 2.5 / 215 | fixed | n | 1/4000s | 3.0/s | Y | n | |
| 8. | Olympus E-420 | optical | n | 2.7 / 215 | fixed | n | 1/4000s | 3.5/s | Y | n | |
| 9. | Olympus E-450 | optical | n | 2.7 / 215 | fixed | n | 1/4000s | 3.5/s | Y | n | |
| 10. | Olympus E-510 | optical | n | 2.5 / 215 | fixed | n | 1/4000s | 3.0/s | Y | Y | |
| 11. | Olympus E-600 | optical | n | 2.7 / 230 | swivel | n | 1/4000s | 4.0/s | Y | Y | |
| 12. | Olympus E-620 | optical | n | 2.7 / 230 | swivel | n | 1/4000s | 4.0/s | Y | Y | |
| 13. | Olympus E-P1 | none | n | 3.0 / 230 | fixed | n | 1/4000s | 3.0/s | n | Y | |
| 14. | Olympus E-P2 | optional | n | 3.0 / 230 | fixed | n | 1/4000s | 3.0/s | n | Y | |
| 15. | Panasonic L10 | optical | n | 2.5 / 207 | swivel | n | 1/4000s | 3.0/s | Y | n | |
| 16. | Samsung NX500 | none | n | 3.0 / 1036 | tilting | Y | 1/6000s | 9.0/s | Y | n | |
| 17. | Sony A7 | 2400 | n | 3.0 / 1230 | tilting | n | 1/8000s | 5.0/s | n | n | |
| Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one. | |||||||||||
One feature that differentiates the E-520 and the NX1 is in-body image stabilization (IBIS). The E-520 reduces the risk of handshake-induced blur with all attached lenses, while the NX1 offers no blur reduction with lenses that themselves do not provide optical image stabilization.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the NX1 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Samsung NX1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The E-520 writes its imaging data to Compact Flash or xD Picture cards, while the NX1 uses SDXC cards. The E-520 features dual card slots, which can be very useful in case a memory card fails. In contrast, the NX1 only has one slot.
Connectivity comparison
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus E-520 and Samsung NX1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

| Camera Model |
Hotshoe Port |
Internal Mic / Speaker |
Microphone Port |
Headphone Port |
HDMI Port |
USB Port |
WiFi Support |
NFC Support |
Bluetooth Support |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1. | Olympus E-520 | Y | - / - | - | - | - | 2.0 | - | - | - | |
| 2. | Samsung NX1 | Y | stereo / mono | Y | Y | micro | 3.0 | Y | Y | Y | |
| 3. | Fujifilm X-Pro2 | Y | stereo / mono | Y | - | micro | 2.0 | Y | - | - | |
| 4. | Fujifilm X-T2 | Y | stereo / mono | Y | - | micro | 3.0 | Y | - | - | |
| 5. | Nikon D5300 | Y | stereo / mono | Y | - | mini | 2.0 | Y | - | - | |
| 6. | Olympus E-30 | Y | - / - | - | - | - | 2.0 | - | - | - | |
| 7. | Olympus E-410 | Y | - / - | - | - | - | 2.0 | - | - | - | |
| 8. | Olympus E-420 | Y | - / - | - | - | - | 2.0 | - | - | - | |
| 9. | Olympus E-450 | Y | - / - | - | - | - | 2.0 | - | - | - | |
| 10. | Olympus E-510 | Y | - / - | - | - | - | 2.0 | - | - | - | |
| 11. | Olympus E-600 | Y | - / - | - | - | - | 2.0 | - | - | - | |
| 12. | Olympus E-620 | Y | - / - | - | - | - | 2.0 | - | - | - | |
| 13. | Olympus E-P1 | Y | stereo / - | - | - | mini | 2.0 | - | - | - | |
| 14. | Olympus E-P2 | Y | stereo / - | - | - | mini | 2.0 | - | - | - | |
| 15. | Panasonic L10 | Y | - / - | - | - | - | 2.0 | - | - | - | |
| 16. | Samsung NX500 | Y | stereo / mono | - | - | micro | 2.0 | Y | Y | Y | |
| 17. | Sony A7 | Y | stereo / mono | Y | Y | micro | 2.0 | Y | Y | - |
It is notable that the NX1 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the E-520 does not provide wifi capability.
Both the E-520 and the NX1 have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Olympus and Samsung. Further information on the features and operation of the E-520 and NX1 can be found, respectively, in the Olympus E-520 Manual (free pdf) or the online Samsung NX1 Manual.
Review summary
So how do things add up? Is there a clear favorite between the Olympus E-520 and the Samsung NX1? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Olympus E-520:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- More compact: Is smaller (136x92mm vs 139x102mm) and thus needs less room in the bag.
- Longer lasting: Can take more shots (750 versus 500) on a single battery charge.
- Sharper images: Has hand-shake reducing image stabilization built-in.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More affordable: Was introduced into a lower priced category (53 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in May 2008).

Reasons to prefer the Samsung NX1:
- More detail: Has more megapixels (28 vs 10MP), which boosts linear resolution by 71%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (28 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (2.8 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (2.8 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (1.3 stops ISO advantage).
- Broader imaging potential: Can capture not only stills but also 4K/30p video.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.69x vs 0.46x).
- Easier setting verification: Features a control panel on top to check shooting parameters.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1036k vs 215k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (15 vs 3.5 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Easier travel charging: Can be conveniently charged via its USB port.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More modern: Reflects 6 years and 4 months of technical progress since the E-520 launch.
If the count of relative strengths (bullet points above) is taken as a measure, the NX1 is the clear winner of the contest (28 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-520 and the Samsung NX1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the E-520 and the NX1 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
Expert reviews
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

| Camera Model |
AP score |
CL score |
DCW score |
DPR score |
EPZ score |
PB score |
Camera Launch |
Launch Price |
Street Price |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1. | Olympus E-520 | .. | 87/100 | .. | + + | 4.5/5 | 4.5/5 | May 2008 | US$ 699 | ebay.com | |
| 2. | Samsung NX1 | 5/5 | .. | .. | 87/100 | 5/5 | 5/5 | Sep 2014 | US$ 1 499 | ebay.com | |
| 3. | Fujifilm X-Pro2 | .. | + | .. | 83/100 | 4.5/5 | 4.5/5 | Jan 2016 | US$ 1 699 | ebay.com | |
| 4. | Fujifilm X-T2 | 5/5 | + + | .. | 86/100 | 4.5/5 | 5/5 | Jul 2016 | US$ 1 599 | ebay.com | |
| 5. | Nikon D5300 | 4/5 | + + | .. | 79/100 | 4.5/5 | 4.5/5 | Oct 2013 | US$ 799 | ebay.com | |
| 6. | Olympus E-30 | .. | .. | .. | 71/100 | 4.5/5 | 4/5 | Nov 2008 | US$ 1 299 | ebay.com | |
| 7. | Olympus E-410 | .. | 86/100 | .. | + + | 4/5 | 4.5/5 | Mar 2007 | US$ 699 | ebay.com | |
| 8. | Olympus E-420 | .. | 85/100 | .. | + + | 4/5 | 4.5/5 | Mar 2008 | US$ 599 | ebay.com | |
| 9. | Olympus E-450 | .. | .. | .. | .. | 4/5 | 4/5 | Mar 2009 | US$ 499 | ebay.com | |
| 10. | Olympus E-510 | .. | 89/100 | .. | + + | 3.5/5 | 4.5/5 | Mar 2007 | US$ 799 | ebay.com | |
| 11. | Olympus E-600 | .. | .. | .. | .. | .. | 4.5/5 | Aug 2009 | US$ 449 | ebay.com | |
| 12. | Olympus E-620 | 3/5 | 88/100 | .. | 72/100 | 4.5/5 | 5/5 | Feb 2009 | US$ 699 | ebay.com | |
| 13. | Olympus E-P1 | .. | + | .. | 66/100 | 4/5 | 4.5/5 | Jun 2009 | US$ 799 | ebay.com | |
| 14. | Olympus E-P2 | 3/5 | + | .. | 69/100 | 4/5 | 4.5/5 | Nov 2009 | US$ 799 | ebay.com | |
| 15. | Panasonic L10 | .. | 85/100 | .. | + | 3.5/5 | 4/5 | Aug 2007 | US$ 599 | ebay.com | |
| 16. | Samsung NX500 | 4.5/5 | .. | .. | 81/100 | 5/5 | 4.5/5 | Feb 2015 | US$ 799 | ebay.com | |
| 17. | Sony A7 | 5/5 | + + | .. | 80/100 | 5/5 | 5/5 | Oct 2013 | US$ 1 699 | ebay.com | |
| Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available. | |||||||||||
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check E-520 offers at
ebay.com

Check NX1 offers at
ebay.com
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 6D vs Olympus E-520
- Canon M100 vs Samsung NX1
- Canon S120 vs Olympus E-520
- Fujifilm X-Pro3 vs Samsung NX1
- Nikon D3200 vs Olympus E-520
- Nikon D4S vs Samsung NX1
- Nikon D5200 vs Olympus E-520
- Olympus E-3 vs Olympus E-520
- Olympus E-520 vs Olympus E-M10 IV
- Panasonic ZS100 vs Samsung NX1
- Samsung NX1 vs Sony NEX-5N
- Samsung NX1 vs Sony RX100 VII
Specifications: Olympus E-520 vs Samsung NX1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
| Camera Model | Olympus E-520 | Samsung NX1 |
|---|---|---|
| Camera Type | Digital single lens reflex | Mirrorless system camera |
| Camera Lens | Four Thirds lenses | Samsung NX mount lenses |
| Launch Date | May 2008 | September 2014 |
| Launch Price | USD 699 | USD 1,499 |
| Sensor Specs | Olympus E-520 | Samsung NX1 |
| Sensor Technology | CMOS | BSI-CMOS |
| Sensor Format | Four Thirds Sensor | APS-C Sensor |
| Sensor Size | 17.3 x 13.0 mm | 23.5 x 15.7 mm |
| Sensor Area | 224.9 mm2 | 368.95 mm2 |
| Sensor Diagonal | 21.6 mm | 28.3 mm |
| Crop Factor | 2.0x | 1.5x |
| Sensor Resolution | 10 Megapixels | 28 Megapixels |
| Image Resolution | 3648 x 2736 pixels | 6480 x 4320 pixels |
| Pixel Pitch | 4.74 μm | 3.63 μm |
| Pixel Density | 4.44 MP/cm2 | 7.59 MP/cm2 |
| Moiré control | Anti-Alias filter | no AA filter |
| Movie Capability | no Video | 4K/30p Video |
| ISO Setting | 100 - 1,600 ISO | 100 - 25,600 ISO |
| ISO Boost | no Enhancement | 100 - 51,200 ISO |
| Image Processor | TruePic III | DRIMe 5 |
| DXO Sensor Quality (score) | 55 | 83 |
| DXO Color Depth (bits) | 21.4 | 24.2 |
| DXO Dynamic Range (EV) | 10.4 | 13.2 |
| DXO Low Light (ISO) | 548 | 1363 |
| Screen Specs | Olympus E-520 | Samsung NX1 |
| Viewfinder Type | Optical viewfinder | Electronic viewfinder |
| Viewfinder Field of View | 95% | 100% |
| Viewfinder Magnification | 0.46x | 0.69x |
| Viewfinder Resolution | 2360k dots | |
| Top-Level Screen | no Top Display | Control Panel |
| LCD Framing | Live View | Live View |
| Rear LCD Size | 2.7inch | 3.0inch |
| LCD Resolution | 215k dots | 1036k dots |
| LCD Attachment | Fixed screen | Tilting screen |
| Touch Input | no Touchscreen | Touchscreen |
| Shooting Specs | Olympus E-520 | Samsung NX1 |
| Focus System | Phase-detect AF | On-Sensor Phase-detect |
| Manual Focusing Aid | no Peaking Feature | Focus Peaking |
| Max Shutter Speed (mechanical) | 1/4000s | 1/8000s |
| Continuous Shooting | 3.5 shutter flaps/s | 15 shutter flaps/s |
| Electronic Shutter | no E-Shutter | YES |
| Time-Lapse Photography | no Intervalometer | Intervalometer built-in |
| Image Stabilization | In-body stabilization | Lens stabilization only |
| Fill Flash | Built-in Flash | Built-in Flash |
| Storage Medium | CF or XD cards | SDXC cards |
| Single or Dual Card Slots | Dual card slots | Single card slot |
| Connectivity Specs | Olympus E-520 | Samsung NX1 |
| External Flash | Hotshoe | Hotshoe |
| USB Connector | USB 2.0 | USB 3.0 |
| HDMI Port | no HDMI | micro HDMI |
| Microphone Port | no MIC socket | External MIC port |
| Headphone Socket | no Headphone port | Headphone port |
| Wifi Support | no Wifi | Wifi built-in |
| Near-Field Communication | no NFC | NFC built-in |
| Bluetooth Support | no Bluetooth | Bluetooth built-in |
| Body Specs | Olympus E-520 | Samsung NX1 |
| Environmental Sealing | not weather sealed | Weathersealed body |
| Battery Type | Olympus BLM-1 | Samsung BP1900 |
| Battery Life (CIPA) | 750 shots per charge | 500 shots per charge |
| In-Camera Charging | no USB charging | USB charging |
| Body Dimensions |
136 x 92 x 68 mm (5.4 x 3.6 x 2.7 in) |
139 x 102 x 66 mm (5.5 x 4.0 x 2.6 in) |
| Camera Weight | 535 g (18.9 oz) | 550 g (19.4 oz) |

Check E-520 offers at
ebay.com

Check NX1 offers at
ebay.com
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
