Olympus TG-5 vs Pentax Q

The Olympus Tough TG-5 and the Pentax Q are two digital cameras that were officially introduced, respectively, in May 2017 and June 2011. The TG-5 is a fixed lens compact, while the Pentax Q is a mirrorless interchangeable lens camera. Both cameras are equipped with a 1/2.3-inch sensor. Both cameras offer a resolution of 12 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus TG-5		Pentax Q
Fixed lens compact camera		Mirrorless system camera
25-100mm f/2.0-4.9		Pentax Q mount lenses
12 MP – 1/2.3" sensor		12 MP – 1/2.3" sensor
4K/30p Video		1080/30p Video
ISO 100-12,800		ISO 125-6,400
No viewfinder, LCD framing		Viewfinder optional
3.0" LCD – 460k dots		3.0" LCD – 460k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
20 shutter flaps per second		1.5 shutter flaps per second
In-body stabilization		In-body stabilization
Waterproof body (15m)		not weather sealed
340 shots per battery charge		230 shots per battery charge
113 x 66 x 32 mm, 250 g		98 x 57 x 31 mm, 180 g

Check TG-5 offers at
ebay.com
Check Pentax Q offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus Tough TG-5 and the Pentax Q? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

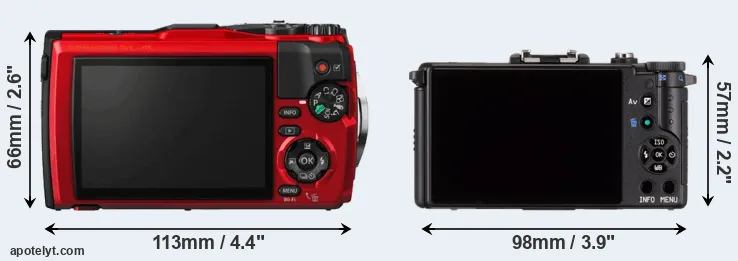

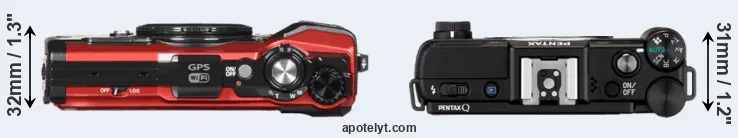

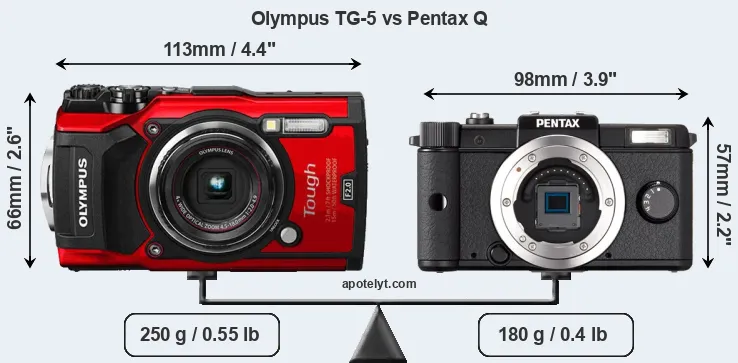

The side-by-side display below illustrates the physical size and weight of the Olympus TG-5 and the Pentax Q. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The TG-5 can be obtained in two different colors (black, red), while the Pentax Q is also available in two color-versions, but different ones (black, white).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax Q is notably smaller (25 percent) than the Olympus TG-5. It is worth mentioning in this context that the TG-5 is splash and dust resistant, while the Pentax Q does not feature any corresponding weather-sealing. More than that, the TG-5 is water-proof up to 15m and can, thus, be used for underwater photography.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the TG-5 has a lens built in, whereas the Pentax Q is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

The power pack in the TG-5 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus TG-5	113 mm	66 mm	32 mm	250 g	340	Y	May 2017	US$ 449	ebay.com
2.		Pentax Q	98 mm	57 mm	31 mm	180 g	230	n	Jun 2011	US$ 649	ebay.com
3.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	US$ 529	ebay.com
4.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	US$ 399	ebay.com
5.		Fujifilm XP130	110 mm	71 mm	28 mm	207 g	240	Y	Jan 2018	US$ 229	ebay.com
6.		Nikon W300	112 mm	66 mm	29 mm	231 g	280	Y	May 2017	US$ 389	ebay.com
7.		Olympus E-620	130 mm	94 mm	60 mm	521 g	500	n	Feb 2009	US$ 699	ebay.com
8.		Olympus E-M1 II	134 mm	91 mm	67 mm	574 g	440	Y	Sep 2016	US$ 1 999	ebay.com
9.		Olympus E-PL1	115 mm	72 mm	42 mm	334 g	290	n	Feb 2010	US$ 599	ebay.com
10.		Olympus E-PL2	114 mm	72 mm	42 mm	362 g	280	n	Jan 2011	US$ 599	ebay.com
11.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	US$ 599	ebay.com
12.		Olympus E-PM1	110 mm	64 mm	34 mm	265 g	330	n	Jun 2011	US$ 499	ebay.com
13.		Olympus TG-4	112 mm	66 mm	31 mm	247 g	380	Y	Apr 2015	US$ 379	ebay.com
14.		Olympus TG-6	113 mm	66 mm	32 mm	253 g	340	Y	May 2019	US$ 449	ebay.com
15.		Olympus XZ-1	111 mm	65 mm	42 mm	275 g	320	n	Jan 2011	US$ 499	ebay.com
16.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	US$ 599	ebay.com
17.		OM System TG-7	114 mm	66 mm	33 mm	249 g	330	Y	Sep 2023	US$ 549	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The TG-5 was launched at a lower price than the Pentax Q, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

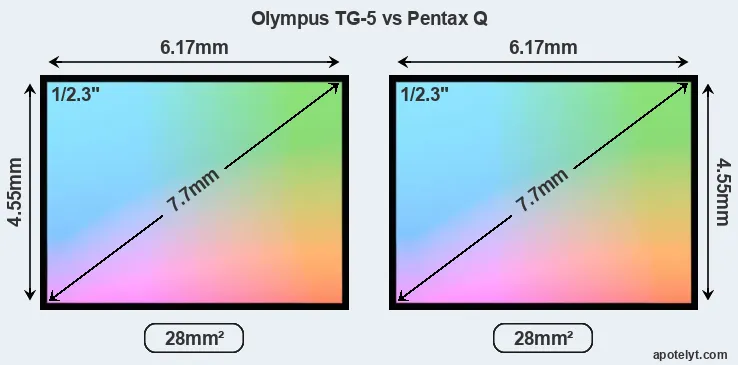

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature a 1/2.3-inch sensor and have a format factor (sometimes also referred to as "crop factor") of 5.6. Within the spectrum of camera sensors, this places the review cameras among the smaller-sensor digicams that favor affordability and compact design. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

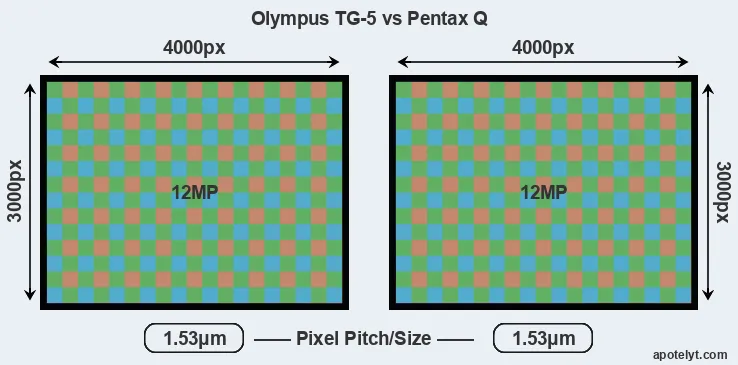

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 12 megapixels. This similarity in sensor specs implies that both the TG-5 and the Pentax Q have the same pixel density, as well as the same pixel size. It should, however, be noted that the TG-5 is much more recent (by 5 years and 10 months) than the Pentax Q, and its sensor will have benefitted from technological advances during this time.

The Olympus Tough TG-5 has a native sensitivity range from ISO 100 to ISO 12800. The corresponding ISO settings for the Pentax Q are ISO 125 to ISO 6400 (no boost).

In terms of underlying technology, the TG-5 is build around a BSI-CMOS sensor, while the Pentax Q uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus TG-5	1/2.3	12.0	4000	3000	4K/30p	20.5	11.9	934	50
2.		Pentax Q	1/2.3	12.0	4000	3000	1080/30p	20.2	11.1	189	47
3.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
4.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
5.		Fujifilm XP130	1/2.3	15.9	4608	3456	1080/60p	20.6	12.1	1000	51
6.		Nikon W300	1/2.3	15.9	4608	3456	4K/30p	20.5	12.0	938	50
7.		Olympus E-620	Four Thirds	12.2	4032	3024	none	21.3	10.3	536	55
8.		Olympus E-M1 II	Four Thirds	20.2	5184	3888	4K/30p	23.7	12.8	1312	80
9.		Olympus E-PL1	Four Thirds	12.2	4032	3024	720/30p	21.5	10.1	487	54
10.		Olympus E-PL2	Four Thirds	12.2	4032	3024	720/30p	21.4	10.2	573	55
11.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
12.		Olympus E-PM1	Four Thirds	12.2	4032	3024	1080/60i	21.0	10.3	499	52
13.		Olympus TG-4	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	737	47
14.		Olympus TG-6	1/2.3	12.0	4000	3000	4K/30p	20.7	12.2	1127	52
15.		Olympus XZ-1	1/1.7	10.1	3664	2752	720/30p	18.8	10.4	117	34
16.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
17.		OM System TG-7	1/2.3	12.0	4000	3000	4K/30p	20.9	12.7	1553	54
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the TG-5 provides a higher video resolution than the Pentax Q. It can shoot video footage at 4K/30p, while the Pentax is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The TG-5 and the Pentax Q are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the Pentax Q can be equipped with an optional viewfinder – the O-VF1. The adjacent table lists some of the other core features of the Olympus TG-5 and Pentax Q along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus TG-5	none	n	3.0 / 460	fixed	n	1/2000s	20.0/s	Y	Y
2.		Pentax Q	optional	n	3.0 / 460	fixed	n	1/2000s	1.5/s	Y	Y
3.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
4.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
5.		Fujifilm XP130	none	n	3.0 / 920	fixed	n	1/2000s	10.0/s	Y	Y
6.		Nikon W300	none	n	3.0 / 921	fixed	n	1/4000s	7.0/s	Y	Y
7.		Olympus E-620	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
8.		Olympus E-M1 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	18.0/s	n	Y
9.		Olympus E-PL1	optional	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	Y
10.		Olympus E-PL2	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	Y
11.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
12.		Olympus E-PM1	optional	n	3.0 / 460	fixed	n	1/4000s	5.5/s	n	Y
13.		Olympus TG-4	none	n	3.0 / 460	fixed	n	1/2000s	5.0/s	Y	Y
14.		Olympus TG-6	none	n	3.0 / 1040	fixed	n	1/2000s	20.0/s	Y	Y
15.		Olympus XZ-1	optional	n	3.0 / 614	fixed	n	1/2000s	2.0/s	Y	Y
16.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
17.		OM System TG-7	none	n	3.0 / 1040	fixed	n	1/2000s	20.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Olympus TG-5 and the Pentax Q both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the TG-5 and the Pentax Q write their files to SDXC cards. The TG-5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the Pentax Q cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus Tough TG-5 and Pentax Q and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus TG-5	-	stereo / mono	-	-	micro	2.0	Y	-	-
2.		Pentax Q	Y	mono / mono	-	-	mini	2.0	-	-	-
3.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
4.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
5.		Fujifilm XP130	-	mono / mono	-	-	micro	2.0	Y	-	Y
6.		Nikon W300	-	stereo / mono	-	-	micro	2.0	Y	-	Y
7.		Olympus E-620	Y	- / -	-	-	-	2.0	-	-	-
8.		Olympus E-M1 II	Y	stereo / mono	Y	Y	micro	3.0	Y	-	-
9.		Olympus E-PL1	Y	stereo / -	-	-	mini	2.0	-	-	-
10.		Olympus E-PL2	Y	stereo / -	-	-	mini	2.0	-	-	-
11.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
12.		Olympus E-PM1	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Olympus TG-4	-	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Olympus TG-6	-	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Olympus XZ-1	Y	mono / -	-	-	mini	2.0	-	-	-
16.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		OM System TG-7	-	stereo / mono	-	-	micro	2.0	Y	-	-

It is notable that the TG-5 offers wifi support, while the Pentax Q does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Travel and landscape photographers will find it useful that the TG-5 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

Both the TG-5 and the Pentax Q have been discontinued, but can regularly be found used on ebay. The Pentax Q was replaced by the Pentax Q10, while the TG-5 was followed by the Olympus TG-6. Further information on the features and operation of the TG-5 and Pentax Q can be found, respectively, in the Olympus TG-5 Manual (free pdf) or the online Pentax Q Manual.

Review summary

So how do things add up? Is there a clear favorite between the Olympus TG-5 and the Pentax Q? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Olympus Tough TG-5:

• Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
• Faster burst: Shoots at higher frequency (20 vs 1.5 flaps/sec) to capture the decisive moment.
• Ready to shoot: Has a lens built-in, whereas the Pentax Q requires a separate lens.
• Longer lasting: Can take more shots (340 versus 230) on a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 15m).
• Easier geotagging: Features an internal GPS sensor to log localization data.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 5 years and 10 months of technical progress since the Pentax Q launch.

Arguments in favor of the Pentax Q:

• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• More compact: Is smaller (98x57mm vs 113x66mm) and will fit more readily into a bag.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been around for much longer (launched in June 2011).

If the count of relative strengths (bullet points above) is taken as a measure, the TG-5 is the clear winner of the match-up (12 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus TG-5 and the Pentax Q place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the TG-5 and the Pentax Q in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus TG-5	..	+ +	4.5/5	..	4/5	4/5	May 2017	US$ 449	ebay.com
2.		Pentax Q	3/5	..	..	..	4/5	3.5/5	Jun 2011	US$ 649	ebay.com
3.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	US$ 529	ebay.com
4.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	US$ 399	ebay.com
5.		Fujifilm XP130	..	o	..	..	3.5/5	4/5	Jan 2018	US$ 229	ebay.com
6.		Nikon W300	..	+	..	..	4/5	4/5	May 2017	US$ 389	ebay.com
7.		Olympus E-620	3/5	88/100	..	72/100	4.5/5	5/5	Feb 2009	US$ 699	ebay.com
8.		Olympus E-M1 II	5/5	+ +	5/5	85/100	4.5/5	4.5/5	Sep 2016	US$ 1 999	ebay.com
9.		Olympus E-PL1	..	86/100	..	69/100	4/5	4.5/5	Feb 2010	US$ 599	ebay.com
10.		Olympus E-PL2	3/5	83/100	..	71/100	4.5/5	4.5/5	Jan 2011	US$ 599	ebay.com
11.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	US$ 599	ebay.com
12.		Olympus E-PM1	..	86/100	..	71/100	4.5/5	4.5/5	Jun 2011	US$ 499	ebay.com
13.		Olympus TG-4	..	+	..	79/100	4/5	4/5	Apr 2015	US$ 379	ebay.com
14.		Olympus TG-6	4/5	+ +	4.5/5	76/100	4/5	4/5	May 2019	US$ 449	ebay.com
15.		Olympus XZ-1	4/5	..	..	74/100	4.5/5	4.5/5	Jan 2011	US$ 499	ebay.com
16.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
17.		OM System TG-7	4/5	..	4.5/5	..	4/5	4/5	Sep 2023	US$ 549	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
