Panasonic GF5 vs GH2

The Panasonic Lumix DMC-GF5 and the Panasonic Lumix DMC-GH2 are two digital cameras that were officially introduced, respectively, in April 2012 and September 2010. Both the GF5 and the GH2 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. The GF5 has a resolution of 12 megapixels, whereas the GH2 provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Panasonic GF5		Panasonic GH2
Mirrorless system camera		Mirrorless system camera
Micro Four Thirds lenses		Micro Four Thirds lenses
12 MP – Four Thirds sensor		15.9 MP – Four Thirds sensor
1080/60i Video		1080/60i Video
ISO 160-6,400 (160 - 12,800)		ISO 160-12,800
No viewfinder, LCD framing		Electronic viewfinder (1534k dots)
3.0" LCD – 920k dots		3.0" LCD – 460k dots
Fixed touchscreen		Swivel screen (not touch-sensitive)
4 shutter flaps per second		3 shutter flaps per second
360 shots per battery charge		330 shots per battery charge
108 x 67 x 37 mm, 267 g		124 x 90 x 76 mm, 442 g

Check GF5 offers at
ebay.com
Check GH2 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Panasonic Lumix DMC-GF5 and the Panasonic Lumix DMC-GH2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

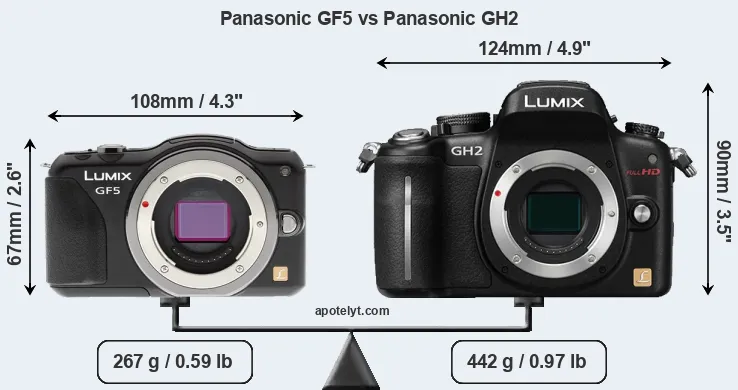

Body comparison

An illustration of the physical size and weight of the Panasonic GF5 and the Panasonic GH2 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The GF5 can be obtained in three different colors (black, red, white), while the GH2 is available in two color-versions (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GH2 is considerably larger (54 percent) than the Panasonic GF5. Moreover, the GH2 is substantially heavier (66 percent) than the GF5. In this context, it is worth noting that neither the GF5 nor the GH2 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

Concerning battery life, the GF5 gets 360 shots out of its Panasonic DMW-BLE9 battery, while the GH2 can take 330 images on a single charge of its Panasonic DMW-BLC12 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Panasonic GF5	108 mm	67 mm	37 mm	267 g	360	n	Apr 2012	US$ 499	ebay.com
2.		Panasonic GH2	124 mm	90 mm	76 mm	442 g	330	n	Sep 2010	US$ 899	ebay.com
3.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	US$ 599	ebay.com
4.		Olympus E-PM1	110 mm	64 mm	34 mm	265 g	330	n	Jun 2011	US$ 499	ebay.com
5.		Panasonic G1	124 mm	84 mm	45 mm	360 g	410	n	Sep 2008	US$ 599	ebay.com
6.		Panasonic G2	124 mm	84 mm	74 mm	428 g	360	n	Mar 2010	US$ 599	ebay.com
7.		Panasonic G6	122 mm	85 mm	71 mm	390 g	340	n	Apr 2013	US$ 599	ebay.com
8.		Panasonic G10	124 mm	84 mm	74 mm	388 g	380	n	Mar 2010	US$ 499	ebay.com
9.		Panasonic GF1	119 mm	71 mm	36 mm	385 g	380	n	Sep 2009	US$ 749	ebay.com
10.		Panasonic GF2	113 mm	68 mm	33 mm	310 g	300	n	Nov 2010	US$ 549	ebay.com
11.		Panasonic GF3	108 mm	67 mm	32 mm	264 g	300	n	Jun 2011	US$ 549	ebay.com
12.		Panasonic GF6	111 mm	65 mm	38 mm	323 g	340	n	Apr 2013	US$ 499	ebay.com
13.		Panasonic GH1	124 mm	90 mm	45 mm	385 g	300	n	Mar 2009	US$ 899	ebay.com
14.		Panasonic GM1	99 mm	55 mm	30 mm	204 g	230	n	Oct 2013	US$ 749	ebay.com
15.		Panasonic GM5	99 mm	60 mm	36 mm	211 g	220	n	Sep 2014	US$ 749	ebay.com
16.		Panasonic GX7	123 mm	71 mm	55 mm	402 g	350	n	Aug 2013	US$ 999	ebay.com
17.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The GF5 was launched at a markedly lower price (by 44 percent) than the GH2, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

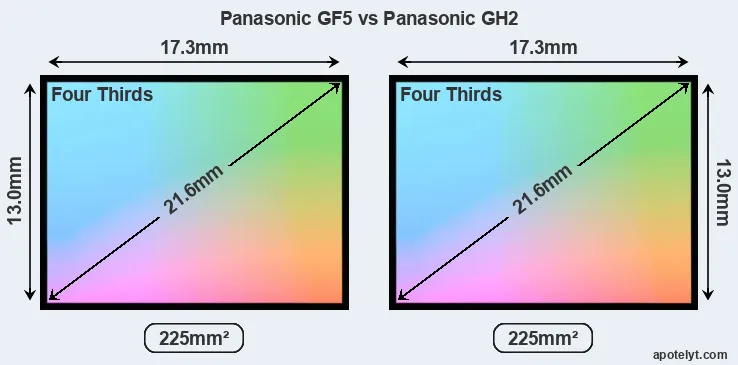

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

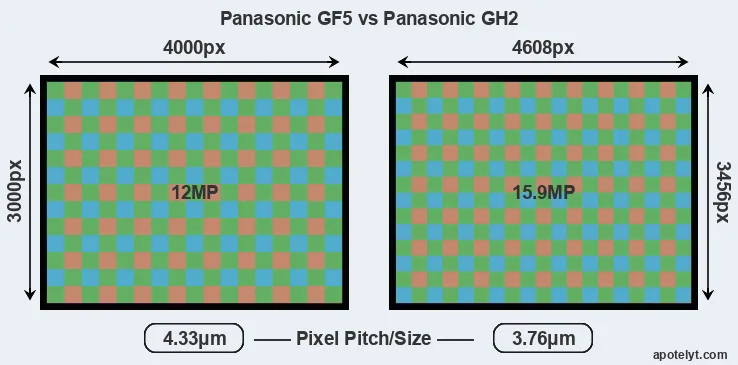

While the two cameras under review share the same sensor size, the GH2 offers a higher resolution of 15.9 megapixels, compared with 12 MP of the GF5. This megapixels advantage translates into a 15 percent gain in linear resolution. On the other hand, these sensor specs imply that the GH2 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 4.33μm for the GF5). Moreover, it should be noted, that the GF5 is a somewhat more recent model (by 1 year and 6 months) than the GH2, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of individual pixels.

The resolution advantage of the Panasonic GH2 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the GH2 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Panasonic GF5 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Panasonic Lumix DMC-GF5 has a native sensitivity range from ISO 160 to ISO 6400, which can be extended to ISO 160-12800. The corresponding ISO settings for the Panasonic Lumix DMC-GH2 are ISO 160 to ISO 12800 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the GH2 has a markedly higher DXO score than the GF5 (overall score 10 points higher), which will translate into better image quality. The advantage is based on 0.7 bits higher color depth, 1.3 EV in additional dynamic range, and 0.2 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Panasonic GF5	Four Thirds	12.0	4000	3000	1080/60i	20.5	10.0	573	50
2.		Panasonic GH2	Four Thirds	15.9	4608	3456	1080/60i	21.2	11.3	655	60
3.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
4.		Olympus E-PM1	Four Thirds	12.2	4032	3024	1080/60i	21.0	10.3	499	52
5.		Panasonic G1	Four Thirds	12.0	4000	3000	none	21.1	10.3	463	53
6.		Panasonic G2	Four Thirds	12.0	4000	3000	720/30p	21.2	10.3	493	53
7.		Panasonic G6	Four Thirds	15.9	4608	3456	1080/60p	21.3	11.5	639	61
8.		Panasonic G10	Four Thirds	12.0	4000	3000	720/30p	21.2	10.1	411	52
9.		Panasonic GF1	Four Thirds	12.0	4000	3000	720/30p	21.2	10.3	513	54
10.		Panasonic GF2	Four Thirds	12.0	4000	3000	1080/60i	21.2	10.3	506	54
11.		Panasonic GF3	Four Thirds	12.0	4000	3000	1080/60i	20.6	10.1	459	50
12.		Panasonic GF6	Four Thirds	15.8	4592	3448	1080/60i	20.7	10.6	622	54
13.		Panasonic GH1	Four Thirds	12.0	4000	3000	1080/24p	21.6	11.6	772	64
14.		Panasonic GM1	Four Thirds	15.8	4592	3448	1080/60i	22.3	11.7	660	66
15.		Panasonic GM5	Four Thirds	15.8	4592	3448	1080/60p	22.1	11.7	721	66
16.		Panasonic GX7	Four Thirds	15.8	4592	3448	1080/60p	22.6	12.2	718	70
17.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (1080/60i).

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the GH2 has an electronic viewfinder (1534k dots), which can be very helpful when shooting in bright sunlight. In contrast, the GF5 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Panasonic GF5 and Panasonic GH2 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Panasonic GF5	none	n	3.0 / 920	fixed	Y	1/4000s	4.0/s	Y	n
2.		Panasonic GH2	1534	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
3.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
4.		Olympus E-PM1	optional	n	3.0 / 460	fixed	n	1/4000s	5.5/s	n	Y
5.		Panasonic G1	1440	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
6.		Panasonic G2	1440	n	3.0 / 460	swivel	Y	1/4000s	2.6/s	Y	n
7.		Panasonic G6	1440	n	3.0 / 1036	swivel	Y	1/4000s	7.0/s	Y	n
8.		Panasonic G10	202	n	3.0 / 460	fixed	n	1/4000s	2.6/s	Y	n
9.		Panasonic GF1	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
10.		Panasonic GF2	optional	n	3.0 / 460	fixed	Y	1/4000s	2.6/s	Y	n
11.		Panasonic GF3	none	n	3.0 / 460	fixed	Y	1/4000s	3.2/s	Y	n
12.		Panasonic GF6	none	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
13.		Panasonic GH1	1440	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
14.		Panasonic GM1	none	n	3.0 / 1036	fixed	Y	1/500s	5.0/s	Y	n
15.		Panasonic GM5	1166	n	3.0 / 921	fixed	Y	1/500s	5.8/s	n	n
16.		Panasonic GX7	2760	n	3.0 / 1040	tilting	Y	1/8000s	5.0/s	Y	Y
17.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The GF5 has a touchscreen, while the GH2 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

Concerning the storage of imaging data, both the GF5 and the GH2 write their files to SDXC cards. The GF5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the GH2 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Panasonic Lumix DMC-GF5 and Panasonic Lumix DMC-GH2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Panasonic GF5	-	stereo / mono	-	-	mini	2.0	-	-	-
2.		Panasonic GH2	Y	stereo / mono	Y	-	mini	2.0	-	-	-
3.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
4.		Olympus E-PM1	Y	stereo / mono	-	-	mini	2.0	-	-	-
5.		Panasonic G1	Y	- / -	-	-	mini	2.0	-	-	-
6.		Panasonic G2	Y	stereo / mono	-	-	mini	2.0	-	-	-
7.		Panasonic G6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
8.		Panasonic G10	Y	mono / -	-	-	mini	2.0	-	-	-
9.		Panasonic GF1	Y	mono / mono	-	-	mini	2.0	-	-	-
10.		Panasonic GF2	Y	stereo / mono	-	-	mini	2.0	-	-	-
11.		Panasonic GF3	-	stereo / mono	-	-	mini	2.0	-	-	-
12.		Panasonic GF6	-	stereo / mono	-	-	mini	2.0	Y	Y	-
13.		Panasonic GH1	Y	stereo / -	Y	-	mini	2.0	-	-	-
14.		Panasonic GM1	-	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Panasonic GM5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Panasonic GX7	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
17.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the GH2 has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The GF5 does not feature such a mic input.

Both the GF5 and the GH2 have been discontinued, but can regularly be found used on ebay. The GH2 was replaced by the Panasonic GH3, while the GF5 was followed by the Panasonic GF6. Further information on the features and operation of the GF5 and GH2 can be found, respectively, in the Panasonic GF5 Manual (free pdf) or the online Panasonic GH2 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Panasonic GF5 and the Panasonic GH2? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Panasonic Lumix DMC-GF5:

• More detailed LCD: Has a higher resolution rear screen (920k vs 460k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Faster burst: Shoots at higher frequency (4 vs 3 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (108x67mm vs 124x90mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 175g or 40 percent) and hence easier to carry around.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced into a lower priced category (44 percent cheaper at launch).
• More modern: Is somewhat more recent (announced 1 year and 6 months after the GH2).

Reasons to prefer the Panasonic Lumix DMC-GH2:

• More detail: Has more megapixels (15.9 vs 12MP), which boosts linear resolution by 15%.
• Better image quality: Scores markedly higher (10 points) in the DXO overall evaluation.
• More dynamic range: Captures a broader range of light and dark details (1.3 EV of extra DR).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been on the market for longer (launched in September 2010).

If the number of relative strengths (bullet points above) is taken as a guide, the GH2 comes out slightly ahead of the GF5 (9 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Panasonic GF5 and the Panasonic GH2 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the GF5 or the GH2. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Panasonic GF5	3/5	..	..	..	4.5/5	4.5/5	Apr 2012	US$ 499	ebay.com
2.		Panasonic GH2	5/5	+ +	..	79/100	4.5/5	5/5	Sep 2010	US$ 899	ebay.com
3.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	US$ 599	ebay.com
4.		Olympus E-PM1	..	86/100	..	71/100	4.5/5	4.5/5	Jun 2011	US$ 499	ebay.com
5.		Panasonic G1	..	+ +	..	70/100	4/5	4.5/5	Sep 2008	US$ 599	ebay.com
6.		Panasonic G2	..	..	..	72/100	4/5	4.5/5	Mar 2010	US$ 599	ebay.com
7.		Panasonic G6	4/5	+ +	..	..	5/5	4.5/5	Apr 2013	US$ 599	ebay.com
8.		Panasonic G10	3/5	..	..	70/100	4/5	4/5	Mar 2010	US$ 499	ebay.com
9.		Panasonic GF1	..	85/100	..	69/100	4.5/5	4.5/5	Sep 2009	US$ 749	ebay.com
10.		Panasonic GF2	3/5	82/100	..	70/100	4.5/5	4.5/5	Nov 2010	US$ 549	ebay.com
11.		Panasonic GF3	3/5	82/100	..	71/100	4.5/5	4/5	Jun 2011	US$ 549	ebay.com
12.		Panasonic GF6	..	+ +	..	..	4.5/5	4.5/5	Apr 2013	US$ 499	ebay.com
13.		Panasonic GH1	..	+ +	..	72/100	4.5/5	4.5/5	Mar 2009	US$ 899	ebay.com
14.		Panasonic GM1	3/5	+	..	78/100	5/5	4.5/5	Oct 2013	US$ 749	ebay.com
15.		Panasonic GM5	3.5/5	+	..	77/100	5/5	4.5/5	Sep 2014	US$ 749	ebay.com
16.		Panasonic GX7	4/5	+	..	79/100	5/5	5/5	Aug 2013	US$ 999	ebay.com
17.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
