Panasonic GH4 vs Pentax K-5

The Panasonic Lumix DMC-GH4 and the Pentax K-5 are two enthusiast cameras that were revealed to the public, respectively, in February 2014 and September 2010. The GH4 is a mirrorless interchangeable lens camera, while the K-5 is a DSLR. The cameras are based on a Four Thirds (GH4) and an APS-C (K-5) sensor. The Panasonic has a resolution of 15.9 megapixels, whereas the Pentax provides 16.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Panasonic GH4		Pentax K-5
Mirrorless system camera		Digital single lens reflex
Micro Four Thirds lenses		Pentax K mount lenses
15.9 MP – Four Thirds sensor		16.1 MP – APS-C sensor
4K/30p Video		1080/25p Video
ISO 200-25,600		ISO 100-12,800 (80 - 51,200)
Electronic viewfinder (2359k dots)		Optical viewfinder
3.0" LCD – 1036k dots		3.0" LCD – 921k dots
Swivel touchscreen		Fixed screen (not touch-sensitive)
12 shutter flaps per second		7 shutter flaps per second
Lens stabilization only		In-body stabilization
Weathersealed body		Weathersealed body
500 shots per battery charge		740 shots per battery charge
133 x 93 x 84 mm, 560 g		131 x 97 x 73 mm, 760 g

Check GH4 offers at
ebay.com
Check K-5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Panasonic Lumix DMC-GH4 and the Pentax K-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

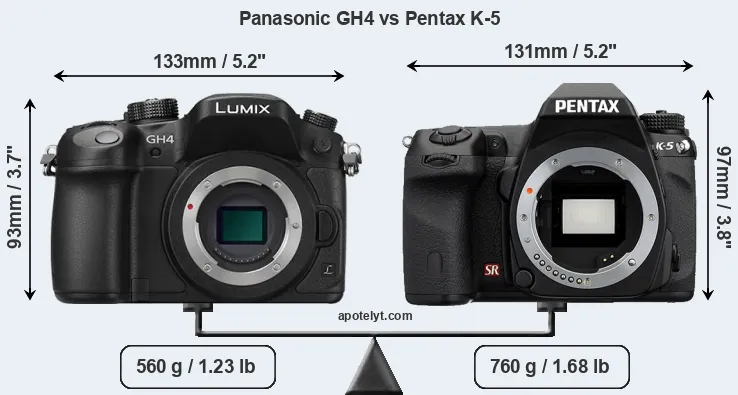

The side-by-side display below illustrates the physical size and weight of the Panasonic GH4 and the Pentax K-5. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax K-5 is somewhat larger (3 percent) than the Panasonic GH4. Moreover, the K-5 is substantially heavier (36 percent) than the GH4. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the GH4 gets 500 shots out of its Panasonic DMW-BLF19 battery, while the K-5 can take 740 images on a single charge of its Pentax D-LI90 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Panasonic GH4	133 mm	93 mm	84 mm	560 g	500	Y	Feb 2014	US$ 1 499	ebay.com
2.		Pentax K-5	131 mm	97 mm	73 mm	760 g	740	Y	Sep 2010	US$ 1 099	ebay.com
3.		Olympus E-M1	130 mm	94 mm	63 mm	497 g	350	Y	Sep 2013	US$ 1 399	ebay.com
4.		Olympus E-M5 II	124 mm	85 mm	45 mm	469 g	310	Y	Feb 2015	US$ 1 099	ebay.com
5.		Panasonic G6	122 mm	85 mm	71 mm	390 g	340	n	Apr 2013	US$ 599	ebay.com
6.		Panasonic G85	128 mm	89 mm	74 mm	505 g	330	Y	Sep 2016	US$ 899	ebay.com
7.		Panasonic GH3	133 mm	93 mm	82 mm	550 g	540	Y	Sep 2012	US$ 1 299	ebay.com
8.		Panasonic GH5	139 mm	98 mm	87 mm	725 g	410	Y	Jan 2017	US$ 1 999	ebay.com
9.		Panasonic GM1	99 mm	55 mm	30 mm	204 g	230	n	Oct 2013	US$ 749	ebay.com
10.		Panasonic GM5	99 mm	60 mm	36 mm	211 g	220	n	Sep 2014	US$ 749	ebay.com
11.		Panasonic GX8	133 mm	78 mm	63 mm	487 g	330	Y	Jul 2015	US$ 1 199	ebay.com
12.		Pentax K-3	131 mm	100 mm	77 mm	800 g	560	Y	Oct 2013	US$ 1 299	ebay.com
13.		Pentax K-3 II	131 mm	100 mm	77 mm	800 g	720	Y	Apr 2015	US$ 1 099	ebay.com
14.		Pentax K-5 II	131 mm	97 mm	73 mm	760 g	740	Y	Sep 2012	US$ 1 099	ebay.com
15.		Pentax K-30	130 mm	97 mm	71 mm	650 g	410	Y	May 2012	US$ 849	ebay.com
16.		Pentax K-50	130 mm	97 mm	71 mm	650 g	410	Y	Jun 2013	US$ 599	ebay.com
17.		Sony A7	127 mm	94 mm	48 mm	474 g	340	Y	Oct 2013	US$ 1 699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The K-5 was launched at a markedly lower price (by 27 percent) than the GH4, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

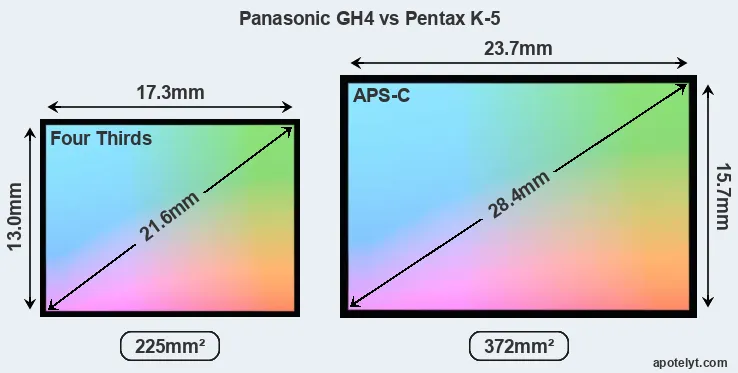

Of the two cameras under consideration, the Panasonic GH4 features a Four Thirds sensor and the Pentax K-5 an APS-C sensor. The sensor area in the K-5 is 65 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.5. The sensor in the GH4 has a native 4:3 aspect ratio, while the one in the K-5 offers a 3:2 aspect.

With 16.1MP, the K-5 offers a higher resolution than the GH4 (15.9MP), but the K-5 nevertheless has larger individual pixels (pixel pitch of 4.81μm versus 3.76μm for the GH4) due to its larger sensor. However, the GH4 is a much more recent model (by 3 years and 4 months) than the K-5, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.

The Panasonic Lumix DMC-GH4 has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 100-25600. The corresponding ISO settings for the Pentax K-5 are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 80-51200.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the K-5 has a markedly higher DXO score than the GH4 (overall score 8 points higher), which will translate into better image quality. The advantage is based on 0.5 bits higher color depth, 1.3 EV in additional dynamic range, and 0.6 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Panasonic GH4	Four Thirds	15.9	4608	3456	4K/30p	23.2	12.8	791	74
2.		Pentax K-5	APS-C	16.1	4928	3264	1080/25p	23.7	14.1	1162	82
3.		Olympus E-M1	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.7	757	73
4.		Olympus E-M5 II	Four Thirds	15.9	4608	3456	1080/60p	23.0	12.5	842	73
5.		Panasonic G6	Four Thirds	15.9	4608	3456	1080/60p	21.3	11.5	639	61
6.		Panasonic G85	Four Thirds	15.8	4592	3448	4K/30p	22.8	12.5	656	71
7.		Panasonic GH3	Four Thirds	15.9	4608	3456	1080/60p	22.7	12.4	812	71
8.		Panasonic GH5	Four Thirds	20.2	5184	3888	4K/60p	23.9	13.0	807	77
9.		Panasonic GM1	Four Thirds	15.8	4592	3448	1080/60i	22.3	11.7	660	66
10.		Panasonic GM5	Four Thirds	15.8	4592	3448	1080/60p	22.1	11.7	721	66
11.		Panasonic GX8	Four Thirds	20.2	5184	3888	4K/30p	23.5	12.6	806	75
12.		Pentax K-3	APS-C	24.1	6016	4000	1080/60i	23.7	13.4	1216	80
13.		Pentax K-3 II	APS-C	24.1	6016	4000	1080/60i	23.6	13.6	1106	80
14.		Pentax K-5 II	APS-C	16.1	4928	3264	1080/25p	23.8	14.1	1235	82
15.		Pentax K-30	APS-C	16.1	4928	3264	1080/30p	23.7	13.0	1129	79
16.		Pentax K-50	APS-C	16.1	4928	3264	1080/30p	23.7	13.0	1120	79
17.		Sony A7	Full Frame	24.0	6000	4000	1080/60p	24.8	14.2	2248	90

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the GH4 provides a higher video resolution than the K-5. It can shoot video footage at 4K/30p, while the Pentax is limited to 1080/25p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the GH4 has an electronic viewfinder (2359k dots), while the K-5 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the GH4 has a higher magnification than the one of the K-5 (0.67x vs 0.61x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Panasonic GH4 and Pentax K-5 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Panasonic GH4	2359	n	3.0 / 1036	swivel	Y	1/8000s	12.0/s	Y	n
2.		Pentax K-5	optical	Y	3.0 / 921	fixed	n	1/8000s	7.0/s	Y	Y
3.		Olympus E-M1	2360	n	3.0 / 1037	tilting	Y	1/8000s	10.0/s	n	Y
4.		Olympus E-M5 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
5.		Panasonic G6	1440	n	3.0 / 1036	swivel	Y	1/4000s	7.0/s	Y	n
6.		Panasonic G85	2360	n	3.0 / 1040	swivel	Y	1/4000s	9.0/s	Y	Y
7.		Panasonic GH3	1746	n	3.0 / 614	swivel	Y	1/4000s	6.0/s	Y	n
8.		Panasonic GH5	3680	n	3.2 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
9.		Panasonic GM1	none	n	3.0 / 1036	fixed	Y	1/500s	5.0/s	Y	n
10.		Panasonic GM5	1166	n	3.0 / 921	fixed	Y	1/500s	5.8/s	n	n
11.		Panasonic GX8	2360	n	3.0 / 1040	swivel	Y	1/8000s	10.0/s	n	Y
12.		Pentax K-3	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	Y	Y
13.		Pentax K-3 II	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	n	Y
14.		Pentax K-5 II	optical	Y	3.0 / 921	fixed	n	1/8000s	7.0/s	Y	Y
15.		Pentax K-30	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
16.		Pentax K-50	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
17.		Sony A7	2400	n	3.0 / 1230	tilting	n	1/8000s	5.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The GH4 has a touchscreen, while the K-5 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GH4 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Panasonic GH4 and the Pentax K-5 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the GH4 and the K-5 write their files to SDXC cards. The GH4 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the K-5 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Panasonic Lumix DMC-GH4 and Pentax K-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Panasonic GH4	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-
2.		Pentax K-5	Y	stereo / mono	Y	-	mini	2.0	-	-	-
3.		Olympus E-M1	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
4.		Olympus E-M5 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
5.		Panasonic G6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
6.		Panasonic G85	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
7.		Panasonic GH3	Y	stereo / mono	Y	Y	mini	2.0	Y	-	-
8.		Panasonic GH5	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y
9.		Panasonic GM1	-	stereo / mono	-	-	micro	2.0	Y	-	-
10.		Panasonic GM5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
11.		Panasonic GX8	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
12.		Pentax K-3	Y	mono / mono	Y	Y	mini	3.0	-	-	-
13.		Pentax K-3 II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
14.		Pentax K-5 II	Y	stereo / mono	Y	-	mini	2.0	-	-	-
15.		Pentax K-30	Y	mono / mono	-	-	-	2.0	-	-	-
16.		Pentax K-50	Y	mono / mono	-	-	micro	2.0	-	-	-
17.		Sony A7	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-

It is notable that the GH4 has a headphone jack, which is not present on the K-5 This port makes it possible to attach external headphones and monitor the quality of sound during the recording process.

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

Both the GH4 and the K-5 have been discontinued, but can regularly be found used on ebay. The K-5 was replaced by the Pentax K-5 II, while the GH4 was followed by the Panasonic GH5. Further information on the features and operation of the GH4 and K-5 can be found, respectively, in the Panasonic GH4 Manual (free pdf) or the online Pentax K-5 Manual.

Review summary

So what is the bottom line? Is the Panasonic GH4 better than the Pentax K-5 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Panasonic Lumix DMC-GH4:

• Better video: Provides higher definition movie capture (4K/30p vs 1080/25p).
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• More framing info: Has an electronic viewfinder that displays shooting data.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.67x vs 0.61x).
• More detailed LCD: Has a higher resolution rear screen (1036k vs 921k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (12 vs 7 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Less heavy: Is lighter (by 200g or 26 percent) and hence easier to carry around.
• More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 3 years and 4 months of technical progress since the K-5 launch.

Advantages of the Pentax K-5:

• Better image quality: Scores markedly higher (8 points) in the DXO overall evaluation.
• More dynamic range: Captures a broader range of light and dark details (1.3 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (0.6 stops ISO advantage).
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Longer lasting: Gets more shots (740 versus 500) out of a single battery charge.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More affordable: Was introduced into a lower priced category (27 percent cheaper at launch).
• More heavily discounted: Has been around for much longer (launched in September 2010).

If the count of relative strengths (bullet points above) is taken as a measure, the GH4 is the clear winner of the match-up (16 : 9 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Panasonic GH4 and the Pentax K-5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the GH4 or the K-5 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Panasonic GH4	5/5	+ +	..	85/100	5/5	5/5	Feb 2014	US$ 1 499	ebay.com
2.		Pentax K-5	4/5	..	..	83/100	5/5	4.5/5	Sep 2010	US$ 1 099	ebay.com
3.		Olympus E-M1	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2013	US$ 1 399	ebay.com
4.		Olympus E-M5 II	5/5	+ +	4.5/5	81/100	5/5	5/5	Feb 2015	US$ 1 099	ebay.com
5.		Panasonic G6	4/5	+ +	..	..	5/5	4.5/5	Apr 2013	US$ 599	ebay.com
6.		Panasonic G85	..	+ +	..	84/100	5/5	4.5/5	Sep 2016	US$ 899	ebay.com
7.		Panasonic GH3	5/5	+ +	..	79/100	4.5/5	4.5/5	Sep 2012	US$ 1 299	ebay.com
8.		Panasonic GH5	4.5/5	+ +	..	85/100	4.5/5	5/5	Jan 2017	US$ 1 999	ebay.com
9.		Panasonic GM1	3/5	+	..	78/100	5/5	4.5/5	Oct 2013	US$ 749	ebay.com
10.		Panasonic GM5	3.5/5	+	..	77/100	5/5	4.5/5	Sep 2014	US$ 749	ebay.com
11.		Panasonic GX8	5/5	+	..	82/100	4.5/5	4.5/5	Jul 2015	US$ 1 199	ebay.com
12.		Pentax K-3	4/5	..	..	83/100	5/5	5/5	Oct 2013	US$ 1 299	ebay.com
13.		Pentax K-3 II	4.5/5	..	..	..	5/5	5/5	Apr 2015	US$ 1 099	ebay.com
14.		Pentax K-5 II	5/5	..	..	80/100	5/5	4.5/5	Sep 2012	US$ 1 099	ebay.com
15.		Pentax K-30	4/5	..	..	78/100	4.5/5	4.5/5	May 2012	US$ 849	ebay.com
16.		Pentax K-50	5/5	..	..	..	5/5	4.5/5	Jun 2013	US$ 599	ebay.com
17.		Sony A7	5/5	+ +	..	80/100	5/5	5/5	Oct 2013	US$ 1 699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check GH4 offers at
ebay.com
Check K-5 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

Check GH4 offers at
ebay.com
Check K-5 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
