Canon 5D vs XS

The Canon EOS 5D and the Canon EOS Rebel XS (labelled Canon 1000D in some countries) are two digital cameras that were announced, respectively, in August 2005 and June 2008. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (5D) and an APS-C (XS) sensor. The 5D has a resolution of 12.7 megapixels, whereas the XS provides 10.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 5D		Canon XS
Digital single lens reflex		Digital single lens reflex
Canon EF mount lenses		Canon EF mount lenses
12.7 MP – Full Frame sensor		10.1 MP – APS-C sensor
no Video		no Video
ISO 100-1,600 (50 - 3,200)		ISO 100-800 (100 - 1,600)
Optical viewfinder		Optical viewfinder
2.5" LCD – 230k dots		2.5" LCD – 230k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3 shutter flaps per second		3 shutter flaps per second
Weathersealed body		not weather sealed
400 shots per battery charge		500 shots per battery charge
152 x 113 x 75 mm, 895 g		126 x 98 x 65 mm, 502 g

Check 5D offers at
ebay.com
Check XS offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D and the Canon EOS Rebel XS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

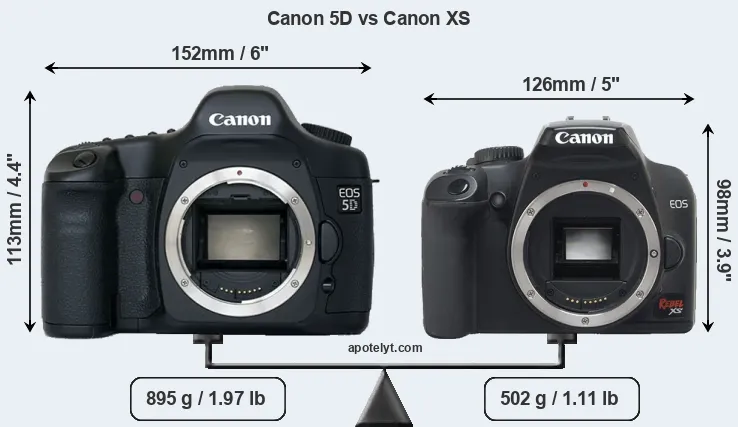

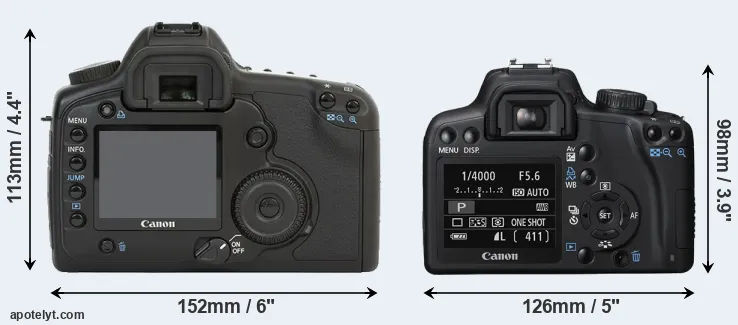

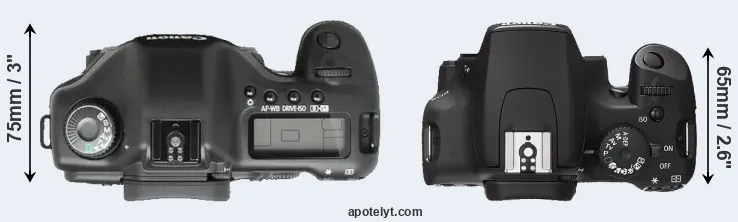

The side-by-side display below illustrates the physical size and weight of the Canon 5D and the Canon XS. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon XS is notably smaller (28 percent) than the Canon 5D. Moreover, the XS is substantially lighter (44 percent) than the 5D. It is worth mentioning in this context that the 5D is splash and dust resistant, while the XS does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the 5D) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (XS). You can compare the optics available in the Canon EF Lens Catalog.

Concerning battery life, the 5D gets 400 shots out of its Canon BP-511A battery, while the XS can take 500 images on a single charge of its Canon LP-E5 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 5D	152 mm	113 mm	75 mm	895 g	400	Y	Aug 2005	US$ 3 299	ebay.com
2.		Canon XS	126 mm	98 mm	65 mm	502 g	500	n	Jun 2008	US$ 449	ebay.com
3.		Canon 1D Mark II N	156 mm	158 mm	80 mm	1565 g	1200	Y	Aug 2005	US$ 3 999	ebay.com
4.		Canon 5D Mark II	152 mm	114 mm	75 mm	850 g	850	Y	Sep 2008	US$ 3 499	ebay.com
5.		Canon 5D Mark III	152 mm	116 mm	76 mm	950 g	950	Y	Mar 2012	US$ 3 499	ebay.com
6.		Canon 5D Mark IV	151 mm	116 mm	76 mm	890 g	900	Y	Aug 2016	US$ 3 499	amazon.com
7.		Canon 5DS	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	US$ 3 699	ebay.com
8.		Canon 5DS R	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	US$ 3 699	ebay.com
9.		Canon 6D	145 mm	111 mm	71 mm	770 g	1090	Y	Sep 2012	US$ 2 099	ebay.com
10.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	US$ 1 999	amazon.com
11.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	US$ 1 299	ebay.com
12.		Canon 50D	146 mm	108 mm	74 mm	822 g	800	Y	Aug 2008	US$ 1 299	ebay.com
13.		Canon T1i	129 mm	98 mm	62 mm	520 g	400	n	Mar 2009	US$ 799	ebay.com
14.		Canon T3	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	US$ 449	ebay.com
15.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	US$ 449	ebay.com
16.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	US$ 449	ebay.com
17.		Nikon D700	147 mm	123 mm	77 mm	1074 g	1000	Y	Jul 2008	US$ 2 999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The XS was launched at a markedly lower price (by 86 percent) than the 5D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

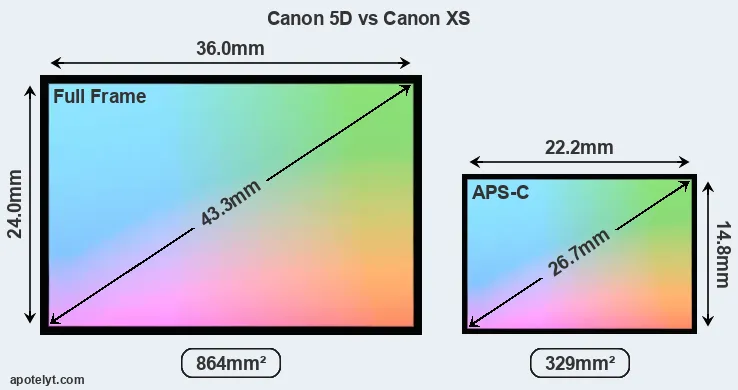

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 5D features a full frame sensor and the Canon XS an APS-C sensor. The sensor area in the XS is 62 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the XS uses a more advanced image processing engine (DIGIC 3) than the 5D (DIGIC 2), with benefits for noise reduction, color accuracy, and processing speed.

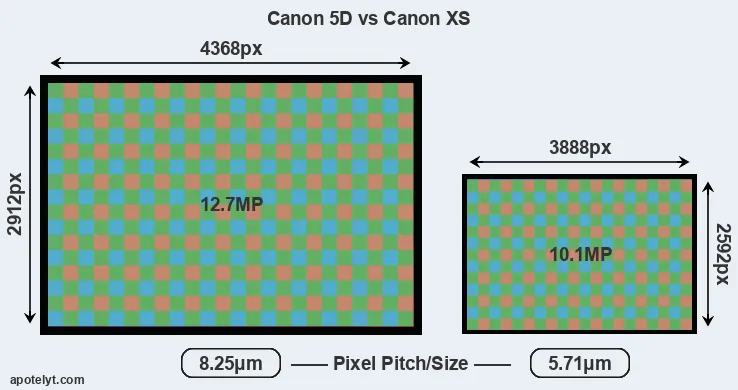

With 12.7MP, the 5D offers a higher resolution than the XS (10.1MP), but the 5D nevertheless has larger individual pixels (pixel pitch of 8.25μm versus 5.71μm for the XS) due to its larger sensor. However, the XS is a much more recent model (by 2 years and 9 months) than the 5D, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon 5D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5D for good quality output (200 dots per inch) amounts to 21.8 x 14.6 inches or 55.5 x 37 cm, for very good quality (250 dpi) 17.5 x 11.6 inches or 44.4 x 29.6 cm, and for excellent quality (300 dpi) 14.6 x 9.7 inches or 37 x 24.7 cm. The corresponding values for the Canon XS are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.

The Canon EOS 5D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 50-3200. The corresponding ISO settings for the Canon EOS Rebel XS are ISO 100 to ISO 800, with the possibility to increase the ISO range to 100-1600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the 5D has a notably higher overall DXO score than the XS (overall score 9 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.9 bits higher color depth, 0.2 EV in additional dynamic range, and 0.9 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 5D	Full Frame	12.7	4368	2912	none	22.9	11.1	1368	71
2.		Canon XS	APS-C	10.1	3888	2592	none	22.0	10.9	719	62
3.		Canon 1D Mark II N	APS-H	8.2	3504	2336	none	22.3	11.2	975	66
4.		Canon 5D Mark II	Full Frame	21.0	5616	3744	1080/30p	23.7	11.9	1815	79
5.		Canon 5D Mark III	Full Frame	22.1	5760	3840	1080/30p	24.0	11.7	2293	81
6.		Canon 5D Mark IV	Full Frame	30.1	6720	4480	4K/30p	24.8	13.6	2995	91
7.		Canon 5DS	Full Frame	50.3	8688	5792	1080/30p	24.7	12.4	2381	87
8.		Canon 5DS R	Full Frame	50.3	8688	5792	1080/30p	24.6	12.4	2308	86
9.		Canon 6D	Full Frame	20.0	5472	3648	1080/30p	23.8	12.1	2340	82
10.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
11.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
12.		Canon 50D	APS-C	15.1	4752	3168	none	21.8	11.4	696	63
13.		Canon T1i	APS-C	15.1	4752	3168	1080/20p	21.7	11.5	663	63
14.		Canon T3	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
15.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
16.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
17.		Nikon D700	Full Frame	12.1	4256	2832	none	23.5	12.2	2303	80

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The 5D and the XS are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 5D offers a wider field of view (96%) than the one in the XS (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 5D has a higher magnification (0.71x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 5D and Canon XS in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 5D	optical	Y	2.5 / 230	fixed	n	1/8000s	3.0/s	n	n
2.		Canon XS	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
3.		Canon 1D Mark II N	optical	Y	2.5 / 230	fixed	n	1/8000s	8.5/s	n	n
4.		Canon 5D Mark II	optical	Y	3.0 / 920	fixed	n	1/8000s	3.9/s	n	n
5.		Canon 5D Mark III	optical	Y	3.2 / 1040	fixed	n	1/8000s	6.0/s	n	n
6.		Canon 5D Mark IV	optical	Y	3.2 / 1620	fixed	Y	1/8000s	7.0/s	n	n
7.		Canon 5DS	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
8.		Canon 5DS R	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
9.		Canon 6D	optical	Y	3.0 / 1040	fixed	n	1/4000s	4.5/s	n	n
10.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
11.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
12.		Canon 50D	optical	Y	3.0 / 920	fixed	n	1/8000s	6.3/s	Y	n
13.		Canon T1i	optical	n	3.0 / 920	fixed	n	1/4000s	3.4/s	Y	n
14.		Canon T3	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
15.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
16.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
17.		Nikon D700	optical	Y	3.0 / 922	fixed	n	1/8000s	8.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 5D, but is missing on the XS is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The 5D writes its imaging data to Compact Flash cards, while the XS uses SDHC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D and Canon EOS Rebel XS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 5D	Y	- / -	-	-	-	2.0	-	-	-
2.		Canon XS	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon 1D Mark II N	Y	- / -	-	-	-	1.1	-	-	-
4.		Canon 5D Mark II	Y	mono / mono	Y	-	mini	2.0	-	-	-
5.		Canon 5D Mark III	Y	mono / mono	Y	Y	mini	2.0	-	-	-
6.		Canon 5D Mark IV	Y	mono / mono	Y	Y	mini	3.0	Y	Y	-
7.		Canon 5DS	Y	mono / mono	Y	-	mini	3.0	-	-	-
8.		Canon 5DS R	Y	mono / mono	Y	-	mini	3.0	-	-	-
9.		Canon 6D	Y	mono / mono	Y	-	mini	2.0	Y	-	-
10.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
11.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
12.		Canon 50D	Y	- / -	-	-	mini	2.0	-	-	-
13.		Canon T1i	Y	mono / mono	-	-	mini	2.0	-	-	-
14.		Canon T3	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
16.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
17.		Nikon D700	Y	- / -	-	-	mini	2.0	-	-	-

Studio photographers will appreciate that the Canon 5D (unlike the XS) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the 5D and the XS have been discontinued, but can regularly be found used on ebay. The 5D was replaced by the Canon 5D Mark II, while the XS was followed by the Canon T3. Further information on the features and operation of the 5D and XS can be found, respectively, in the Canon 5D Manual (free pdf) or the online Canon XS Manual.

Review summary

So how do things add up? Is there a clear favorite between the Canon 5D and the Canon XS? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon EOS 5D:

• More detail: Offers more megapixels (12.7 vs 10.1MP) with a 12% higher linear resolution.
• Better image quality: Scores markedly higher (9 points) in the DXO overall assessment.
• Better low-light sensitivity: Requires less light for good images (0.9 stops ISO advantage).
• More complete view: Has a viewfinder with a larger field of view (96% vs 95%).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.51x).
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in August 2005).

Advantages of the Canon EOS Rebel XS:

• Better jpgs: Has a more modern image processing engine (DIGIC 3 vs DIGIC 2).
• More compact: Is smaller (126x98mm vs 152x113mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 393g or 44 percent) and is thus easier to take along.
• Longer lasting: Gets more shots (500 versus 400) out of a single battery charge.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced into a lower priced category (86 percent cheaper at launch).
• More modern: Reflects 2 years and 9 months of technical progress since the 5D launch.

If the count of individual advantages (bullet points above) is taken as a guide, the 5D emerges as the winner of the contest (10 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 5D and the Canon XS place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 5D or the XS. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 5D	..	88/100	..	+ +	o	..	Aug 2005	US$ 3 299	ebay.com
2.		Canon XS	..	82/100	..	+ +	3.5/5	4.5/5	Jun 2008	US$ 449	ebay.com
3.		Canon 1D Mark II N	..	..	..	..	..	..	Aug 2005	US$ 3 999	ebay.com
4.		Canon 5D Mark II	4/5	91/100	..	79/100	4/5	..	Sep 2008	US$ 3 499	ebay.com
5.		Canon 5D Mark III	..	+ +	..	82/100	4.5/5	4.5/5	Mar 2012	US$ 3 499	ebay.com
6.		Canon 5D Mark IV	4.5/5	+ +	4/5	87/100	4.5/5	4.5/5	Aug 2016	US$ 3 499	amazon.com
7.		Canon 5DS	..	+	..	83/100	4.5/5	4.5/5	Feb 2015	US$ 3 699	ebay.com
8.		Canon 5DS R	5/5	+	..	83/100	5/5	4.5/5	Feb 2015	US$ 3 699	ebay.com
9.		Canon 6D	5/5	+ +	..	83/100	4.5/5	4.5/5	Sep 2012	US$ 2 099	ebay.com
10.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	US$ 1 999	amazon.com
11.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	US$ 1 299	ebay.com
12.		Canon 50D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2008	US$ 1 299	ebay.com
13.		Canon T1i	..	+ +	..	74/100	4.5/5	4.5/5	Mar 2009	US$ 799	ebay.com
14.		Canon T3	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	US$ 449	ebay.com
15.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	US$ 449	ebay.com
16.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	US$ 449	ebay.com
17.		Nikon D700	..	89/100	..	+ +	4.5/5	4.5/5	Jul 2008	US$ 2 999	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
