Canon 7D II vs Leica SL

The Canon EOS 7D Mark II and the Leica SL (Typ 601) are two enthusiast cameras that were revealed to the public, respectively, in September 2014 and October 2015. The 7D Mark II is a DSLR, while the Leica SL is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (7D Mark II) and a full frame (Leica SL) sensor. The Canon has a resolution of 20 megapixels, whereas the Leica provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 7D II		Leica SL
Digital single lens reflex		Mirrorless system camera
Canon EF mount lenses		Leica L mount lenses
20 MP – APS-C sensor		24 MP – Full Frame sensor
1080/60p Video		4K/30p Video
ISO 100-16,000 (100 - 51,200)		ISO 50-50,000
Optical viewfinder		Electronic viewfinder (4400k dots)
3.0" LCD – 1040k dots		3.0" LCD – 1040k dots
Fixed screen (not touch-sensitive)		Fixed touchscreen
10 shutter flaps per second		11 shutter flaps per second
Weathersealed body		Weathersealed body
670 shots per battery charge		400 shots per battery charge
149 x 112 x 78 mm, 910 g		147 x 104 x 39 mm, 847 g

Check 7D Mark II offers at
ebay.com
Check Leica SL offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 7D Mark II and the Leica SL (Typ 601)? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

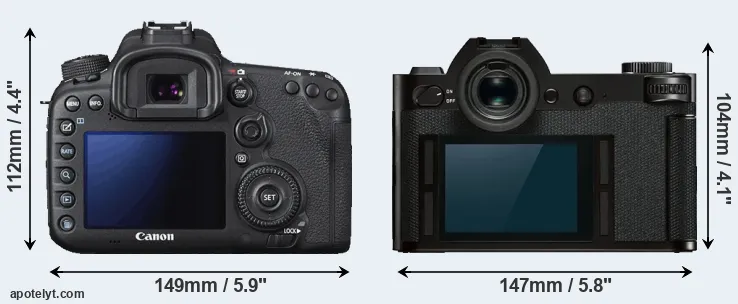

An illustration of the physical size and weight of the Canon 7D II and the Leica SL is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica SL is notably smaller (8 percent) than the Canon 7D II. Moreover, the Leica SL is markedly lighter (7 percent) than the 7D Mark II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the 7D Mark II gets 670 shots out of its Canon LP-E6N battery, while the Leica SL can take 400 images on a single charge of its Leica BP-SCL4 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 7D II	149 mm	112 mm	78 mm	910 g	670	Y	Sep 2014	EUR 1 699	ebay.com
2.		Leica SL	147 mm	104 mm	39 mm	847 g	400	Y	Oct 2015	EUR 6 899	ebay.com
3.		Canon 6D	145 mm	111 mm	71 mm	770 g	1090	Y	Sep 2012	EUR 1 999	ebay.com
4.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	EUR 2 099	amazon.com
5.		Canon 7D	148 mm	111 mm	74 mm	860 g	800	Y	Sep 2009	EUR 1 499	ebay.com
6.		Canon 60D	145 mm	106 mm	79 mm	755 g	1100	Y	Aug 2010	EUR 1 149	ebay.com
7.		Canon 70D	139 mm	104 mm	79 mm	755 g	920	Y	Jul 2013	EUR 1 099	ebay.com
8.		Canon 80D	139 mm	105 mm	79 mm	730 g	960	Y	Feb 2016	EUR 1 285	ebay.com
9.		Canon G3 X	123 mm	77 mm	105 mm	733 g	300	Y	Jun 2015	EUR 899	ebay.com
10.		Leica M Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Sep 2012	EUR 6 199	ebay.com
11.		Leica M10	139 mm	80 mm	39 mm	660 g	210	Y	Jan 2017	EUR 6 499	ebay.com
12.		Nikon D5	160 mm	159 mm	92 mm	1415 g	3780	Y	Jan 2016	EUR 6 989	ebay.com
13.		Nikon D500	147 mm	115 mm	81 mm	860 g	1240	Y	Jan 2016	EUR 2 399	ebay.com
14.		Nikon D7100	136 mm	107 mm	76 mm	765 g	950	Y	Feb 2013	EUR 1 179	ebay.com
15.		Sony RX10 II	129 mm	88 mm	102 mm	813 g	400	Y	Jun 2015	EUR 1 599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The 7D Mark II was launched at a markedly lower price (by 76 percent) than the Leica SL, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon 7D II features an APS-C sensor and the Leica SL a full frame sensor. The sensor area in the Leica SL is 157 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 24MP, the Leica SL offers a higher resolution than the 7D Mark II (20MP), but the Leica SL nevertheless has larger individual pixels (pixel pitch of 6.00μm versus 4.10μm for the 7D Mark II) due to its larger sensor. Moreover, the Leica SL is a somewhat more recent model (by 1 year and 1 month) than the 7D Mark II, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the Leica SL has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Leica SL implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the Leica SL for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon 7D II are 27.4 x 18.2 inches or 69.5 x 46.3 cm for good quality, 21.9 x 14.6 inches or 55.6 x 37.1 cm for very good quality, and 18.2 x 12.2 inches or 46.3 x 30.9 cm for excellent quality prints.

The 7D Mark II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 7D Mark II has a native sensitivity range from ISO 100 to ISO 16000, which can be extended to ISO 100-51200. The corresponding ISO settings for the Leica SL (Typ 601) are ISO 50 to ISO 50000 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the Leica SL offers substantially better image quality than the 7D Mark II (overall score 18 points higher). The advantage is based on 2.6 bits higher color depth, 1.6 EV in additional dynamic range, and 0.8 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 7D II	APS-C	20.0	5472	3648	1080/60p	22.4	11.8	1082	70
2.		Leica SL	Full Frame	24.0	6000	4000	4K/30p	25.0	13.4	1821	88
3.		Canon 6D	Full Frame	20.0	5472	3648	1080/30p	23.8	12.1	2340	82
4.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
5.		Canon 7D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	854	66
6.		Canon 60D	APS-C	17.9	5184	3456	1080/30p	22.2	11.5	813	66
7.		Canon 70D	APS-C	20.0	5472	3648	1080/30p	22.5	11.6	926	68
8.		Canon 80D	APS-C	24.0	6000	4000	1080/60p	23.6	13.2	1135	79
9.		Canon G3 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	521	63
10.		Leica M Typ 240	Full Frame	23.7	5952	3976	1080/25p	24.0	13.3	1860	84
11.		Leica M10	Full Frame	23.8	5952	3992	none	24.4	13.2	2133	86
12.		Nikon D5	Full Frame	20.7	5588	3712	4K/30p	25.1	12.3	2343	88
13.		Nikon D500	APS-C	20.7	5568	3712	4K/30p	24.0	14.0	1324	83
14.		Nikon D7100	APS-C	24.0	6000	4000	1080/60p	24.2	13.7	1256	83
15.		Sony RX10 II	1-inch	20.0	5472	3648	4K/30p	23.0	12.6	531	70

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the Leica SL provides a better video resolution than the 7D Mark II. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the Leica SL has an electronic viewfinder (4400k dots), while the 7D Mark II has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the Leica SL has a higher magnification than the one of the 7D Mark II (0.80x vs 0.63x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 7D II and Leica SL in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 7D II	optical	Y	3.0 / 1040	fixed	n	1/8000s	10.0/s	Y	n
2.		Leica SL	4400	Y	3.0 / 1040	fixed	Y	1/8000s	11.0/s	n	n
3.		Canon 6D	optical	Y	3.0 / 1040	fixed	n	1/4000s	4.5/s	n	n
4.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
5.		Canon 7D	optical	Y	3.0 / 920	fixed	n	1/8000s	8.0/s	Y	n
6.		Canon 60D	optical	Y	3.0 / 1040	swivel	n	1/8000s	5.3/s	Y	n
7.		Canon 70D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
8.		Canon 80D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
9.		Canon G3 X	optional	n	3.2 / 1620	tilting	Y	1/2000s	5.9/s	Y	Y
10.		Leica M Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
11.		Leica M10	optical	n	3.0 / 1037	fixed	n	1/4000s	5.0/s	n	n
12.		Nikon D5	optical	Y	3.2 / 2359	fixed	Y	1/8000s	14.0/s	n	n
13.		Nikon D500	optical	Y	3.2 / 2359	tilting	Y	1/8000s	10.0/s	n	n
14.		Nikon D7100	optical	Y	3.2 / 1229	fixed	n	1/8000s	6.0/s	Y	n
15.		Sony RX10 II	2359	Y	3.0 / 1229	tilting	n	1/3200s	14.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The 7D Mark II has one, while the Leica SL does not. While the built-in flash of the 7D Mark II is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the Leica SL is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon 7D II and the Leica SL both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 7D Mark II writes its imaging data to Compact Flash or SDXC cards, while the Leica SL uses SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails. The Leica SL supports UHS-II cards (on its first slot), while the 7D Mark II can use UHS-I cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 7D Mark II and Leica SL (Typ 601) and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 7D II	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
2.		Leica SL	Y	stereo / mono	Y	Y	full	3.0	Y	-	-
3.		Canon 6D	Y	mono / mono	Y	-	mini	2.0	Y	-	-
4.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon 7D	Y	mono / -	Y	-	mini	2.0	-	-	-
6.		Canon 60D	Y	mono / mono	Y	-	mini	2.0	-	-	-
7.		Canon 70D	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
8.		Canon 80D	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
9.		Canon G3 X	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
10.		Leica M Typ 240	Y	stereo / mono	-	-	-	2.0	-	-	-
11.		Leica M10	Y	- / -	-	-	-	-	Y	-	-
12.		Nikon D5	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
13.		Nikon D500	Y	stereo / mono	Y	Y	mini	3.0	Y	Y	Y
14.		Nikon D7100	Y	stereo / mono	Y	Y	mini	2.0	-	-	-
15.		Sony RX10 II	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-

It is notable that the Leica SL offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 7D Mark II does not provide wifi capability.

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

Travel and landscape photographers will find it useful that both cameras feature internal geolocalization sensors and can record GPS coordinates in their EXIF data.

Both the 7D Mark II and the Leica SL have been discontinued, but can regularly be found used on ebay. The Leica SL was replaced by the Leica SL2, while the 7D Mark II does not have a direct successor. Further information on the features and operation of the 7D Mark II and Leica SL can be found, respectively, in the Canon 7D II Manual (free pdf) or the online Leica SL Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon 7D II and the Leica SL? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon EOS 7D Mark II:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Longer lasting: Can take more shots (670 versus 400) on a single battery charge.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More affordable: Was introduced into a lower priced category (76 percent cheaper at launch).
• More heavily discounted: Has been on the market for longer (launched in September 2014).

Advantages of the Leica SL (Typ 601):

• More detail: Has more megapixels (24 vs 20MP), which boosts linear resolution by 10%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Scores substantially higher (18 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (2.6 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (1.6 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (0.8 stops ISO advantage).
• Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
• More framing info: Has an electronic viewfinder that displays shooting data.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.80x vs 0.63x).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
• More modern: Was introduced somewhat (1 year and 1 month) more recently.

If the count of relative strengths (bullet points above) is taken as a measure, the Leica SL is the clear winner of the contest (17 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 7D II and the Leica SL place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 7D Mark II and the Leica SL in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 7D II	4.5/5	+	3.5/5	84/100	4/5	4.5/5	Sep 2014	EUR 1 699	ebay.com
2.		Leica SL	4/5	..	4/5	84/100	4.5/5	4/5	Oct 2015	EUR 6 899	ebay.com
3.		Canon 6D	5/5	+ +	..	83/100	4.5/5	4.5/5	Sep 2012	EUR 1 999	ebay.com
4.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	EUR 2 099	amazon.com
5.		Canon 7D	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2009	EUR 1 499	ebay.com
6.		Canon 60D	5/5	+	..	79/100	4/5	4.5/5	Aug 2010	EUR 1 149	ebay.com
7.		Canon 70D	5/5	+ +	..	83/100	4.5/5	5/5	Jul 2013	EUR 1 099	ebay.com
8.		Canon 80D	4/5	+ +	4.5/5	84/100	4.5/5	4.5/5	Feb 2016	EUR 1 285	ebay.com
9.		Canon G3 X	3.5/5	+	..	..	4.5/5	4/5	Jun 2015	EUR 899	ebay.com
10.		Leica M Typ 240	4/5	..	..	..	4/5	..	Sep 2012	EUR 6 199	ebay.com
11.		Leica M10	4.5/5	..	..	..	4/5	4.5/5	Jan 2017	EUR 6 499	ebay.com
12.		Nikon D5	..	..	4/5	89/100	4.5/5	5/5	Jan 2016	EUR 6 989	ebay.com
13.		Nikon D500	5/5	+ +	4.7/5	91/100	4.5/5	5/5	Jan 2016	EUR 2 399	ebay.com
14.		Nikon D7100	5/5	+ +	..	85/100	4.5/5	4.5/5	Feb 2013	EUR 1 179	ebay.com
15.		Sony RX10 II	5/5	+ +	..	82/100	4.5/5	4/5	Jun 2015	EUR 1 599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
