Canon G16 vs Leica D-LUX Typ 109

The Canon PowerShot G16 and the Leica D-LUX (Typ 109) are two digital cameras that were revealed to the public, respectively, in August 2013 and September 2014. Both the G16 and the D-LUX Typ 109 are fixed lens compact cameras that are based on a 1/1.7-inch (G16) and a Four Thirds (D-LUX Typ 109) sensor. The Canon has a resolution of 12 megapixels, whereas the Leica provides 12.7 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon G16		Leica D-LUX Typ 109
Fixed lens compact camera		Fixed lens compact camera
28-140mm f/1.8-2.8		24-75mm f/1.7-2.8
12 MP – 1/1.7" sensor		12.7 MP – Four Thirds sensor
1080/60p Video		4K/30p Video
ISO 80-12,800		ISO 200-12,500 (100 - 25,600)
Optical viewfinder		Electronic viewfinder (2764k dots)
3.0" LCD – 922k dots		3.0" LCD – 921k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
2.2 shutter flaps per second		11 shutter flaps per second
360 shots per battery charge		300 shots per battery charge
109 x 76 x 40 mm, 356 g		118 x 66 x 55 mm, 405 g

Check G16 offers at
ebay.com
Check D-LUX Typ 109 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G16 and the Leica D-LUX (Typ 109)? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon G16 and the Leica D-LUX Typ 109. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The D-LUX Typ 109 can be obtained in two different colors (black, grey), while the G16 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica D-LUX Typ 109 is notably smaller (6 percent) than the Canon G16. However, the D-LUX Typ 109 is markedly heavier (14 percent) than the G16. In this context, it is worth noting that neither the G16 nor the D-LUX Typ 109 are weather-sealed.

Concerning battery life, the G16 gets 360 shots out of its Canon NB-10L battery, while the D-LUX Typ 109 can take 300 images on a single charge of its Leica BP-DC15 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
2.		Leica D-LUX Typ 109	118 mm	66 mm	55 mm	405 g	300	n	Sep 2014	US$ 1 195	ebay.com
3.		Canon G1 X	117 mm	81 mm	65 mm	534 g	250	n	Jan 2012	US$ 799	ebay.com
4.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	US$ 799	ebay.com
5.		Canon G12	112 mm	76 mm	48 mm	401 g	370	n	Sep 2010	US$ 499	ebay.com
6.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	US$ 499	ebay.com
7.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	US$ 599	ebay.com
8.		Canon SL1	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	US$ 549	ebay.com
9.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	US$ 599	ebay.com
10.		Fujifilm X30	119 mm	72 mm	60 mm	423 g	470	n	Aug 2014	US$ 599	ebay.com
11.		Fujifilm X100S	127 mm	74 mm	54 mm	445 g	330	n	Jan 2013	US$ 1 299	ebay.com
12.		Fujifilm X100T	127 mm	74 mm	52 mm	440 g	330	n	Sep 2014	US$ 1 299	ebay.com
13.		Leica D-LUX 7	115 mm	66 mm	65 mm	392 g	300	n	Nov 2018	US$ 1 195	ebay.com
14.		Leica X Typ 113	133 mm	73 mm	78 mm	486 g	350	n	Sep 2014	US$ 2 299	ebay.com
15.		Nikon P7800	119 mm	78 mm	50 mm	399 g	350	n	Sep 2013	US$ 549	ebay.com
16.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The G16 was launched at a markedly lower price (by 54 percent) than the D-LUX Typ 109, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

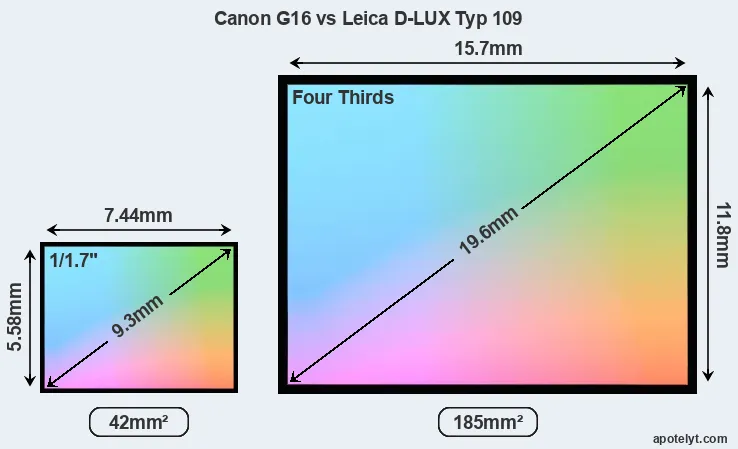

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon G16 features a 1/1.7-inch sensor and the Leica D-LUX Typ 109 a Four Thirds sensor. The sensor area in the D-LUX Typ 109 is 340 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 4.65 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3. The D-LUX Typ 109 has the particularity of featuring a switch that allows to toggle between multiple aspect ratios, while maintaining the same field of view and full image resolution.

With 12.7MP, the D-LUX Typ 109 offers a higher resolution than the G16 (12MP), but the D-LUX Typ 109 nevertheless has larger individual pixels (pixel pitch of 3.82μm versus 1.87μm for the G16) due to its larger sensor. Moreover, the D-LUX Typ 109 is a somewhat more recent model (by 1 year) than the G16, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.

The Canon PowerShot G16 has a native sensitivity range from ISO 80 to ISO 12800. The corresponding ISO settings for the Leica D-LUX (Typ 109) are ISO 200 to ISO 12500, with the possibility to increase the ISO range to 100-25600.

In terms of underlying technology, the G16 is build around a BSI-CMOS sensor, while the D-LUX Typ 109 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
2.		Leica D-LUX Typ 109	Four Thirds	12.7	4112	3088	4K/30p	22.4	12.1	607	67
3.		Canon G1 X	1.5-inch	14.2	4352	3264	1080/24p	21.7	10.8	644	60
4.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
5.		Canon G12	1/1.7	10.0	3648	2736	720/24p	20.4	11.2	161	47
6.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
7.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
8.		Canon SL1	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
9.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
10.		Fujifilm X30	2/3	12.0	4000	3000	1080/60p	20.4	11.2	-312	49
11.		Fujifilm X100S	APS-C	16.0	4896	3264	1080/60p	23.3	12.5	1329	75
12.		Fujifilm X100T	APS-C	16.0	4896	3264	1080/60p	23.6	12.8	1483	78
13.		Leica D-LUX 7	Four Thirds	16.8	4736	3552	4K/30p	22.9	12.8	1002	72
14.		Leica X Typ 113	APS-C	16.1	4928	3264	1080/30p	23.6	12.8	1491	78
15.		Nikon P7800	1/1.7	12.0	4000	3000	1080/30p	21.2	11.7	200	54
16.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the D-LUX Typ 109 provides a better video resolution than the G16. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the D-LUX Typ 109 has an electronic viewfinder (2764k dots), while the G16 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The adjacent table lists some of the other core features of the Canon G16 and Leica D-LUX Typ 109 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
2.		Leica D-LUX Typ 109	2764	n	3.0 / 921	fixed	n	1/4000s	11.0/s	n	Y
3.		Canon G1 X	optical	n	3.0 / 922	swivel	n	1/4000s	1.9/s	Y	Y
4.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
5.		Canon G12	optical	n	2.8 / 461	swivel	n	1/4000s	1.1/s	Y	Y
6.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
7.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
8.		Canon SL1	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
9.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
10.		Fujifilm X30	2360	n	3.0 / 920	tilting	n	1/4000s	12.0/s	Y	Y
11.		Fujifilm X100S	2360	n	2.8 / 460	fixed	n	1/4000s	6.0/s	Y	n
12.		Fujifilm X100T	2360	n	3.0 / 1040	fixed	n	1/4000s	6.0/s	Y	n
13.		Leica D-LUX 7	2764	n	3.0 / 1240	fixed	Y	1/4000s	11.0/s	n	Y
14.		Leica X Typ 113	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
15.		Nikon P7800	921	n	3.0 / 921	swivel	n	1/4000s	8.0/s	Y	Y
16.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The G16 has one, while the D-LUX Typ 109 does not. While the built-in flash of the G16 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the D-LUX Typ 109 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon G16 and the Leica D-LUX Typ 109 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Both the G16 and the D-LUX Typ 109 have zoom lenses built in. The G16 has a 28-140mm f/1.8-2.8 optic and the D-LUX Typ 109 offers a 24-75mm f/1.7-2.8 (focal lengths in full frame equivalent terms). Hence, the Leica provides a wider angle of view at the short end than the Canon, but less tele-photo reach at the long end. The D-LUX Typ 109 offers the faster maximum aperture.

Concerning the storage of imaging data, both the G16 and the D-LUX Typ 109 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G16 and Leica D-LUX (Typ 109) and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
2.		Leica D-LUX Typ 109	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
3.		Canon G1 X	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
5.		Canon G12	Y	stereo / mono	-	-	mini	2.0	-	-	-
6.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
7.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
8.		Canon SL1	Y	mono / mono	Y	-	mini	2.0	-	-	-
9.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
10.		Fujifilm X30	Y	stereo / mono	-	-	micro	2.0	Y	-	-
11.		Fujifilm X100S	Y	stereo / mono	-	-	micro	2.0	-	-	-
12.		Fujifilm X100T	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
13.		Leica D-LUX 7	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
14.		Leica X Typ 113	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Nikon P7800	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-

Both the G16 and the D-LUX Typ 109 have been discontinued, but can regularly be found used on ebay. The D-LUX Typ 109 was replaced by the Leica D-LUX 7, while the G16 does not have a direct successor. Further information on the features and operation of the G16 and D-LUX Typ 109 can be found, respectively, in the Canon G16 Manual (free pdf) or the online Leica D-LUX Typ 109 Manual.

Review summary

So what conclusions can be drawn? Is the Canon G16 better than the Leica D-LUX Typ 109 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon PowerShot G16:

• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• Less heavy: Is lighter (by 49g or 12 percent) and hence easier to carry around.
• Longer lasting: Can take more shots (360 versus 300) on a single battery charge.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More affordable: Was introduced into a lower priced category (54 percent cheaper at launch).
• More heavily discounted: Has been on the market for longer (launched in August 2013).

Advantages of the Leica D-LUX (Typ 109):

• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
• More framing info: Has an electronic viewfinder that displays shooting data.
• Faster burst: Shoots at higher frequency (11 vs 2.2 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Better light gathering: Has a lens with a wider maximum aperture (f/1.7 vs f/1.8).
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
• More modern: Was introduced somewhat (1 year) more recently.

If the number of relative strengths (bullet points above) is taken as a guide, the D-LUX Typ 109 is the clear winner of the contest (14 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon G16 and the Leica D-LUX Typ 109 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the G16 or the D-LUX Typ 109. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
2.		Leica D-LUX Typ 109	..	..	..	..	4.5/5	4.5/5	Sep 2014	US$ 1 195	ebay.com
3.		Canon G1 X	5/5	+	..	76/100	4/5	4.5/5	Jan 2012	US$ 799	ebay.com
4.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	US$ 799	ebay.com
5.		Canon G12	4/5	+	..	73/100	4.5/5	4.5/5	Sep 2010	US$ 499	ebay.com
6.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	US$ 499	ebay.com
7.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	US$ 599	ebay.com
8.		Canon SL1	4/5	+	..	78/100	4/5	4/5	Mar 2013	US$ 549	ebay.com
9.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	US$ 599	ebay.com
10.		Fujifilm X30	4/5	..	..	76/100	4.5/5	4.5/5	Aug 2014	US$ 599	ebay.com
11.		Fujifilm X100S	5/5	+ +	..	81/100	4.5/5	5/5	Jan 2013	US$ 1 299	ebay.com
12.		Fujifilm X100T	5/5	+	..	81/100	4.5/5	5/5	Sep 2014	US$ 1 299	ebay.com
13.		Leica D-LUX 7	..	..	..	..	..	4.5/5	Nov 2018	US$ 1 195	ebay.com
14.		Leica X Typ 113	3.5/5	..	..	..	3.5/5	4/5	Sep 2014	US$ 2 299	ebay.com
15.		Nikon P7800	3/5	..	..	..	4/5	4.5/5	Sep 2013	US$ 549	ebay.com
16.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
