Canon G9 X Mark II vs SX740

The Canon PowerShot G9 X Mark II and the Canon PowerShot SX740 HS are two digital cameras that were announced, respectively, in January 2017 and July 2018. Both the G9X Mark II and the SX740 are fixed lens compact cameras that are based on an one-inch (G9X Mark II) and a 1/2.3-inch (SX740) sensor. The G9X Mark II has a resolution of 20 megapixels, whereas the SX740 provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon G9 X Mark II		Canon SX740
Fixed lens compact camera		Fixed lens compact camera
28-84mm f/2.0-4.9		24-960mm f/3.3-6.9
20 MP – 1" sensor		20.2 MP – 1/2.3" sensor
1080/60p Video		4K/30p Video
ISO 125-12,800		ISO 100-3,200
No viewfinder, LCD framing		No viewfinder, LCD framing
3.0" LCD – 1040k dots		3.0" LCD – 922k dots
Fixed touchscreen		Tilting screen (no touchscreen)
8.2 shutter flaps per second		10 shutter flaps per second
235 shots per battery charge		265 shots per battery charge
98 x 58 x 31 mm, 206 g		110 x 64 x 40 mm, 299 g

Check G9X Mark II offers at
ebay.com
Check SX740 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G9 X Mark II and the Canon PowerShot SX740 HS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

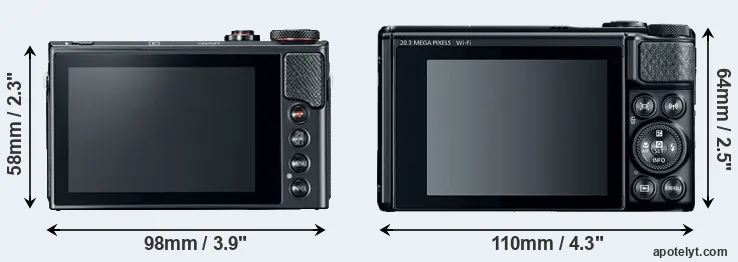

An illustration of the physical size and weight of the Canon G9 X Mark II and the Canon SX740 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

Both cameras are available in two different colors (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX740 is notably larger (24 percent) than the Canon G9 X Mark II. Moreover, the SX740 is substantially heavier (45 percent) than the G9X Mark II. In this context, it is worth noting that neither the G9X Mark II nor the SX740 are weather-sealed.

The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	US$ 529	ebay.com
2.		Canon SX740	110 mm	64 mm	40 mm	299 g	265	n	Jul 2018	US$ 399	amazon.com
3.		Canon 200D	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
4.		Canon 1300D	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	US$ 449	ebay.com
5.		Canon 2000D	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	US$ 449	amazon.com
6.		Canon G5 X Mark II	111 mm	61 mm	46 mm	340 g	230	n	Jul 2019	US$ 899	ebay.com
7.		Canon G7 X Mark III	105 mm	61 mm	41 mm	304 g	235	n	Jul 2019	US$ 749	amazon.com
8.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	US$ 529	ebay.com
9.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	US$ 499	ebay.com
10.		Canon S120	100 mm	59 mm	29 mm	217 g	230	n	Aug 2013	US$ 449	ebay.com
11.		Canon SX70	127 mm	91 mm	117 mm	608 g	325	n	Sep 2018	US$ 549	amazon.com
12.		Canon SX620	97 mm	57 mm	28 mm	182 g	295	n	May 2016	US$ 279	ebay.com
13.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	US$ 399	ebay.com
14.		Panasonic TZ90	112 mm	67 mm	41 mm	322 g	380	n	Apr 2017	US$ 449	ebay.com
15.		Panasonic TZ95	112 mm	69 mm	42 mm	327 g	380	n	Feb 2019	US$ 449	ebay.com
16.		Sony HX95	102 mm	58 mm	36 mm	242 g	370	n	Aug 2018	US$ 429	ebay.com
17.		Sony HX99	102 mm	58 mm	36 mm	242 g	370	n	Aug 2018	US$ 449	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX740 was launched at a somewhat lower price (by 25 percent) than the G9X Mark II, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon G9 X Mark II features an one-inch sensor and the Canon SX740 a 1/2.3-inch sensor. The sensor area in the SX740 is 76 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 5.6. The sensor in the G9X Mark II has a native 3:2 aspect ratio, while the one in the SX740 offers a 4:3 aspect.

Technology-wise, the SX740 uses a more advanced image processing engine (DIGIC 8) than the G9X Mark II (DIGIC 7), with benefits for noise reduction, color accuracy, and processing speed.

Despite having a smaller sensor, the SX740 offers a slightly higher resolution of 20.2 megapixels, compared with 20 MP of the G9X Mark II. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 2.41μm for the G9X Mark II). However, it should be noted that the SX740 is a somewhat more recent model (by 1 year and 6 months) than the G9X Mark II, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage. Coming back to sensor resolution, it should be mentioned that the SX740 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Canon PowerShot G9 X Mark II has a native sensitivity range from ISO 125 to ISO 12800. The corresponding ISO settings for the Canon PowerShot SX740 HS are ISO 100 to ISO 3200 (no boost).

Technology-wise, both cameras are equipped with BSI-CMOS (Backside Illuminated Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
2.		Canon SX740	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1050	51
3.		Canon 200D	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
4.		Canon 1300D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
5.		Canon 2000D	APS-C	24.0	6000	4000	1080/30p	22.6	11.9	1009	71
6.		Canon G5 X Mark II	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	583	65
7.		Canon G7 X Mark III	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	583	65
8.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
9.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
10.		Canon S120	1/1.7	12.0	4000	3000	1080/60p	21.3	11.9	246	56
11.		Canon SX70	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1063	51
12.		Canon SX620	1/2.3	20.2	5184	3888	1080/30p	20.4	11.8	838	49
13.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
14.		Panasonic TZ90	1/2.3	20.2	5184	3888	4K/30p	19.1	10.6	106	36
15.		Panasonic TZ95	1/2.3	20.2	5184	3888	4K/30p	20.7	12.2	1103	52
16.		Sony HX95	1/2.3	18.0	4896	3672	4K/30p	20.6	12.1	1057	51
17.		Sony HX99	1/2.3	18.0	4896	3672	4K/30p	20.6	12.1	1058	51
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the SX740 provides a better video resolution than the G9X Mark II. It can shoot movie footage at 4K/30p, while the G9X Mark II is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The G9X Mark II and the SX740 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The table below summarizes some of the other core capabilities of the Canon G9 X Mark II and Canon SX740 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
2.		Canon SX740	none	n	3.0 / 922	tilting	n	1/3200s	10.0/s	Y	Y
3.		Canon 200D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
4.		Canon 1300D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
5.		Canon 2000D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
6.		Canon G5 X Mark II	2360	n	3.0 / 1040	tilting	Y	1/2000s	30/s	Y	Y
7.		Canon G7 X Mark III	none	n	3.0 / 1040	tilting	Y	1/2000s	30/s	Y	Y
8.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
9.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
10.		Canon S120	none	n	3.0 / 922	fixed	Y	1/2000s	12.1/s	Y	Y
11.		Canon SX70	2360	n	3.0 / 922	swivel	n	1/2000s	10.0/s	Y	Y
12.		Canon SX620	none	n	3.0 / 922	fixed	n	1/2000s	2.5/s	Y	Y
13.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
14.		Panasonic TZ90	1166	n	3.0 / 1040	tilting	Y	1/2000s	10.0/s	Y	Y
15.		Panasonic TZ95	2330	n	3.0 / 1040	tilting	Y	1/2000s	10.0/s	Y	Y
16.		Sony HX95	638	n	3.0 / 922	tilting	n	1/2000s	10.0/s	Y	Y
17.		Sony HX99	638	n	3.0 / 922	tilting	Y	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The G9X Mark II has a touchscreen, while the SX740 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Canon G9 X Mark II and the Canon SX740 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Both the G9X Mark II and the SX740 have zoom lenses built in. The G9X Mark II has a 28-84mm f/2.0-4.9 optic and the SX740 offers a 24-960mm f/3.3-6.9 (focal lengths in full frame equivalent terms). Hence, the SX740 provides a wider angle of view at the short end, as well as more tele-photo reach at the long end than the G9X Mark II. The G9X Mark II offers the faster maximum aperture.

Concerning the storage of imaging data, both the G9X Mark II and the SX740 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G9 X Mark II and Canon PowerShot SX740 HS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
2.		Canon SX740	-	stereo / mono	-	-	micro	2.0	Y	-	Y
3.		Canon 200D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon 1300D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
5.		Canon 2000D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
6.		Canon G5 X Mark II	-	stereo / mono	-	-	micro	3.1	Y	-	Y
7.		Canon G7 X Mark III	-	stereo / mono	Y	-	micro	3.1	Y	-	Y
8.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
9.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
10.		Canon S120	-	stereo / mono	-	-	mini	2.0	Y	-	-
11.		Canon SX70	-	stereo / mono	Y	-	micro	2.0	Y	-	Y
12.		Canon SX620	-	mono / mono	-	-	micro	2.0	Y	Y	-
13.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
14.		Panasonic TZ90	-	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Panasonic TZ95	-	stereo / mono	-	-	micro	2.0	Y	-	Y
16.		Sony HX95	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
17.		Sony HX99	-	stereo / mono	-	-	micro	2.0	Y	Y	Y

The SX740 is a recent model that features in the current product line-up of Canon. In contrast, the G9X Mark II has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the G9X Mark II from Canon. Further information on the features and operation of the G9X Mark II and SX740 can be found, respectively, in the Canon G9 X Mark II Manual (free pdf) or the online Canon SX740 Manual.

Review summary

So how do things add up? Is the Canon G9 X Mark II better than the Canon SX740 or vice versa? The listing below highlights the relative strengths of the two models.

Advantages of the Canon PowerShot G9 X Mark II:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 922k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Better light gathering: Has a lens with a wider maximum aperture (f/2.0 vs f/3.3).
• More compact: Is smaller (98x58mm vs 110x64mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 93g or 31 percent) and hence easier to carry around.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More heavily discounted: Has been on the market for longer (launched in January 2017).

Reasons to prefer the Canon PowerShot SX740 HS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better jpgs: Has a more modern image processing engine (DIGIC 8 vs DIGIC 7).
• Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/3200s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (10 vs 8.2 flaps/sec) to capture the decisive moment.
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• Longer lasting: Gets more shots (265 versus 235) out of a single battery charge.
• More affordable: Was released into a lower priced segment (25 percent cheaper at launch).
• More modern: Was introduced somewhat (1 year and 6 months) more recently.

If the count of individual advantages (bullet points above) is taken as a guide, the match-up finishes in a tie (12 points each). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon G9 X Mark II and the Canon SX740 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the G9X Mark II and the SX740 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	US$ 529	ebay.com
2.		Canon SX740	..	+	3.5/5	..	4/5	4/5	Jul 2018	US$ 399	amazon.com
3.		Canon 200D	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
4.		Canon 1300D	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	US$ 449	ebay.com
5.		Canon 2000D	3/5	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	US$ 449	amazon.com
6.		Canon G5 X Mark II	4/5	+	4/5	82/100	..	4/5	Jul 2019	US$ 899	ebay.com
7.		Canon G7 X Mark III	..	+ +	4/5	81/100	4/5	..	Jul 2019	US$ 749	amazon.com
8.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	US$ 529	ebay.com
9.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	US$ 499	ebay.com
10.		Canon S120	..	+ +	..	..	4.5/5	4.5/5	Aug 2013	US$ 449	ebay.com
11.		Canon SX70	..	+ +	3.5/5	..	3.5/5	3.5/5	Sep 2018	US$ 549	amazon.com
12.		Canon SX620	..	..	..	..	..	4/5	May 2016	US$ 279	ebay.com
13.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	US$ 399	ebay.com
14.		Panasonic TZ90	..	+ +	4/5	..	4/5	4/5	Apr 2017	US$ 449	ebay.com
15.		Panasonic TZ95	..	+ +	..	..	4.5/5	..	Feb 2019	US$ 449	ebay.com
16.		Sony HX95	..	..	..	..	..	..	Aug 2018	US$ 429	ebay.com
17.		Sony HX99	..	..	..	..	4/5	4.5/5	Aug 2018	US$ 449	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
