Canon G9 X vs Olympus Stylus 1

The Canon PowerShot G9 X and the Olympus Stylus 1 are two digital cameras that were officially introduced, respectively, in October 2015 and October 2013. Both the G9X and the Stylus 1 are fixed lens compact cameras that are based on an one-inch (G9X) and a 1/1.7-inch (Stylus 1) sensor. The Canon has a resolution of 20 megapixels, whereas the Olympus provides 11.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon G9 X		Olympus Stylus 1
Fixed lens compact camera		Fixed lens compact camera
28-84mm f/2.0-4.9		28-300mm f/2.8
20 MP – 1" sensor		11.8 MP – 1/1.7" sensor
1080/60p Video		1080/30p Video
ISO 125-12,800		ISO 100-12,800
No viewfinder, LCD framing		Electronic viewfinder (1440k dots)
3.0" LCD – 1040k dots		3.0" LCD – 1040k dots
Fixed touchscreen		Tilting touchscreen
6 shutter flaps per second		7 shutter flaps per second
220 shots per battery charge		410 shots per battery charge
98 x 58 x 31 mm, 209 g		116 x 87 x 57 mm, 402 g

Check G9X offers at
ebay.com
Check Stylus 1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G9 X and the Olympus Stylus 1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

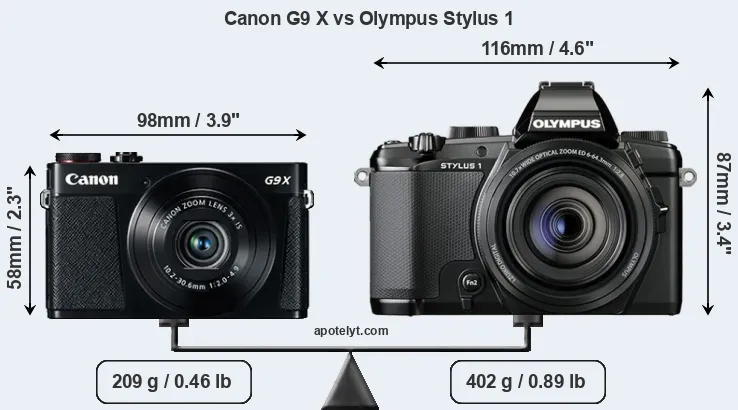

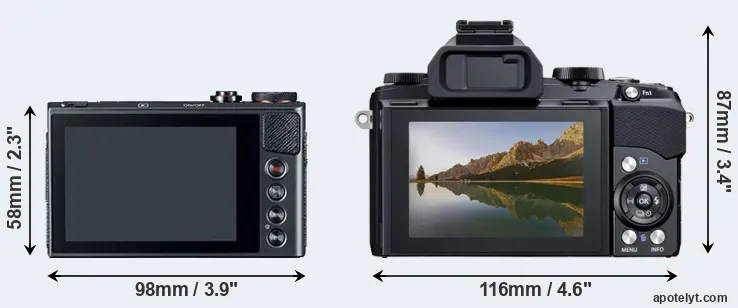

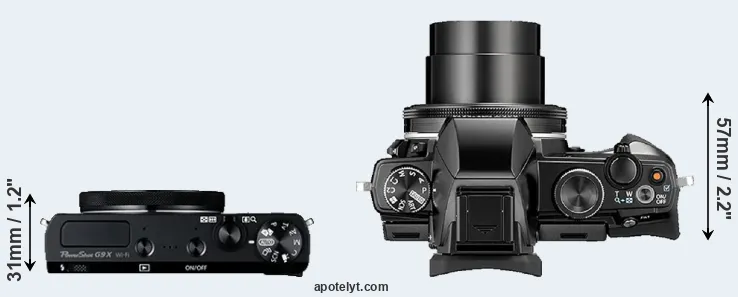

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon G9 X and the Olympus Stylus 1. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

The G9X can be obtained in two different colors (black, silver), while the Stylus 1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus Stylus 1 is considerably larger (78 percent) than the Canon G9 X. Moreover, the Stylus 1 is substantially heavier (92 percent) than the G9X. In this context, it is worth noting that neither the G9X nor the Stylus 1 are weather-sealed.

Concerning battery life, the G9X gets 220 shots out of its Canon NB-13L battery, while the Stylus 1 can take 410 images on a single charge of its Olympus BLS-5 power pack. The power pack in the G9X can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	US$ 529	ebay.com
2.		Olympus Stylus 1	116 mm	87 mm	57 mm	402 g	410	n	Oct 2013	US$ 699	ebay.com
3.		Canon 1200D	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	US$ 449	ebay.com
4.		Canon 1300D	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	US$ 449	ebay.com
5.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	US$ 799	ebay.com
6.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	US$ 799	ebay.com
7.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
8.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	US$ 529	ebay.com
9.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
10.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	US$ 499	ebay.com
11.		Canon S120	100 mm	59 mm	29 mm	217 g	230	n	Aug 2013	US$ 449	ebay.com
12.		Canon SX610	105 mm	61 mm	27 mm	191 g	270	n	Jan 2015	US$ 249	ebay.com
13.		Canon SX620	97 mm	57 mm	28 mm	182 g	295	n	May 2016	US$ 279	ebay.com
14.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	US$ 599	ebay.com
15.		Nikon 1 J4	100 mm	60 mm	29 mm	232 g	300	n	Apr 2014	US$ 549	ebay.com
16.		Olympus Stylus 1s	116 mm	87 mm	57 mm	402 g	450	n	Apr 2015	US$ 699	ebay.com
17.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	US$ 599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The G9X was launched at a somewhat lower price (by 24 percent) than the Stylus 1, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon G9 X features an one-inch sensor and the Olympus Stylus 1 a 1/1.7-inch sensor. The sensor area in the Stylus 1 is 63 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 4.5. The sensor in the G9X has a native 3:2 aspect ratio, while the one in the Stylus 1 offers a 4:3 aspect.

With 20MP, the G9X offers a higher resolution than the Stylus 1 (11.8MP), but the G9X nevertheless has larger individual pixels (pixel pitch of 2.41μm versus 1.91μm for the Stylus 1) due to its larger sensor. Moreover, the G9X is a somewhat more recent model (by 1 year and 11 months) than the Stylus 1, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the Stylus 1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon G9 X implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the G9X for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Olympus Stylus 1 are 19.8 x 14.9 inches or 50.4 x 37.8 cm for good quality, 15.9 x 11.9 inches or 40.3 x 30.2 cm for very good quality, and 13.2 x 9.9 inches or 33.6 x 25.2 cm for excellent quality prints.

The Canon PowerShot G9 X has a native sensitivity range from ISO 125 to ISO 12800. The corresponding ISO settings for the Olympus Stylus 1 are ISO 100 to ISO 12800 (no boost).

Technology-wise, both cameras are equipped with BSI-CMOS (Backside Illuminated Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the G9X provides substantially higher image quality than the Stylus 1, with an overall score that is 12 points higher. This advantage is based on 0.8 bits higher color depth, 0.7 EV in additional dynamic range, and 1.5 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
2.		Olympus Stylus 1	1/1.7	11.8	3968	2976	1080/30p	20.7	11.6	179	51
3.		Canon 1200D	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
4.		Canon 1300D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
5.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
6.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
7.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
8.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
9.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
10.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
11.		Canon S120	1/1.7	12.0	4000	3000	1080/60p	21.3	11.9	246	56
12.		Canon SX610	1/2.3	20.2	5184	3888	1080/30p	20.2	11.6	712	47
13.		Canon SX620	1/2.3	20.2	5184	3888	1080/30p	20.4	11.8	838	49
14.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
15.		Nikon 1 J4	1-inch	18.2	5232	3488	1080/60p	20.8	10.7	426	53
16.		Olympus Stylus 1s	1/1.7	11.8	3968	2976	1080/30p	20.2	11.3	-111	47
17.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the G9X provides a higher frame rate than the Stylus 1. It can shoot video footage at 1080/60p, while the Olympus is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the Stylus 1 has an electronic viewfinder (1440k dots), which can be very helpful when shooting in bright sunlight. In contrast, the G9X relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon G9 X, the Olympus Stylus 1, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
2.		Olympus Stylus 1	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
3.		Canon 1200D	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
4.		Canon 1300D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
5.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
6.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
7.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
8.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
9.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
10.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
11.		Canon S120	none	n	3.0 / 922	fixed	Y	1/2000s	12.1/s	Y	Y
12.		Canon SX610	none	n	3.0 / 922	fixed	n	1/2000s	2.5/s	Y	Y
13.		Canon SX620	none	n	3.0 / 922	fixed	n	1/2000s	2.5/s	Y	Y
14.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
15.		Nikon 1 J4	none	n	3.0 / 1037	Fixed	Y	1/4000s	60.0/s	Y	n
16.		Olympus Stylus 1s	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
17.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Canon G9 X and the Olympus Stylus 1 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Both the G9X and the Stylus 1 have zoom lenses built in. The G9X has a 28-84mm f/2.0-4.9 optic and the Stylus 1 offers a 28-300mm f/2.8-2.8 (focal lengths in full frame equivalent terms). Hence, the Canon and Olympus provide the same view at the wide-angle end, but the Olympus has more tele-photo reach at the long end. The G9X offers the faster maximum aperture.

Concerning the storage of imaging data, both the G9X and the Stylus 1 write their files to SDXC cards. The G9X supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the Stylus 1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G9 X and Olympus Stylus 1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
2.		Olympus Stylus 1	Y	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon 1200D	Y	mono / mono	-	-	mini	2.0	-	-	-
4.		Canon 1300D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
5.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
6.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
7.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
8.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
9.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
10.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
11.		Canon S120	-	stereo / mono	-	-	mini	2.0	Y	-	-
12.		Canon SX610	-	- / -	-	-	micro	2.0	Y	Y	-
13.		Canon SX620	-	mono / mono	-	-	micro	2.0	Y	Y	-
14.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
15.		Nikon 1 J4	-	stereo / mono	-	-	mini	2.0	Y	-	-
16.		Olympus Stylus 1s	Y	stereo / mono	-	-	micro	2.0	Y	-	-
17.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the Stylus 1 has a hotshoe, which makes it possible to easily attach optional accessories, such as an external flash gun. The G9X does not feature such an accessory-socket.

Both the G9X and the Stylus 1 have been discontinued, but can regularly be found used on ebay. The Stylus 1 was replaced by the Olympus Stylus 1s, while the G9X was followed by the Canon G9 X Mark II. Further information on the features and operation of the G9X and Stylus 1 can be found, respectively, in the Canon G9 X Manual (free pdf) or the online Olympus Stylus 1 Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon G9 X or the Olympus Stylus 1 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon PowerShot G9 X:

• More detail: Offers more megapixels (20 vs 11.8MP) with a 33% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Scores substantially higher (12 points) in the DXO overall assessment.
• More dynamic range: Captures a larger spectrum of light and dark details (0.7 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (1.5 stops ISO advantage).
• Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
• Better light gathering: Has a lens with a wider maximum aperture (f/2.0 vs f/2.8).
• More compact: Is smaller (98x58mm vs 116x87mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 193g or 48 percent) and hence easier to carry around.
• Easier travel charging: Can be conveniently charged via its USB port.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced into a lower priced segment (24 percent cheaper at launch).
• More modern: Is somewhat more recent (announced 1 year and 11 months after the Stylus 1).

Arguments in favor of the Olympus Stylus 1:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Faster burst: Shoots at higher frequency (7 vs 6 flaps/sec) to capture the decisive moment.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• Longer lasting: Gets more shots (410 versus 220) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been on the market for longer (launched in October 2013).

If the number of relative strengths (bullet points above) is taken as a guide, the G9X is the clear winner of the match-up (14 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon G9 X and the Olympus Stylus 1 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the G9X or the Stylus 1. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	US$ 529	ebay.com
2.		Olympus Stylus 1	..	+ +	..	..	4.5/5	4.5/5	Oct 2013	US$ 699	ebay.com
3.		Canon 1200D	3/5	+	..	..	4/5	4.5/5	Feb 2014	US$ 449	ebay.com
4.		Canon 1300D	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	US$ 449	ebay.com
5.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	US$ 799	ebay.com
6.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	US$ 799	ebay.com
7.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
8.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	US$ 529	ebay.com
9.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
10.		Canon M10	..	..	..	..	..	4/5	Oct 2015	US$ 499	ebay.com
11.		Canon S120	..	+ +	..	..	4.5/5	4.5/5	Aug 2013	US$ 449	ebay.com
12.		Canon SX610	..	..	..	..	4/5	4/5	Jan 2015	US$ 249	ebay.com
13.		Canon SX620	..	..	..	..	..	4/5	May 2016	US$ 279	ebay.com
14.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	US$ 599	ebay.com
15.		Nikon 1 J4	3/5	..	..	..	4.5/5	4/5	Apr 2014	US$ 549	ebay.com
16.		Olympus Stylus 1s	..	..	..	..	..	..	Apr 2015	US$ 699	ebay.com
17.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
