Canon M5 vs SX730

The Canon EOS M5 and the Canon PowerShot SX730 HS are two digital cameras that were officially introduced, respectively, in September 2016 and April 2017. The M5 is a mirrorless interchangeable lens camera, while the SX730 is a fixed lens compact. The cameras are based on an APS-C (M5) and a 1/2.3-inch (SX730) sensor. The M5 has a resolution of 24 megapixels, whereas the SX730 provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M5		Canon SX730
Mirrorless system camera		Fixed lens compact camera
Canon EF-M mount lenses		24-960mm f/3.3-6.9
24 MP – APS-C sensor		20.2 MP – 1/2.3" sensor
1080/60p Video		1080/60p Video
ISO 100-25,600		ISO 80-3,200
Electronic viewfinder (2360k dots)		No viewfinder, LCD framing
3.2" LCD – 1620k dots		3.0" LCD – 922k dots
Tilting touchscreen		Tilting screen (no touchscreen)
9 shutter flaps per second		5.9 shutter flaps per second
295 shots per battery charge		250 shots per battery charge
116 x 89 x 61 mm, 427 g		110 x 64 x 40 mm, 300 g

Check M5 offers at
ebay.com
Check SX730 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M5 and the Canon PowerShot SX730 HS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

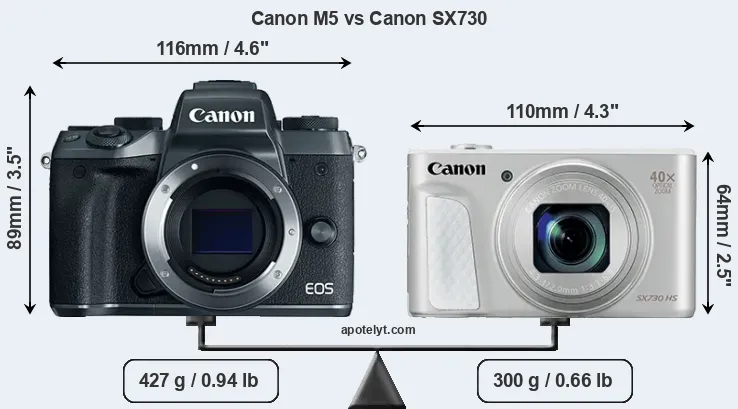

The physical size and weight of the Canon M5 and the Canon SX730 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

The SX730 can be obtained in two different colors (black, silver), while the M5 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX730 is considerably smaller (32 percent) than the Canon M5. In this context, it is worth noting that neither the M5 nor the SX730 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX730 has a lens built in, whereas the M5 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

Concerning battery life, the M5 gets 295 shots out of its Canon LP-E17 battery, while the SX730 can take 250 images on a single charge of its Canon NB-13L power pack. The power pack in the SX730 can be charged via the USB port, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	US$ 979	ebay.com
2.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	US$ 399	ebay.com
3.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	US$ 899	ebay.com
4.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	US$ 679	ebay.com
5.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	US$ 779	ebay.com
6.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	US$ 499	ebay.com
7.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	US$ 779	ebay.com
8.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	US$ 499	ebay.com
9.		Canon SL2	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
10.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	US$ 299	ebay.com
11.		Canon SX540	120 mm	82 mm	92 mm	442 g	205	n	Jan 2016	US$ 399	ebay.com
12.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	US$ 349	ebay.com
13.		Canon SX720	110 mm	64 mm	36 mm	270 g	250	n	Feb 2016	US$ 379	ebay.com
14.		Canon SX740	110 mm	64 mm	40 mm	299 g	265	n	Jul 2018	US$ 399	amazon.com
15.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	US$ 749	ebay.com
16.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	US$ 649	ebay.com
17.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	US$ 899	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX730 was launched at a lower price than the M5, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon M5 features an APS-C sensor and the Canon SX730 a 1/2.3-inch sensor. The sensor area in the SX730 is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 5.6. The sensor in the M5 has a native 3:2 aspect ratio, while the one in the SX730 offers a 4:3 aspect.

In terms of chip-set technology, the M5 uses a more advanced image processing engine (DIGIC 7) than the SX730 (DIGIC 6), with benefits for noise reduction, color accuracy, and processing speed.

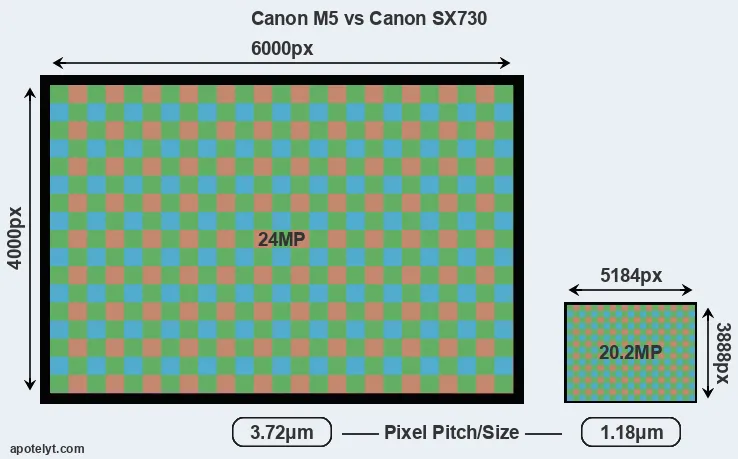

With 24MP, the M5 offers a higher resolution than the SX730 (20.2MP), but the M5 nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 1.18μm for the SX730) due to its larger sensor. However, the SX730 is a somewhat more recent model (by 6 months) than the M5, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the SX730 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon M5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M5 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon SX730 are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.

The M5 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS M5 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Canon PowerShot SX730 HS are ISO 80 to ISO 3200 (no boost).

In terms of underlying technology, the M5 is build around a CMOS sensor, while the SX730 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
2.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
3.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
4.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
5.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
6.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
7.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
8.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
9.		Canon SL2	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
10.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
11.		Canon SX540	1/2.3	20.2	5184	3888	1080/60p	20.3	11.7	806	48
12.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
13.		Canon SX720	1/2.3	20.2	5184	3888	1080/60p	20.3	11.8	817	48
14.		Canon SX740	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1050	51
15.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
16.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
17.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (1080/60p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the M5 has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the SX730 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon M5 and Canon SX730 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
2.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
3.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
4.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
5.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
6.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
7.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
8.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
9.		Canon SL2	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
10.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
11.		Canon SX540	none	n	3.0 / 461	fixed	n	1/2000s	5.9/s	Y	Y
12.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
13.		Canon SX720	none	n	3.0 / 922	fixed	n	1/3200s	5.9/s	Y	Y
14.		Canon SX740	none	n	3.0 / 922	tilting	n	1/3200s	10.0/s	Y	Y
15.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
16.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
17.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

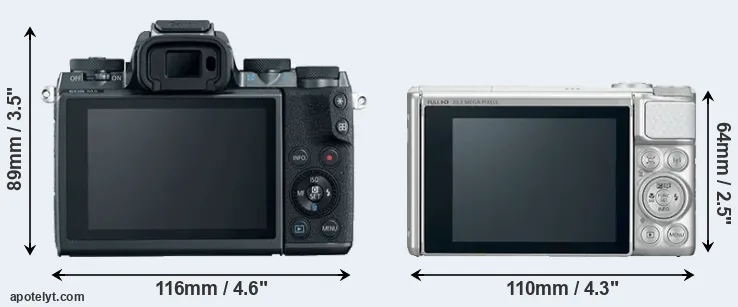

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M5 has a touchscreen, while the SX730 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

Concerning the storage of imaging data, both the M5 and the SX730 write their files to SDXC cards. The M5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX730 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M5 and Canon PowerShot SX730 HS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
2.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
3.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
5.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
6.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
7.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
8.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
9.		Canon SL2	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
10.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
11.		Canon SX540	-	stereo / mono	-	-	mini	2.0	Y	Y	-
12.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
13.		Canon SX720	-	stereo / mono	-	-	micro	2.0	Y	Y	-
14.		Canon SX740	-	stereo / mono	-	-	micro	2.0	Y	-	Y
15.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
16.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
17.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-

It is notable that the M5 has a hotshoe, while the SX730 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Both the M5 and the SX730 have been discontinued, but can regularly be found used on ebay. The SX730 was replaced by the Canon SX730 HS, while the M5 does not have a direct successor. Further information on the features and operation of the M5 and SX730 can be found, respectively, in the Canon M5 Manual (free pdf) or the online Canon SX730 Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Canon M5 or the Canon SX730 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Canon EOS M5:

• More detail: Offers more megapixels (24 vs 20.2MP) with a 11% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better jpgs: Has a more modern image processing engine (DIGIC 7 vs DIGIC 6).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1620k vs 922k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/3200s) to freeze action.
• Faster burst: Shoots at higher frequency (9 vs 5.9 flaps/sec) to capture the decisive moment.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Longer lasting: Can take more shots (295 versus 250) on a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More heavily discounted: Has been on the market for longer (launched in September 2016).

Advantages of the Canon PowerShot SX730 HS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Ready to shoot: Has an integrated lens, whereas the M5 necessitates an extra lens.
• More compact: Is smaller (110x64mm vs 116x89mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the M5).
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Was introduced somewhat (6 months) more recently.

If the count of individual advantages (bullet points above) is taken as a guide, the M5 is the clear winner of the match-up (20 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M5 and the Canon SX730 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the M5 and the SX730 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	US$ 979	ebay.com
2.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	US$ 399	ebay.com
3.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	US$ 899	ebay.com
4.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	US$ 679	ebay.com
5.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	US$ 779	ebay.com
6.		Canon M10	..	..	..	..	..	4/5	Oct 2015	US$ 499	ebay.com
7.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	US$ 779	ebay.com
8.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	US$ 499	ebay.com
9.		Canon SL2	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
10.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	US$ 299	ebay.com
11.		Canon SX540	..	..	..	..	..	..	Jan 2016	US$ 399	ebay.com
12.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	US$ 349	ebay.com
13.		Canon SX720	..	+	..	..	4/5	4.5/5	Feb 2016	US$ 379	ebay.com
14.		Canon SX740	..	+	3.5/5	..	4/5	4/5	Jul 2018	US$ 399	amazon.com
15.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	US$ 749	ebay.com
16.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	US$ 649	ebay.com
17.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	US$ 899	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check M5 offers at
ebay.com
Check SX730 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check M5 offers at
ebay.com
Check SX730 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
