Canon S120 vs Pentax K-500

The Canon PowerShot S120 and the Pentax K-500 are two digital cameras that were officially introduced, respectively, in August 2013 and June 2013. The S120 is a fixed lens compact, while the K-500 is a DSLR. The cameras are based on a 1/1.7-inch (S120) and an APS-C (K-500) sensor. The Canon has a resolution of 12 megapixels, whereas the Pentax provides 16.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon S120		Pentax K-500
Fixed lens compact camera		Digital single lens reflex
24-120mm f/1.8-5.7		Pentax K mount lenses
12 MP – 1/1.7" sensor		16.1 MP – APS-C sensor
1080/60p Video		1080/30p Video
ISO 80-12,800		ISO 100-51,200
No viewfinder, LCD framing		Optical viewfinder
3.0" LCD – 922k dots		3.0" LCD – 921k dots
Fixed touchscreen		Fixed screen (not touch-sensitive)
12.1 shutter flaps per second		6 shutter flaps per second
Lens-based stabilization		In-body stabilization
230 shots per battery charge		710 shots per battery charge
100 x 59 x 29 mm, 217 g		130 x 97 x 71 mm, 646 g

Check S120 offers at
ebay.com
Check K-500 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot S120 and the Pentax K-500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

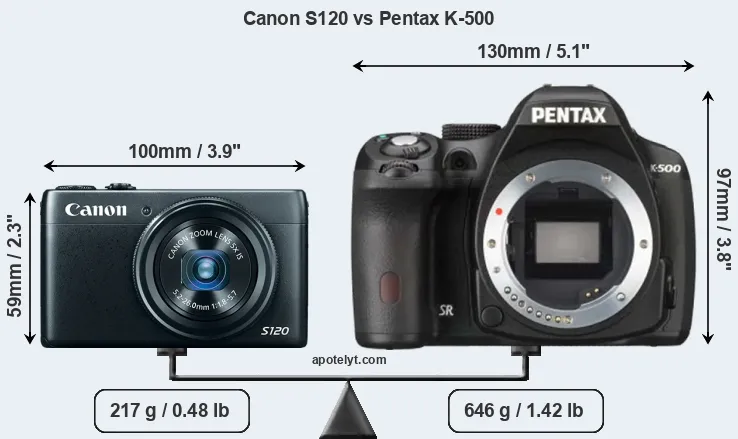

An illustration of the physical size and weight of the Canon S120 and the Pentax K-500 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax K-500 is considerably larger (114 percent) than the Canon S120. In this context, it is worth noting that neither the S120 nor the K-500 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the S120 has a lens built in, whereas the K-500 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon S120	100 mm	59 mm	29 mm	217 g	230	n	Aug 2013	US$ 449	ebay.com
2.		Pentax K-500	130 mm	97 mm	71 mm	646 g	710	n	Jun 2013	US$ 549	ebay.com
3.		Canon G1 X	117 mm	81 mm	65 mm	534 g	250	n	Jan 2012	US$ 799	ebay.com
4.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	US$ 799	ebay.com
5.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	US$ 529	ebay.com
6.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	US$ 529	ebay.com
7.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	US$ 499	ebay.com
8.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
9.		Canon SX50	123 mm	87 mm	106 mm	595 g	315	n	Sep 2012	US$ 429	ebay.com
10.		Nikon P7800	119 mm	78 mm	50 mm	399 g	350	n	Sep 2013	US$ 549	ebay.com
11.		Panasonic LF1	103 mm	62 mm	28 mm	192 g	250	n	Apr 2013	US$ 499	ebay.com
12.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	US$ 499	ebay.com
13.		Pentax K-5	131 mm	97 mm	73 mm	760 g	740	Y	Sep 2010	US$ 1 099	ebay.com
14.		Pentax K-5 II	131 mm	97 mm	73 mm	760 g	740	Y	Sep 2012	US$ 1 099	ebay.com
15.		Pentax K-30	130 mm	97 mm	71 mm	650 g	410	Y	May 2012	US$ 849	ebay.com
16.		Pentax K-50	130 mm	97 mm	71 mm	650 g	410	Y	Jun 2013	US$ 599	ebay.com
17.		Pentax K-S1	121 mm	93 mm	70 mm	558 g	410	n	Aug 2014	US$ 749	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The S120 was launched at a lower price than the K-500, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

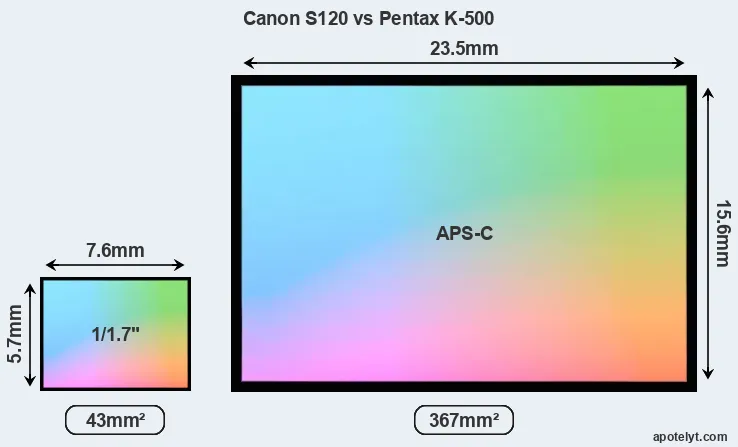

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon S120 features a 1/1.7-inch sensor and the Pentax K-500 an APS-C sensor. The sensor area in the K-500 is 753 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 4.5 and 1.5. The sensor in the S120 has a native 4:3 aspect ratio, while the one in the K-500 offers a 3:2 aspect.

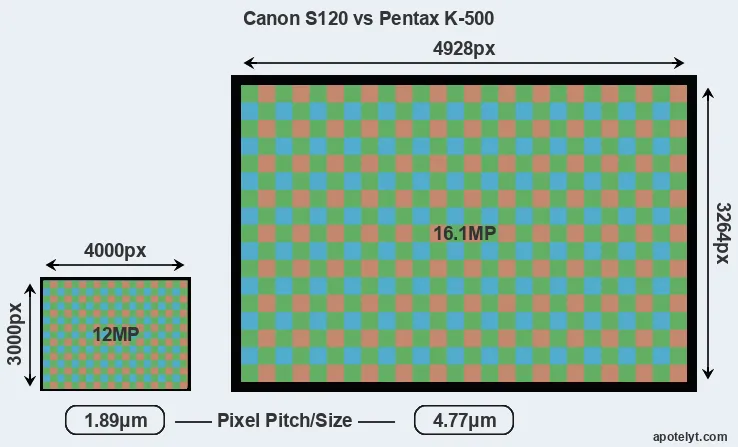

With 16.1MP, the K-500 offers a higher resolution than the S120 (12MP), but the K-500 nevertheless has larger individual pixels (pixel pitch of 4.77μm versus 1.89μm for the S120) due to its larger sensor. It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation.

The resolution advantage of the Pentax K-500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the K-500 for good quality output (200 dots per inch) amounts to 24.6 x 16.3 inches or 62.6 x 41.5 cm, for very good quality (250 dpi) 19.7 x 13.1 inches or 50.1 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inches or 41.7 x 27.6 cm. The corresponding values for the Canon S120 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Canon PowerShot S120 has a native sensitivity range from ISO 80 to ISO 12800. The corresponding ISO settings for the Pentax K-500 are ISO 100 to ISO 51200 (no boost).

In terms of underlying technology, the S120 is build around a BSI-CMOS sensor, while the K-500 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the K-500 offers substantially better image quality than the S120 (overall score 23 points higher). The advantage is based on 2.4 bits higher color depth, 1.2 EV in additional dynamic range, and 2.1 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon S120	1/1.7	12.0	4000	3000	1080/60p	21.3	11.9	246	56
2.		Pentax K-500	APS-C	16.1	4928	3264	1080/30p	23.7	13.1	1087	79
3.		Canon G1 X	1.5-inch	14.2	4352	3264	1080/24p	21.7	10.8	644	60
4.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
5.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
6.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
7.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
8.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
9.		Canon SX50	1/2.3	12.0	4000	3000	1080/24p	20.3	11.2	179	47
10.		Nikon P7800	1/1.7	12.0	4000	3000	1080/30p	21.2	11.7	200	54
11.		Panasonic LF1	1/1.7	12.0	4000	3000	1080/60i	20.8	11.6	211	52
12.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50
13.		Pentax K-5	APS-C	16.1	4928	3264	1080/25p	23.7	14.1	1162	82
14.		Pentax K-5 II	APS-C	16.1	4928	3264	1080/25p	23.8	14.1	1235	82
15.		Pentax K-30	APS-C	16.1	4928	3264	1080/30p	23.7	13.0	1129	79
16.		Pentax K-50	APS-C	16.1	4928	3264	1080/30p	23.7	13.0	1120	79
17.		Pentax K-S1	APS-C	20.0	5472	3648	1080/30p	23.5	13.0	1061	78

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the S120 provides a higher frame rate than the K-500. It can shoot video footage at 1080/60p, while the Pentax is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the K-500 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the S120 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon S120, the Pentax K-500, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon S120	none	n	3.0 / 922	fixed	Y	1/2000s	12.1/s	Y	Y
2.		Pentax K-500	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
3.		Canon G1 X	optical	n	3.0 / 922	swivel	n	1/4000s	1.9/s	Y	Y
4.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
5.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
6.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
7.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
8.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
9.		Canon SX50	202	n	3.0 / 461	swivel	n	1/2000s	2.2/s	Y	Y
10.		Nikon P7800	921	n	3.0 / 921	swivel	n	1/4000s	8.0/s	Y	Y
11.		Panasonic LF1	200	n	3.0 / 920	fixed	n	1/4000s	10.0/s	Y	Y
12.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
13.		Pentax K-5	optical	Y	3.0 / 921	fixed	n	1/8000s	7.0/s	Y	Y
14.		Pentax K-5 II	optical	Y	3.0 / 921	fixed	n	1/8000s	7.0/s	Y	Y
15.		Pentax K-30	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
16.		Pentax K-50	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
17.		Pentax K-S1	optical	n	3.0 / 921	fixed	n	1/6000s	5.4/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The S120 has a touchscreen, while the K-500 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Canon S120 and the Pentax K-500 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the S120 and the K-500 write their files to SDXC cards. The S120 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the K-500 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot S120 and Pentax K-500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon S120	-	stereo / mono	-	-	mini	2.0	Y	-	-
2.		Pentax K-500	Y	mono / mono	-	-	-	2.0	-	-	-
3.		Canon G1 X	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
5.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
7.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
9.		Canon SX50	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Nikon P7800	Y	stereo / mono	Y	-	mini	2.0	-	-	-
11.		Panasonic LF1	-	stereo / mono	-	-	mini	2.0	Y	Y	-
12.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Pentax K-5	Y	stereo / mono	Y	-	mini	2.0	-	-	-
14.		Pentax K-5 II	Y	stereo / mono	Y	-	mini	2.0	-	-	-
15.		Pentax K-30	Y	mono / mono	-	-	-	2.0	-	-	-
16.		Pentax K-50	Y	mono / mono	-	-	micro	2.0	-	-	-
17.		Pentax K-S1	Y	stereo / mono	-	-	micro	2.0	-	-	-

It is notable that the S120 offers wifi support, while the K-500 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the S120 and the K-500 have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Canon and Pentax. Further information on the features and operation of the S120 and K-500 can be found, respectively, in the Canon S120 Manual (free pdf) or the online Pentax K-500 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon S120 and the Pentax K-500? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Canon PowerShot S120:

• Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Faster burst: Shoots at higher frequency (12.1 vs 6 flaps/sec) to capture the decisive moment.
• Ready to shoot: Comes with a built-in lens, while the K-500 requires a separate lens.
• More compact: Is smaller (100x59mm vs 130x97mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the K-500).
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.

Arguments in favor of the Pentax K-500:

• More detail: Has more megapixels (16.1 vs 12MP), which boosts linear resolution by 18%.
• Better image quality: Scores substantially higher (23 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (2.4 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (1.2 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (2.1 stops ISO advantage).
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Faster shutter: Has higher mechanical shutter speed (1/6000s vs 1/2000s) to freeze action.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Longer lasting: Gets more shots (710 versus 230) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.

If the count of individual advantages (bullet points above) is taken as a guide, the K-500 comes out slightly ahead of the S120 (10 : 9 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon S120 and the Pentax K-500 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the S120 or the K-500 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon S120	..	+ +	..	..	4.5/5	4.5/5	Aug 2013	US$ 449	ebay.com
2.		Pentax K-500	..	..	..	..	4.5/5	4.5/5	Jun 2013	US$ 549	ebay.com
3.		Canon G1 X	5/5	+	..	76/100	4/5	4.5/5	Jan 2012	US$ 799	ebay.com
4.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	US$ 799	ebay.com
5.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	US$ 529	ebay.com
6.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	US$ 529	ebay.com
7.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	US$ 499	ebay.com
8.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
9.		Canon SX50	3/5	+ +	..	72/100	4.5/5	4.5/5	Sep 2012	US$ 429	ebay.com
10.		Nikon P7800	3/5	..	..	..	4/5	4.5/5	Sep 2013	US$ 549	ebay.com
11.		Panasonic LF1	3/5	+	..	..	4/5	4.5/5	Apr 2013	US$ 499	ebay.com
12.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	US$ 499	ebay.com
13.		Pentax K-5	4/5	..	..	83/100	5/5	4.5/5	Sep 2010	US$ 1 099	ebay.com
14.		Pentax K-5 II	5/5	..	..	80/100	5/5	4.5/5	Sep 2012	US$ 1 099	ebay.com
15.		Pentax K-30	4/5	..	..	78/100	4.5/5	4.5/5	May 2012	US$ 849	ebay.com
16.		Pentax K-50	5/5	..	..	..	5/5	4.5/5	Jun 2013	US$ 599	ebay.com
17.		Pentax K-S1	4/5	..	..	..	4.5/5	4/5	Aug 2014	US$ 749	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
